TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual

RAV4-HV_OM_OM42B03U_(U)
4215-12. Other function
5
Audio system
■Microphone
→P. 384
■ When using the microphone
●It is unnecessary to speak directly into the microphone when giving a com-
mand.
● When “Voice Prompt Interrupt” is set on, it is not necessary to wait for the
confirmation beep before speaking a command. ( →P. 344)
● Voice commands may not be recognized if:
• They are spoken too quickly.
• They are spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
● In the following conditions, the system may not recognize the command
properly and using voice commands may not be possible:
• The command is incorrect or unclear. Note that certain words, accents or
speech patterns may be difficult for the system to recognize.
• There is excessive background noise, such as wind noise.
Due to natural language speech recognition technology, this system
enables recognition of a command when spoken naturally. However,
the system cannot recognize ev ery variation of each command.
In some situations, it is possibl e to omit the command for the proce-
dure and directly state the desired operation.
Not all voice commands are displayed in the shortcut menu.
This function is available in English, Spanish and French.
■Expression examples for each function
Casual speech recognization
CommandExpression examples
“Call
”Get me .
I need to call at right away.
“Dial ”Please dial the number <3334445555>.
Ring <3334445555>.

422
RAV4-HV_OM_OM42B03U_(U)
5-12. Other function
Some recognizable voice commands and their actions are shown
below as examples.
Basic
Phone

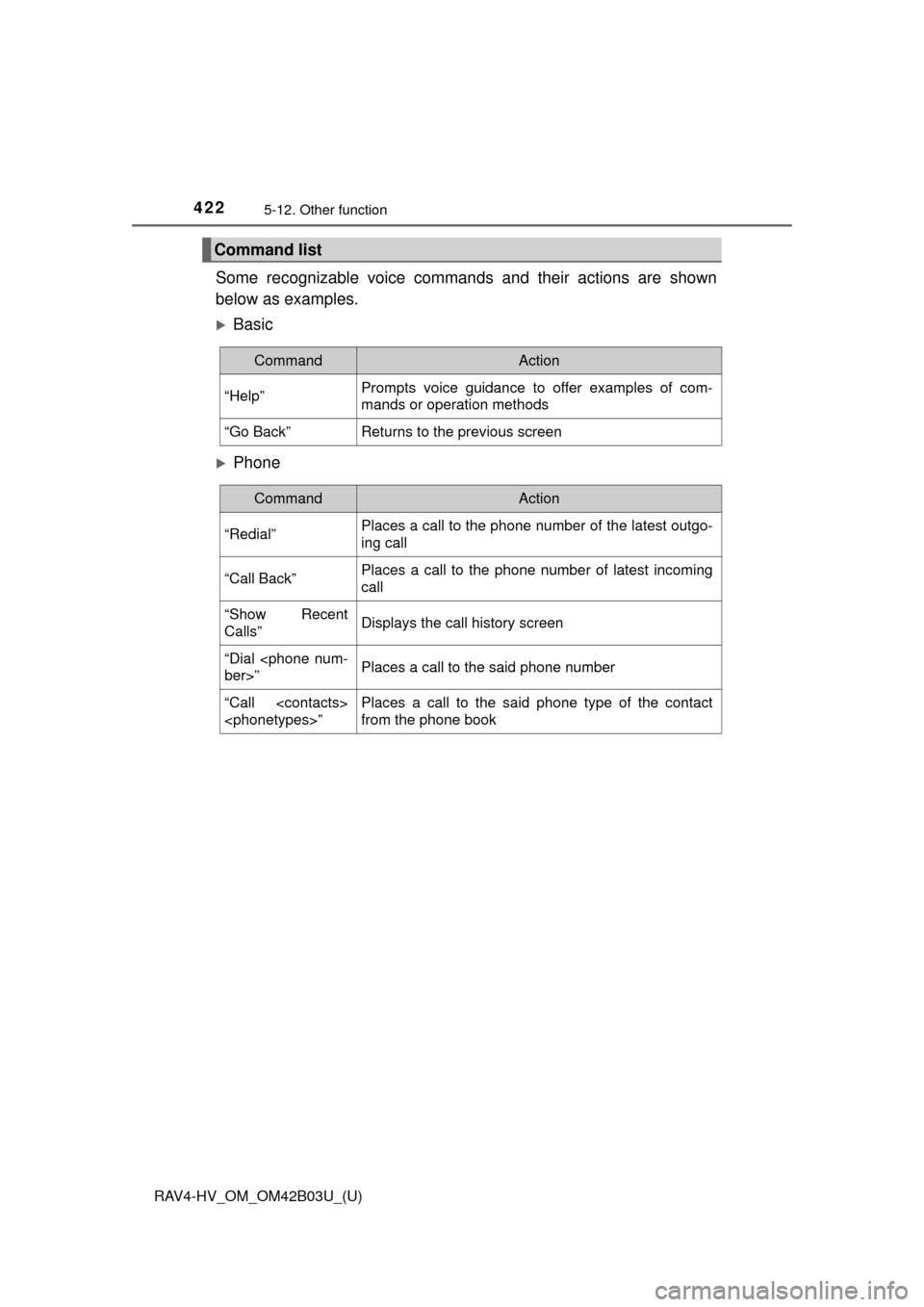

Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent
Calls”Displays the call history screen
“Dial ber>”Places a call to the said phone number
“Call
”Places a call to the said phone type of the contact
from the phone book

RAV4-HV_OM_OM42B03U_(U)
4235-12. Other function
5
Audio system
The Mobile Assistant feature will activate Apple’s Siri® Eyes Free
mode via the steering wheel switc hes. To operate the Mobile Assis-
tant, a compatible cellular phone must be registered and connected to
this system via Bluetooth
®. ( → P. 370)
Press and hold the until
you hear the beeps.
The Mobile Assistant can be
used only when the following
screen is displayed.
To cancel the Mobile Assistant,
select “Cancel”, or press and hold
the on the steering wheel.
To restart the Mobile Assistant for
additional commands, press the on the steering wheel.
• Mobile Assistant can only be restarted after the system responds to a voice command.
• After some phone and music commands, the Mobile Assistant feature will automatically end to complete the requested action.
■
Adjusting the Mobile Assistant volume
The volume of the Mobile Assistant can be adjusted using the
“PWR/VOL” knob or steering wheel volume control switches. The
Mobile Assistant and phone call volumes are synchronized.
Mobile Assistant
1
2

424
RAV4-HV_OM_OM42B03U_(U)
5-12. Other function
■Notes about Mobile Assistant
●The available features and functions may vary based on the iOS version
installed on the connected device.
● Some Siri
® features are limited in Eyes Free mode. If you attempt to use an
unavailable function, Siri® will inform you that the function is not available.
● If Siri
® is not enabled on the cellular phone connected via Bluetooth®, an
error message will be displayed on the screen.
● While a phone call is active, the Mobile Assistant cannot be used.
● If using the navigation feature of the cellular phone, ensure the active audio
source is Bluetooth
® audio or iPod in order to hear turn by turn direction
prompts.

425
RAV4-HV_OM_OM42B03U_(U)
6Interior features
6-1. Using the air conditioning system and defogger
Automatic air conditioning system............................. 426
Heated steering wheel/seat heaters .......... 434
• Heated steering
wheel ............................ 435
• Seat heaters ................. 435 6-2. Using the interior lights
Interior lights list ................ 436• Interior lights ................. 437
• Personal lights .............. 437
6-3. Using the storage features List of storage features ..... 439• Glove box...................... 440
• Console box .................. 440
• Cup holders .................. 441
• Bottle holders ................ 442
• Auxiliary box ................. 442
Luggage compartment features ........................... 443
6-4. Using the other interior features
Other interior features ....... 453 • Sun visors .................... 453
• Vanity mirrors ............... 453
• Power outlets ................ 454
• Armrest ......................... 455
• Coat hooks.................... 455
• Assist grips .................. 456
Garage door opener.......... 457
Compass ........................... 464

426
RAV4-HV_OM_OM42B03U_(U)
6-1. Using the air conditioning system and defogger
Automatic air conditioning system
■Adjusting the temperature setting
Turn clockwise to increase the temperature and turn the knob
counterclockwise to decrease the temperature.
The air conditioning system switches between individual and simultaneous
modes each time is pressed.
Simultaneous mode (the indicator on is on):
The driver’s side temperature control dial can be used to adjust the tem-
perature for the driver’s and passenger’s side. At this time, operate the
passenger’s side temperature control dial to enter individual mode.
Individual mode (the indicator on is off):
The temperature for the driver’s and passenger’s side can be adjusted
separately.
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Control panel

RAV4-HV_OM_OM42B03U_(U)
4276-1. Using the air conditioning system and defogger
6
Interior features
■Adjusting the fan speed setting
Press “∧”on to increase the fan speed and “ ∨” to decrease
the fan speed.
Press to turn the fan off.
■
Changing the airflow mode
To change the air outlets, press “ ∧”or “∨ ”on .
The air outlets used are switched each time either side of the button is
pressed.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
Press .
The dehumidification function begins to operate. Air outlets and fan speed
are automatically adjusted according to the temperature setting and
humidity.
Adjust the temperature setting.
■Automatic mode indicator
If the fan speed setting or air fl ow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
1
2
3
4
Using the automatic mode
1
2

428
RAV4-HV_OM_OM42B03U_(U)
6-1. Using the air conditioning system and defogger
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (the indicator is off) and
recirculated air mode (the indicator is on) each time is pressed.
■
Micro dust and pollen filter mode
Operates micro dust and pollen
filter mode on/off.
Outside air mode switches to
recirculated air mode. Pollen is
removed from the air and the air
flows to the upper part of the
body.
Usually the system will turn off
automatically after approxi-
mately 3 minutes.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to outside air mode if the
recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press
again when the windshield
is defogged.
Other functions

RAV4-HV_OM_OM42B03U_(U)
4296-1. Using the air conditioning system and defogger
6
Interior features
■Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
■
Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
Press the switch to turn the sys-
tem on/off.
The windshield wiper de-icer will
automatically turn off after a
period of time.

430
RAV4-HV_OM_OM42B03U_(U)
6-1. Using the air conditioning system and defogger
■Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
■Adjusting the position of and opening and closing the air out-
lets
Front center outlets
Direct air flow to the left or
right, up or down.
Turn the knobs to open or
close the vents.
Turn the knob to open or
close the vent for rear seat
occupants.
Air outlets
1
2
3
