TOYOTA RAV4 HYBRID 2021 Accessories, Audio & Navigation (in English)

211-2. Navigation operation
1
Quick guide
1-2.Navigation operation
*: Premium Audio only
1Press the “MAP” button.
 The current position of the
vehicle is displayed on the
map screen.
■Displaying the map screen
The following operations can
also be performed.
 Changing the map direction
( P.75)
 Displaying 3D map ( P.75)
 Changing the map color
( P.106)
 Displaying the micro city map (
P.74)
1 Select the desired point on
the map screen.
 The map screen can be
scrolled by touching, dragging
or flicking it. ( P.27)
 Press the “MAP” button to
return to the current position.■Zooming in the map
1 Select or pinch out on the
map screen. ( P.74)
■Zooming out the map
1 Select or pinch in on the
on the map screen. ( P.74)
Operating the map
screen*
Displaying the current
position of the vehicle on
the map screen
Moving the map screen
Zooming in/out the map

221-2. Navigation operation
*: Premium Audio only
1Press the “MAP” button.
2 Select .
3 There are different kinds of
methods to search for a des-
tination. ( P.84)
4 Select “Go”.
 Check that the route overview
is displayed. ( P.92) 5
Select “OK”.
 Selecting routes other than
the one recommended
( P.92)
 Guidance to the destination is
displayed on the screen and
can be heard via voice guid-
ance.
When route guidance is no lon-
ger necessary, such as when
you know the rest of the route to
your destination, the destination
can be deleted.
1 Press the “MAP” button.
2 Select .
3 Select “Yes” when the confir-
mation screen appears.
 When more than 1 destination
has been set, a list will be dis-
Guiding the route*
Setting the destination
Deleting destinations

231-2. Navigation operation
1
Quick guide
played on the screen. Select
the item(s) to be deleted.
*: Premium Audio only
1Turn the engine switch
to ACC or
ON.
2 Press the “MAP” button.
3 Select .
4 Search for your home.
• There are different kinds of methods to search for your
home. ( P.84)
5 Select “Enter”.
6 Select “OK”.
 Registration of home is com-
plete.
• Registering home in a different
way
 P.102
Registering home*
Registering home

241-2. Navigation operation
• Editing the name, location, phone number and icon
 P.102
• Setting home as the destination  P.85
1 Press the “MAP” button.
2 Select .
 Guidance to the destination is
displayed on the screen and
can be heard via voice guid-
ance.
 Setting home as the destina-
tion in a different way P.102
Setting home as the desti-
nation

25
2
2
Basic function
Basic function
2-1. Basic information before operation
Initial screen ................... 26
Touch screen ................. 27
Home screen.................. 29
Entering letters and num- bers/list screen operation..................................... 30
Screen adjustment ......... 33
Linking multi-information display and the system. 35
2-2. Connectivity settings Registering/Connecting a Bluetooth
® device ........ 36
Setting Bluetooth
® details
..................................... 40
Wi-Fi
® Hotspot ............... 48
2-3. Apple CarPlay/Android Auto
Apple CarPlay
®/Android
Auto™ .......................... 53
2-4. Other settings General settings ............. 60
Voice settings................. 64
Vehicle settings .............. 66

262-1. Basic information before operation
2-1.Basic information before operation
After a few seconds, the caution
screen will be displayed.
After about 5 seconds or select-
ing “Continue”, the caution
screen automatically switches to
the next screen.
*: Premium Audio only
This system reminds users
when to replace certain parts or
components and shows dealer
information (if registered) on the
screen.
When the vehicle reaches a pre-
viously set driving distance or
date specified for a scheduled
maintenance check, the mainte-
nance remainder screen will be
displayed when the system is
turned on. 
To prevent this screen from
being displayed again, select
“Do Not Tell Me Again”.
 To register maintenance infor-
mation: P.66
 If is selected, the regis-
tered phone number can be
called.
When system response is
extremely slow, the system can
be restarted.
1 Press and hold the “POWER
VOLUME” knob for 3 sec-
onds or more.
Initial screen
When the engine switch
is turned to
ACC or ON, the initial
screen will be displayed and
the system will begin oper-
ating.
Caution screen
WARNING
●When the vehicle is stopped
with the engine running hybrid system operating>,
always apply the parking brake
for safety.
Maintenance information*
Restarting the system

272-1. Basic information before operation
2
Basic function
Operations are performed by touching the touch screen directly with
your finger.
*1: The above operations may not be performed on all screens.
*2: The Apple CarPlay Maps applicat ion is not compatible with pinch multi-
touch gestures.

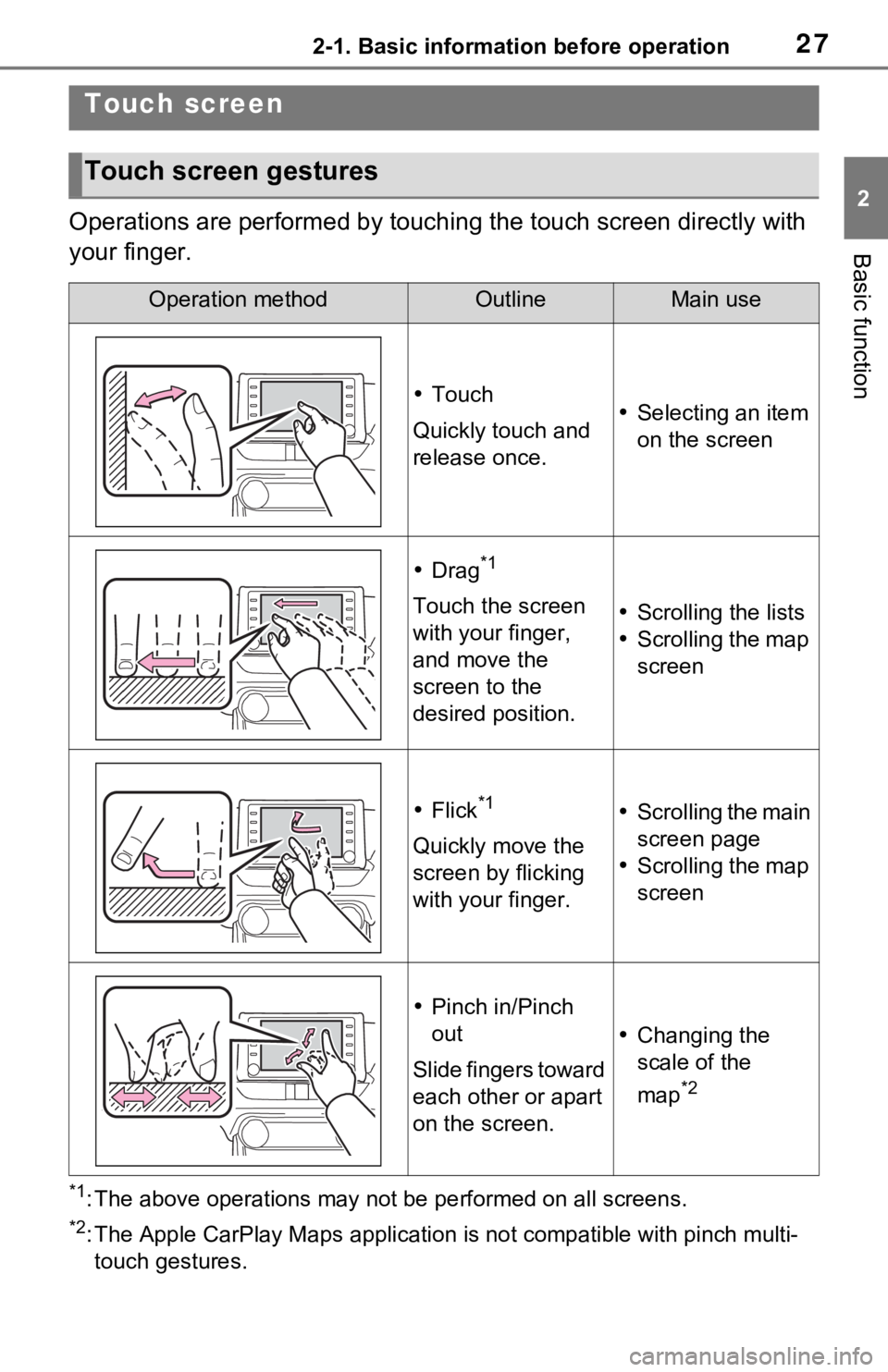

Touch screen
Touch screen gestures
Operation methodOutlineMain use
 Touch
Quickly touch and
release once. Selecting an item
on the screen
Drag*1
Touch the screen
with your finger,
and move the
screen to the
desired position. Scrolling the lists
 Scrolling the map
screen
Flick*1
Quickly move the
screen by flicking
with your finger.
 Scrolling the main
screen page
 Scrolling the map
screen
Pinch in/Pinch
out
Slide fingers toward
each other or apart
on the screen.
 Changing the
scale of the
map
*2

282-1. Basic information before operation
●Flick operations may not be per-
formed smoothly at high altitudes.
●If the system does not respond to
touching a screen button, move
your finger away from the screen
and then touch it again.
●Dimmed screen buttons cannot be
operated.
●The displayed image may become
darker and moving images may
be slightly distorted when the
screen is cold.
●In extremely cold conditions, the
screen may not be displayed and
the data input by a user may be
deleted. Also, the screen buttons
may be harder than usual to
depress.
●When you look at the screen
through polarized material such as
polarized sunglasses, the screen
may be dark and hard to see. If
so, look at the scr een from differ-
ent angles, adjust the screen set-
tings on the display settings
screen or take off your sun-
glasses.
●When is displayed on the
screen, select to return to the
previous screen.
The operable areas of the
capacitive touch screen buttons
use capacitive touch sensors
and may not operate properly in
the following situations:
 If the screen is dirty or wet
 If a source of strong electro-
magnetic waves is brought
near the screen
 If a glove is worn during oper-
ation
 If the screen is touched by a
fingernail
 If a stylus is used to operate
the buttons
 If your palm touches the oper-
able area of another button
during operation
 If a button is touched quickly
 If the operable part of a
capacitive touch screen but-
ton is touched by or covered
with a metal object, such as
the following, it may not oper-
Touch screen operation
This system is operated
mainly by the buttons on
the screen. (Referred to as
screen buttons in this man-
ual.)
When a screen button is
touched, a beep sounds. (To
set the beep sound: P.60)
NOTICE
●To prevent damaging the
screen, lightly touch the screen
buttons with your finger.
●Do not use objec ts other than
your finger to touch the screen.
●Wipe off fingerprints using a
glass cleaning cloth. Do not use
chemical cleaners to clean the
screen, as they may damage
the touch screen.
Capacitive touch screen
buttons

292-1. Basic information before operation
2
Basic function
ate properly:
• Magnetic isolation cards
• Metallic foil, such as the inner packaging of a cigarette box
• Metallic wallets or bags
• Coins
• Discs, such as a CD or DVD
 If the operable part of a
capacitive touch screen but-
ton is wiped, it may operate
unintentionally.
 If the capacitive touch screen
button is being touched when
the engine switch switch> is changed to ACC or
ON, the button may not oper-
ate properly. In this case,
remove anything touching the
button, turn the engine switch
off and then
turn it to ACC or ON, or
restart the system by press
and hold the “POWER VOL-
UME” knob for 3 seconds or
more.
●Capacitive touch screen button
sensor sensitivity can be adjusted.
( P.60)
1 Press the “HOME” button.
2 Check that the home screen
is displayed.
 Selecting a screen will display
it full screen.
●The display information and area
on the home screen can be cus-
tomized.
●The home screen can be set to
several types of split layouts.
Home screen
On the home screen, multi-
ple screens, such as the
audio/visual system screen,
hands-free screen and clock
screen, can be displayed
simultaneously.
Home screen operation

302-1. Basic information before operation
The display information/area on
the home screen and the home
screen layout can be changed.
1Press the “MENU” button.
2 Select “Setup”.
 If the general settings screen
is not displayed, select “Gen-
eral”.
3 Select “Customize Home
Screen”.
4 Select the items to be set.
Select to change the display
information and area on the
home screen.
Select to change the home
screen layout. When searching by an address,
name, etc., or entering data, let-
ters and numbers can be
entered via the screen.
When this icon is displayed,
select to enable the dictation
function.
* (English only)
( P.160)
Text field. Entered charac-
ter(s) will be displayed.
Select to erase one charac-
ter.
Select and hold to continue
erasing characters.
Select to move the cursor.
Select to choose predictive
text candidate for entered
text. ( P.31)
Select to display a list of pre-
dictive text candidates when
there is more than one.
( P.31)
Customizing the home
screen
A
B
Entering letters and
numbers/list screen
operation
Entering letters and num-
bers
A
B
C
D
E
F
