Navigation system
Navigation system
3-1. Basic operationNavigation ...................... 72
Map screen operation .... 74
Map screen information . 76
Traffic information .......... 81
3-2. Destination search Destination search opera-tion ............................... 84
Starting route guidance .. 91
3-3. Route guidance Route guidance screen .. 95
Typical voice guidance prompts ........................ 99
Editing route ................... 99
3-4. Setup Navigation settings...... 102
Detailed navigation settings .................................. 106
Traffic settings............. 109
Use of information accumu- lated by navigation system
(Vehicles equipped with
DCM) ......................... 113
3-5. Tips for operating the nav- igation system
GPS (Global Positioning System) ..................... 114
Map database version and covered area ............. 116

723-1. Basic operation
3-1.Basic operation
*: Premium Audio only
2D north up, 2D heading up or 3D heading up symbol (P.75)
Indicates whether the map orientation is set to north-up or hea d-
ing-up. The letter(s) under this s ymbol indicate the vehicle’s
heading direction (e.g. N for north). In 3D map, only a heading-up
view is available.
Destination button ( P.84)
Select to display the destination screen.
Map options button ( P.76)
Select to display the map options screen.
Route options button ( P.99)
Select to display the route options screen.
Mute button
Navigation*
The navigation system indicates your present position and
assists in locating a desired destination. To display the map
screen, press the “MAP” button.

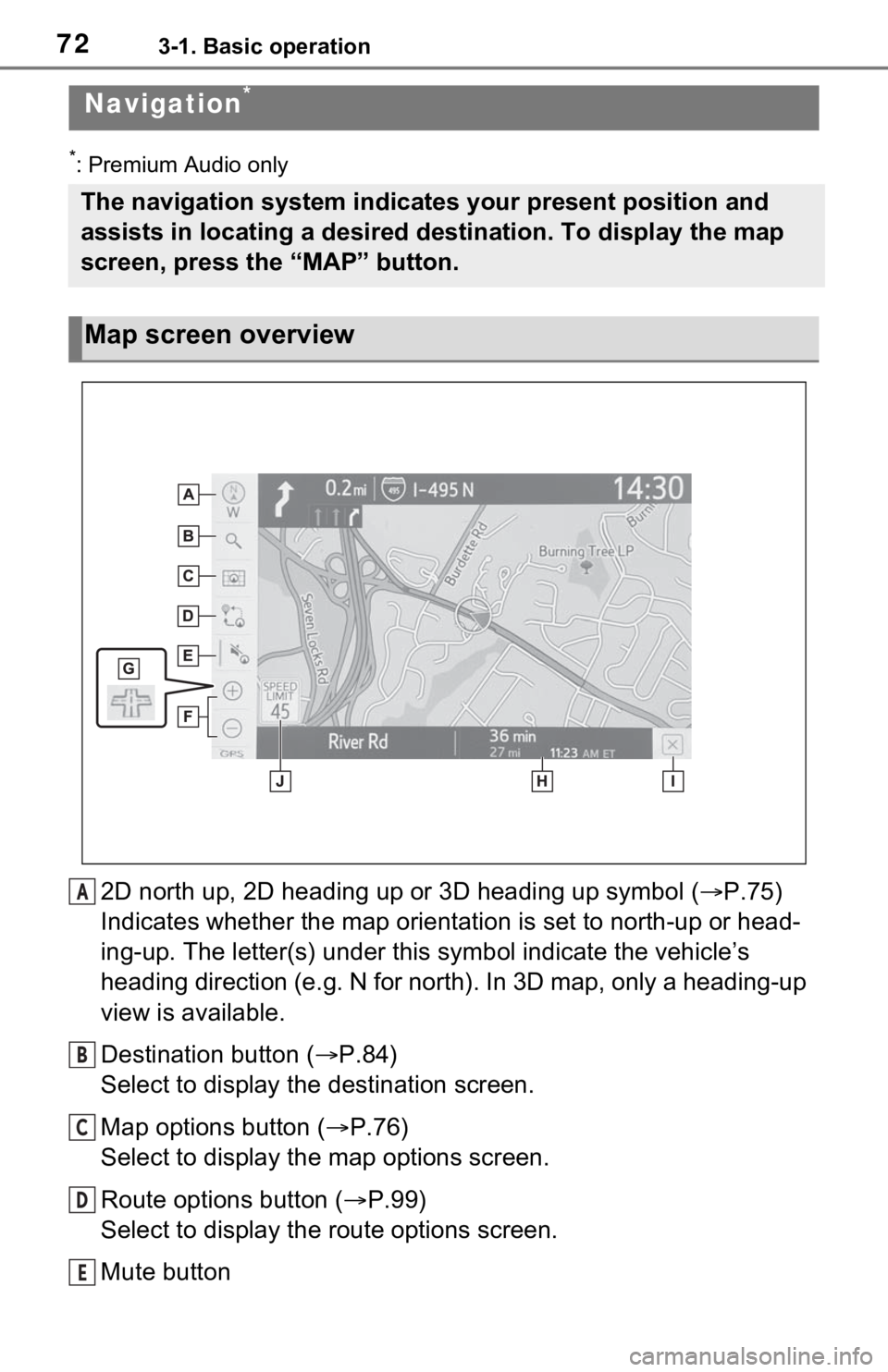

Map screen overview
A
B
C
D
E

733-1. Basic operation
3
Navigation system
Select to mute the voice guidance. When set to on, the indicator
will illuminate.
Zoom in/out button ( P.74)
Select to magnify or reduce the map scale. When either button i s
selected, the map scale indicator bar appears at the bottom of the
screen.
Micro city map button ( P.74)
Select to display the micro city map screen.
Route information bar ( P.95)
Displays the distance with the estimated travel time/arrival time to
the destination. The route information bar fills from left to r ight as
the vehicle progresses on the route.
Delete destination button ( P.22)
Select to delete destinations.
Speed limit icon ( P.76)
Indicates the speed limit on the current road. The display of t he
speed limit icon can be set to on/off.
●When the vehicle is no t receiving GPS signals, such as when dri ving in a
tunnel, will be displa yed at the bottom left corner of the screen.
●Press the “MAP” button to display the address of the current position on
the map screen or r epeat voice guidance.
F
G
H
I
J

743-1. Basic operation
1Press the “MAP” button.
2 Check that the current posi-
tion map is displayed.
 To correct the current position
manually:  P.107
●While driving, the cu rrent position
mark is fixed on the screen and
the map moves.
●The current position is automati-
cally set as the vehicle receives
signals from the GPS (Global
Positioning System). If the current
position is not correct, it is auto-
matically corrected after the vehi-
cle receives signals from the GPS.
●After the 12-volt battery discon-
nection, or on a new vehicle, the
current position may not be cor-
rect. As soon as the navigation
system receives signals from the
GPS, the correct c urrent position
is displayed.
1 Select or to change
the scale of the map screen.
●The scale indicator bar appears at
the bottom of the screen.
●Select and hold or to con-
tinue changing the scale of the
map screen.
●The scale of the map screen can
also be changed by selecting the
scale bar directly. This function is
not available while driving.
●Pinch outward on the screen to
zoom in and pinch inward to zoom
out.
●In areas where a micro city map is
available, will change to
when the map screen is set to the
smallest scale.
For areas covered by the micro
city map (some major cities), a
micro city map on a scale of 75
ft. (25 m) can be selected.
When the map is scaled down to
150 ft. (50 m), changes to
and can be selected to dis-
play the micro city map.
Map screen operation
Current position display
Map scale
Micro city map

753-1. Basic operation
3
Navigation system
1Select on the map
screen.
2 Check that the micro city
map is displayed.
●To return to the normal map dis-
play, select .
●If the map or the c urrent position
is moved to the are a which is not
covered by the micro city map, the
screen scale automatically
changes to 150 ft. (50 m).
●On the micro city map, a one way
street is displayed by .
●Scrolling the micro city map is not
available while driving.
●Certification
Building micro cities in the database
were created and provided by
HERE.
The orientation of the map can
be changed between 2D north-
up, 2D heading-up and 3D
heading-up by selecting the ori-
entation symbol displayed at the
top left of the screen.
: North-up symbol
Regardless of the direction of
vehicle travel, north is always
up. : Heading-up symbol
The direction of vehicle travel is
always up.
: 3D Heading-up symbol
The direction of vehicle travel is
always up.
 The letter(s) under this sym-
bol indicate the vehicle’s
heading direction (e.g. N for
north).
The map can be scrolled to view
locations that are different than
your current position.
1 Select the desired point on
the map screen.
 Move the desired point on the
center of the map screen.
Cursor mark
Distance from the current
position to the cursor mark
Select to set as a destination.
( P.91)
Select to register as a mem-
ory point. To change the
icon, name, etc.: P.102
●The map screen can be scrolled
Orientation of the map
Map scroll operation
A
B
C
D

763-1. Basic operation
by touching, dragging or flicking it.
( P.27)
●Press the “MAP” button to return
to the current position.
1 Select on the map
screen. ( P.72)
2 Select the desired items to
be displayed.
Select to display the desired
map mode. ( P.77)
Select to select or change
POI icons. ( P.77)
Select to display speed limit
icon.
Select to display traffic infor-
Map screen informa-
tion
Information such as POI
icons, route trace, speed
limit, etc. can be displayed
on the map screen.

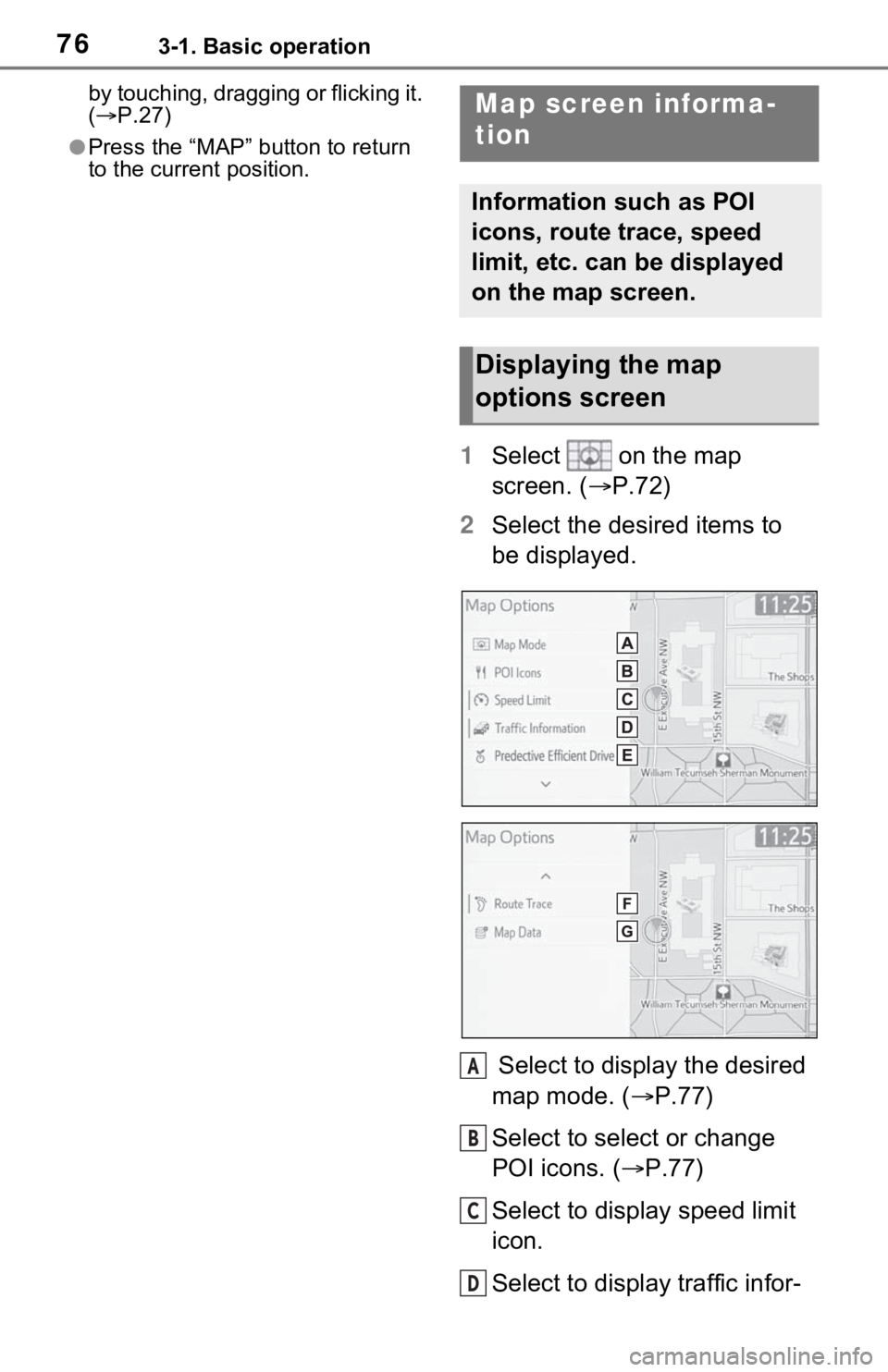

Displaying the map
options screen
A
B
C
D

773-1. Basic operation
3
Navigation system
mation.*1 ( P.81)
Select to display the predic-
tive efficient drive icons.
*1, 2
( P.79)
Select to display route trace.
( P.80)
Select to display the map
version and coverage area.
( P.116)
*1: This function is not made avail-
able in some countries or areas.
*2: Vehicles with hybrid system

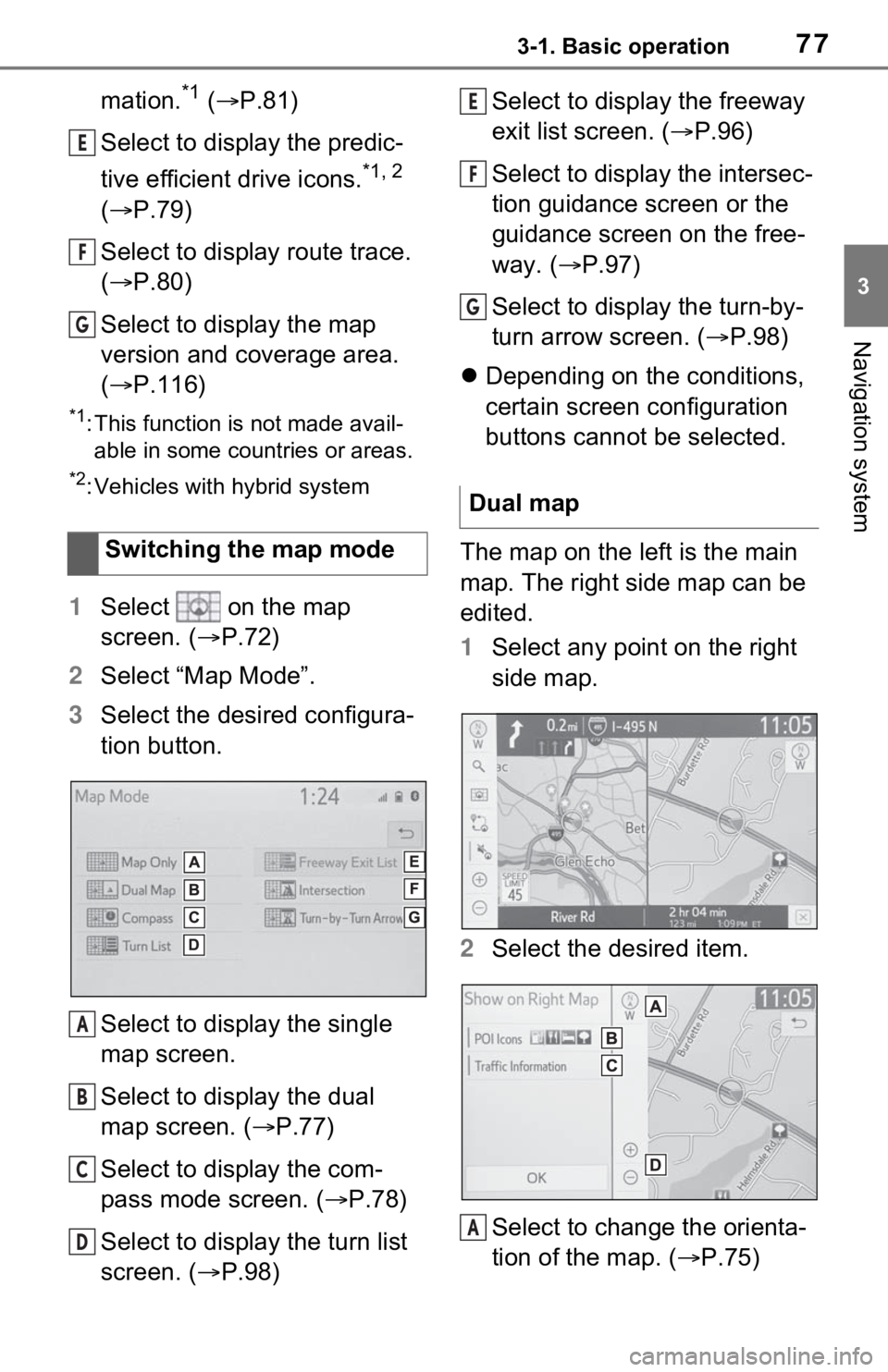

1 Select on the map
screen. ( P.72)
2 Select “Map Mode”.
3 Select the desired configura-
tion button.
Select to display the single
map screen.
Select to display the dual
map screen. ( P.77)
Select to display the com-
pass mode screen. ( P.78)
Select to display the turn list
screen. ( P.98) Select to display the freeway
exit list screen. (
P.96)
Select to display the intersec-
tion guidance screen or the
guidance screen on the free-
way. ( P.97)
Select to display the turn-by-
turn arrow screen. ( P.98)
 Depending on the conditions,
certain screen configuration
buttons cannot be selected.
The map on the left is the main
map. The right side map can be
edited.
1 Select any point on the right
side map.
2 Select the desired item.
Select to change the orienta-
tion of the map. ( P.75)
Switching the map mode
E
F
G
A
B
C
D
'XDOPDS
E
F
G
A

783-1. Basic operation
Select to display POI icons.
(P.78)
Select to show traffic infor-
mation.
* (  P.81)
Select to change the map
scale. ( P.74)
*: This function is not made avail-
able in some countries or areas.
3 Select “OK”.
Information about the destina-
tion, current position and a com-
pass are displayed on the
screen.
●The destination mark is displayed
in the direction of the destination.
When driving, refer to the longi-
tude and latitude coordinates, and
the compass, to make sure that
the vehicle is headed in the direc-
tion of the destination.
●When the vehicle travels out of
the coverage area, the guidance
screen changes to the whole com-
pass mode screen.
1 Select on the map
screen. ( P.72)

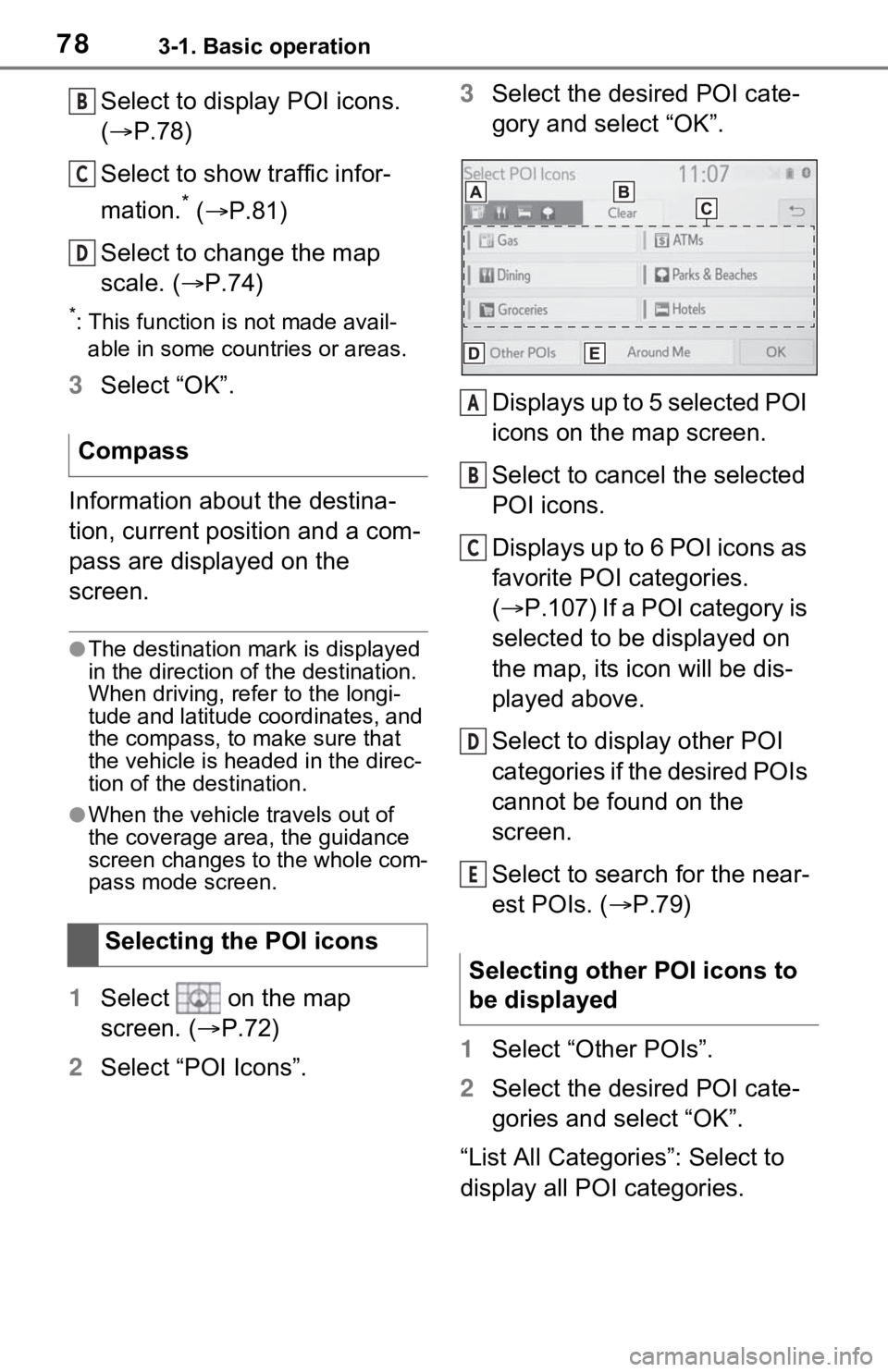

2 Select “POI Icons”. 3
Select the desired POI cate-
gory and select “OK”.
Displays up to 5 selected POI
icons on the map screen.
Select to cancel the selected
POI icons.
Displays up to 6 POI icons as
favorite POI categories.
( P.107) If a POI category is
selected to be displayed on
the map, its icon will be dis-
played above.
Select to display other POI
categories if the desired POIs
cannot be found on the
screen.
Select to search for the near-
est POIs. ( P.79)
1 Select “Other POIs”.
2 Select the desired POI cate-
gories and select “OK”.
“List All Categories”: Select to
display all POI categories.
Compass
Selecting the POI icons
B
C
D
6HOHFWLQJRWKHU32,LFRQVWR
EHGLVSOD\HG
A
B
C
D
E

793-1. Basic operation
3
Navigation system
POIs that are within 20 miles (32
km) of the current position will
be listed from among the
selected categories.
1Select “Around Me”.
2 Select the desired POI.
“Sort/Search Area”: Select to
sort (distance, name, category)
POIs or search area.
 Select “Near Here” to search
for POIs near the current
position.
 Select “Along My Route” to
search for POIs along the
route.
3 Check that the selected POI
is displayed on the map
screen.
The icon for the predictive
deceleration support point can
be displayed on the map.
1 Select “Predictive Efficient
Drive”.
 The “Predictive Efficient
Drive” indicator illuminates.
 The icon is displayed on
the map for the predictive
deceleration support points.
Also, when the position of the
vehicle approaches the pre-
dictive deceleration support
point, the icon changes to an emphasized icon.●Up to 100 icons can be displayed
on one screen.
●When the maximum number of
icons that can be displayed is
exceeded, the predictive deceler-
ation support points near the posi-
tion of the vehicle are displayed.
●Icons for the predictive decelera-
tion support points can be dis-
played on maps more detailed
than 0.75 miles (1
.2 km). (exclud-
ing the city map)
●When a destinati on is set, predic-
tive deceleration support points
not along the guided route are not
emphasized.
1 Select “Predictive Efficient
Drive”.
 The “Predictive Efficient
Drive” indicator dims.
 After the “Predictive Efficient
Drive” function is turned off,
the screen to confirm whether
to clear the predictive efficient
drive information is dis-
played. To keep the points
(only remove the display
icon), select “Yes”. To clear
registered points, select “No”.
●Once the predictive deceleration
support point information is
cleared, it cannot be restored.
●The predictive deceleration sup-
port point information cannot be
selected and indiv idually cleared.
Displaying the local POI list
Displaying predictive effi-
cient drive information
Turning off the predictive
efficient drive information
display

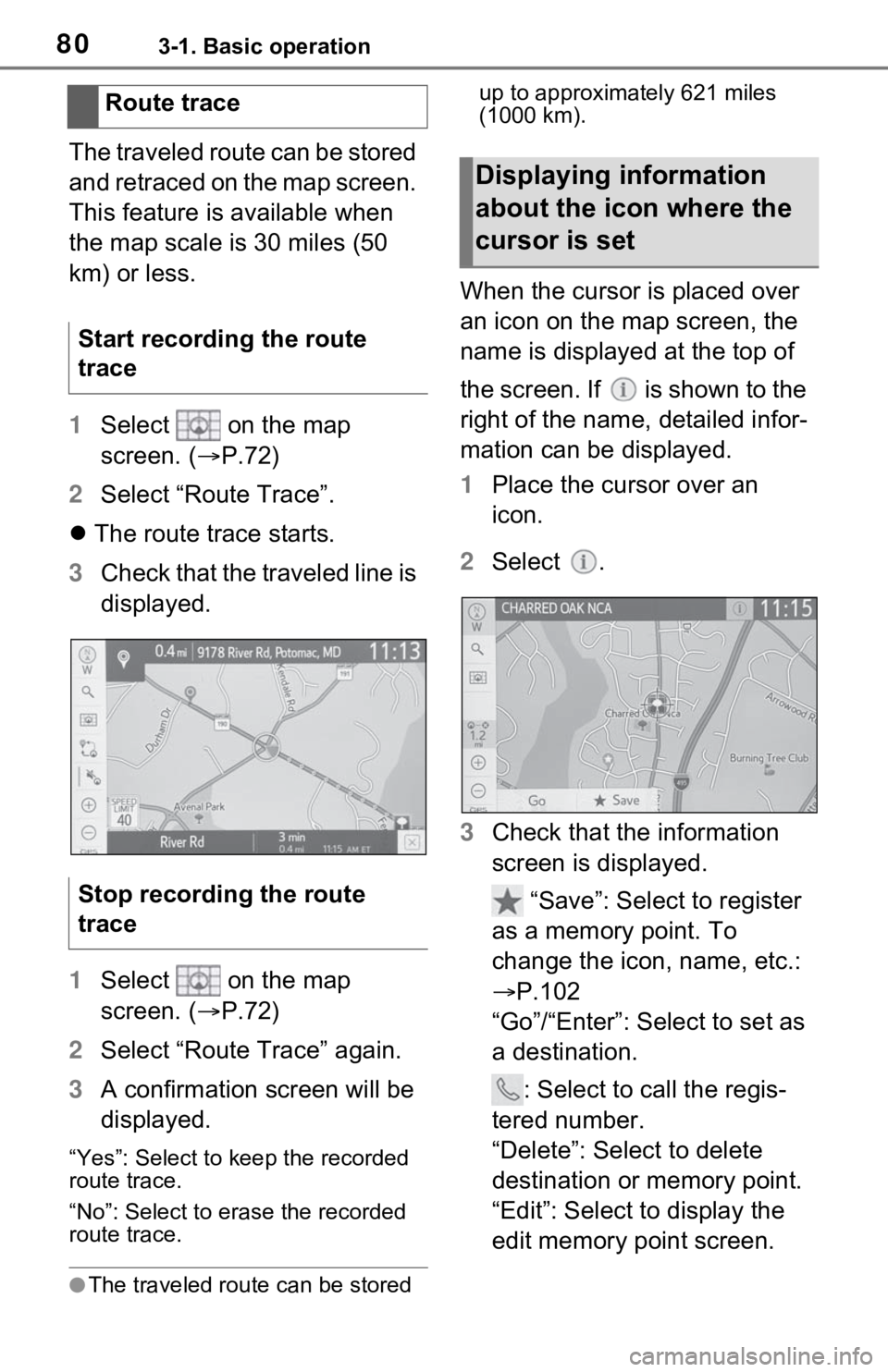

803-1. Basic operation
The traveled route can be stored
and retraced on the map screen.
This feature is available when
the map scale is 30 miles (50
km) or less.
1Select on the map
screen. ( P.72)
2 Select “Route Trace”.
 The route trace starts.
3 Check that the traveled line is
displayed.
1 Select on the map
screen. ( P.72)
2 Select “Route Trace” again.
3 A confirmation screen will be
displayed.
“Yes”: Select to keep the recorded
route trace.
“No”: Select to era se the recorded
route trace.
●The traveled rou te can be stored up to approximately 621 miles
(1000 km).
When the cursor is placed over
an icon on the map screen, the
name is displayed at the top of
the screen. If is shown to the
right of the name, detailed infor-
mation can be displayed.
1
Place the cursor over an
icon.
2 Select .
3 Check that the information
screen is displayed.
“Save”: Select to register
as a memory point. To
change the icon, name, etc.:
 P.102
“Go”/“Enter”: Select to set as
a destination.
: Select to call the regis-
tered number.
“Delete”: Select to delete
destination or memory point.
“Edit”: Select to display the
edit memory point screen.
Route trace
Start recording the route
trace
Stop recording the route
trace
Displaying information
about the icon where the
cursor is set
