TOYOTA RAV4 HYBRID 2021 (in English) Owner's Manual

19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Windshield wipers & washers
Front fog lights come on only when the headlights are on low beam.
Turn OFFON
FRONT
* Intermittent windshield wiper
frequency adjustment Rotate to
increase/decrease wiper frequency.* Rain-sensing windshield wiper Rotate
to increase/decrease sensor sensitivity. Intermittent (if equipped)
Adjust frequency* Adjust frequency*
Interval wipeAuto
Slow Slow
FastFast
Pull to wash
and wipePull to wash
and wipe Off Off
Rain-sensing (if equipped)
REAR
On
Interval wipe
Off
Push to wash and wipe
'0(-*()54 *'&26*11&%

Cup holders
Mist and single wipeMist and single wipe
FRONT
REAR

20
FEATURES & OPERATIONS
Moonroof (if equipped)
Recommended open position to
minimize wind noise. Push once to open partway.
Push again to open completely.
SLIDING OPERATION
TILTING OPERATION
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
Push once to open completely.
Tilt
Close
Open
Close
Clock

1VTIiMENU” button next to the screen.

4FMFDUiSetup” or “General” in the touchscreen to access the general setting
screen.

4FMFDUiClock.”

5IFOTFMFDUEFTJSFEJUFNTUPCFSFTFU

Refer to the “Navigation and Multimedia System Owner’s Manual” for more details.
* Premium Audio only
Select to change the time zone.
Select to set daylight saving time
ON/OFF/AUTO*.
Select to set to automatic GPS
adjustment of clock.
Select to set the 24 hour time
format on/off.

21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
SLIDING OPERATION
TILTING OPERATION
Open - Slide and hold the switch backward.
The electronic sunshade will open fully
automatically.*
Close - Slide and hold the
switch forward.
The electronic sunshade will close fully
automatically.*
Open - Slide and hold the switch backward.
The panoramic moonroof and electronic
sunshade will open automatically.*
Close - Slide and hold the switch forward.
The panoramic moonroof will fully close
automatically.
Tilt-up - Press the center of the switch to
tilt the panoramic moonroof up. When the
panoramic moonroof is tilted up, the electronic
sunshade opens to the half-open position.
Tilt-down - Press and hold the center of the

switch to tilt down. The panoramic moonroof
can be tilted down only when it is in the tilt-up
position.
Note: The panoramic moonroof can be opened from the tilt-up position. Also,
lightly pressing the
switch again stops the panoramic moonroof partway.
* Quickly slide and release the switch in either direction to stop the electronic
sunshade partway.
* Quickly slide and release the switch in either direction to stop the panoramic
moonroof partway. Open and closing the electronic sunshade
Open and closing the panoramic moonroof
Tilting the panoramic moonroof up and down
Open
Open
Close
Close
Panoramic moonroof (if equipped)

22
FEATURES & OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Always use safe driving practices and follow all traffic rules.
Return to previous screen
Volume control
Microphone
Voice command
switch Start and end call
“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for more information.
Driving support system information
display areaDriving support system information
display area
Menu icons
Menu iconsInformation display
area
4.2-in display 7-in display
Press meter control switches to change and select information in the following:
Driving support system information display Driving information display
Vehicle information display "VEJPTZTUFNMJOLFEEJTQMBZ JGFRVJQQFE

Settings display
Warning message display
Multi-Information Display (MID)
Enter/Set:
Press to enter/set, press and hold to resetReturn to previous screen

“” and “” Scroll/search screens

24
FEATURES & OPERATIONS
Touchscreen display
Turn to tune radio
stations manually
or select tracks
or files Access to MENU
screen. Access to HOME
screen.
Access to AUDIO
screen.
Access to MAP
screen.
Audio
Push to turn ON/OFF
or turn to adjust
volume
Access to
Bluetooth
hands-free system Seek station/
track/file select
Access to
Apps screen
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.
toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.
USB media port
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.

25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
The vehicle must be in the “ACC” or “ON” position XJUIPVU4NBSU,FZ

i"$$&4403:wPSw*(/*5*0/0/wNPEF XJUI4NBSU,FZ
GPSVTF
The vehicle must be in the “ACC” or “ON” position XJUIPVU4NBSU,FZ

i"$$&4403:wPSw*(/*5*0/0/wNPEF XJUI4NBSU,FZ
GPSVTF
Power outlets-12V DC
FrontRear (if equipped)
Luggage compartment (if equipped)
FrontRear
USB charge ports (if equipped)
(Charge only) (Charge only)

26
FEATURES & OPERATIONS

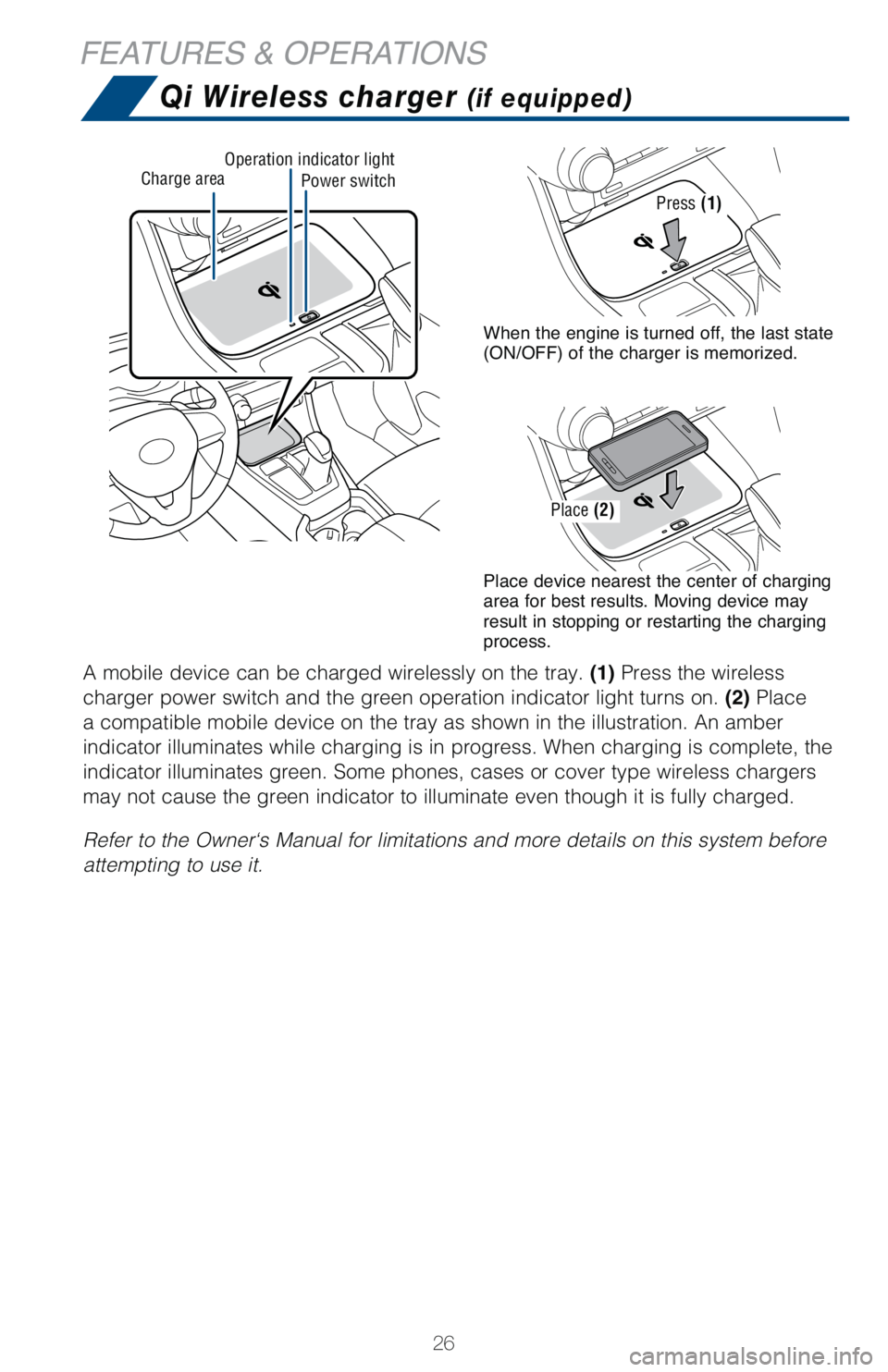

Power switchCharge areaOperation indicator light
Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An amber
indicator illuminates while charging is in progress. When charging is complete, the
indicator illuminates green. Some phones, cases or cover type wireless chargers
may not cause the green indicator to illuminate even though it is fully charged.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Press (1)
When the engine is turned off, the last state
(ON/OFF) of the charger is memorized.
Place device nearest the center of charging
area for best results. Moving device may
result in stopping or restarting the charging
process.
Place (2)

27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
*
HomeLink® is a registered trademark of Gentex Corporation.
Garage door opener (HomeLink®)* (if equipped)
Garage door operation
indicatorsHomeLink
® icon
ButtonsHomeLink® indicator light
HomeLink® icon
Setting icon Garage door operation
indicators
HomeLink
® logo:
Appears while HomeLink®
is operating. HomeLink® indicator light:
Illuminates above each
button selected.
HomeLink® buttons Menu buttons
VEHICLES WITH AUTO ANTI-GLARE INSIDE REAR VIEW MIRROR
VEHICLES WITH DIGITAL REARVIEW MIRROR

28
FEATURES & OPERATIONS
Air conditioning/heating
Automatic climate control ON -
Adjusting the temperature setting will
cause the airflow vents, air intake and fan
to adjust automatically to set temperature.
Heated steering wheel (if equipped)
The vehicle must be on for use.
Temperature
control
(driver side)Windshield defoggerTemperature control
(front passenger side)
Air conditioning ON/OFF Fan speed
Climate control OFF
Recirculate cabin air
(outside air when OFF) S-FLOW mode ECO mode
Outside rear view mirror defogger/
Rear window defogger
Airflow vent:
In “
” or “” mode, use outside air
(“
” indicator OFF) to reduce window fogging.
Refer to the Owner’s Manual for more information.
“SYNC” button -
Indicator ON: Synchronized
temperature settings for driver and pas sengers.
Indicator OFF: Separate temperature settings for
driver and passengers.
