20

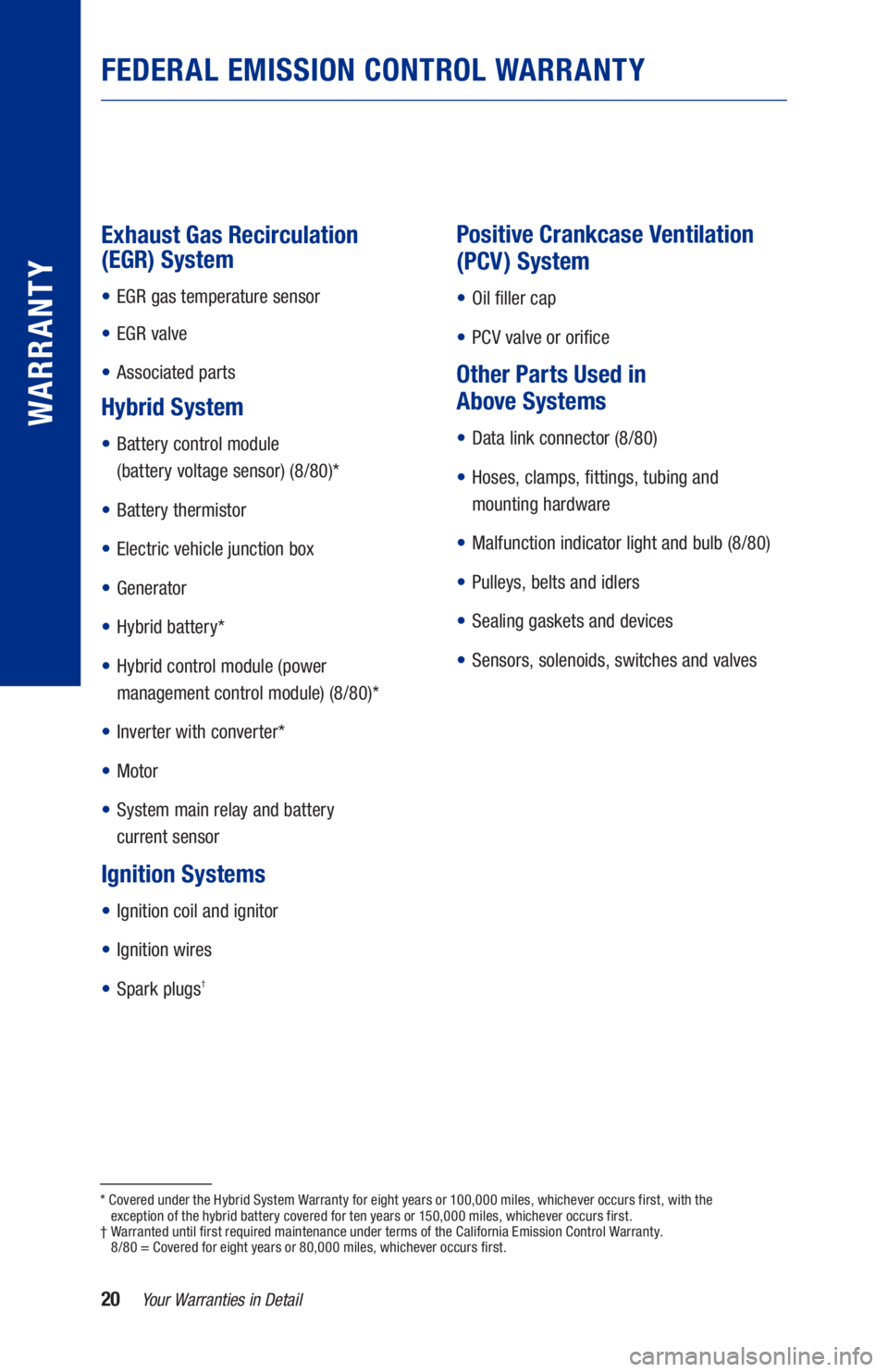

Exhaust Gas Recirculation
(EGR) System
• EGR gas temperature sensor
• EGR valve
• Associated parts
Hybrid System
•
Battery control module
(battery voltage sensor) (8/80)*
• Battery thermistor
• Electric vehicle junction box
• Generator
• Hybrid battery*
•
Hybrid control module (power
management control module) (8/80)*
• Inverter with converter*
• Motor
•
System main relay and battery
current sensor
Ignition Systems
• Ignition coil and ignitor
• Ignition wires
• Spark plugs†



Positive Crankcase Ventilation
(PCV) System
• Oil filler cap
• PCV valve or orifice
Other Parts Used in
Above Systems
• Data link connector (8/80)
•
Hoses, clamps, fittings, tubing and
mounting hardware
•
Malfunction indicator light and bulb (8/80)
• Pulleys, belts and idlers
• Sealing gaskets and devices
• Sensors, solenoids, switches and valves
FEDERAL EMISSION CONTROL WARRANTY
* Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first, with the
exception of the hybrid battery covered for ten years or 150,000 miles, whichever occurs first.
† Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Your Warranties in Detail
WARRANTY

27

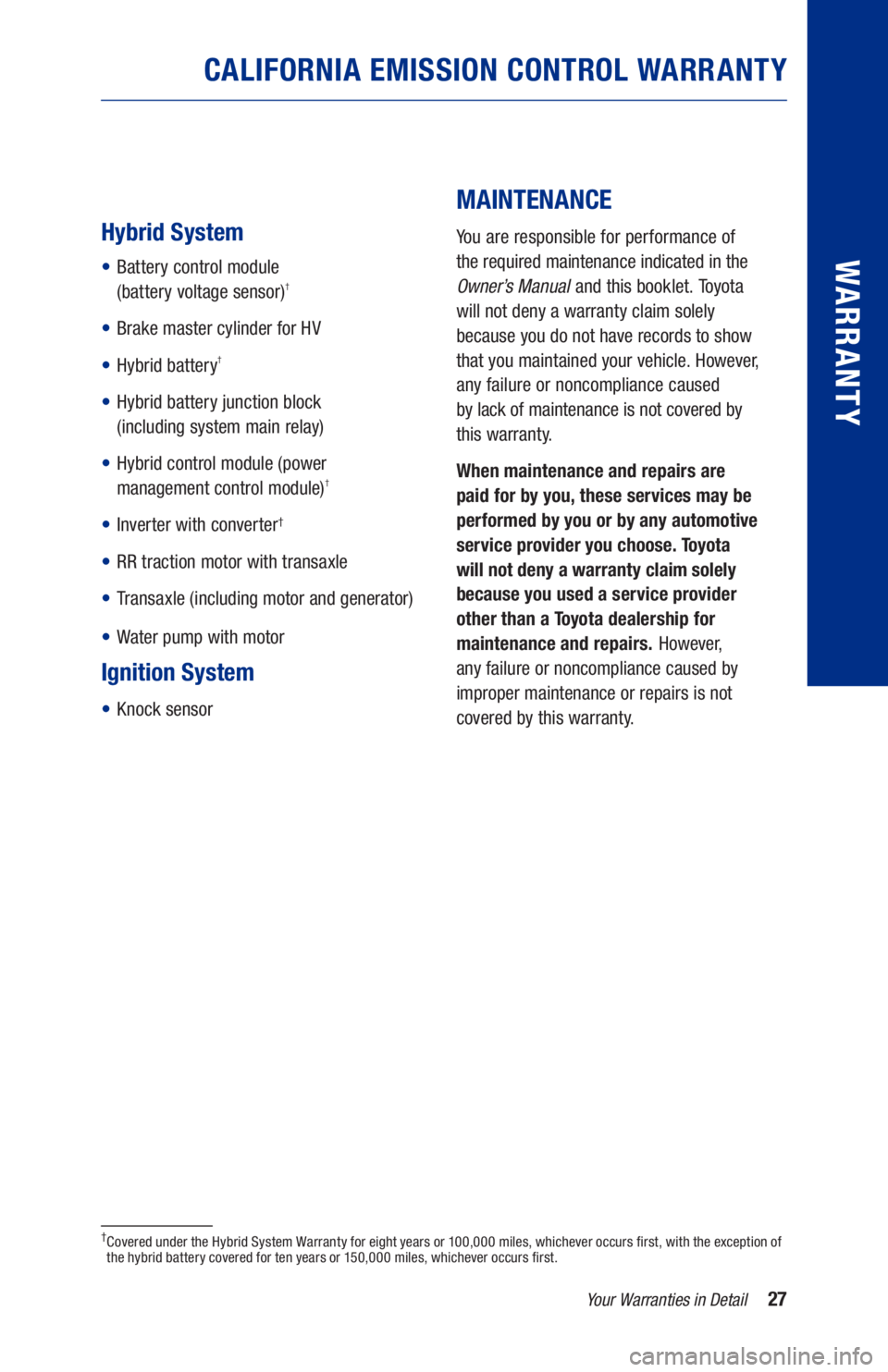

Hybrid System
•
Battery control module
(battery voltage sensor)†
• Brake master cylinder for HV
• Hybrid battery†
•
Hybrid battery junction block
(including system main relay)
•
Hybrid control module (power
management control module)†
• Inverter with converter†
• RR traction motor with transaxle
•
Transaxle (including motor and generator )
•
Water pump with motor
Ignition System
• Knock sensor

MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner ’s Manual and this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused
by lack of maintenance is not covered by
this warranty.
When maintenance and repairs are
paid for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota
will not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs. However,
any failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
CALIFORNIA EMISSION CONTROL WARRANTY
†
Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first, with the exception of
the hybrid battery covered for ten years or 150,000 miles, whichever occurs first.
Your Warranties in Detail
