check engine TOYOTA RAV4 HYBRID 2022 Owner's Manual

6368-2. Steps to take in an emergency
port systems such as PCS (Pre-
Collision system) or the dynamic
radar cruise control with full-speed
range is operating. If a warning
message is shown, be sure to
decelerate the vehicle or follow an
instruction show n on the multi-
information display.
• A warning message is shown
when Brake Override System
operates. ( P.184)
• A warning message is shown
when Drive-Start Control or Park-
ing Support Brake (if equipped)
( P.189, 295) operates. Follow
the instructions o n the multi-infor-
mation display.
●If a message about an operation
of the power switch is shown (if
equipped)
An instruction for operation of the
power switch is shown when the
incorrect procedure for starting the
hybrid system is performed or the
power switch is operated incorrectly.
Follow the instructions shown on the
multi-information display to operate
the power switch again.
●If a message abou t a shift lever
operation is shown
To prevent the shift lever from being
operated incorrectly or the vehicle
from moving unexpectedly, a mes-
sage that requires shifting the shift
lever may be sho wn on the multi-
information display. In that case, fol-
low the instruction of the message
and shift the shift lever.
●If a message or image about an
open/close state of a part or
replenishment of a consumable is
shown
Confirm the part indicated by the
multi-information display or a warn-
ing light, and then perform the cop-
ing method such as closing the
open door or replenishing a con- sumable.
■If a message that indicates the
need for visiting your Toyota
dealer is displayed
The system or part shown on the
multi-information di splay is malfunc-
tioning. Have the vehicle inspected
by your Toyota dea ler immediately.
■If a message that indicates the
need for referring to Owner’s
Manual is displayed
●If “Engine Coolant Temp High” is
shown, follow the instructions
( P.659).
●If the following messages are
shown, there may be a malfunc-
tion.
Immediately have the vehicle
inspected by your Toyota dealer.
• “Hybrid System Malfunction”
• “Check Engine”
• “Hybrid Battery System Malfunc-
tion”
• “Accelerator System Malfunction”
• “Smart Key System Malfunction”
●If the following messages are
shown, there may be a malfunc-
tion.
Immediately stop the vehicle in a
safe place and contact your Toyota
dealer. Continuing to drive the vehi-
cle may be dangerous.
• “Oil Pressure Low”
• “Braking Power Low”
●If “Maintenance Required for Trac-
tion Battery Cooling Parts See
Owner’s Manual” is shown, the fil-
ter may be clogged, the air intake
vent may be blocked, or there may
be a gap in the duct. Therefore,
perform the follo wing correction
procedure.
• If the air intake vent or filter of the hybrid battery (traction battery)
are dirty, perform the procedures
on P.593 to clean them.
• If the warning message is shown when the air intake vent and filter
of the hybrid battery (traction bat-

6378-2. Steps to take in an emergency
8
When trouble arises
tery) are not dirty, have the vehicle
inspected at your Toyota dealer.
■If “Hybrid System Overheated
Output Power Reduced” is
shown
The message may be shown when
driving under severe operating con-
ditions. (For example, when driving
up a long steep hill or driving up a
steep hill in reverse.)
Coping method: P.659
■If “Traction Battery Needs to be
Protected Refrain from the Use
of N Position” is shown
This message may be displayed
when the shift lever is in N.
As the hybrid batte ry (traction bat-
tery) cannot be charged when the
shift lever is in N, shift the shift lever
to P when the vehicle is stopped.
■If “Traction Battery Needs to be
Protected Shift into P to
Restart” is shown
This message is displayed when the
hybrid battery (traction battery)
charge has become extremely low
because the shift lever has been left
in N for a certain amount of time.
When operating the vehicle, shift to
P and restart the hybrid system.
■If “Shift to P when Parked” is
shown (if equipped)
Message is displayed when the
driver’s door is opened without turn-
ing the power switch to OFF with the
shift lever in any position other than
P.
Shift the shift lever to P.
■If “Shift is in N Release Acceler-
ator Before Shif ting” is shown
Message is displayed when the
accelerator pedal has been
depressed and the shift lever is in N.
Release the accelerator pedal and
shift the shift lever to D or R.
■If “Press Brake when Vehicle is
Stopped Hybrid System may
Overheat” is shown
Message is displayed when the
accelerator pedal is depressed to
maintain the vehicl e position when
stopped on a upward slope, etc.
If this continues, the hybrid system
may overheat.
Release the accelerator pedal and
depress the brake pedal.
■If “Auto Power OFF to Conserve
Battery” is shown (if equipped)
Power was turned off due to the
automatic power off function.
Next time when starting the hybrid
system, operate the hybrid system
for approximately 5 minutes to
recharge the 12- volt battery.
■If “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level may be low.
Check the level o f the engine oil,
and add engine oil if necessary.
This message may be displayed if
the vehicle is stopped on a slope.
Move the vehicle to a level surface
and check if the message disap-
pears.
■If “Maintenance Required
Soon” is shown
Indicates that all maintenance
according to the driven distance on
the maintenance schedule
* should
be performed soon.
Comes on approximately 4500
miles (7200 km) after the message
has been reset.
If necessary, perform maintenance.
Please reset the m essage after the
maintenance is performed.
(  P.561)
*: Refer to the separate “Scheduled
Maintenance Guide” or “Owner’
Manual Supplement” for the main-
tenance interval applicable to your
vehicle.

6608-2. Steps to take in an emergency
“LOW” line
5 Add coolant if necessary.
Water can be us ed in an emer-
gency if engine coolant is unavail-
able.
If water was added in an emer-
gency, have the vehicle inspected
at your Toyota dealer as soon as
possible.
6 Start the hybrid system and
turn the air conditioning sys-
tem on to check that the radi-
ator cooling fan operates and
to check for coolant leaks
from the radiator or hoses.
The fan operates when the air con-
ditioning system is turned on imme-
diately after a cold start. Confirm
that the fan is op erating by check-
ing the fan sound and air flow. If it is
difficult to check th ese, turn the air
conditioning system on and off
repeatedly. (The f an may not oper-
ate in freezing temperatures.)
7 If the fan is not operating:
Stop the hybrid system
immediately and contact your
Toyota dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.
8 Check if “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual” is shown on the multi-infor-
mation display.
If the message does not disappear:
Stop the hybrid system and contact
your Toyota dealer.
If the message is not displayed:
Have the vehicle inspected at the
nearest Toyota dealer.
■If “Hybrid System Over-
heated Output Power
Reduced” is shown on the
multi-information display
1 Stop the vehicle in a safe
place.
2 Stop the hybrid system and
carefully lift the hood.
3 After the hybrid system has
cooled down, inspect the
hoses and radiator core (radi-
ator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact your Toyota
dealer.
4The coolant level is satisfac-
tory if it is between the
C
A
B

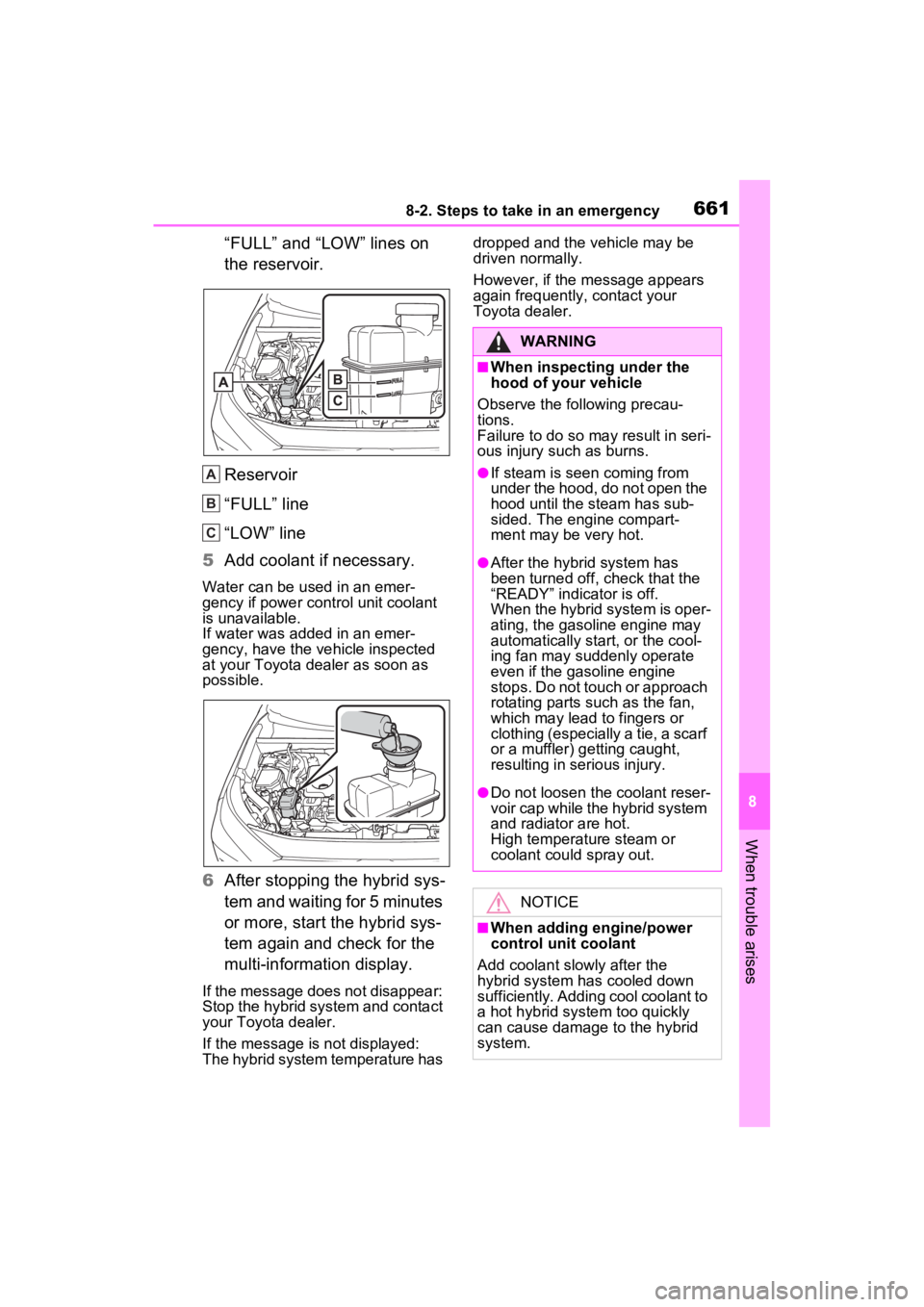

6618-2. Steps to take in an emergency
8
When trouble arises
“FULL” and “LOW” lines on
the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add coolant if necessary.
Water can be used in an emer-
gency if power control unit coolant
is unavailable.
If water was added in an emer-
gency, have the vehicle inspected
at your Toyota dealer as soon as
possible.
6After stopping the hybrid sys-
tem and waiting for 5 minutes
or more, start the hybrid sys-
tem again and check for the
multi-information display.
If the message does not disappear:
Stop the hybrid system and contact
your Toyota dealer.
If the message is not displayed:
The hybrid system temperature has dropped and the vehicle may be
driven normally.
However, if the message appears
again frequently, contact your
Toyota dealer.
A
B
C
WARNING
■When inspecting under the
hood of your vehicle
Observe the following precau-
tions.
Failure to do so may result in seri-
ous injury such as burns.
●If steam is seen coming from
under the hood, do not open the
hood until the steam has sub-
sided. The engine compart-
ment may be very hot.
●After the hybrid system has
been turned off , check that the
“READY” indicator is off.
When the hybrid system is oper-
ating, the gasoline engine may
automatically start, or the cool-
ing fan may suddenly operate
even if the gasoline engine
stops. Do not touch or approach
rotating parts such as the fan,
which may lead to fingers or
clothing (especially a tie, a scarf
or a muffler) getting caught,
resulting in serious injury.
●Do not loosen the coolant reser-
voir cap while the hybrid system
and radiator are hot.
High temperature steam or
coolant could spray out.
NOTICE
■When adding engine/power
control unit coolant
Add coolant slowly after the
hybrid system has cooled down
sufficiently. Adding cool coolant to
a hot hybrid system too quickly
can cause damage to the hybrid
system.

6689-1. Specifications
Front
Rear
*: The model code is indicated on the Certification Regulation Label.
(  P.666)
■Oil capacity (Drain and refill  reference*)
*: The engine oil capacity is a reference quantity to be used whe n changing
the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, a nd check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle.
Use Toyota approved “Toyota
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output88 kW
Maximum torque149 ft•lbf (202 N•m, 20.6 kgf•m)
TypePermanent magnet synchronous motor
Maximum output40 kW
Maximum torque89.2 ft•lbf (121 N•m, 12.3 kgf•m)
Hybrid battery (traction battery)
Model code*AXAH54LAXAL54L
TypeNickel-Metal hydride
batteryLithium-ion battery
Voltage7.2 V/module3.6 V/cell
Capacity6.5 Ah (3HR)3.7 Ah
Quantity34 modules70 cells
Nominal voltage244.8 V252.0 V
Lubrication system
With filter4.8 qt. (4.5 L
, 4.0 Imp. qt.)
Without filter4.4 qt. (4.2 L, 3.7 Imp. qt.)

Alphabetical Index723
Electronic keyBattery-saving function......... 144
If the electronic key does not operate properly ................. 652
Replacing the battery ........... 600
Electronic sunshade .............. 177 Jam protection function ........ 178
Operation ............................. 177
Emergency, in case of If a warning buzzer sounds .. 624
If a warning light turns on ..... 624
If a warning message is dis-played................................. 635
If the 12-volt battery is dis- charged .............................. 654
If the electronic key does not operate properly ................. 652
If the fuel filler door cannot be opened ............................... 651
If the hybrid sy stem will not start
........................................... 649
If the vehicle is submerged or water on the road is rising .. 618
If you have a flat tire ............. 640
If you lose your keys ............ 650
If you think something is wrong ........................................... 623
If your vehicle becomes stuck ........................................... 662
If your vehicle has to be stopped in an emergency................. 617
If your vehicle needs to be towed ........................................... 619
If your vehicle overheats ...... 659
Emergency flashers ............... 616
Energy monitor ....................... 111
Engine Compartment ....................... 570
Hood..................................... 567
Identification number ............ 667
Engine coolant Capacity ............................... 670 Checking ..............................572
Preparing and checking before
winter ..................................369
Warning light ........................625
Engine coolant temperature gauge .................................92, 96
Engine oil Capacity ...............................668
Checking ..............................570
Preparing and checking before winter ..................................369
Warning light ........................625
Enhanced Vehicle Stability Con- trol (Enhanced VSC ) .............361
Enhanced VSC (Enhanced Vehi- cle Stability Control).............361
Entering letters and numbers/list screen operation...................387Entering letters and numbers387
List screen ............................388
EPS (Electric Po wer Steering)
Function................................362
Warning light ........................626
Establishing an Android Auto connection .......... ..................410
Establishing an Apple CarPlay connection .......... ..................409
EV drive mode.........................211
Event data recorder (EDR) .......10
EV indicator...............................73
F
Flat tire.....................................640 Tire pressure warning system...........................................581
Floor mats .................................28
Fluid Brake ............................574, 671
Hybrid transmission ..............671
Rear differential ....................671
Washer .................................575
FM ............................................427

734Alphabetical Index
............................................... 382
Vehicle data recordings ............. 9
Vehicle identification number666
Vehicle Stability Control (VSC) ............................................... 361
Ventilators (seat ventilators) . 521
Voice button (Setup screen).. 382
Voice command system ........ 460 Voice command system opera-tion ..................................... 461
VSC (Vehicle Stability Control) ............................................... 361
W
Warning buzzers Approach warning ................ 272
Brake hold ............................ 630
Brake Override System ........ 629
Brake system ....................... 624
Downshifting......................... 216
Drive-Start Control ............... 629
Electric power steering ......... 626
High coolant temperature ..... 625
Intuitive parking assist OFF indi-cator ................................... 628
Intuitive parking assist .......... 287
Low engine oil pressure ....... 625
LTA (Lane Tracing Assist).... 252
LTA indicator ........................ 627
Open door ............................ 127
Open hood ........................... 127
Open window ....................... 172
PKSB OFF indicato r ............. 628
Pre-collision warning ............ 244
RCTA (Rear Cross Traffic Alert) ........................................... 277
RCTA OFF indicator............. 629
Seat belt reminder ................ 631
Vehicle sway warning........... 256
Warning lights ABS ...................................... 626
Brake hold operated indicator ...........................................630
Brake Override System ........629
Brake system ........................624
Charging system ..................624
Drive-Start Control ................629
Electric power steering .........626
Engine ..................................625
High coolant temperature .....625
Inappropriate pedal operation ...........................................629
Intuitive parking assist OFF indi- cator ...................................628
Low engine oil pressure .......625
Low fuel level........................631
LTA indicator ........................627
Malfunction indica tor lamp ....625
Parking brake indicator.........630
PCS warning light .................627
PKSB (Parking Support Brake) ...........................................628
PKSB OFF indicator .............628
RCTA OFF indicator .............629
Seat belt reminder light ........631
Slip indicator .........................629
SRS ......................................626
Tire pressure ...... ..................630
Warning messages .................635
Washer Checking ..............................575
Low washer fluid warning mes-sage............................575, 635
Preparing and checking before winter ..................................369
Switch ...........................231, 234
Washing and waxing ..............554
Weight Cargo capacity .............190, 193
Load limits ............................193
Weight ..................................666
Wheels .....................................589 Replacing wheels .................589
Size ......................................672
