Pictorial indexSearch by illustration
For safety
and securityMake sure to read through them
(Main topics: Child seat, theft deterrent system)
Vehicle status
information and
indicatorsReading driving-related information
(Main topics: Meters, multi-information display)
Before driving
Opening and closing the doors and windows,
adjustment before driving
(Main topics: Keys, doors, seats, power windows)
Driving
Operations and advice which are necessary for
driving
(Main topics: Starting hybrid system, refueling)
Interior featuresUsage of the interior features
(Main topics: Air conditioner, storage features)
Maintenance
and careCaring for your vehicle and maintenance
procedures
(Main topics: Interior and exterior, light bulbs)
When trouble
arisesWhat to do in case of malfunction and emergency
(Main topics: 12-volt battery discharge, flat tire)
Vehicle
specificationsVehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
For ownersReporting safety defects for U.S. owners, and seat
belt, SRS airbag and headlight aim instructions for
Canadian owners
IndexSearch by symptom
Search alphabetically

2TABLE OF CONTENTS
For your information...................6
Reading this manual ................ 11
How to search .......................... 12
Pictorial index .......................... 14
1-1. For safe use Before driving ................... 26
For safe driving ................ 27
Seat belts ......................... 29
SRS airbags ..................... 33
Front passenger occupant classification system ...... 43
Exhaust gas precautions.. 48
1-2. Child safety Riding with children .......... 49
Child restraint systems..... 50
1-3. Emergency assistance Safety Connect ................ 65
1-4. Hybrid system Hybrid system features .... 70
Hybrid system precautions ....................................... 75
1-5. Theft deterrent system Immobilizer system .......... 80
Alarm................................ 81
2-1. Instrument cluster Warning lights and indicators....................................... 86
Gauges and meters (with 7- inch multi-information dis-
play) ............................... 93Gauges and meters (with
12.3-inch multi-information
display) ........................... 99
Multi-information display (with 7-inch multi-informa-
tion display) ................. 105
Multi-information display (with 12.3-inch multi-infor-
mation display) ............ 115
Energy monitor/consumption screen.......................... 125
3-1. Key information Keys .............................. 130
3-2. Opening, closing and lock- ing the doors
Side doors ..................... 135
Back door ...................... 141
Smart key system .......... 155
3-3. Adjusting the seats Front seats .................... 160
Rear seats ..................... 161
Driving position memory 163
Head restraints .............. 166
3-4. Adjusting the steering wheel and mirrors
Steering wheel............... 169
Inside rear view mirror ... 170
Digital Rear-view Mirror . 172
Outside rear view mirrors .................................... 181
3-5. Opening, closing the win- dows and moon roof
Power windows ............. 183
Moon roof ...................... 186
1For safety and security
2
Vehicle status
information and
indicators
3Before driving

17Pictorial index
■Instrument panel
Power switch ................................................... ...........P.217, 219
Starting the hybrid system/chan ging the modes ..P.217, 219, 222
Emergency stop of the hybrid system ............................ ......P.449
When the hybrid system will not start .......................... ........P.480
Warning messages
*1............................................................P.4 66
Shift lever.................................................... ........................P.226
Changing the shift position.................................... ...............P.227
Precautions against towing ..................................................P.451
When the shift lever does not move............................. ........P.228
Meters ......................................................... ....................P.93, 99
Reading the meters/adjusting the instrument panel light ............................................................... ........................P.97, 104
Warning lights/indicator lights ................................ ................P.86
When the warning lights come on ................................ ........P.456
Multi-information display . .........................................P.105, 115
Display ........................................................ .................P.105, 115
A
B
C
D

18Pictorial index
Energy monitor.....................................................................P.125
When the warning messages are displayed ........................ P.466
Turn signal lever ................................................................P.230
Headlight switch ................................................................P.237
Headlights/parking lights/tail lights/
license plate lights/day time running lights/LED accessory light s
*1
............................................................... ..............................P.237
Fog lights
*1............................................................... ............P.244
Windshield wiper and washer switch ..............................P.244
Rear window wiper and washer switch ...........................P.247
Usage.......................................................... .................P.244, 247
Adding washer fluid ..............................................................P.406
Warning messages ..............................................................P.466
Emergency flasher switch ....................................... ..........P.448
Hood lock release lever ........................................ .............P.398
Tilt and telescopic steering lock release lever ................P.169
Adjustment ..................................................... ......................P.169
Air conditioning system ............................. .......................P.342
Usage.......................................................... .........................P.342
Rear window defogger ........................................... ..............P.344
Audio system
*2
Fuel filler door opener swi tch ...........................................P.250
*1: If equipped
*2: Refer to “MULTIMEDIA OWNER’S MANUAL”.
E
F
G
H
I
J
K
L

19Pictorial index

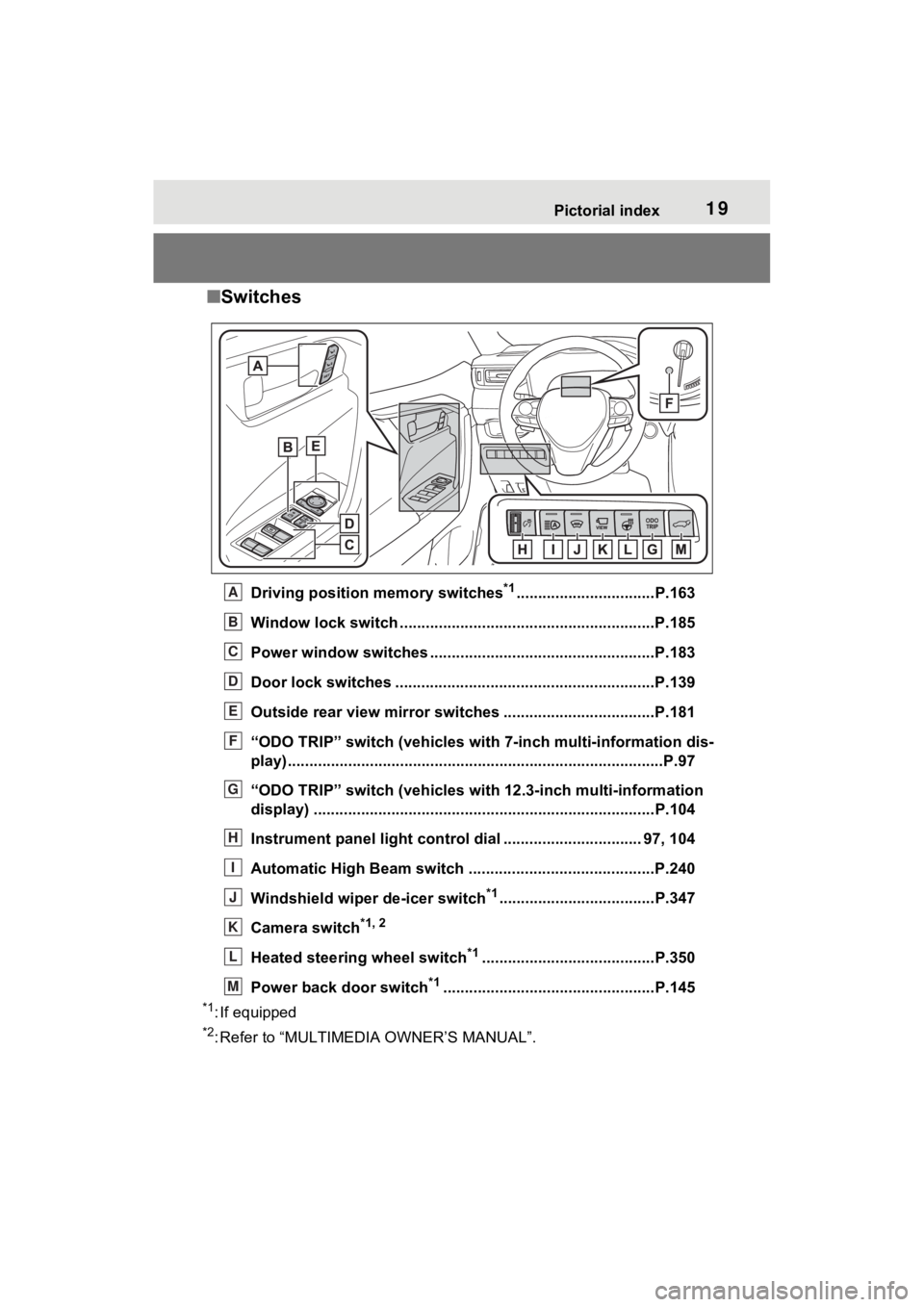

■Switches
Driving position memory switches*1................................P.163
Window lock switch ............................................. ..............P.185
Power window switches ....... .............................................P.183
Door lock switches ............................................................P.139
Outside rear view mirror swi tches ...................................P.181
“ODO TRIP” switch (vehicles with 7-inch multi-information dis-
play).......................................................................................P.97
“ODO TRIP” switch (vehicles with 12.3-inch multi-information
display) ....................................................... ........................P.104
Instrument panel light cont rol dial ................................ 97, 104
Automatic High Beam switch ..................................... ......P.240
Windshield wiper de-icer switch
*1....................................P.347
Camera switch
*1, 2
Heated steering wheel switch*1........................................P.350
Power back door switch
*1.................................................P.145
*1: If equipped
*2: Refer to “MULTIMEDIA OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J
K
L
M

721-4. Hybrid system
■Charging the 12-volt battery
 P.487
■After the 12-volt battery has dis-
charged or when the terminal
has been removed and installed
during replace, etc.
The gasoline engine may not stop
even if the vehicle is being driven by
the hybrid battery (traction battery).
If this continues for a few days, con-
tact your To yota dealer.
■Sounds and vibrations specific
to a Hybrid Electric Vehicle
There may be no engine sound or
vibration even though the vehicle is
able to move with the “READY” indi-
cator is illuminate d. For safety,
make sure to shift the shift lever to P
and apply the parking brake when
parked.
The following sounds or vibrations
may occur when the hybrid system
is operating and are not a malfunc-
tion:
●Motor sounds may be heard from
the engine compartment.
●Sounds may be heard from the
hybrid battery (traction battery)
under the rear seats when the
hybrid system starts or stops.
●Relay operating sounds such as a
snap or soft clank will be emitted
from the hybrid battery (traction
battery), under the rear seats,
when the hybrid system is started
or stopped.
●Sounds from the hybrid system
may be heard when the back door
is open.
●Sounds may be heard from the
transmission when the gasoline
engine starts or stops, when driv-
ing at low speeds, or during idling.
●Engine sounds may be heard
when accelerating sharply.
●Sounds may be heard due to
regenerative braking when the
brake pedal is dep ressed or as
the accelerator pedal is released.
●Vibration may be felt when the
gasoline engine starts or stops.
●Cooling fan sounds may be heard
from the air intake vent under the
rear seat.
■Maintenance, repair, recycling,
and disposal
Contact your Toyota dealer regard-
ing maintenance, repair, recycling
and disposal. Do n ot dispose of the
vehicle yourself.
When driving with the gasoline
engine stopped, a sound, which
changes in accordance with the
driving speed, will be played in
order to warn people nearby of
the vehicle’s approach. The
sound will stop when the vehicle
speed exceeds approximately
22 mph (35 km/h).
■Acoustic Vehicle Alerting Sys-
tem
In the following cases, the Acoustic
Vehicle Alerting System may be dif-
ficult for surrounding people to hear.
●In very noisy areas
●In the wind or the rain
Also, as the Acoust ic Vehicle Alert-
ing System is installed on the front
of the vehicle, it may be more diffi-
cult to hear from the rear of the vehi-
cle compared to the front.
■If “Proximity Notification Sys-
tem Malfunction Visit Your
Dealer” is displayed on the
multi-information display
The system may be malfunctioning.
Have the vehicle inspected by your
Toyota dealer.
Acoustic Vehicle Alerting
System

731-4. Hybrid system
1
For safety and security
*: This function can only be used in
the mainland U.S.A. It cannot be
used in other states and territo-
ries, including Alaska and Hawaii.
This system operates based on
the driving situation and traffic
information to enhance fuel
economy.
For details about Predictive effi-
cient drive, refer to “MULTIME-
DIA OWNER’S MANUAL”.
■Predictive deceleration sup-
port
 When the vehicle approaches
to predictive deceleration sup-
port points registered in the
navigation system, the refer-
ence operation range ( ) of
the ECO Accelerator Guid-
ance ( P.107) on the multi-
information display will be
turned off to encourage the
driver to reduce excessive
acceleration.
With 7-inch display:
With 12.3-inch display:
 The engine braking force will
be increased according to the
driving conditions to more effi-
ciently charge the hybrid bat-
tery (traction battery) after the
accelerator pedal is released.
■Predictive SOC* control
The following types of control
are performed based on data
such as road and traffic informa-
tion during route guidance by
the navigation system to help
ensure that the vehicle effi-
ciently uses electricity.
 When there is a long downhill
slope along the route, the sys-
tem reduces the hybrid bat-
tery (traction battery) level
before reaching the slope to
help ensure charging capacity
for regenerative braking while
traveling downhill.
 When traffic congestion is
predicted along the route, the
system helps ensure a certain
battery level before reaching
congested roads to reduce
the frequency of starting the
engine to charge the hybrid
battery (traction battery) due
Predictive efficient drive
(if equipped)
*
A

791-4. Hybrid system
1
For safety and security
When a certain level of impact is
detected by the impact sensor,
the emergency shut off system
blocks the high voltage current
and stops the fuel pump to mini-
mize the risk of electrocution
and fuel leakage. If the emer-
gency shut off system activates,
your vehicle will not restart. To
restart the hybrid system, con-
tact your Toyota dealer.
A message is automatically dis-
played when a malfunction
occurs in the hybrid system or
an improper operation is
attempted.If a warning message is shown
on the multi-information display,
read the message and follow the
instructions.
■If a warning light comes on, a
warning message
is displayed,
or the 12-volt battery is discon-
nected
The hybrid system may not start. In
this case, try to start the system
again. If the “READY” indicator does
not come on, contact your Toyota
dealer.
NOTICE
■Hybrid battery (traction bat-
tery) air intake vent
●Make sure not to block the air
intake vent with anything, such
as a seat cover, luggage, or car-
pet. The input/output of the
hybrid battery (traction battery)
may be restricted, leading to a
reduction in hybrid battery (trac-
tion battery) output and a mal-
function.
●Periodically clean the air intake
vent to prevent it from clogging.
(  P.426)
●Do not get water or foreign
materials in the air intake vent
as this may cause a short circuit
and damage the hybrid battery
(traction battery).
Emergency shut off sys-
tem
Hybrid warning message

85
2
2
Vehicle status information and indicators
Vehicle status informa-tion and indicators
2-1. Instrument cluster
Warning lights and indica-tors ............................... 86
Gauges and meters (with 7- inch multi-information dis-
play) ............................. 93
Gauges and meters (with 12.3-inch multi-informa-
tion display) .................. 99
Multi-information display (with 7-inch multi-informa-
tion display) ............... 105
Multi-information display (with 12.3-inch multi-infor-
mation display) .......... 115
Energy monitor/consump- tion screen................. 125

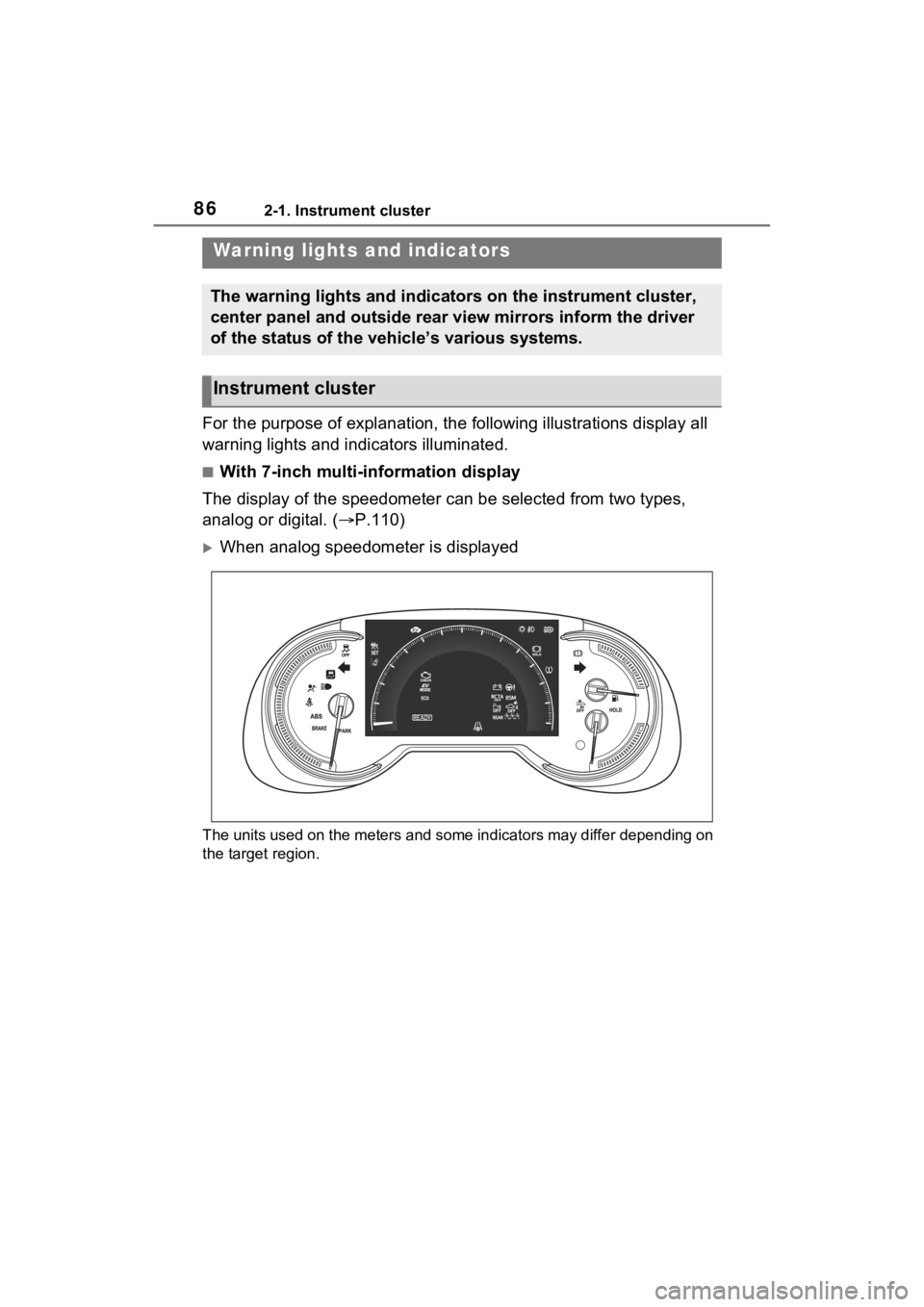

862-1. Instrument cluster
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
■With 7-inch multi-information display
The display of the speedometer can be selected from two types,
analog or digital. ( P.110)
When analog speedometer is displayed
The units used on the meters and some indicators may differ dep ending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver
of the status of the vehicle’s various systems.
Instrument cluster
