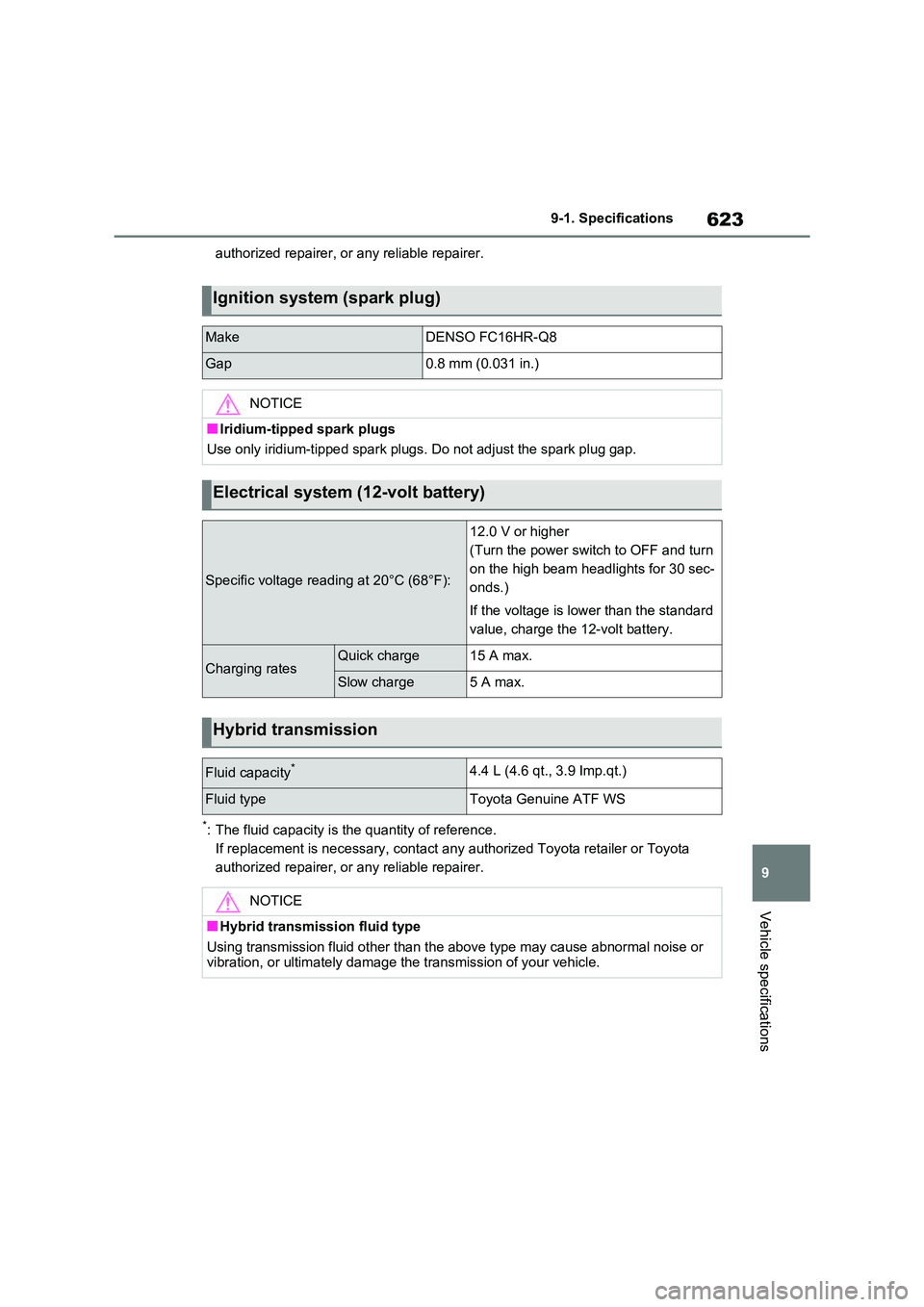

623
9
9-1. Specifications
Vehicle specifications
authorized repairer, or any reliable repairer.
*: The fluid capacity is t he quantity of reference.
If replacement is necessary, cont act any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Ignition system (spark plug)
MakeDENSO FC16HR-Q8
Gap0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tippe d spark plugs. Do not adjust the spark plug gap.
Electrical system (12-volt battery)
Specific voltage reading at 20°C (68°F):
12.0 V or higher
(Turn the power switch to OFF and turn
on the high beam h eadlights for 30 sec-
onds.)
If the voltage is lower than the standard
value, charge the 12-volt battery.
Charging ratesQuick charge15 A max.
Slow charge5 A max.
Hybrid transmission
Fluid capacity*4.4 L (4.6 qt., 3.9 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other t han the above type may cause abnormal noise or
vibration, or ultimate ly damage the transmission of your vehicle.
