711-4. Theft deterrent system
1
For safety and security
1-4.Theft deterrent system
The indicator light flashes after
the power switch has been
turned to OFF to indicate that
the system is operating.
The indicator light goes off after
the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.
■System maintenance
The vehicle has a maintenance-free
type immobilizer system.
■Conditions that may cause the
system to malfunction
●If the grip portion of the key is in
contact with a metallic object
●If the key is in close proximity to or
touching a key to the security sys-
tem (key with a built-in transpon-
der chip) of another vehicle
Immobilizer system
The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.
Never leave the keys inside
the vehicle when you leave
the vehicle.
This system is designed to
help prevent vehicle theft but
does not guarantee absolute
security against all vehicle
thefts.
Operating the system
NOTICE
■To ensure the system oper-
ates correctly
Do not modify or remove the sys-
tem. If modified or removed, the
proper operation of the system
cannot be guaranteed.

2194-2. Opening, closing and locking the doors
4
Before driving
control and immobilizer system from
operating properly.
●When the electronic key battery is
depleted
●Near a TV tower, electric power
plant, gas station, radio station,
large display, airpo rt or other facil-
ity that generates strong radio
waves or electrical noise
●When the electronic key is in con-
tact with, or is covered by the fol-
lowing metallic objects
• Cards to which al uminum foil is
attached
• Cigarette boxes that have alumi-
num foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless key (that
emits radio waves) is being used
nearby
●When carrying the electronic key
together with the following devices
that emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless
communication devices
• Another electronic key or a wire- less key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic con-
tent or metallic objects are
attached to the rear window
●When the electronic key is placed
near a battery charger or elec-
tronic devices
●When the vehicle is parked in a
pay parking spot where radio
waves are emitted.
If the doors cannot be
locked/unlocked using the smart key
system, lock/unlock the doors by
performing any of the following:
●Bring the electronic key close to either front door handle and oper-
ate the entry function.
●Operate the wireless remote con-
trol. If the doors cannot be
locked/unlocked using the above
methods, use the mechanical key.
(
 P.196)
If the hybrid system cannot be
started using the smart key system,
refer to P.533.
■Note for the entry function
●Even when the electronic key is
within the effective range (detec-
tion areas), the system may not
operate properly in the following
cases:
• The electronic key is too close to the window or outside door han-
dle, near the ground, or in a high
place when the doors are locked
or unlocked.
• The electronic key is on the instru-
ment panel, luggage cover or
floor, or in the door pockets or
glove box when the hybrid system
is started or power switch modes
are changed.
●Do not leave the electronic key on
top of the instrument panel or near
the door pockets when exiting the
vehicle. Depending on the radio
wave reception conditions, it may
be detected by the antenna out-
side the cabin and the door will
become lockable from the outside,
possibly trapping the electronic
key inside the vehicle.
●As long as the electronic key is
within the effective range, the
doors may be locked or unlocked
by anyone. However, only the
doors detecting the electronic key
can be used to lo ck or unlock the
vehicle. (For vehicles equipped
with sensors on the rear door han-
dles, it is possible to lock (but not
unlock) all the doors using a door
handle that is not being detected
by the electronic key.)
●Even if the electro nic key is not

2775-2. Driving procedures
5
Driving
5-2.Driving procedures
1Check that the AC charging
cable is disconnected.
( P.123)
2 Pull the parking brake switch
to check that the parking
brake is set. ( P.287)
The parking brake indicator will
come on.
3Check that the shift lever is
set in P.
4 Firmly depress the brake
pedal.
and a message will be dis-
played on the multi-information dis-
play.
If it is not displayed, the hybrid sys-
tem cannot be started.
5 Press the power switch
shortly and firmly.
When operating the power switch,
one short, firm press is enough. It is
not necessary to press and hold the
switch.
If the “READY” indicator turns on,
the hybrid system will operate nor-
mally.
Continue depressing the brake
pedal until the “READY” indicator is illuminated.
The hybrid system can be started
from any power switch mode.
6
Check that the “READY” indi-
cator is illuminated.
The vehicle will not move when the
“READY” indicator is off.
■Power switch illumination
According to the situation, the
power switch illu mination operates
as follows.
●When driver’s door or front pas-
senger’s door is opened, the
power switch illu mination illumi-
nates.
●When the power switch is in OFF
and depressing t he brake pedal
with carrying the electronic key on
your person, the power switch illu-
mination blinks.
●When the power switch is in ACC
or ON, the power switch illumina-
tion illuminates.
●When the power switch mode is
changed from ACC or ON to OFF,
the power switch illumination illu-
minates for a certain amount of
time. Afterwards, the power switch
illumination turns off.
■If the hybrid system does not
start
●The immobilizer system may not
have been deactivated. ( P.71)
Contact your Toyota dealer.
●If a message related to start-up is
shown on the multi-information
Power (ignition)
switch
Performing the following
operations when carrying
the electronic key on your
person starts the hybrid
system or changes power
switch modes.
Starting the hybrid sys-
tem

5298-2. Steps to take in an emergency
8
When trouble arises
One of the following may be the
cause of the problem:
The AC charging cable may
be attached to the vehicle.
( P.123)
 The electronic key may not be
functioning properly.
( P.532)
 There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle. ( P.304)
 There may be a malfunction
in the immobilizer system.
( P.71)
 The hybrid system may be
malfunctioning due to an elec-
trical problem such as elec-
tronic key battery depletion or
a blown fuse. However,
depending on the type of mal-
function, an interim measure
is available to start the hybrid
system. ( P.530)
NOTICE
■Be careful when driving over
bumps with the compact
spare tire installed on the
vehicle
The vehicle height may become
lower when driving with the com-
pact spare tire compared to when
driving with standard tires. Be
careful when driving over uneven
road surfaces.
■Driving with tire chains and
the compact spare tire
Do not fit tire chains to the com-
pact spare tire.
Tire chains may damage the vehi-
cle body and adversely affect driv-
ing performance.
■When replacing the tires
(vehicles with tire pressure
warning system)
When removing or fitting the
wheels, tires or the tire pressure
warning valve and transmitter,
contact your Toyota dealer as the
tire pressure warning valve and
transmitter may be damaged if not
handled correctly.
If the hybrid system
will not start
Reasons for the hybrid sys-
tem not starting vary
depending on the situation.
Check the following and
perform the appropriate
procedure:
The hybrid system will not
start even though the cor-
rect starting procedure is
being followed ( P.277)

Alphabetical Index603
Replacing light bulbs ............ 492
High voltage components ....... 87
Hill-start assist control .......... 376
Hood ........................................ 453 Warning message ................ 518
Hooks Cargo hooks ......................... 411
Coat hooks ........................... 423
Retaining hooks (floor mat) .... 26
Horn ......................................... 230
HV mode .................................... 77
Hybrid battery (tr action battery)
Charging............................... 123
Location.................................. 87
Specification ......................... 548
Hybrid battery (traction battery) charge mode ........................... 79
Hybrid system ACC...................................... 280
Acoustic Vehicle Alerting System............................................. 85
Brake Override System ........ 257
Emergency shut off system .... 91
Energy monitor/consumption screen ................................ 187
High voltage components....... 87
How to start the hybrid system ........................................... 277
Hybrid System Indicator ....... 165
If the hybrid sy stem will not start
........................................... 529
If your vehicle has to be stopped in an emergency................. 499
Ignition switch (power switch) ........................................... 277
Overheating.......................... 539
Plug in Hybrid Electric Vehicle driving tips ............................ 92
Plug-in hybrid system precau- tions...................................... 87
Power (ignition) switch ......... 277
Regenerative braking ............. 82 Starting the hybrid system ....277
Hybrid System Indicator ........165
Hybrid transmissio n ...............282
S mode .................................285
I
I/M test .....................................450
Identification Engine ..................................547
Vehicle..................................546
Ignition switch (power switch) ...............................................277Auto power off fun ction.........281
Changing the power switch modes.................................280
If your vehicle has to be stopped in an emergency .................499
Starting the hybrid system ....277
Immobilizer system ..................71
Indicators ................................160
Initialization Items to initialize ...................578
Maintenance .........................447
Moon roof .............................248
Panoramic moon r oof ...........251
Power back door ..................211
Power windows ....................244
Tire pressure warning system ...........................................469
Inside rear view m irror ...231, 232
Instrument panel light control ...............................................169
Interior lights...........................404 Switch ...................................404
Intuitive parking assist Function................................355
Warning message . ...............358
J
Jack
Positioning a floor jack .........454

Alphabetical Index609
Steering wheelAdjustment ........................... 230
Heated steering wheel ......... 401
Meter control switches ......... 171
Stop lights Replacing light bulbs ............ 492
Storage feature ....................... 407
Storage precautions .............. 407
Stuck If the vehicle becomes stuck 543
Sunshade ........................ 247, 250
Sun visors ............................... 414
Switches “ODO TRIP” switch .............. 169
“SOS” button .......................... 65
AUTO EV/HV mode switch .... 78
Automatic High Beam switch 296
Brake hold switch ................. 291
Digital Rear-view Mirror control switches ............................. 232
Door lock switch ................... 201
Driving mode select switch... 372
Driving position memory switches ............................. 225
Dynamic radar cruise control with full-speed range .......... 335
Electronic sunshade switch .. 250
Emergency flashers switch .. 498
EV/HV mode selection switch 78
Fuel filler door op ener switch305
Garage door opener switches ........................................... 432
Heated steering wheel ......... 401
Ignition switch (power switch) ........................................... 277
Intuitive parking assist .......... 357
Light switch .......................... 293
LTA switch............................ 326
Meter control switches ......... 171
Moon roof switches .............. 247
Outside rear view mirror switches ............................. 242 Paddle shift switches ............284
Panoramic moon roof switches
...........................................250
Parking brake switch ............287
Power back door s witch .......207
Power switch ........................277
Power window switch ...........244
Rear window and outside rear view mirror defoggers switch...........................................392
Rear window wiper and washer switch .................................302
Seat heater switches ............402
Seat ventilator switches........402
Vehicle-to-vehicle distance switch .................................335
VSC OFF switch ...................377
Window lock switch ..............246
Windshield defogger switch..392
Windshield wiper de-icer switch ...........................................397
Windshield wipers and washer switch .................................299
Wireless charger switch .......417
T
Tail lights Light switch...........................293
Replacing light bulbs ............492
Theft deterrent system Alarm ......................................72
Immobilizer system .................71
Tire inflation pressure Maintenance data .................551
Tire inflation pressure display function ...............................467
Warning light ........................513
Tire information ......................555 Glossary ...............................559
Size ......................................557
Tire identification number .....556
Tire section names ...............557

615
For vehicles sold in the U.S.A., Hawaii and Puerto Rico
For vehicles sold in Canada

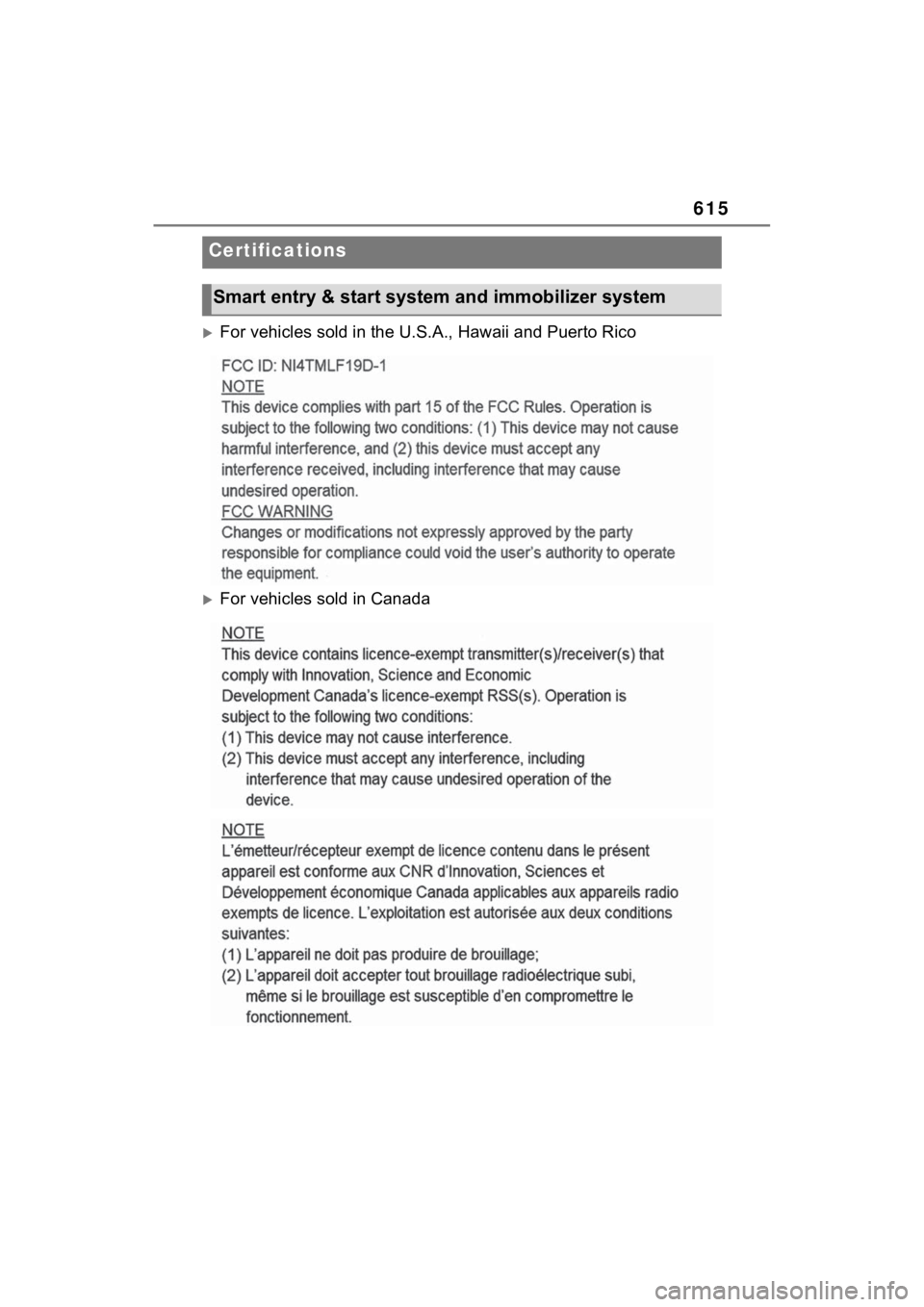

Certifications
Smart entry & start system and immobilizer system
