I21416
I21403
± AIR CONDITIONINGAIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)AC±105
3832 Author: Date:
2005 SEQUOIA (RM1146U)
(c) Remove the 8 bulbs.
(d) Remove the 7 screws and integration circuit.

I07872
AC3HY±02
AC±106± AIR CONDITIONINGAIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)
3833 Author: Date:
2005 SEQUOIA (RM1146U)
INSPECTION
INSPECT BULB
Set the tester as shown in the illustration to check for continuity.
If continuity exists, replace the heater control.
If no continuity exists, replace the bulb.

AC3HZ±01
± AIR CONDITIONINGAIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)AC±107
3834 Author: Date:
2005 SEQUOIA (RM1146U)
REASSEMBLY
Reassembly is in the reverse order of disassembly (See page AC±111).

AC3I0±01
AC±108± AIR CONDITIONINGAIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)
3835 Author: Date:
2005 SEQUOIA (RM1146U)
INSTALLATION
Installation is in the reverse order of removal (See page AC±110).

05_SEQUOIA_U (L/O 0408)
1
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel10 . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 1

05_SEQUOIA_U (L/O 0408)
2
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

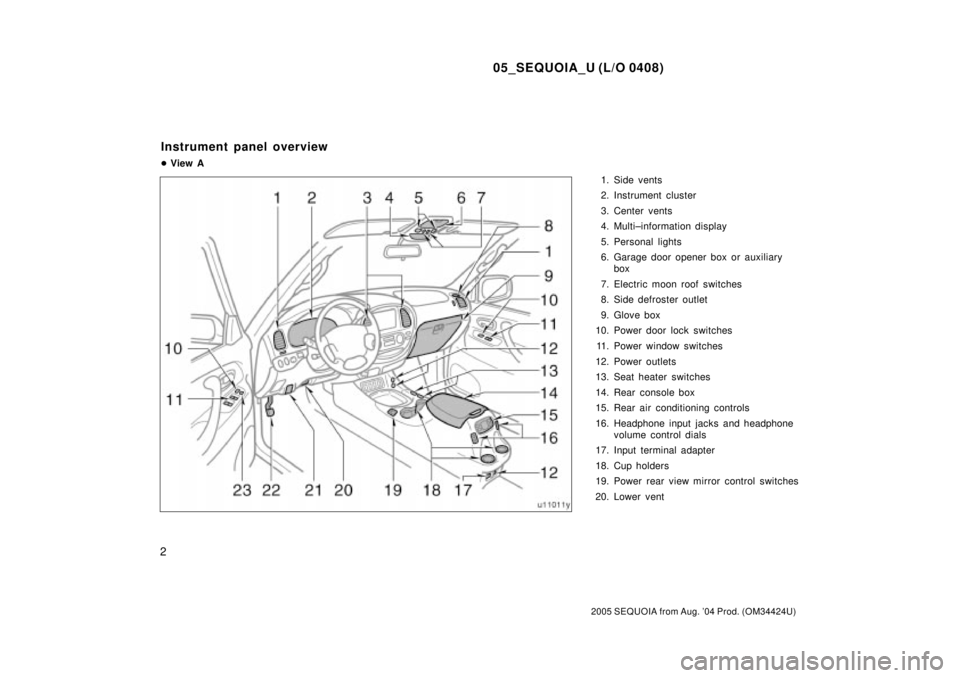

1. Side vents
2. Instrument cluster
3. Center vents
4. Multi±information display
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Electric moon roof switches
8. Side defroster outlet
9. Glove box
10. Power door lock switches
11. Power window switches
12. Power outlets
13. Seat heater switches
14. Rear console box
15. Rear air conditioning controls
16. Headphone input jacks and headphone
volume control dials
17. Input terminal adapter
18. Cup holders
19. Power rear view mirror control switches
20. Lower vent
Instrument panel overview

View A

05_SEQUOIA_U (L/O 0408)
8
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

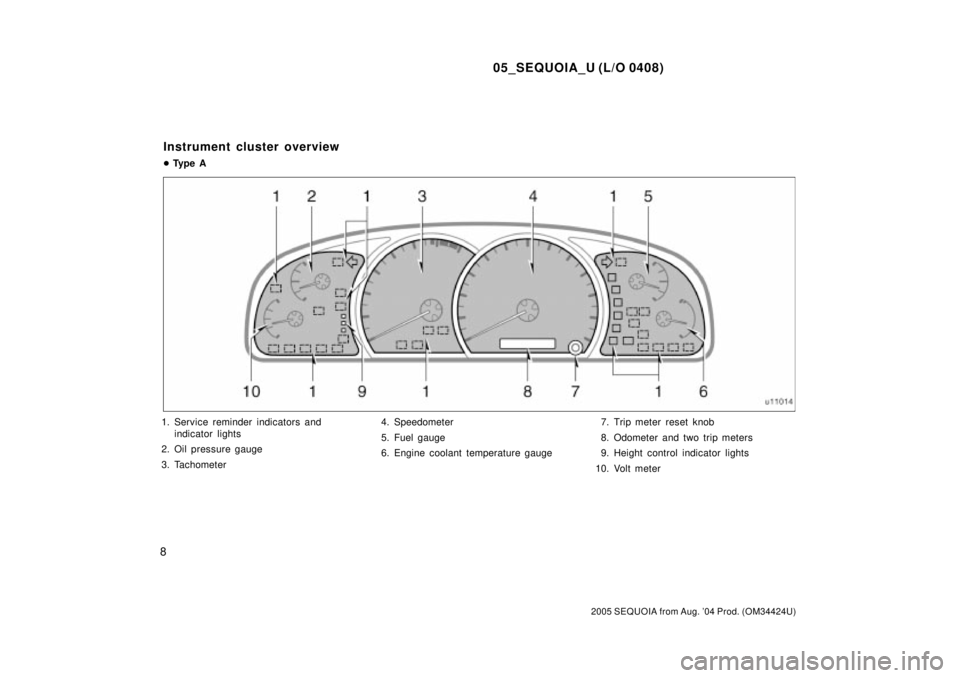

1. Service reminder indicators and
indicator lights
2. Oil pressure gauge
3. Tachometer4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge7. Trip meter reset knob
8. Odometer and two trip meters
9. Height control indicator lights
10. Volt meter
Instrument cluster overview

Ty p e A

05_SEQUOIA_U (L/O 0408)
173
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of ªPº position when the
brake pedal is depressed (with the ignition
switch in the ªONº or ªACCº position and
the selector lever pulled toward you).
(a) Selector lever
The shift position is displayed on the in-
strument cluster.
P:Parking, engine starting and
key removal
R:Reverse
N:Neutral
D:Normal driving (with overdrive on)
3, 2: Stronger engine braking
(b) Shift position ªLº switch
(ªSHIFT Lº switch)
To downshift to first gear (ªLº position),
push this switch with the shift lever in the
ª2º position. The ª
Lº is displayed on the
instrument cluster and engine braking will
be maximized.
To shift up to the ª2º position, push this
switch again.
To shift up to a position other than ª2º,
move the selector lever to that position.
Automatic transmission
With the brake pedal depressed,
shift while pulling the selector lever
toward you. (The ignition switch
must be in ªONº or ªACCº position.)
Shift while pulling the
selector lever toward you.
Shift normally.Selector leverOverdrive switch
Shift position
ªLº switch
Push the shift position ªLº switch.
To shift from the ªLº position to a
position other than ª2º, move the
selector lever to that position.

05_SEQUOIA_U (L/O 0408)
206
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
If you need accelerationÐfor example,
when passingÐdepress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the ªCANCELº di-
rection and releasing it.
b. Depressing the brake pedal.
c. Pushing ªON±OFFº button.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.RESETTING TO A FASTER SPEED
Push the lever up in the ª+ RESº direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the ª± SETº direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the ª± SETº direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the ª± SETº direction.
Even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal, pushing the lever up in the
ª+ RESº direction will restore the speed
set prior to cancellation.
CRUISE CONTROL FAILURE WARNING
If the ªCRUISEº indicator light in the
instrument cluster flashes when using the
cruise control, press the ªON±OFFº button
to turn the system off and then press it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.

The indicator light does not come on.

The indicator light flashes again.

The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

05_SEQUOIA_U (L/O 0408)
336
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
OCTANE RATING
Select Octane Rating 87 (Research Oc-
tane Number 91) or higher.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern.
GASOLINE CONTAINING DETERGENT
ADDITIVES
Toyota recommends the use of gasoline
that contains detergent additives to
avoid build±up of engine deposits.
However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
World±Wide Fuel Charter (WWFC) that
is expected to be applied world wide.
The WWFC consists of four categories
that depend on required emission lev-
els. In the U.S., category 4 has been
adopted. The WWFC improves air quali-
ty by providing for better emissions in
vehicle fleets, and customer satisfaction
through better vehicle performance.
CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Toyota recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.OXYGENATES IN GASOLINE
Toyota allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Toyota, be sure that it has an octane
rating no lower than 87.
Toyota does not recommend the use of
gasoline containing methanol.
GASOLINE CONTAINING MMT
Some gasoline contain an octane en-
hancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of
gasoline that contains MMT. If fuel con-
taining MMT is used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
