Locking operation
Unlocking operation
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
“PANIC” mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches slow-
ly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked si-
multaneously. At this time one beep will
be heard, and the parking lights and tail
lights flash once.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or back door is
not securely closed, locking cannot be
performed by the “LOCK” switch and a
beep will sound continuously for 10 sec-
onds. However, if the key is in the igni-
tion, a beep will not sound.
To stop the buzzer, close all the doors
securely or push the “UNLOCK” switch.
The buzzer can be disabled. For details,
contact your Toyota dealer.To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. Each time the “UNLOCK”
switch is pushed, two beeps will be heard,
and the parking lights and tail lights flash
twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When all the side doors and back door
are unlocked simultaneously with a wire-
less remote control transmitter, the interior
light, luggage compartment light, ignition
switch light and foot light come on for
about 15 seconds and then fade out, even
if the door is not opened. (For details, see
“Center interior and personal light” on
page 115, “Luggage compartment light” on
page 116 and “Ignition switch light” on
page 117 in Section 14.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.
—Wireless remote control

02_SEQUOIA_U (L/O 0108)
182002 MY SEQUOIA_U (OM34418U)
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “PANIC” or
“UNLOCK” switch, or unlock any side door
or back door with key. You can also stop
the alarm by turning the ignition key from
“LOCK” to the “ON” position.The “PANIC” mode does not work when
the ignition key is in the “ON” position.
This alarm function can be disabled. For
details, contact your Toyota dealer.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors or operate
from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see following
“REPLACING THE BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 261 in
Section 4.)

02_SEQUOIA_U (L/O 0108)
222002 MY SEQUOIA_U (OM34418U)
Window lock
switch
Driver’s door switches
Front passenger’s door switch
OPERATING FROM INSIDE
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front side
doors are closed, they work for 43 se-
conds even after the ignition switch is
turned off. They stop working when either
front side door is opened.
OPERATING THE DRIVER’S AND FRONT
PASSENGER’S WINDOWS
Use the switches on the driver’s door
and front passenger ’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
If you push in the window lock switch on
the driver ’s door, the front passengers’
window cannot be operated.
Driver’s door switches
Front passenger’s door switch
Power windows

02_SEQUOIA_U (L/O 0108)
232002 MY SEQUOIA_U (OM34418U)
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
If you push in the window lock switch on
the driver ’s door, the front passengers’
window cannot be operated.
Jam protection function: During automat-
ic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
OPERATING FROM OUTSIDE
The front windows can be opened and
closed with the key operation in the driv-
er ’s door keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This feature can be disabled. For details,
contact your Toyota dealer.

02_SEQUOIA_U (L/O 0108)
292002 MY SEQUOIA_U (OM34418U)
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood make sure it
locks into place. If necessary, press down
gently on the front edge to lock it.To deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
Hood Theft deterrent system

02_SEQUOIA_U (L/O 0108)
302002 MY SEQUOIA_U (OM34418U)
SETTING THE SYSTEM1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
on page 10 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:If any of the side doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the back
door or hood is forcibly opened
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activated. If the alarm has been activated and the
key is not in the ignition switch, all the
side doors and back door will relock au-
tomatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
These ways cancel the system at the
same time.

02_SEQUOIA_U (L/O 0108)
312002 MY SEQUOIA_U (OM34418U)
TESTING THE SYSTEM1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light goes off or
starts flashing.
3. Unlock any side door from the inside. The system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Fuel tank cap

02_SEQUOIA_U (L/O 0108)
322002 MY SEQUOIA_U (OM34418U)
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
Sliding operation
Tilting operation
Electric moon roof

02_SEQUOIA_U (L/O 0108)
332002 MY SEQUOIA_U (OM34418U)
OPERATING FROM INSIDE
To operate the moon roof, use the
switches between the personal lights.
The moon roof works when the ignition
switch is in the “ON” position.
Key off operation: If all the doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when any of the doors is opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “ ”
(rear) side.
The roof will open and stop partway 135
mm (5.3 in.) from the fully opened posi-
tion. When you push “ ” (rear) side
again, the moon roof will open fully. To
stop the roof partway, push the same side
or “ ” (front) side while the roof is mov-
ing.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
135 mm (5.3 in.) from the fully opened
position. The sun shade will be opened together
with the roof.
To close: Push the switch on the “
”
(front) side.
The roof will fully close. To stop the roof
partway, push the same side or “ ” (rear)
side briefly.
Tilting operation—
To tilt up: Push the switch on the “UP”
side.
To lower: Push the switch on the opposite
side of “UP”.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released.
Jam protection function: During closing
operation, the moon roof stops and opens
half way if something gets caught between
the moon roof and frame.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.

02_SEQUOIA_U (L/O 0108)
372002 MY SEQUOIA_U (OM34418U)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch

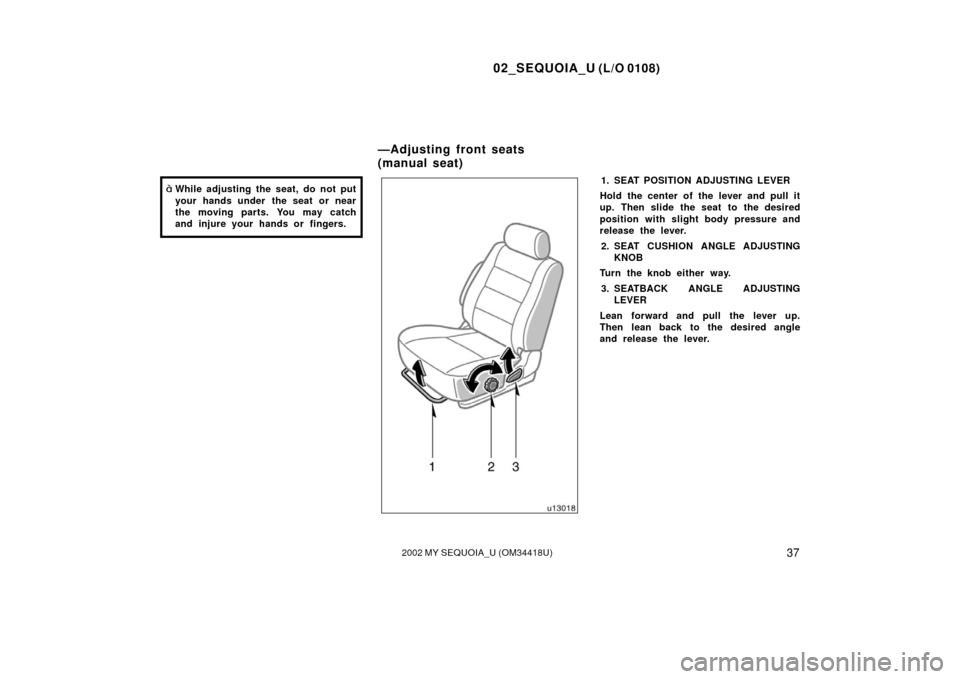

and injure your hands or fingers.1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)
