Compass sensor
The compass sensor is on the roof of
the vehicle.
NOTICE
Do not put magnets or a metal object
on or near the roof of the vehicle.
Doing this may cause malfunction of
the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust for this deviation;1. Stop the vehicle in a level place and switch the display to the outside tem-
perature. (To switch to this mode, see
“—Outside temperature and cruise in-
formation display” on page 189 in this
section.)
2. Push and hold both the “MODE” and “E/M” buttons simultaneously for 5 sec-
onds until the “VAR” indication appears
on the compass display.
3. Push the “E/M” button several times until the desired zone number appears
on the compass display.
If the button is not pushed for 10 sec-
onds, the display returns to the compass/
outside temperature mode and the number
that is last set is memorized.

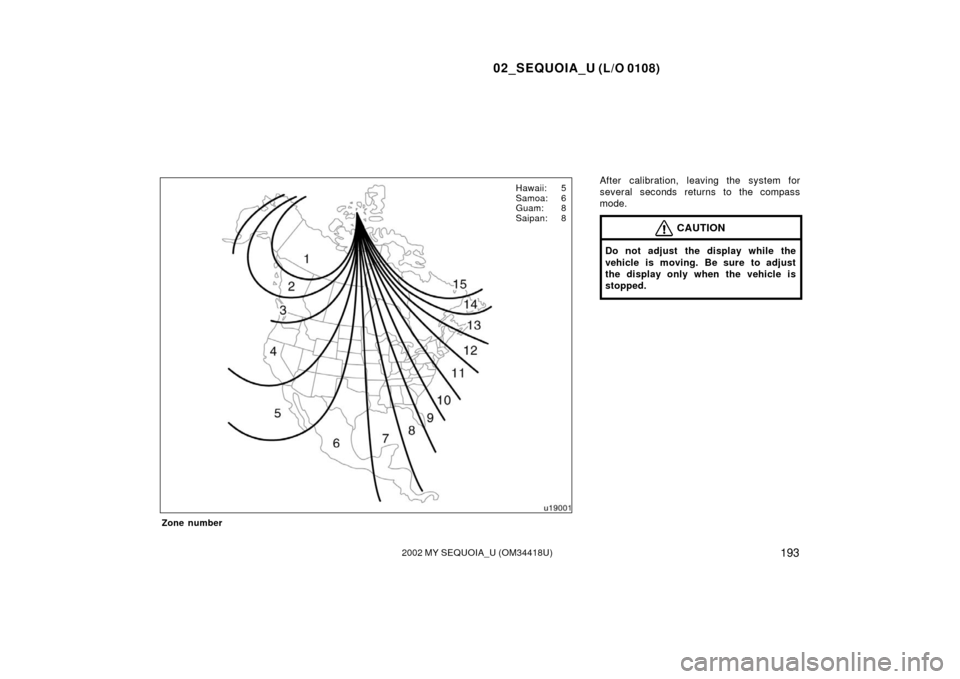

To select the zone where the vehicle is
currently located, refer to the following
map.

02_SEQUOIA_U (L/O 0108)
1932002 MY SEQUOIA_U (OM34418U)
Zone number
After calibration, leaving the system for
several seconds returns to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Hawaii: 5
Samoa: 6
Guam: 8
Saipan: 8

02_SEQUOIA_U (L/O 0108)
1942002 MY SEQUOIA_U (OM34418U)

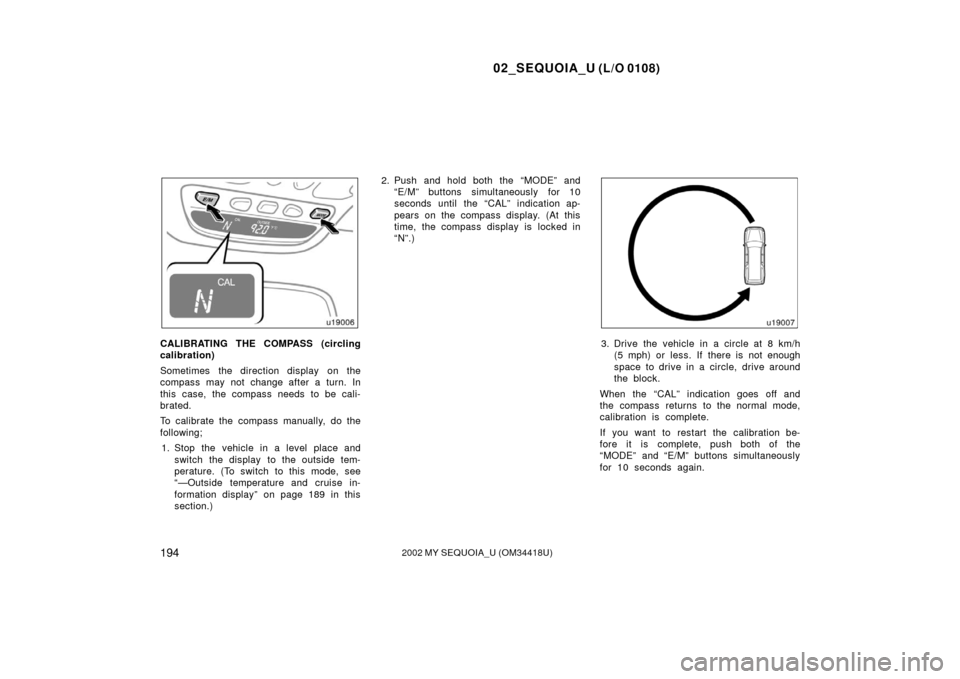

CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. In
this case, the compass needs to be cali-
brated.
To calibrate the compass manually, do the
following;1. Stop the vehicle in a level place and switch the display to the outside tem-
perature. (To switch to this mode, see
“—Outside temperature and cruise in-
formation display” on page 189 in this
section.) 2. Push and hold both the “MODE” and
“E/M” buttons simultaneously for 10
seconds until the “CAL” indication ap-
pears on the compass display. (At this
time, the compass display is locked in
“N”.)3. Drive the vehicle in a circle at 8 km/h(5 mph) or less. If there is not enough
space to drive in a circle, drive around
the block.
When the “CAL” indication goes off and
the compass returns to the normal mode,
calibration is complete.
If you want to restart the calibration be-
fore it is complete, push both of the
“MODE” and “E/M” buttons simultaneously
for 10 seconds again.

02_SEQUOIA_U (L/O 0108)
1952002 MY SEQUOIA_U (OM34418U)
Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and pay attention to people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

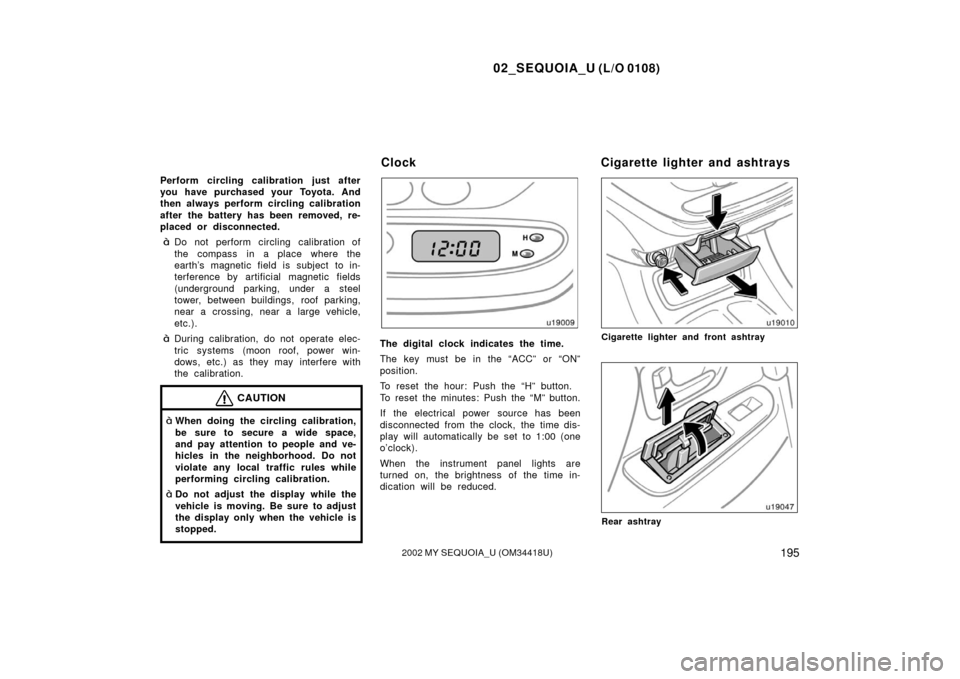

The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.Cigarette lighter and front ashtray
Rear ashtray
ClockCigarette lighter and ashtrays

02_SEQUOIA_U (L/O 0108)
1962002 MY SEQUOIA_U (OM34418U)
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
When it becomes heated, it automatical-
ly pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAYS
Front: To use the ashtray, pull it out.
Rear: To use the ashtray, open the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
Front—To remove the ashtray, press down
on the lock spring plate and pull out.
Rear—To remove the ashtray, pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after using it.

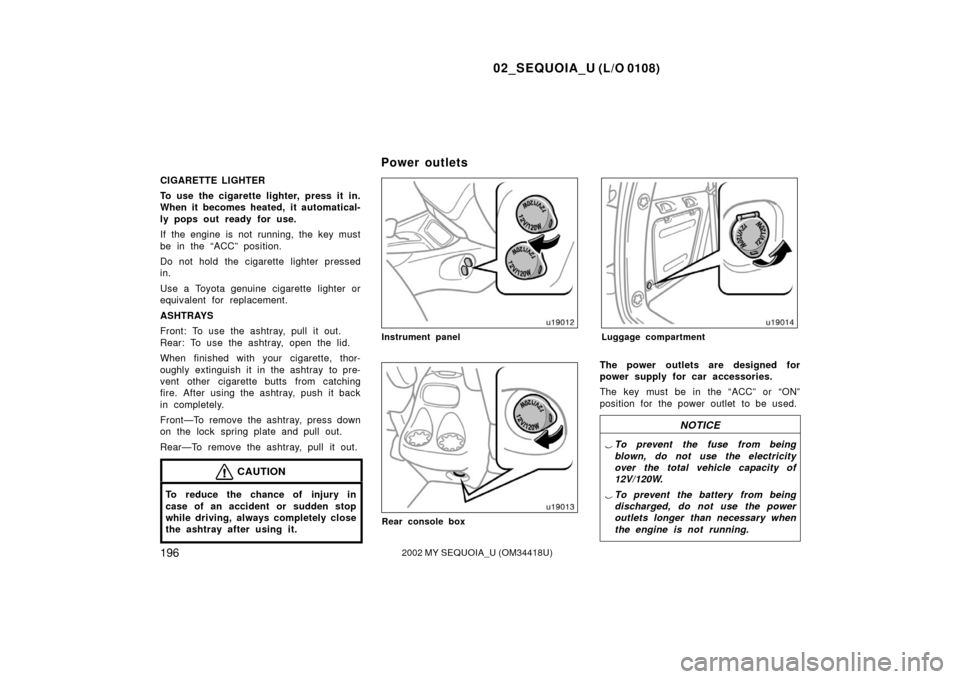

Instrument panel
Rear console box
Luggage compartment
The power outlets are designed for
power supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Power outlets

02_SEQUOIA_U (L/O 0108)
1972002 MY SEQUOIA_U (OM34418U)
Close the power outlet lids when
the power outlets are not in use.
Inserting a foreign object other than
the appropriate plug that fits the
outlet, or allowing any liquid into
the outlet may cause electrical fail-
ure or short circuits.

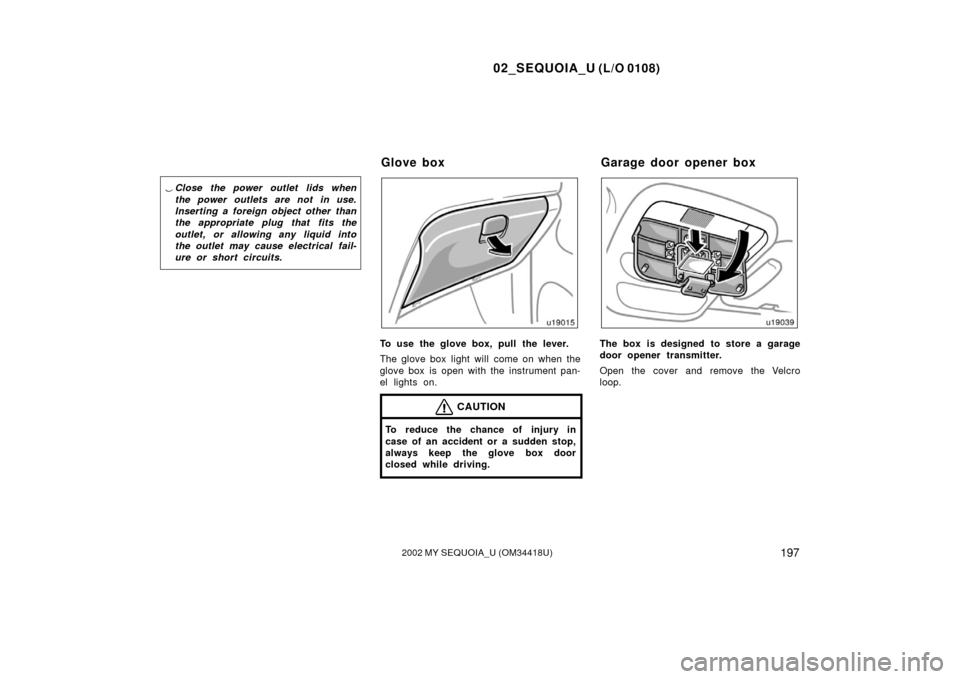

To use the glove box, pull the lever.
The glove box light will come on when the
glove box is open with the instrument pan-
el lights on.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
loop.
Glove box Garage door opener box

02_SEQUOIA_U (L/O 0108)
1982002 MY SEQUOIA_U (OM34418U)
Remove the paper strip covering the adhe-
sive on back side of square and adhere
the square to back side of the transmitter
near the center.Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.Place the transmitter with Velcro square
facing inside of box into the box. Make
sure the transmitter button is located
above button pins.

02_SEQUOIA_U (L/O 0108)
1992002 MY SEQUOIA_U (OM34418U)
Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.

02_SEQUOIA_U (L/O 0108)
2002002 MY SEQUOIA_U (OM34418U)
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A and B—As these holder are
designed for holding a light object
such as an eyeglass, do not place
any heavy objects in them. Heavy
objects may cause the holder to
open and contents to fly out result-
ing in injuries.
NOTICE
Type A and B—During hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.

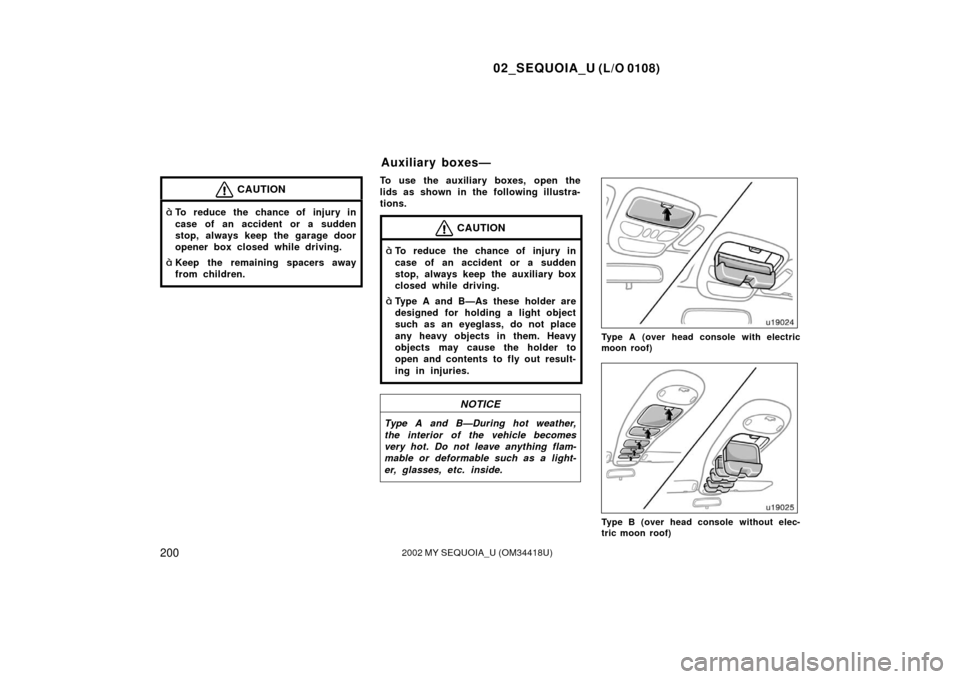

Type A (over head console with electric
moon roof)
Type B (over head console without elec-
tric moon roof)
Auxiliary boxes—

02_SEQUOIA_U (L/O 0108)
2012002 MY SEQUOIA_U (OM34418U)

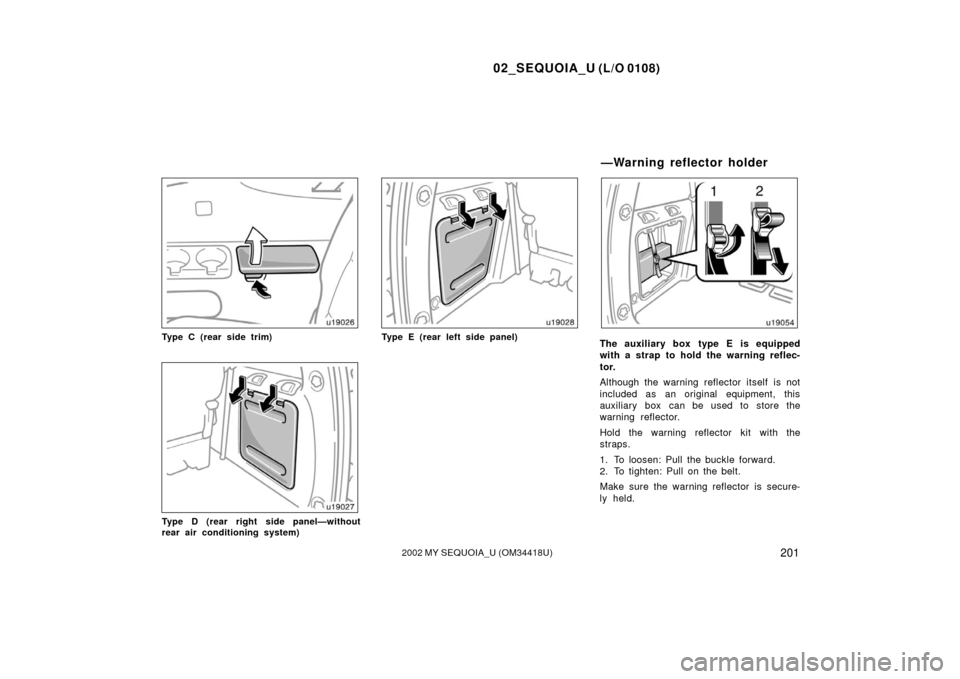

Type C (rear side trim)
Type D (rear right side panel—without
rear air conditioning system)
Type E (rear left side panel)The auxiliary box type E is equipped
with a strap to hold the warning reflec-
tor.
Although the warning reflector itself is not
included as an original equipment, this
auxiliary box can be used to store the
warning reflector.
Hold the warning reflector kit with the
straps.
1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Make sure the warning reflector is secure-
ly held.
—Warning reflector holder
