LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with either front
side door. In the driver’s door lock, turn-
ing the key once will unlock the driver’s
door and twice in succession will unlock
all the side doors and back door simulta-
neously.This double key turning operation to un-
lock all the side doors and back door can
be changed to a single key turning opera-
tion. For details, contact your Toyota deal-
er.
When all the side doors and back door
are unlocked simultaneously with a key,
the interior light, luggage compartment
light, ignition switch light and foot light
come on for about 15 seconds and then
fade out, even if the door is not opened.
(For details, see “Center interior and per-
sonal lights” on page 115, “Luggage
compartment light” on page 116 and “Igni-
tion switch light” on page 117 in Section
14.)
The windows and electric moon roof can
be opened or closed with the key opera-
tion in the driver ’s door keyhole. (For de-
tails, see “Power windows” on page 22
and “Electric moon roof” on page 32 in
this section.)LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The both front doors can be opened from
the inside even with the lock knob in the
locked position.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Side doors

02_SEQUOIA_U (L/O 0108)
132002 MY SEQUOIA_U (OM34418U)
The front side doors cannot be locked if
you leave the key in the ignition switch.
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the doors lock or unlock simultaneous-
ly.
When the front side doors are locked from
the outside or locked with the wireless
remote control transmitter, the power door
lock switch will not work until either front
door is unlocked with the key, lock knob,
or wireless remote control transmitter.
If the vehicle is subjected to a severe
impact from the front or rear, or from
either side with the ignition switch at the
“ON” position, all the door locks are auto-
matically cancelled.

02_SEQUOIA_U (L/O 0108)
142002 MY SEQUOIA_U (OM34418U)
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
You can select the following modes of
the automatic locking and unlocking
functions. The initial mode is mode 1.
Mode 1—Automatic locking operation
linked to shift lever position
All doors are automatically locked when
the shift lever is moved out of “P”
position after the ignition switch is
turned to the “ON” position and all the
doors are closed.
Mode 2—Automatic locking operation
linked to vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
Mode 3—Automatic unlocking opera-
tion linked to the ignition switch
All doors are automatically unlocked
when the driver ’s door is opened within
10 seconds after the ignition switch is
turned to the “ACC” or “LOCK” posi-
tion, or the key is removed.
Mode 4—Automatic unlocking opera-
tion linked to shift lever position
All doors are automatically unlocked
when the selector lever is moved to
“P” position after the ignition switch is
turned to “ON” position.
—Automatic door locking and
unlocking functions

02_SEQUOIA_U (L/O 0108)
152002 MY SEQUOIA_U (OM34418U)
SETTING FUNCTIONS
You can set the following functions by
yourself.
To set the mode 1 (the automatic lock-
ing operation linked to shift lever posi-
tion):1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P” position.
3. Press the driver ’s side power door lock switch on the front side for about 5
seconds, within 10 seconds after the
ignition switch is turned to the “ON”
position.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To set the mode 2 (the automatic lock-
ing operation linked to vehicle speed): 1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever from the “P” into the “N” position. 3. Press the driver ’s side power door lock
switch on the front side for about 5
seconds, within 10 seconds after the
ignition switch is turned to the “ON”
position.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To set the mode 3 (the automatic un-
locking operation linked to the ignition
switch): 1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever from the “P” into the “N” position.
3. Press the driver ’s side power door lock switch on the rear side for about 5
seconds, within 10 seconds after the
ignition switch is turned to the “ON”
position.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again. To set the mode 4 (the automatic un-
locking operation linked to shift lever
position):
1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P” position.
3. Press the driver ’s side power door lock switch on the rear side for about 5
seconds, within 10 seconds after the
ignition switch is turned to the “ON”
position.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again.
CAUTION
To prevent an accident, set and can-
cel the function with the parking
brake set securely.

02_SEQUOIA_U (L/O 0108)
162002 MY SEQUOIA_U (OM34418U)
Locking operation
Unlocking operation
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
“PANIC” mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches slow-
ly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked si-
multaneously. At this time one beep will
be heard, and the parking lights and tail
lights flash once.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or back door is
not securely closed, locking cannot be
performed by the “LOCK” switch and a
beep will sound continuously for 10 sec-
onds. However, if the key is in the igni-
tion, a beep will not sound.
To stop the buzzer, close all the doors
securely or push the “UNLOCK” switch.
The buzzer can be disabled. For details,
contact your Toyota dealer.To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. Each time the “UNLOCK”
switch is pushed, two beeps will be heard,
and the parking lights and tail lights flash
twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When all the side doors and back door
are unlocked simultaneously with a wire-
less remote control transmitter, the interior
light, luggage compartment light, ignition
switch light and foot light come on for
about 15 seconds and then fade out, even
if the door is not opened. (For details, see
“Center interior and personal light” on
page 115, “Luggage compartment light” on
page 116 and “Ignition switch light” on
page 117 in Section 14.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.
—Wireless remote control

02_SEQUOIA_U (L/O 0108)
172002 MY SEQUOIA_U (OM34418U)
The timing for the automatic door lock
function can be changed. For details, con-
tact your Toyota dealer.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.
The wireless door locking or unlocking
function can be erased. For details, con-
tact your Toyota dealer.
SWITCHING BEEP SOUND ON AND OFF
You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver ’s door opened—1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition key again and turn it to the “ON” posi-
tion.
3. After 10 seconds, push the same “LOCK”, “UNLOCK”, “PANIC” switch or
back window open button twice within
10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected. Check the beep ON/OFF operation by
pushing the transmitter switch after you
finish this procedure. If the beep does not
operate as expected, repeat this proce-
dure from step 1.
OPENING THE BACK WINDOW
To open the back window, push the
back window open switch of the trans-
mitter for about 1 second. The window
will fully open.
At this time, you can hear a beep.
If the ignition switch is in the “ON” posi-
tion, the back window cannot be opened
by the back window open switch.
To open the back window with the master
key, see “Power back window” on page 25
in this section.
The back window opening program by
wireless remote control can be changed or
disabled. For details, contact your Toyota
dealer.

02_SEQUOIA_U (L/O 0108)
182002 MY SEQUOIA_U (OM34418U)
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “PANIC” or
“UNLOCK” switch, or unlock any side door
or back door with key. You can also stop
the alarm by turning the ignition key from
“LOCK” to the “ON” position.The “PANIC” mode does not work when
the ignition key is in the “ON” position.
This alarm function can be disabled. For
details, contact your Toyota dealer.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors or operate
from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see following
“REPLACING THE BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 261 in
Section 4.)

02_SEQUOIA_U (L/O 0108)
192002 MY SEQUOIA_U (OM34418U)

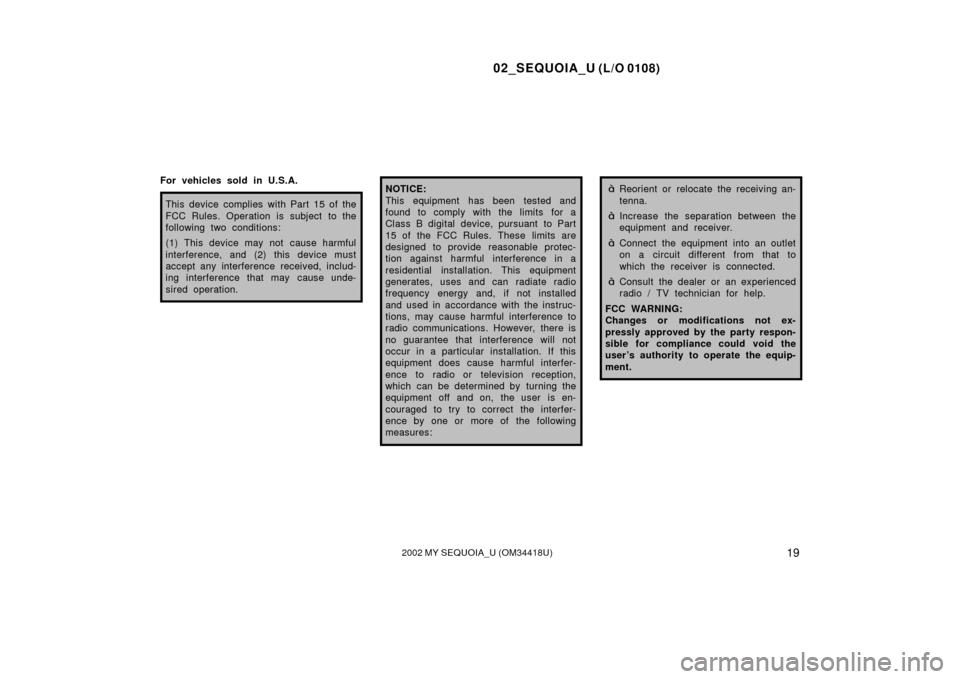

For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio / TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

02_SEQUOIA_U (L/O 0108)
202002 MY SEQUOIA_U (OM34418U)
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
REPLACING THE BATTERY
For replacement, use a lithium battery
CR2016.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved battery or components.
NOTICE
When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by
the manufacturer.
 Dispose of used batteries according
to the local laws.
Replace the battery by the following pro-
cedures:

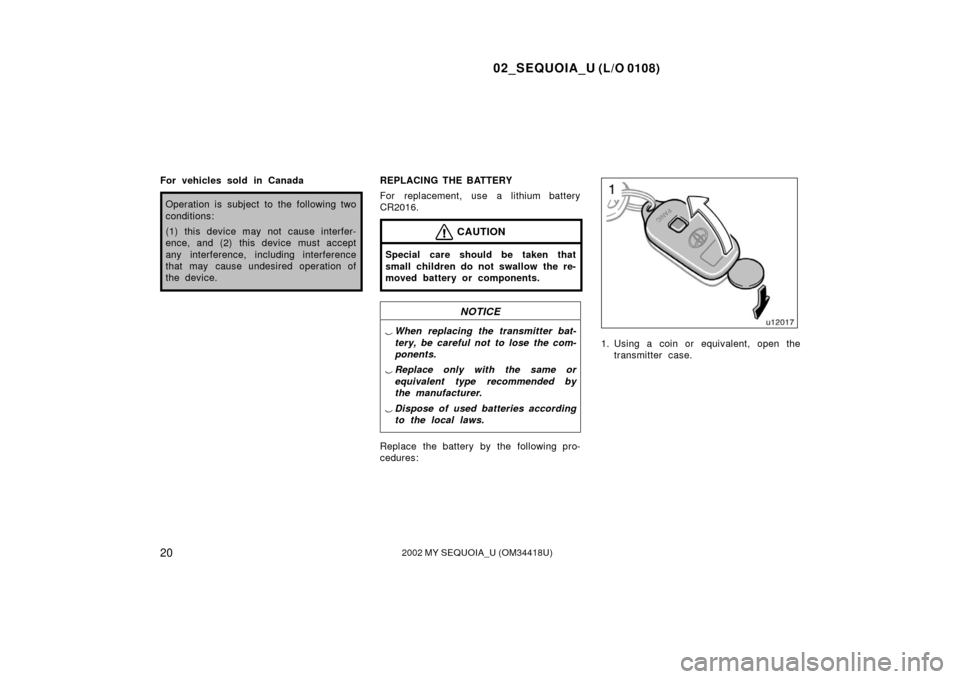

1. Using a coin or equivalent, open the
transmitter case.

02_SEQUOIA_U (L/O 0108)
212002 MY SEQUOIA_U (OM34418U)

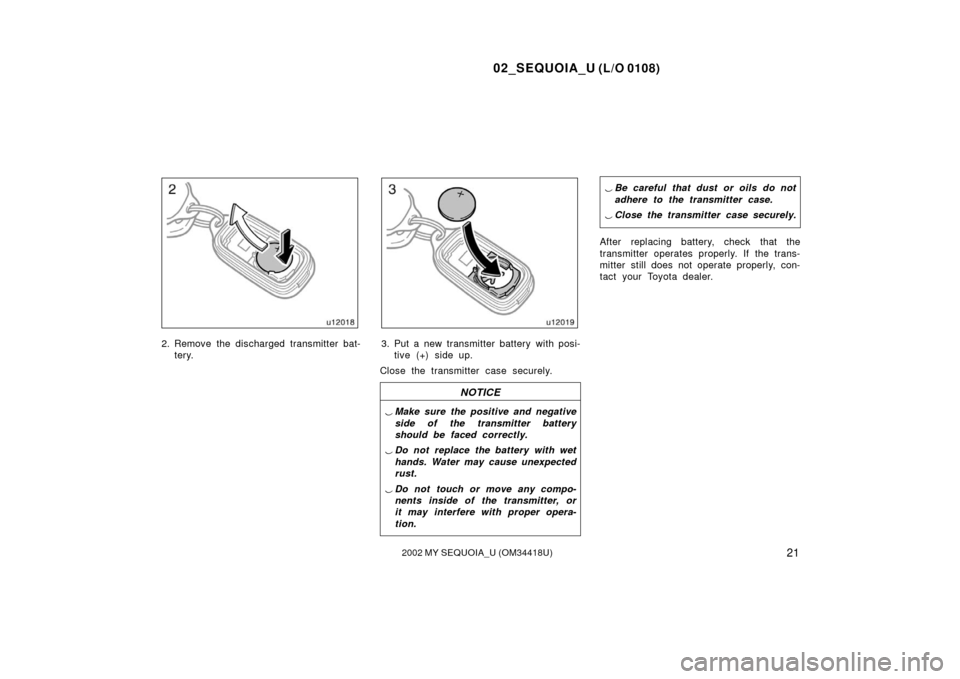

2. Remove the discharged transmitter bat-tery.3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive and negative
side of the transmitter battery
should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside of the transmitter, or
it may interfere with proper opera-
tion.
Be careful that dust or oils do not
adhere to the transmitter case.
 Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
