rear window TOYOTA SEQUOIA 2002 1.G Owners Manual

02_SEQUOIA_U (L/O 0108)
22002 MY SEQUOIA_U (OM34418U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Multiinformation display
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Electric moon roof switches
8. Side defroster outlet
9. Glove box
10. Power door lock switches
11. Power window switches
12. Power outlets
13. Seat heater switches
14. Rear console box
15. Rear air conditioning controls
16. Cup holders
17. Power rear view mirror control switches
18. Front drive control lever
19. Lower vent
20. Hood lock release lever
21. Parking brake pedal
22. Window lock switch
Instrument panel overview

02_SEQUOIA_U (L/O 0108)
32002 MY SEQUOIA_U (OM34418U)
1. Power back window switch
2. Headlight and turn signal switch, andfront fog light switch
3. Wiper and washer switches
4. Automatic transmission selector lever
5. Emergency flasher switch
6. Car audio
7. Air conditioning controls
8. Front passenger ’s seat belt reminder light
9. Back window and rear view mirror defogger switch
10. Clock 11. Cup holder
12. “VSC OFF” switch (fourwheel drive models)
13. “TRAC OFF” switch (twowheel drive models)
14. “4WD” switch
15. Ashtray
16. Cigarette lighter
17. Cruise control switch
18. Ignition switch
19. Tilt steering lock release lever
20. Instrument panel light control knob

02_SEQUOIA_U (L/O 0108)
242002 MY SEQUOIA_U (OM34418U)
Window
lock
switch
Driver’s door switches
OPERATING THE REAR PASSENGERS’
WINDOWS
Use the switch on each rear passen-
gers’ doors or the switches on the driv-
er ’s door that control rear passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the rear passengers’
windows cannot be operated.
Rear passengers’ door switches
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the win-
dows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.

02_SEQUOIA_U (L/O 0108)
282002 MY SEQUOIA_U (OM34418U)
CAUTION
Keep the back window and back door
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.

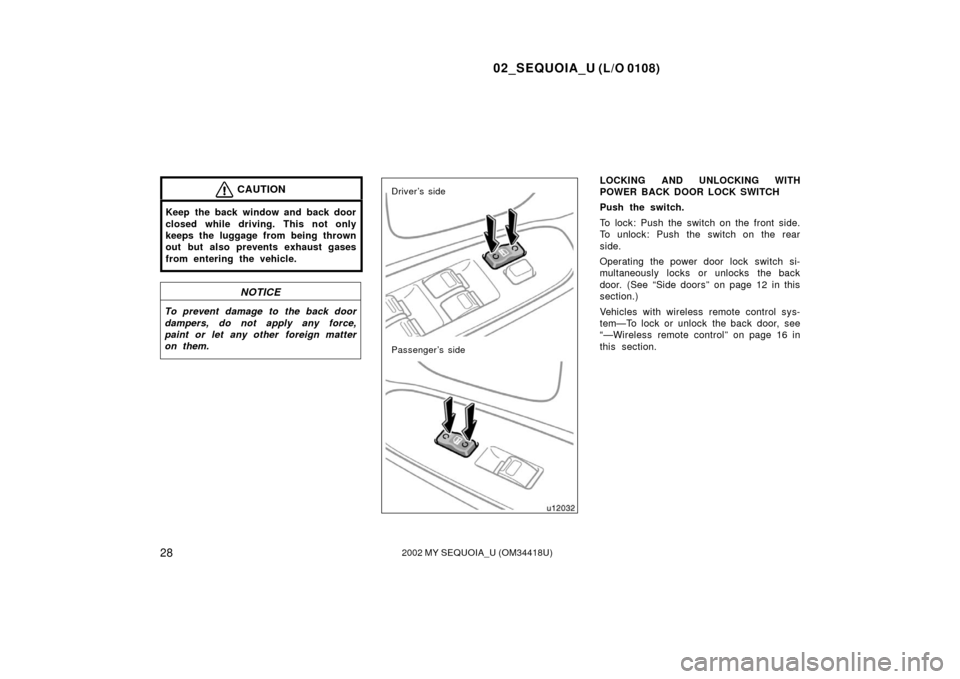

Driver’s side
Passenger’s sideLOCKING AND UNLOCKING WITH
POWER BACK DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Operating the power door lock switch si-
multaneously locks or unlocks the back
door. (See “Side doors” on page 12 in this
section.)
Vehicles with wireless remote control sys-
tem—To lock or unlock the back door, see
“—Wireless remote control” on page 16 in
this section.

02_SEQUOIA_U (L/O 0108)
1042002 MY SEQUOIA_U (OM34418U)
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. To turn on the
back window defogger, see “Back window
and outside rear view mirror defoggers” on
page 119 in Section 14.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal death or injuries.
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
Ty p e A
Ty p e B
Outside rear view mirrors——Power rear view mirror
control

02_SEQUOIA_U (L/O 0108)
1092002 MY SEQUOIA_U (OM34418U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 113
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 114
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 114
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Personal lights 115
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Center interior and personal lights 115
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage compartment light 116
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 117
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 117
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window wiper and washer 118
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defoggers 119
. . . . . . . . . . .
SECTION 1 4

02_SEQUOIA_U (L/O 0108)
11 92002 MY SEQUOIA_U (OM34418U)
To defog or defrost the back window,
push the switch with the back window
closed.
The key must be in the “ON” position.
The thin heater wires on the inside of the
back window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
On some models, heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stopandgo driving. The defoggers are
not designed for drying rain water or for
melting snow.
CAUTION
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
NOTICE
When cleaning the inside of the back
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Back window and outside rear
view mirror defoggers

02_SEQUOIA_U (L/O 0108)
2682002 MY SEQUOIA_U (OM34418U)
Windows
The windows may be cleaned with any
household window cleaner.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Air conditioning control panel, car au-
dio, instrument panel, console panel,
and switches
Use a soft damp cloth for cleaning.
Soak a clean soft cloth in water or luke-
warm water then lightly wipe off dirt.
NOTICE
Do not use organic substances (sol-
vents, kerosene, alcohol, gasoline,
etc.) or alkaline or acidic solutions.
These chemicals can cause discol-
oring, staining or peeling of the
surface.
 If you use cleaners or polishing
agents, make sure their ingredients
do not include the substances men-
tioned above.
If you use a liquid car freshener, do
not apill the liquid onto the ve-
hicle’s interior surfaces. It may con-
tain the ingredients mentioned
above. Immediately clean any spill
using the method mentioned above.
Leather Interior
The leather upholstery may be cleaned
with neutral detergent for wool.
Remove dirt using a soft cloth dampened
with 5% solution of neutral detergent for
wool. Then thoroughly wipe off all traces
of detergent with a clean damp cloth.
After cleaning or whenever any part of the
leather gets wet, dry with a soft clean
cloth. Allow the leather to dry in a venti-
lated shaded area.
NOTICE
If a stain should fail to come out
with a neutral detergent, apply a
cleaner that does not contain an
organic solvent.
 Never use organic substances such
as benzine, alcohol or gasoline, or
alkaline or acid solutions for clean-
ing the leather as these could
cause discoloring.
 Use of a nylon brush or synthetic
fiber cloth, etc. may scratch the
fine grained surface of the leather.
 Mildew may develop on soiled leath-
er upholstery. Be especially careful
to avoid oil spots. Try to keep your
upholstery always clean.
 Long exposure to direct sunlight
may cause the leather surface to
harden and shrink. Keep your ve-
hicle in a shaded area, especially in
the summer.

02_SEQUOIA_U (L/O 0108)
3142002 MY SEQUOIA_U (OM34418U)
21. DOME 10 A: Center interior and per-
sonal lights, personal lights, luggage
compartment light, air conditioning sys-
tem, wireless remote control system,
garage door opener, ignition switch
light, door courtesy lights, foot light,
vanity lights, power antenna
22. ECUB 7.5 A: Multiplex communication
system (power door lock system, secu-
rity system, autodoor locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system), back
door lock system, driver and front pas-
senger door lock system, gauges and
meters
23. MIR HTR 15 A: Outside rear view mir-
ror heaters
24. RAD NO.1 20 A: Car audio system
25. TAIL 15 A: Tail lights, back door cour-
tesy light, license plate lights 26. ECUIG 7.5 A:
Charging system,
cruise control system, antilock brake
system, vehicle skid control system,
traction control system (twowheel
drive models), active traction control
system (fourw heel drive models), elec-
tronically controlled automatic transmis-
sion system, power antenna, electric
moon roof, back door lock system,
driver and front passenger door lock
system, g auges and meters, multiin-
formation display, SRS airbag system,
front seat belt pretensioners
27. WSH 25 A: Wipers and washer
28. IGN 2 20 A: Starting system
29. PWR NO.3 20 A: Rear passenger ’s
power window (right side)
30. PWR NO.4 20 A: Rear passenger ’s
power window (left side)
31. CIG 15 A: Air conditioning systems,
power rear view mirror control, ciga-
rette lighter 32. RAD NO.2 7.5 A:
Car audio system,
power antenna, power outlets, multiplex
communication system (power door
lock system, security system, auto
door locking system, automatic light
control system, headlight delay off sys-
tem, tail light auto cut system, illumi-
nated entry system, daytime running
light system)
33. 4WD 20 A: A.D.D. control system,
fourwheel drive system
34. STOP 15 A: Stop lights, highmounted
stop lights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, vehicle skid control system,
traction control system (twowheel
drive models), active traction control
system (fourw heel drive models), mul-
tiplex communication system (autodoor
locking system)
35. OBD 7.5 A: Onboard diagnosis sys-
tem

02_SEQUOIA_U (L/O 0108)
3152002 MY SEQUOIA_U (OM34418U)
36. PANEL 7.5 A: Instrument panel lights,
glove box light, lights of seat heaters,
cigarette lighter, ashtrays, multiinfor-
mation display, car audio system,
gauge and meters and air conditioning
systems
37. PWR NO.1 25 A: Driver ’s door lock
system
38. WIP 25 A: Wiper and washers
39. IGN 1 10 A: Charging system
40. SUN ROOF 25 A: Electric moon roof
41. PWR NO.2 25 A: Front passengers’
door lock system
42. HTR 10 A: Air conditioning systems,
electric cooling fan, back window de-
fogger, outside rear view mirror heater
43. FOG 15 A: Front fog lights
44. GAUGE 10 A: Backup lights, seat
heaters, gauge and meters, air condi-
tioning systems
45. PWR OUTLET 15 A: Power outlets
46. SEAT HEATER 15 A: Seat heaters
Fuses (type B)
47. RR HEATER 30 A: Rear air condition-
ing system
48. HEATER 40 A: Front air conditioning
system 49. DEFOG 40 A:
Back window defogger
50. MAIN 40 A: Starting system, “HLP
RH”, “HLP LH” and “STA” fuses
51. DOOR NO.2 30 A: Multiplex commu-
nication system (power door lock sys-
tem, security system, autodoor locking
system)
52. PWR SEAT 30 A: Power front seats
53. AM1 40 A: “HTR”, “CIG”, “GAUGE”,
“RAD NO.2”, “ECUIG”, “WIPER”,
“WSH” and “4WD” fuses
54. PWR NO.5 30 A: Power door lock sys-
tem, back door lock system
Fuses (type C)
55. ALT 120 A: “AM1”, “PWR SEAT”,
“TAIL”, “STOP”, “SUN ROOF”, “PANEL”,
“OBD”, “FOG”, “PWR NO.1”, “PWR
NO.2”, “PWR NO.5”, “PWR NO.3”,
“PWR NO.4”, “PWR OUTLET” and
“SEAT HTR” fuses
56. ABS 60 A: Antilock brake system,
vehicle skid control system, traction
control system (twowheel drive mod-
els), active traction control system
(fourwheel drive models)
