sensor TOYOTA SEQUOIA 2003 1.G User Guide

03_SEQUOIA_U (L/O 0301)
139
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
(i) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.
(j) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the system of the air-
bag and front seat belt pretensioner are
operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on.
The light comes on or flashes while
driving.
(k) Unengaged “Park” Warning Light
This light warns that the transmission
“Park” mechanism is not engaged. If the
front drive control lever is in the “N” posi-
tion while the selector lever is in the “P”
position, the transmission will disengage
and the wheels will not lock.
CAUTION
To restore the park function, shift the
front drive control lever out of “N”,
or the vehicle can move.
(l) Automatic Transmission Fluid Tem- perature Warning Light
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in “P”. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.
(m) Low Windshield Washer Fluid Level Warning Light
This light warns that the windshield wash-
er fluid level is too low. Add washer fluid
at your earliest opportunity. (For instruc-
tions, see “Adding washer fluid” on page
375 in Section 73.)

03_SEQUOIA_U (L/O 0301)
262
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Compass sensor
The compass sensor is on the roof of
the vehicle.
NOTICE
Do not put magnets or a metal object
on or near the roof of the vehicle.
Doing this may cause malfunction of
the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust for this deviation;1. Stop the vehicle in a level place and switch the display to the outside tem-
perature. (To switch to this mode, see
“—Outside temperature and cruise in-
formation display” on page 259 in this
section.)
2. Push and hold both the “MODE” and “E/M” buttons simultaneously for 5 sec-
onds until the “VAR” indication appears
on the compass display.
3. Push the “E/M” button several times until the desired zone number appears
on the compass display.
If the button is not pushed for 10 sec-
onds, the display returns to the compass/
outside temperature mode and the number
that is last set is memorized.
To select the zone where the vehicle is
currently located, refer to the following
map.

03_SEQUOIA_U (L/O 0301)
290
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)

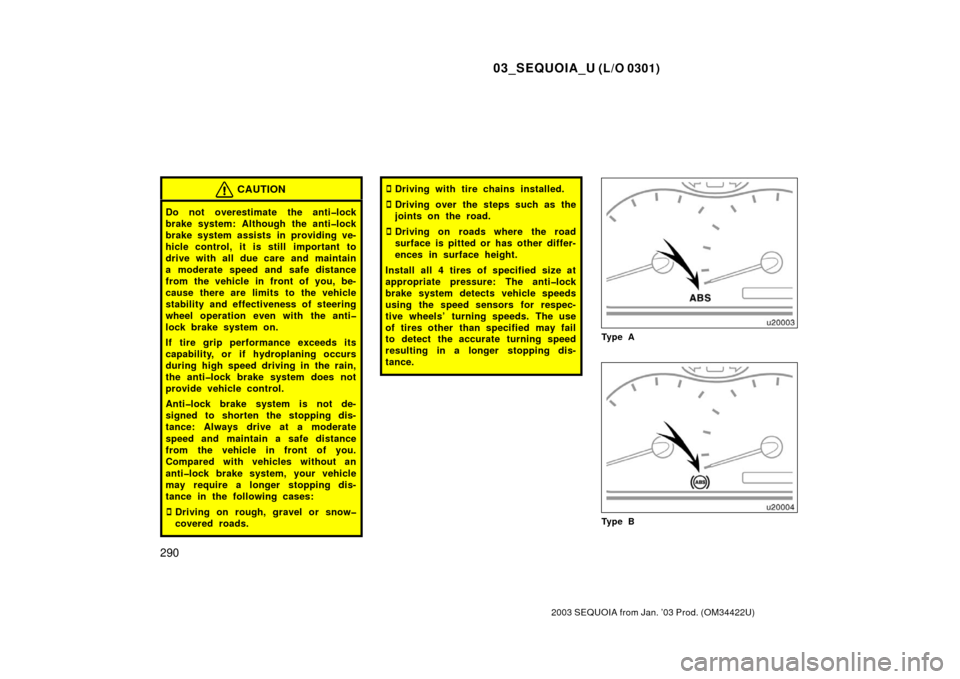

CAUTION
Do not overestimate the antilock
brake system: Although the antilock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
Antilock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
antilock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.
Ty p e A
Ty p e B
