ECO mode TOYOTA SEQUOIA 2003 1.G Owner's Manual

03_SEQUOIA_U (L/O 0301)
175
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
FM
Push the “FM” button to turn on the radio
and select the FM band. “FM1”, “FM2” or
“FM TYPE” will appear on the display.
This system allows you to set twelve FM
and six RDS stations, three for each of
the preset button. If the RDS is off or
RDS stations are not preset to the preset
buttons, “FM TYPE” will not appear on the
display.
LOAD
This button is used to load the compact
discs in the compact disc player. This
player can store up to six discs.
To load one compact disc only, quickly
push and release the button, then insert
a compact disc. After the disc is loaded,
the shutter of the slot will close.
If no compact disc is inserted, the shutter
will close after 15 seconds.To load multiple compact discs, push and
hold the button (until you hear a beep
when the audio system is on), then insert
the first compact disc. After the disc is
loaded, the shutter of the slot will close.
After a few seconds, the shutter will auto-
matically open again so the next disc can
be inserted. The same process can be
applied for loading the rest of the di
scs.
If the player is full of discs, “DISC FULL”
will appear on the display.
If no compact disc is inserted, the shutter
will close after 15 seconds.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RDS (Radio Data System)
Your audio system is equipped with Radio
Data System (RDS). RDS station providing
good reception is automatically selected if
current reception worsens.
The “RDS” button turns the RDS on and
off. This button is operational except in
AM mode. To turn on the RDS, push and hold this
button until you hear a beep and “RDS”
will appear on the display. At this time,
the radio starts to search the RDS sta-
tions and “RDS SEARCH” will flash on the
display.
Quickly push and release this button when
the RDS turns on, the radio starts to
search the RDS stations and “RDS
SEARCH” will flash on the display.
When the RDS stations are found,
“FOUND” and the number of the RDS sta-
tions will appear on the display, and you
will hear two beeps. The stations will be
preset to the preset buttons.
If the RDS stations can not be found, “NO
RDS ST” will appear on the display and
you will hear a beep, and the display
returns to the previous mode.
To turn the RDS off, push the button until
you hear a beep again.

03_SEQUOIA_U (L/O 0301)
177
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Compact disc player
Push “
” to scan the tracks on a spe-
cific disc. “
” will appear on the dis-
play and the player will scan all the tracks
on the disc you are listening to. To select
a track, push “SCAN” again. If the player
scanned all the tracks on the disc, it will
stop scanning. SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings. Compact disc player
Use this button to skip up or down to a
different track.
Push “
” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push the “TAPE” button to play a cassette
tape.

03_SEQUOIA_U (L/O 0301)
178
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
TEXT
Radio
This button is operational only in RDS
mode.
When an RDS radio station transmits a
text message, “TEXT” will be displayed. At
this time, push the “TEXT” button to view
the text message. The message display
will be canceled if any button that affects
the display is pushed. To view the mes-
sage again, push this button again. After
the entire message has been displayed,
the message will disappear.
The RDS audio system has memory to
store three 64character messages. To
store a message in memory, push and
hold the “TEXT” button until you hear a
beep.
If three messages are already stored in
memory, the oldest message will be over-
written by the new message.
To recall a radio text message, push the
“TEXT” button momentarily. This will dis-
play the most recent message. Each push
of the button will display messages in the
order of most to least recent.If no messages have been stored, or if
there are no more messages to be re-
called, “NO MESSAGE” will appear on the
display, and the message display will be
canceled.
The message display will be canceled if
you activate any function that affects the
display.
Compact disc player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off. This button is
operational only in FM mode.
By pushing the “TRAF” button, “TRAF
SEEK” will flash on the display and the
radio will start seeking any traffic program
station.
When a traffic program station is found,
“TRAF” will be displayed and you will hear
a beep.
After the traffic announcement program is
over, the display returns to the previous
mode.
If no traffic program station is found, “NO
TRAF INFO” appears on the display for a
few seconds and the display returns to
the previous mode.
To cancel the traffic announcement, push
this button again.
TUNE (Tuning)
Turn the “TUNE” knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.

03_SEQUOIA_U (L/O 0301)
181
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
1. Volume control switch
Push “+” to increase the volume. The vol-
ume continues to increase while the
switch is being pushed.
Push “” to decrease the volume. The
volume continues to decrease while the
switch is being pushed. 2. “ ” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “ ” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
Cassette player
This switch has the following features—
To skip to a different track in either direc-
tion:
Quickly push and release the “ ” or “ ”
side of the switch. “FF 1” or “REW 1” will
appear on the display. Next, push either side of the track switch
until the track you want to listen to is set.
If you push the switch ten times, the skip
function will turn off. (You can skip up to
nine tracks at a time.)
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
tracks before the song you are listening
to, push the “
” side of the switch three
times.
If you push the track switch further than
you wanted to, push the other side of the
switch. The track number will be in-
creased or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.
When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side. There must be at least 3 seconds of blank
space between tracks for the track switch
to work correctly. In addition, the feature
may not work well with some spoken, live,
or classical recordings.
To fast forward or reverse:
Push and hold the “
” side of the switch
to fast forward a cassette tape. “FF” will
appear on the display. Push and hold the
“  ” side of the switch to rewind a tape.
“REW” will appear on the display.
To stop the tape while it is fast forward-
ing, push the “ ” side of the switch. To
stop the tape while it is rewinding, push
the “ ” side of the switch.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the autoreverse feature.
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the “ ” or “ ”
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the “ ” side of the switch once, quickly.

03_SEQUOIA_U (L/O 0301)
186
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
1. “” and “” (DISC/CH/PROG) but-
tons
Radio
You can scan only the preset stations for
the band of the front audio system. (For
instructions, see “—Controls and features”
on page 167 in this section.)
To scan the preset stations:
Push the “
” or “” (DISC/CH/PROG)
button. The radio will tune in the next
preset station up or down the band. The
station frequency will appear on the dis-
play.
Cassette tape player
Push the “
” or “” (DISC/CH/PROG)
button to select the other side of a cas-
sette tape. The display indicates which
side is currently selected. (“
” indicates
t he top si de, “
” indicates the bottom
side.)
Autoreverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding. Compact disc player with changer
Use these buttons to select a disc you
want to listen to.
Push the “
” or “” (DISC/CH/PROG)
button until the number of the disc you
want to listen appears on the display.
2. “
” and “” (TUNE/TRACK) buttons
Radio
Push the “
” or “” (TUNE/TRACK) but-
ton to tune or seek.
Tuning:
Quickly push and release the “
” or “”
(TUNE/TRACK) button. Each time you
push the button, the radio will step up or
down to another frequency. If you push
and hold the button, and the radio will go
into the seek mode.
Seeking:
Push and hold the “
” or “” (TUNE/
TRACK) button. The radio will seek up or
down for a station of the nearest frequen-
cy and will stop on reception. Each time
you push the button, the stations will be
searched one after another. Cassette tape player
This button has the following features—
To fast forward or reverse:
Push and hold the “
” (TUNE/TRACK)
button until “FF” will appears on the dis-
play to forward a tape. Push and hold the
“
” (TUNE/TRACK) button until “REW”
appears on the display to rewind a tape.
To stop the tape while it is fast forward-
ing, push the “
” (TUNE/TRACK) button.
To stop the tape while it is rewinding,
push the “
” (TUNE/TRACK) button.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the autoreverse feature.
To skip up or down to locate a song or
recording:
You can select up to nine recordings (in-
cluding current one).
Push the “
” or “” (TUNE/TRACK) but-
ton. “FF 1” or “REW 1” will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off.

03_SEQUOIA_U (L/O 0301)
187
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.
Compact disc player
This button has the following features—
To skip up or down to a different track:
Push the “
” or “” (TUNE/TRACK) but-
ton until the number of the track you want
to listen to appears on the display. If you
want to return to the beginning of the
current track, quickly push the “
”
(TUNE/TRACK) button one time.
To fast forward or reverse:
Push and hold the “
” or “” (TUNE/
TRACK) button to fast forward or reverse
within a compact disc. When you release
the button, the compact disc player will
resume playing. 3. “ON/SOURCE” button
Push “ON/SOURCE” button to turn on the
rear seat audio system.
Use “ON/SOURCE” button to select an
audio mode when the rear seat audio sys-
tem is on. Each time you push this but-
ton, the system changes between the ra-
dio, cassette player and compact disc
player.
When you change the mode, the display
indicates which mode is selected.
When a cassette tape and compact discs
are not loaded in the front audio system,
only a radio mode can be selected in the
rear seat audio system.
If you push “ON/SOURCE” button to se-
lect the casette tape player mode or com-
pact disc player mode in that case, a
beep sounds from front audio system and
“INVALID” flashes on the screen for 6
seconds, and then the rear audio system
returns to the radio mode.
If you push “ON/SOURCE” button while
receiving an emergency broadcast, a beep
sounds and “INVALID” appears on the
screen to indicate that no button can be
operated. Radio
AM mode
When you select the AM mode, “AM” will
appear on the screen.
FM mode
When you select the FM mode, “FM1” or
“FM2” will appear on the display.
If the front audio system receives a traffic
announcement (TA) while the rear seat
audio system is in the radio mode,
“TRAF” will flash on the screen and the
rear seat audio system will turn off. When
the front audio receives a traffic an-
nouncement (TA), the rear seat audio sys-
tem cannot select the AM/FM mode.
Tape mode
“TAPE” appears on the screen while this
mode is selected.

03_SEQUOIA_U (L/O 0301)
188
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Compact disc mode
“CD” appears on the screen while this
mode is selected.
The screen shows the track, or track and
disc number currently being played.
Error messages
If the player malfunctions, your audio sys-
tem will screen one of the four following
error messages.
“WAIT”: The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERR 1”: The disc may be dirty, damaged
or inserted incorrectly (upside down).
Clean the disc and reinsert it.
“ERR 3”: There is a problem inside the
system. Eject the disc. Set the disc again.
“ERR 4”: Overcurrent. Ask your Toyota
dealer to inspect.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
4. “OFF” button
Push “OFF” button to turn off the rear
seat audio system. REPLACING CONTROLLER BATTERY
For replacement, use a CR2025 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved battery or components.
NOTICE

When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type of battery recom-
mended by a Toyota dealer.
 Dispose of used batteries according
to the local regulations.
Replace the battery by using the following
procedures:
1. Pull the case out while pushing the lock release button to the side.

03_SEQUOIA_U (L/O 0301)
244
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
2. Bilevel—Air flows from both the floor
vents and the instrument panel vents.
When you set the temperature selector
setting at about the middle in automatic
operation, warm air flows out of the
floor vents and relatively lowtempera-
ture air flows out of the center and
side vents.
3. Floor— Air flows mainly from the floor
vents.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” on page 249
in this section.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Use with the air intake selector posi-
tioned in FRESH.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” on page 249
in this section.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.
Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents.
Pressing the button once again returns the
air flow mode to the last one used.
This button allows the air intake to select
FRESH automatically. This is to clean up
the front view more quickly. If you want
to return the setting to RECIRCULATE
mode, press the air intake selector button
once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly. It is recommended that you close the low-
er vent. For details about this, see “Instru-
ment panel vents” on page 249 in this
section.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.
For further information for removing frost
and fog, see “Instrument panel vents” on
page 249 in this section.

03_SEQUOIA_U (L/O 0301)
249
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Pressing the windshield air flow button
turns on the defrosting function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose

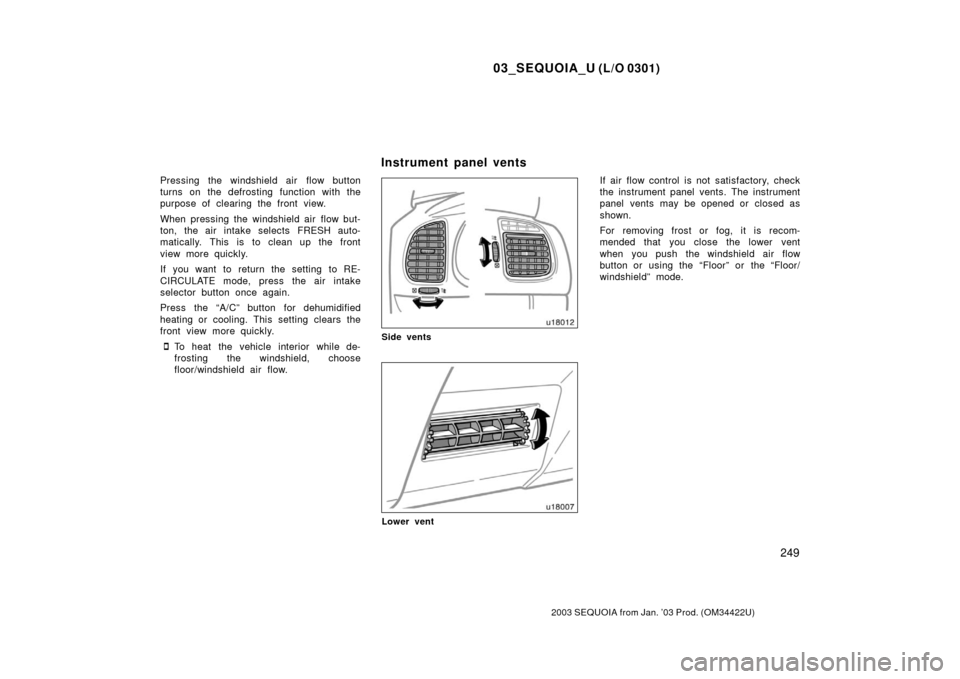

floor/windshield air flow.Side vents
Lower vent
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
For removing frost or fog, it is recom-
mended that you close the lower vent
when you push the windshield air flow
button or using the “Floor” or the “Floor/
windshield” mode.
Instrument panel vents

03_SEQUOIA_U (L/O 0301)
258
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
6. Test the operation of the HomeLink\b by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
\b button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
\b buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
\b”.
(b) Operating the HomeLink
\b
To operate the HomeLink\b, press the
appropriate HomeLink\b button to activate
the programmed device. The HomeLink\b
indicator light should come on. The
HomeLink\b continues to send the signal
for up to 20 seconds as long as the
button is pressed. (c) Erasing the entire HomeLink
\b
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink
\b
memory.
CAUTION
When programming the HomeLink\b
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink\b Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.
