Sliding operation
Tilting operation
OPERATING FROM INSIDE
To operate the moon roof, use the
switches between the personal lights.
The moon roof works when the ignition
switch is in the “ON” position.
Key off operation: If all the doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when any of the doors is opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “ ”
(rear) side.
The roof will open and stop partway 135
mm (5.3 in.) from the fully opened posi-
tion. When you push “ ” (rear) side
again, the moon roof will open fully. To
stop the roof partway, push the same side
or “ ” (front) side while the roof is mov-
ing.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
135 mm (5.3 in.) from the fully opened
position. The sun shade will be opened together
with the roof.
To close: Push the switch on the “
”
(front) side.
The roof will fully close. To stop the roof
partway, push the same side or “ ” (rear)
side briefly.
Tilting operation—
To tilt up: Push the switch on the “UP”
side.
To lower: Push the switch on the opposite
side of “UP”.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released.
Jam protection function: During closing
operation, the moon roof stops and opens
half way if something gets caught between
the moon roof and frame.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.
Electric moon roof

03_SEQUOIA_U (L/O 0301)
36
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
OPERATING FROM OUTSIDE

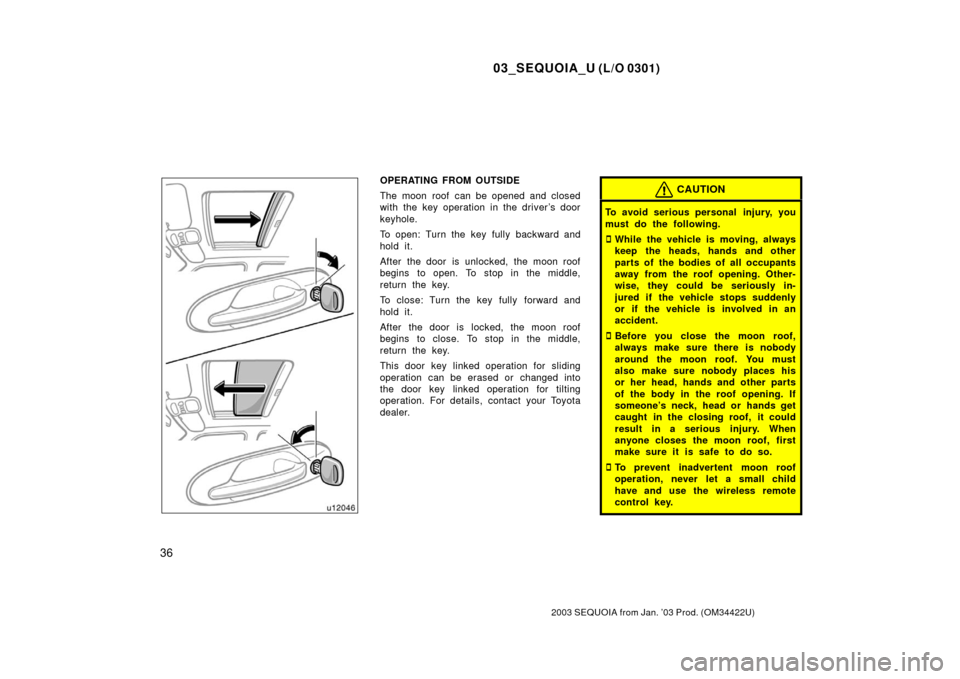

The moon roof can be opened and closed
with the key operation in the driver’s door
keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the moon roof
begins to open. To stop in the middle,
return the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the moon roof
begins to close. To stop in the middle,
return the key.
This door key linked operation for sliding
operation can be erased or changed into
the door key linked operation for tilting
operation. For details, contact your Toyota
dealer.CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in a serious injury. When
anyone closes the moon roof, first
make sure it is safe to do so.
To prevent inadvertent moon roof
operation, never let a small child
have and use the wireless remote
control key.

03_SEQUOIA_U (L/O 0301)
37
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switch and get
trapped in the roof opening. Unat-
tended children can be involved in
serious accidents.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

03_SEQUOIA_U (L/O 0301)
38
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)

03_SEQUOIA_U (L/O 0301)
39
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear seats 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Head restraints 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Armrests 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Seat heaters 59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Seat belts 60
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver airbag and front passenger airbag 73
. . . . . . . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 80
. . . . . . . . . . . . . . . . . . . .
Child restraint 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Tilt steering wheel 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Outside rear view mirrors 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Antiglare inside rear view mirror 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto antiglare inside rear view mirror 11 2
. . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1 3

03_SEQUOIA_U (L/O 0301)
40
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow passengers to sit on top
of a foldeddown seatback, or in
the luggage compartment or cargo
area. Persons not properly seated
and/or properly restrained by seat
belts can be severely injured in the
event of emergency braking or a
collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions (on vehicles with SRS front airbags)

03_SEQUOIA_U (L/O 0301)
41
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of front seats with
side airbags. Such changes may
prevent the side airbags from acti-
vating correctly, disable the system
or cause the side airbags to inflate
accidentally, resulting in death or
serious injury.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Front seat precautions
(on vehicles with SRS side
airbags) —Seat adjustment precautions

03_SEQUOIA_U (L/O 0301)
42
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)

03_SEQUOIA_U (L/O 0301)
43
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
1. SEAT POSITION AND SEAT CUSHIONANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat)

03_SEQUOIA_U (L/O 0301)
44
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Push the control switch in the desired
direction.
The amount of lumber support will change
while the switch is pushed.
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
Third seats only: Adjust both seat
cushions to the same position and
align both seatbacks at the same
angle when a person sits in the
third seat center position. Other-
wise, the person cannot wear the
seat belt properly and this may
cause serious injuries in a collision.
When folding up the third seats, do
not fold down or up the second
seats.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is lock in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not allow sitting on top of a
foldeddown seatback, or in the
luggage compartment while driving.
Persons not properly seated and/or
properly restrained by seat belts
can be severely injured in the event
of emergency braking or a collision.
Do not operate any equipment in
the luggage compartment while
driving. People not properly seated
and/or properly restrained by seat
belts can be severely injured in the
event of emergency braking or a
collision.
Do not load luggage with only the
seatback folded down. Do not fail
to swing the whole seat up in such
a case. Luggage sliding forward
during braking may cause an acci-
dent or severe injury.
Rear seats—
—Rear seat precautions
