torque TOYOTA SEQUOIA 2003 1.G Owners Manual

03_SEQUOIA_U (L/O 0301)
328
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
CAUTION
When lowering the vehicle, make
sure all portions of your body and
all other persons around will not be
injured as the vehicle is lowered to
the ground.
Have the wheel nuts tightened with
torque wrench to 110 N·m (11.5
kgf·m, 83 ft·lbf), as soon as pos-
sible after changing wheels. Other-
wise, the nuts may loosen and the
wheels may fall off, which could
cause a serious accident.

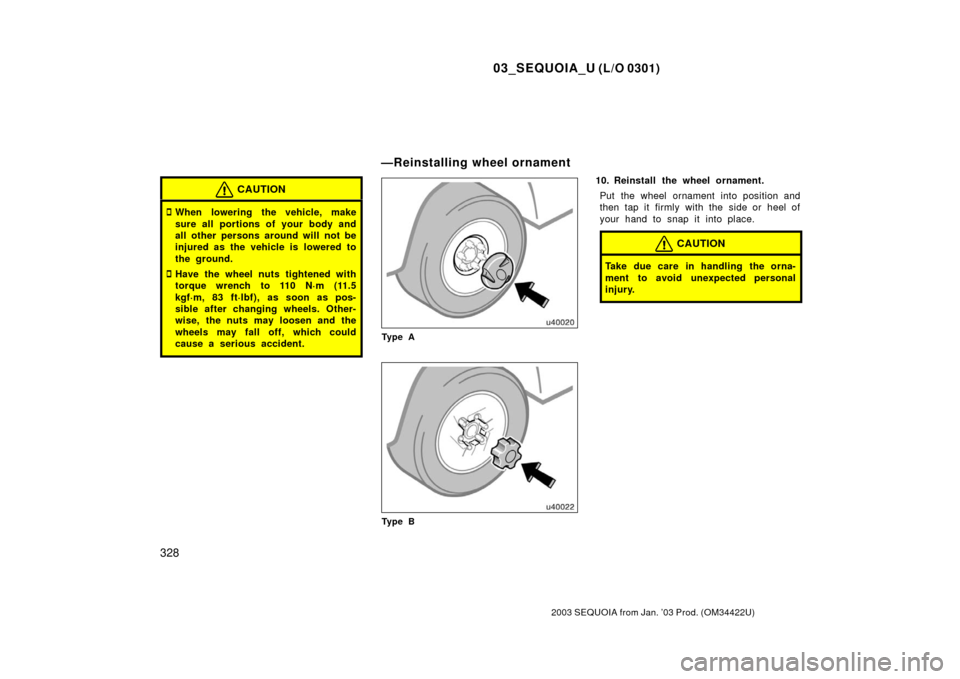

Ty p e A
Ty p e B
10. Reinstall the wheel ornament.Put the wheel ornament into position and
then tap it firmly with the side or heel of
your hand to snap it into place.
CAUTION
Take due care in handling the orna-
ment to avoid unexpected personal
injury.
—Reinstalling wheel ornament

03_SEQUOIA_U (L/O 0301)
329
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
11. Check the air pressure of the re-placed tire.
Adjust the air pressure to the specification
designated on page 388 in Section 8. If
the pressure is lower, drive slowly to the
nearest service station and fill to the cor-
rect pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
12. Restow all the tools, jack and flat tire securely.
With a spare tire of the same wheel type
as the installed tires—
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified on page 388 in Section 8 with
a torque wrench. Have a technician repair
the flat tire.
With a spare tire of different wheel type
from the installed tires—
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified on page 388 in Section 8 with
a torque wrench. Have a technician repair
the flat tire and replace the spare tire with
it.CAUTION
Before driving, make sure all the
tools, jack and flat tire are securely
in place in their storage location to
reduce the possibility of personal in-
jury during a collision or s udden
braking.
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
Twowheel drive models—Turn off the
traction control system to become un-
stuck to allow the tires to spin enough
to remove the vehicle from the obstruc-
tion. (For details, see “Traction control
system” on page 151 in Section 16.)
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
—After changing wheels If your vehicle becomes stuck

03_SEQUOIA_U (L/O 0301)
388
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Engine compartment
Fuses (type A)1. HLP RH 10 A (with daytime running light system): Righthand headlight
(high beam)
2. HLP LH 10 A (with daytime running light system): Lefthand headlight
(high beam)
3. STA 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, electronic throttle control sys-
tem
4. HLP RL 10 A (with daytime running light system): Righthand headlight
(low beam)
Tires
Tire size Tire pressure
kPa (kgf/cm2 or bar, psi)
Front Rear
P245/70R16
P265/70R16 220 (2.2, 32) 240 (2.4, 35)
220 (2.2, 32) 220 (2.2, 32) Wheel size
16 7J or 7JJ
16 7J or 7JJ
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire pressure” through “Aluminum wheel precautions”, pages
363 through 369, in Section 72.
Wheel nut torque, N⋅ m (kgf⋅m, ft ⋅lbf):
11 0 ( 11 . 5 , 8 3 )
Tire size, pressure and wheel size:
P265/65R17 220 (2.2, 32) 220 (2.2, 32) 17
7 1/ 2J J
Fuses
