TOYOTA SEQUOIA 2004 1.G Owners Manual

04_SEQUOIA_U (L/O 0309)
153
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
The traction control system will automati-
cally go on, and the “TRAC OFF” indicator
light will go off when you drive over 30
km/h (19 mph) even if the “TRAC OFF”
switch is pushed to cancel the traction
control system.
“TRAC OFF” indicator light comes on for
a few seconds when the ignition key is
turned to “ON”. It will come on again
when you push the “TRAC OFF” switch to
turn off the system.
In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on with the
normal driving mode while driving.
“VSC/TRAC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle stability control system.
The warning light will come on when the
ignition key is turned to “ON” and will go
off after a few seconds.The brake pad or actuator temperature
increases during continuous operation of
the traction control system or vehicle sta-
bility control system such as on slippery
roads. If the brake pad or actuator tem-
perature becomes too high while the trac-
tion control system or vehicle stability
control system is operating, a buzzer will
start to sound intermittently to indicate
that the traction control system can no
longer operate. In this case, stop your
vehicle immediately at a safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.)
At the time the “VSC/TRAC” warning light
will come on and the traction control sys-
tem temporarily stops operating in order to
protect the brake pad. (Although the trac-
tion control system does not operate,
there is no problem to continue your driv-
ing.) The system will be automatically re-
stored after a short time and the warning
light goes out.
If the light comes on while driving, the
traction control system does not work.
However, as conventional braking operates
when applied, there is no problem to con-
tinue your driving.

04_SEQUOIA_U (L/O 0309)
154
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “TRAC OFF” indicator light will come
on when the “VSC” warning light comes
on even if the “TRAC OFF” switch is not
pushed. The active traction control system auto-
matically helps prevent the spinning of
4 wheels (4WD mode) or rear wheels
(2WD mode) when the vehicle is started
or accelerated on slippery road sur-
faces.
When the ignition key is turned to “ON”,
the system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against 4 wheels (4WD mode)
or rear wheels (2WD mode) cannot be
maintained, even though the active
traction control system is in opera-
tion. Do not drive the vehicle under
any speed or maneuvering conditions
which may cause the vehicle to lose
traction control. In situations where
the road surface is covered with ice
or snow, your vehicle should be fitted
with snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the ac-
tive traction control system is in the self
−
check mode, but does not indicate a mal-
function.
Active traction control system
(fourwheel drive models)

04_SEQUOIA_U (L/O 0309)
155
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
When the active traction control system is
operating, the following conditions occur:
The system controls the spinning of the
4 wheels (4WD mode) or rear wheels
(2WD mode). At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
“VSC/TRAC” warning light
This light warns that there is a problem
somewhere in the active traction control
system or the vehicle stability control sys-
tem.
The warning light will come on when the
ignition key is turned to “ON” and will go
off after a few seconds. The brake pad or actuator temperature
increases during continuous operation of
the active traction control system or ve-
hicle stability control system such as on
slippery roads. If the brake pad or actua-
tor temperature becomes too high while
the active traction control system or ve-
hicle stability control system is operating,
a buzzer will start to sound intermittently
to indicate that the active traction control
system can no l
onger operate. In this
case, stop your vehicle immediately at a
safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.)
At the time, the “VSC/TRAC” warning light
will come on and the active traction con-
trol system temporarily stops operating in
order to protect the brake pad. (Although
the active traction control system does not
operate, there is no problem to continue
your driving.) The system will be automati-
cally restored after a short time and the
warning light goes out.
If the light comes on while driving, the
active traction control system does not
work. However, as conventional braking
operates when applied, there is no prob-
lem to continue your driving.

04_SEQUOIA_U (L/O 0309)
156
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.The vehicle stability control system
helps provide integrated control of the
systems such as antilock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
The vehicle stability control activates
when the vehicle speed is more than the
following speed.
Front drive control lever in “H”
15 km/h (9 mph)
Front drive control lever in “L4” 30 km/h (18 mph)
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self −check mode but does
not indicate a malfunction.
CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
blinks, sounding an alarm sounds,
special care should be taken while
driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 377 in Section 72.)
Vehicle stability control system

04_SEQUOIA_U (L/O 0309)
157
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.Fourwheel drive models only—
Pushing the center differential lock
switch automatically turns the vehicle
stability control system off. At this
time, the “VSC OFF” indicator comes
on with the center differential lock indi-
cator light.
“VSC OFF” indicator light comes on for a
few seconds when the ignition key is
turned to “ON”.In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on when the
system is on while driving.
NOTICE
Make sure that the center differential
lock indicator light goes off before
normal driving.

04_SEQUOIA_U (L/O 0309)
158
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
“VSC/TRAC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system, traction control system (two−wheel
drive models) or active traction control
system (four −wheel drive models).
The warning light will come on when the
ignition key is turned to “ON” and will go
off after a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing. In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
Parking brake

04_SEQUOIA_U (L/O 0309)
159
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

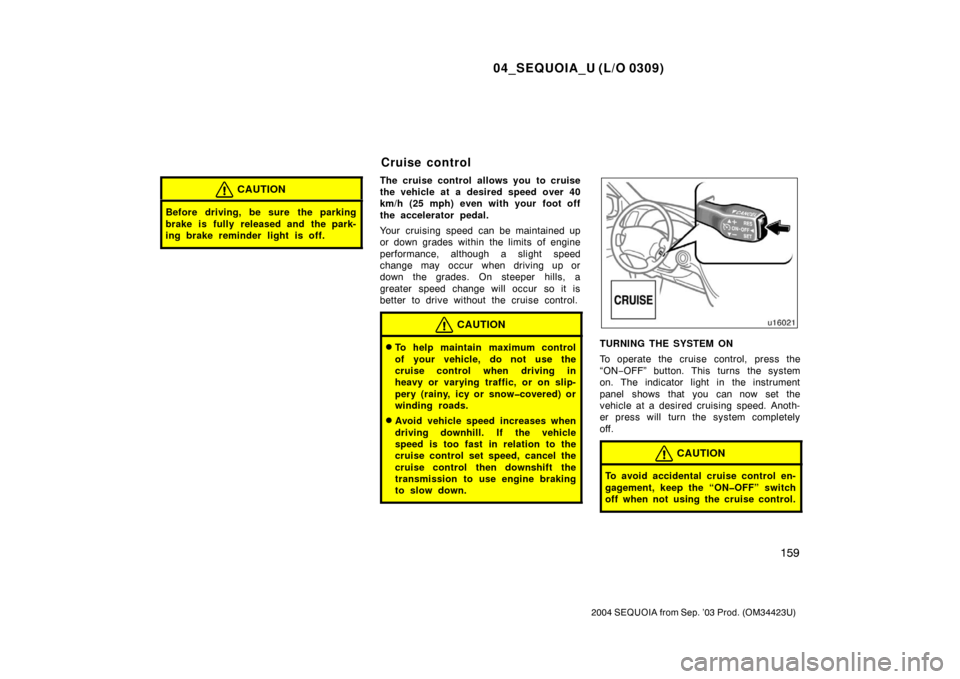

CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
TURNING THE SYSTEM ON
To operate the cruise control, press the
“ON−OFF” button. This turns the system
on. The indicator light in the instrument
panel shows that you can now set the
vehicle at a desired cruising speed. Anoth-
er press will turn the system completely
off.
CAUTION
To avoid accidental cruise control en-
gagement, keep the “ONOFF” switch
off when not using the cruise control.
Cruise control

04_SEQUOIA_U (L/O 0309)
160
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
SETTING AT A DESIRED SPEED
The transmission must be in “D” before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push the lever down in the “− SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal. If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the “CANCEL” di- rection and releasing it.
b. Depressing the brake pedal.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity. RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.

04_SEQUOIA_U (L/O 0309)
161
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal, pushing the lever up in the
“+ RES” direction will restore the speed
set prior to cancellation.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light in the
instrument cluster flashes when using the
cruise control, press the “ON−OFF” button
to turn the system off and then press it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

04_SEQUOIA_U (L/O 0309)
162
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
