TOYOTA SEQUOIA 2004 1.G Owners Manual

04_SEQUOIA_U (L/O 0309)
233
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
After adjusting the screen, push the “OK”
switch to return to the previous screen.The audio machine connected to the input
terminal adapter can be played in the
video mode.

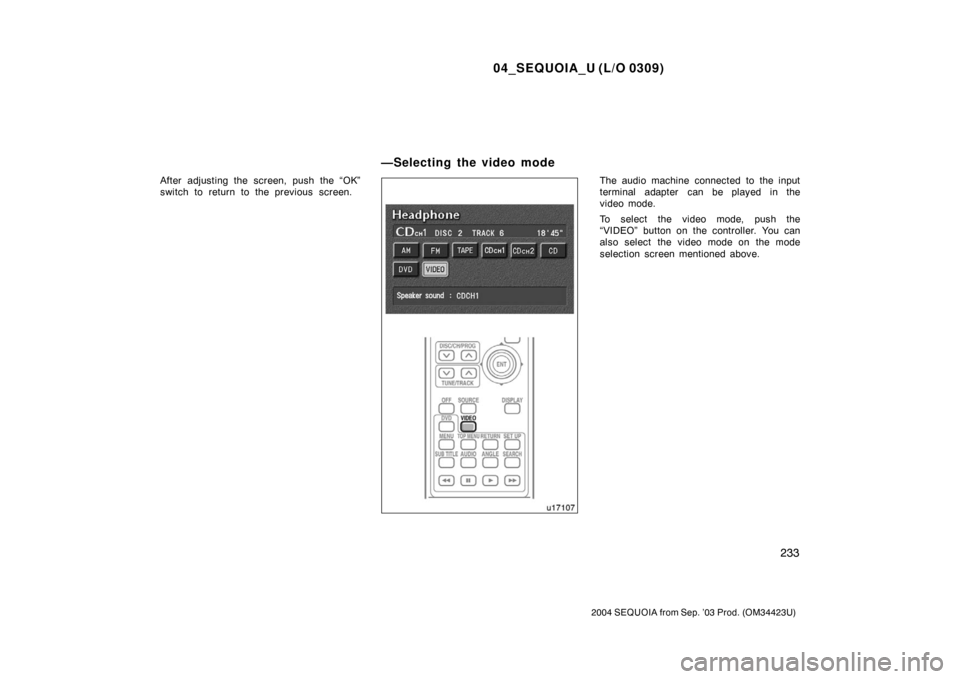

To select the video mode, push the
“VIDEO” button on the controller. You can
also select the video mode on the mode
selection screen mentioned above.
—Selecting the video mode

04_SEQUOIA_U (L/O 0309)
234
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
DVD PLAYER AND DVD VIDEO DISCS
This DVD player conforms to NTSC col-
or TV formats. DVD video discs con-
forming to other formats such as PAL
or SECAM cannot be used.
Region codes: Some DVD video discs
have a region code indicating where you
can use. If the DVD video disc is not
labeled “ALL” or “1”, you cannot use it in
this DVD player. If you attempt to play an
inappropriate DVD video disc in this play-
er, “REGION CODE ERROR” appears on
the screen. Even if the DVD video disc
does not have a region code, in some
cases you cannot use it. Marks shown on DVD video discs:
Indicates NTSC format
of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen
to be selected.
Wide screen: 16:9
Standard: 4:3
Indicates regions in
which this video disc
can be played.
ALL: all countries
Number: region codeDVD VIDEO DISC GLOSSARY
DVD video discs:
Digital Versatile Disc
that holds video. DVD video discs have
adopted “MPEG2”, one of the world stan-
dards of digital compression technologies.
The picture data is compressed by 1/40
on average and stored. Variable rate en-
coded technology in which the volume of
data assigned to the picture is changed
depending on the picture format has also
been adopted. Audio data is stored using
PCM and Dolby digital, which enables
higher quality of sound. Furthermore, mul-
ti −angle and multi −language features will
also help you enjoy the more advanced
technology of DVD video.
Viewer restrictions: This feature limits
what can be viewed in conformity with the
level of restrictions of the country. The
level of restrictions varies depending on
the DVD video disc. Some DVD video
discs cannot be played at all, or violent
scenes are skipped or replaced with other
scenes.
Level 1: DVD video discs for children can
be played.
Level 2—7: DVD video discs for children
and G −rated movies can be played.
—DVD video disc information

04_SEQUOIA_U (L/O 0309)
235
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Level 8: All types of DVD video discs can
be played.
Multiangle feature: You can enjoy the
same scene at different angles.
Multilanguage feature: You can select
the language of the subtitles and audio.
Region codes: Region codes are provided
on DVD players and DVD discs. If the
DVD video disc does not have the same
region code as the DVD player, you can-
not play the disc on the DVD player. For
region codes, see page 234.
Audio: This DVD player can play liner
PCM, Dolby digital, dts and MPEG audio
format DVD. Other decoded type cannot
be played.
Title and chapter: Video and audio pro-
grams stored on DVD video discs are di-
vided in parts by title and chapter.
Title: The largest unit of the video and
audio programs stored on DVD video
discs. Usually, one piece of a movie, one
album, or one audio program is assigned
as a title.
Chapter: A unit smaller than a title. A title
comprises plural chapters. Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.

19921997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. pat-
ents and other intellectual property
rights owned by Macrovision Corpora-
tion and other rights owners. Use of
this copyright protection technology
must be authorized by Macrovision Cor-
poration, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
“dts” is a trademark of Digital Theater
Systems, Inc. The rear entertainment system plays vid-
eos and sound when your audio system
is connected to the input terminal adapter
on the rear console box. For details, refer
to the manufacturer ’s instructions.
—Input terminal adapter

04_SEQUOIA_U (L/O 0309)
236
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
To use the input terminal adapter, open
the lid.
The input terminal adapter is composed of
3 input terminal adapters.
Yellow: Image input adapter
Red: Audio input adapter
White: Audio input adapter
NOTICE
Close the input terminal adapter lid
when the input terminal adapter is not
in use. Inserting a foreign object oth-
er than the appropriate plug that fits
the adapter may cause electrical fail-
ure or short circuit.
—Power outlet
This power outlet is designed for use as
a power supply for the audio device con-
nected to the input terminal adapter.
The key must be in the “ON” position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.Main switch
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.

04_SEQUOIA_U (L/O 0309)
237
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
a foreign object other than the ap-
propriate plug that fits the outlet
may cause electrical failure or short
circuit.
The power outlet is not designed for
the following electric appliances even if
their power consumption is under 115
VAC/100W. These appliances may not
operate properly.
Appliances with high initial peak watt-
age: cathode− ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc. Certain electrical appliances may cause
radio noise.
You can enjoy the rear seat entertain-
ment system with commercial head-
phones.
To use the headphones, connect them to
the jack.
The key must be in the “ACC” or “ON”
position.
—Headphone input j
acks

04_SEQUOIA_U (L/O 0309)
238
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
To adjust the volume of the headphones,
turn the knob. Turn right to increase the
volume. Turn left to decrease the volume.
The maximum volume depends on the
type of headphones.
With some headphones generally available
in the marker, it may be difficult to catch
sound properly. Toyota recommends the
use of Toyota genuine headphone.
Please contact your Toyota dealer for fur-
ther details.
CAUTION
Adjust the volume when you connect
the headphones to the jack. Loud
sounds may have a significant impact
on the human body.
NOTICE
To ensure correct audio/video system
operation:
Be careful not to spill beverages
over the system.
 Do not put anything other than a
cassette tape or Compact Disc into
the slot.
 Do not put anything other than a
DVD video, DVD audio, video CD,
dtsCD and audio CD into the DVD
player.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the sys-
tem which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
Car audio/video system
operating hints

04_SEQUOIA_U (L/O 0309)
239
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception. Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Use high −quality cassettes.
Low −quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto− reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.

04_SEQUOIA_U (L/O 0309)
240
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
CARING FOR YOUR COMPACT DISC
PLAYER, DVD PLAYER AND DISCS
Your compact disc player and DVD
player are intended for use with 12 cm
(4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player and DVD
player from working. On hot days, use
the air conditioning to cool the vehicle
interior before you use the players.
Bumpy roads or other vibrations may
make your compact disc player and
DVD player skip.
If moisture gets into your compact disc
player and DVD player, the players
may not play even though they appear
to be working. Remove the disc from
the player and wait until it dries.
CAUTION
Compact disc players and DVD play-
ers use an invisible laser beam which
could cause hazardous radiation ex-
posure if directed outside the unit. Be
sure to operate the players correctly.
Compact disc player
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
SACD
dts −CD
Copy −protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re −writable)
CD− ROM

04_SEQUOIA_U (L/O 0309)
241
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Audio CDs
DVD video
discs
DVD audio
discs
Video CDs
DVD player
Use only discs marked as shown
above. The following products may not
be playable on your DVD player.
SACD
Copy−protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re −writable)
CD− ROM
DVD −R
DVD+R
DVD+RW
DVD −RW
DVD −ROM
DVD −RAM
Special shaped discs
Low quality discs

04_SEQUOIA_U (L/O 0309)
242
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Labeled discs
NOTICE
To prevent damage to the player or
changer, do not use special shaped,
low quality or labeled discs such as
those shown in the illustrations.
CorrectWrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.
