04_SEQUOIA_U (L/O 0309)
263
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

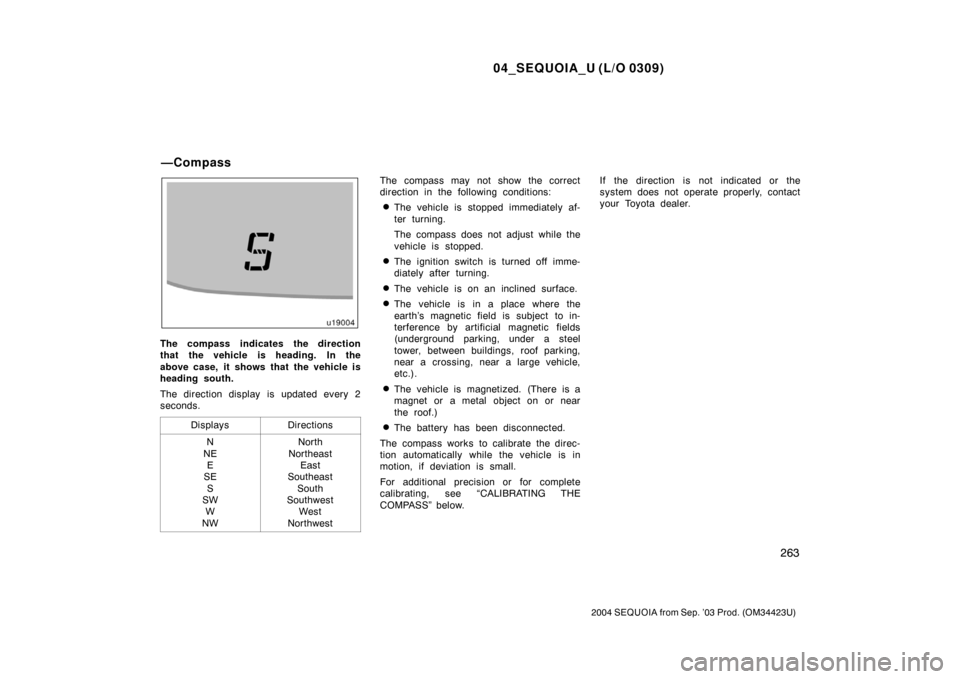

The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading south.
The direction display is updated every 2
seconds.Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the roof.)
The battery has been disconnected.
The compass works to calibrate the direc-
tion automatically while the vehicle is in
motion, if deviation is small.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below. If the direction is not indicated or the
system does not operate pr
operly, contact
your Toyota dealer.
—Compass

04_SEQUOIA_U (L/O 0309)
264
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Compass sensor
The compass sensor is on the roof of
the vehicle.
NOTICE
Do not put magnets or a metal object
on or near the roof of the vehicle.
Doing this may cause malfunction of
the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust for this deviation;1. Stop the vehicle in a level place and switch the display to the outside tem-
perature. (To switch to this mode, see
“—Outside temperature and cruise in-
formation display” on page 261 in this
Section.)
2. Push and hold both the “MODE” and “E/M” buttons simultaneously for 5 sec-
onds until the “VAR” indication appears
on the compass display.
3. Push the “E/M” button several times until the desired zone number appears
on the compass display.
If the button is not pushed for 10 sec-
onds, the display returns to the compass/
outside temperature mode and the number
that is last set is memorized.

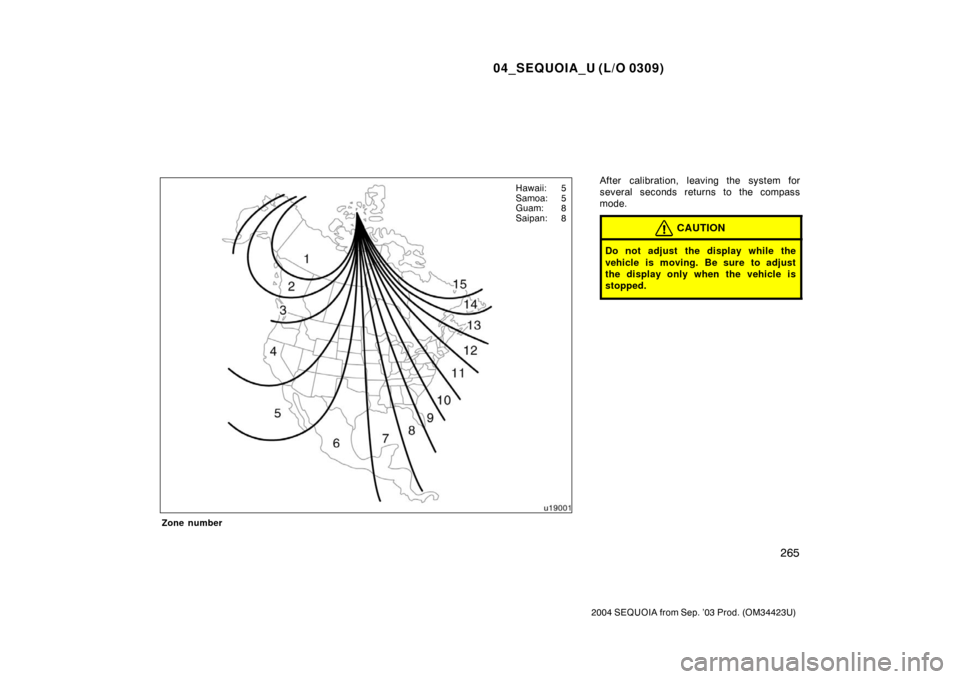

To select the zone where the vehicle is
currently located, refer to the following
map.

04_SEQUOIA_U (L/O 0309)
265
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Zone number
After calibration, leaving the system for
several seconds returns to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Hawaii: 5
Samoa: 5
Guam: 8
Saipan: 8

04_SEQUOIA_U (L/O 0309)
266
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. In
this case, the compass needs to be cali-
brated.
To calibrate the compass manually, do the
following;1. Stop the vehicle in a level place and switch the display to the outside tem-
perature. (To switch to this mode, see
“—Outside temperature and cruise in-
formation display” on page 261 in this
Section.) 2. Push and hold both the “MODE” and
“E/M” buttons simultaneously for 10
seconds until the “CAL” indication ap-
pears on the compass display. (At this
time, the compass display is locked in
“N”.)3. Drive the vehicle in a circle at 8 km/h(5 mph) or less. If there is not enough
space to drive in a circle, drive around
the block.
When the “CAL” indication goes off and
the compass returns to the normal mode,
calibration is complete.
If you want to restart the calibration be-
fore it is complete, push both of the
“MODE” and “E/M” buttons simultaneously
for 10 seconds again.

04_SEQUOIA_U (L/O 0309)
267
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.Cigarette lighter and front ashtray
Rear ashtray
ClockCigarette lighter and ashtrays

04_SEQUOIA_U (L/O 0309)
372
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Oil identification marks
Either or both API registered marks are
added to some oil containers to help
you select the oil you should use.
The API Service Symbol is located any-
where on the outside of the container.
The top portion of the label shows the oil
quality by API (American Petroleum Insti-
tute) designations such as SL. The center
portion of the label shows the SAE viscos-
ity grade such as SAE 5W−30. “Energy −
Conserving” shown in the lower portion,
indicates that the oil has fuel −saving ca-
pabilities.
The ILSAC (International Lubricant Stan-
dardization and Approval Committee) Certi-
fication Mark is displayed on the front of
the container.
To ensure excellent lubrication perfor-
mance for your engine, “Toyota Genuine
Motor Oil” is available, which has been
specifically tested and approved for all
Toyota engines.
Please contact your Toyota dealer for fur-
ther details about “Toyota Genuine Motor
Oil”. Look at the seethrough coolant reser-
voir when the engine is cold. The cool-
ant level is satisfactory if it is between
the “F” and “L” lines on the reservoir.
If the level is low, add the coolant. (For
the coolant type, see “Coolant type
selection” described below.)
The coolant level in the reservoir will vary
with engine temperature. However, if the
level is on or below the “L” line, add
coolant. Bring the level up to the “F” line.
If the coolant level drops within a short
time after replenishing, there may be a
leak in the system. Visually check the
radiator, hoses, radiator cap and drain
cock and water pump.
If you can find no leak, have your Toyota
dealer test the cap pressure and check
for leaks in the cooling system.
Checking the engine coolant
level

04_SEQUOIA_U (L/O 0309)
404
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
20. AM2 25 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system, electronic
throttle control system, “IGN 1” and
“IGN 2” fuses
21. TURNHAZ 20 A: Turn signal lights,
emergency flashers
22. RAD NO.3 20 A: Car audio/video sys-
tem
23. ST 30 A: Starting system, “STA” fuse
24. HORN 10 A: Horns
25. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system
26. DOME 10 A: Center interior and per-
sonal lights, personal lights, luggage
compartment light, air conditioning sys-
tem, wireless remote control system,
garage door opener, ignition switch
light, door courtesy lights, foot light,
vanity lights, power antenna 27. ECUB 7.5 A:
Multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system), back
door lock system, driver and front pas-
senger door lock system, gauges and
meters
28. MIR HTR 15 A: Outside rear view mir-
ror heaters
29. RAD NO.1 25 A: Car audio system
30. TAIL 15 A: Tail lights, back door cour-
tesy light, license plate lights
31. ECUIG 10 A: Charging system, cruise
control system, anti −lock brake system,
vehicle stability control system, traction
control system (two −wheel drive mod-
els), active traction control system
(four− wheel drive models), electronical-
ly controlled automatic transmission
system, power antenna, electric moon
roof, back door lock system, driver and
front passenger door lock system,
gauges and meters, multi −information
display, SRS airbag system, front seat
belt pretensioners
32. WSH 25 A: Wipers and washer
33. AC INV 15 A: Power outlets 34. IGN 2 20 A:
Starting system
35. PWR NO.3 20 A: Rear passenger’s
power window (right side)
36. PWR NO.4 20 A: Rear passenger’s
power window (left side)
37. CIG 15 A: Air conditioning systems,
power rear view mirror control, ciga-
rette lighter
38. RAD NO.2 7.5 A: Car audio/video sys-
tem, power antenna, power outlets,
multiplex communication system (power
door lock system, security system,
auto− door locking system, automatic
light control system, headlight delay off
system, tail light auto cut system, illu-
minated entry system, daytime running
light system)
39. 4WD 20 A: A.D.D. control system,
four −wheel drive system
40. STOP 15 A: Stop lights, high− mounted
stop lights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, vehicle stability control system,
traction control system (two −wheel
dr
ive models), active traction control
system (four −wheel drive models), mul-
tiplex communication system (auto− door
locking system)

04_SEQUOIA_U (L/O 0309)
405
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
41. OBD 7.5 A: On−board diagnosis sys-
tem
42. PANEL 7.5 A: Instrument panel lights,
glove box light, lights of seat heaters,
cigarette lighter, ashtrays, multi −infor-
mation display, car audio/video system,
gauge and meters, air conditioning sys-
tems
43. PWR NO.1 25 A: Driver ’s door lock
system
44. WIP 25 A: Wiper and washers
45. IGN 1 10 A: Charging system
46. SUN ROOF 25 A: Electric moon roof
47. PWR NO.2 25 A: Front passengers’
door lock system
48. HTR 10 A: Air conditioning systems,
electric cooling fan, back window de-
fogger, outside rear view mirror heater
49. FOG 15 A: Front fog lights
50. GAUGE 15 A: Back−up lights, seat
heaters, gauge and meters, air condi-
tioning systems
51. PWR OUTLET 15 A: Power outlets
52. SEAT HTR 15 A: Seat heaters Fuses (type B)
53. RR HEATER 30 A: Rear air condition-
ing system
54. HEATER 40 A: Front air conditioning
system
55. DEFOG 40 A: Back window defogger
56. MAIN 40 A: Starting system, “H −LP
RH”, “H− LP LH” and “STA” fuses
57. DOOR NO.2 30 A: Multiplex commu-
nication system (power door lock sys-
tem, security system, auto −door locking
system)
58. PWR SEAT 30 A: Power front seats
59. AM1 40 A: “HTR”, “CIG”, “GAUGE”,
“RAD NO.2”, “ECU −IG”, “WIPER”,
“WSH” and “4WD” fuses
60. PWR NO.5 30 A: Power door lock sys-
tem, back door lock system Fuses (type C)
61. ALT 140 A: “AM1”, “PWR SEAT”,
“TAIL”, “STOP”, “SUN ROOF”, “PANEL”,
“OBD”, “FOG”, “PWR NO.1”, “PWR
NO.2”, “PWR NO.5”, “PWR NO.3”,
“PWR NO.4”, “PWR OUTLET” and
“SEAT HTR” fuses
62. ABS 60 A: Anti−lock brake system,
vehicle stability control system, traction
control system (two −wheel drive mod-
els), active traction control system
(four −wheel drive models)
