04_SEQUOIA_U (L/O 0309)
268
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAYS
Front: To use the ashtray, pull it out.
Rear: To use the ashtray, raise the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
Front—To remove the ashtray, press down
on the lock spring plate and pull out.
Rear—To remove the ashtray, pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
Instrument panel
Rear console box
Luggage compartment
The power outlets are designed for
power supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Power outlets (12 VDC)

04_SEQUOIA_U (L/O 0309)
363
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview364
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 365
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 366
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 367
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7 1

04_SEQUOIA_U (L/O 0309)
364
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
1. Windshield and back window washerfluid tank
2. Power steering fluid reservoir
3. Engine oil level dipstick
4. Engine oil filler cap
5. Brake fluid reservoir
6. Fuse blocks
7. Battery
8. Engine coolant reservoir
9. Condenser
10. Radiator
Engine compartment overview

04_SEQUOIA_U (L/O 0309)
365
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

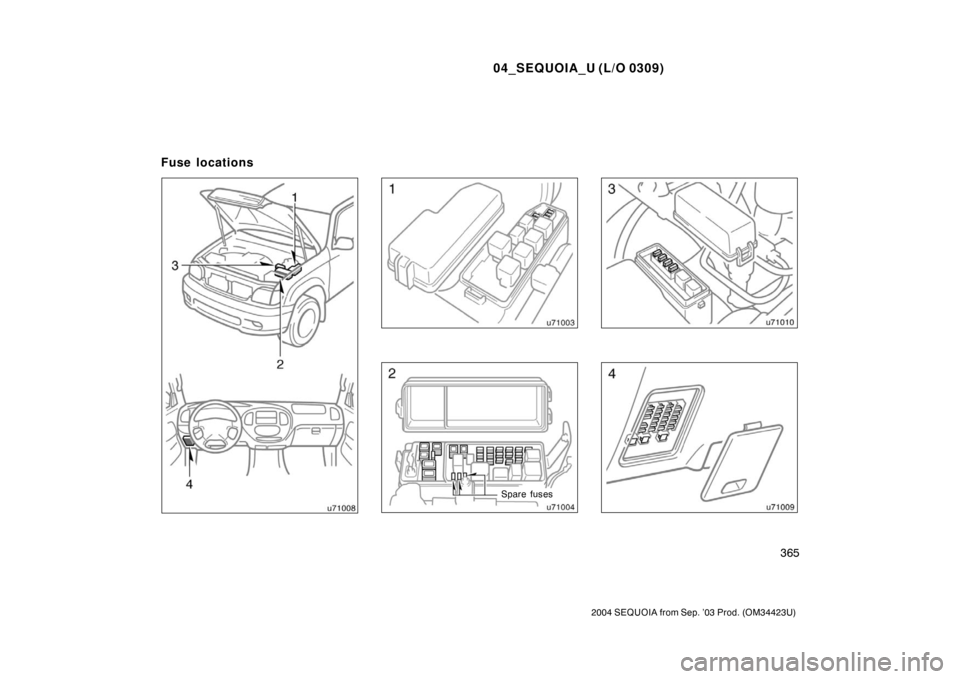

Spare fuses
Fuse locations

04_SEQUOIA_U (L/O 0309)
368
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid
DEXRON II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts) CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as origi-
nal
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” on page 390 in
Section 7 −3.)
Tools:
Screwdriver

04_SEQUOIA_U (L/O 0309)
385
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition386
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 387
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 388
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 389
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

04_SEQUOIA_U (L/O 0309)
388
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Checking and replacing fuses

04_SEQUOIA_U (L/O 0309)
389
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 365 in Sec-
tion 7−1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 402 in Section 8 of this manual for
the functions controlled by each circuit.
Type A fuses can be pulled out by using
the pull −out tool. The location of the pull −
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “DOME”
or “RAD” fuse, which may be dispensable
for normal driving, and use it if its amper-
age rating is the same. If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
If a new fuse immediately blows out, there
is a problem with the electrical system.
Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

04_SEQUOIA_U (L/O 0309)
397
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
SPECIFICATIONS
Specifications
Dimensions and weights398
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 399
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 399
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 399
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 402
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 402
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

04_SEQUOIA_U (L/O 0309)
402
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Engine compartment
Fuses (type A)1. HLP RH 10 A (with daytime running light system): Right−hand headlight
(high beam)
2. HLP LH 10 A (with daytime running light system): Left−hand headlight
(high beam)
3. STA 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, electronic throttle control sys-
tem
4. HLP RL 10 A (with daytime running light system): Right−hand headlight
(low beam)
Tires
Ti r e siz e Ti r e inf lat ion pr es s ur e
kPa (kgf/cm
2 or bar, psi)
Front Rear
P245/70R16
P265/70R16 220 (2.2, 32) 240 (2.4, 35)
220 (2.2, 32) 220 (2.2, 32) Wheel size
16 7J
16 7J or 7JJ
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions”, pages 375 through 383, in Section 7 −2.
W h eel nu t to rq u e, N⋅ m (kg f⋅m, ft ⋅lbf):
11 0 ( 11 . 5 , 8 3 )
Tire size, cold tire inflation pressure and wheel size:
P265/65R17 220 (2.2, 32) 220 (2.2, 32) 17
7 1/ 2J J
Fuses
