Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs34
110,000 Miles or 132 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
115,000 Miles or 138 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs35
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra,
all Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4Applies to Land Cruiser, Sequoia, Tacoma/Tundra with 5VZ-FE and Tundra/4Runner with 2UZ-FE. Inspect at 60,000 miles or
72 months, whichever comes first. Required only for vehicles in California, Massachusetts and New York.
120,000 Miles or 144 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (4WD Highlander, Land Cruiser, 4WD
RAV4, 4WD Tacoma, 2WD Tundra)
❑Replace spark plugs (all models)
2
❑Re-torque drive shaft bolt (Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Charcoal canister4
__ Drive belts
__Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Engine valve clearance
__ Front differential oil (4WD models,
Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil (Highlander, RAV4 and all 4WD models)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Replace transmission fluid or oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Toyota Maintenance and Repair Support45
TrueStart Batteries
The reputation for quality and reliability was likely a key reason behind your
decision to buy a Toyota. That overall quality is present in each of the compo-
nents of your car or truck, including the battery. When it’s time for a replace-
ment, your Toyota dealer is the only place to find a battery with the power to
start and operate your vehicle like new.
To maintain the original performance designed into your Toyota, a replacement
battery must meet Toyota’s specifications for Cold Cranking Amps (CCA) and
Reserve Capacity (RC). RC, a specification often not met by aftermarket brands,
supplies the power you need during high-demand conditions such as driving in
heavy traffic. RC is also what gives you the power to operate electronic accessories
with the engine off. By choosing a TrueStart,
™you can be confident your battery
will meet your needs, every day.
Warranty coverage is another important consideration when selecting a battery.
TrueStart
™batteries feature a free replacement period of 24 months or the
remainder of the Toyota New Vehicle Limited Warranty, whichever is longer.
Following the free replacement period, warranty coverage is prorated from
months 25—84 in two simple tiers. See your Toyota dealer for more details.
Don’t entrust your Toyota’s performance to anything less than the best: Genuine
Toyota TrueStart
™Batteries.

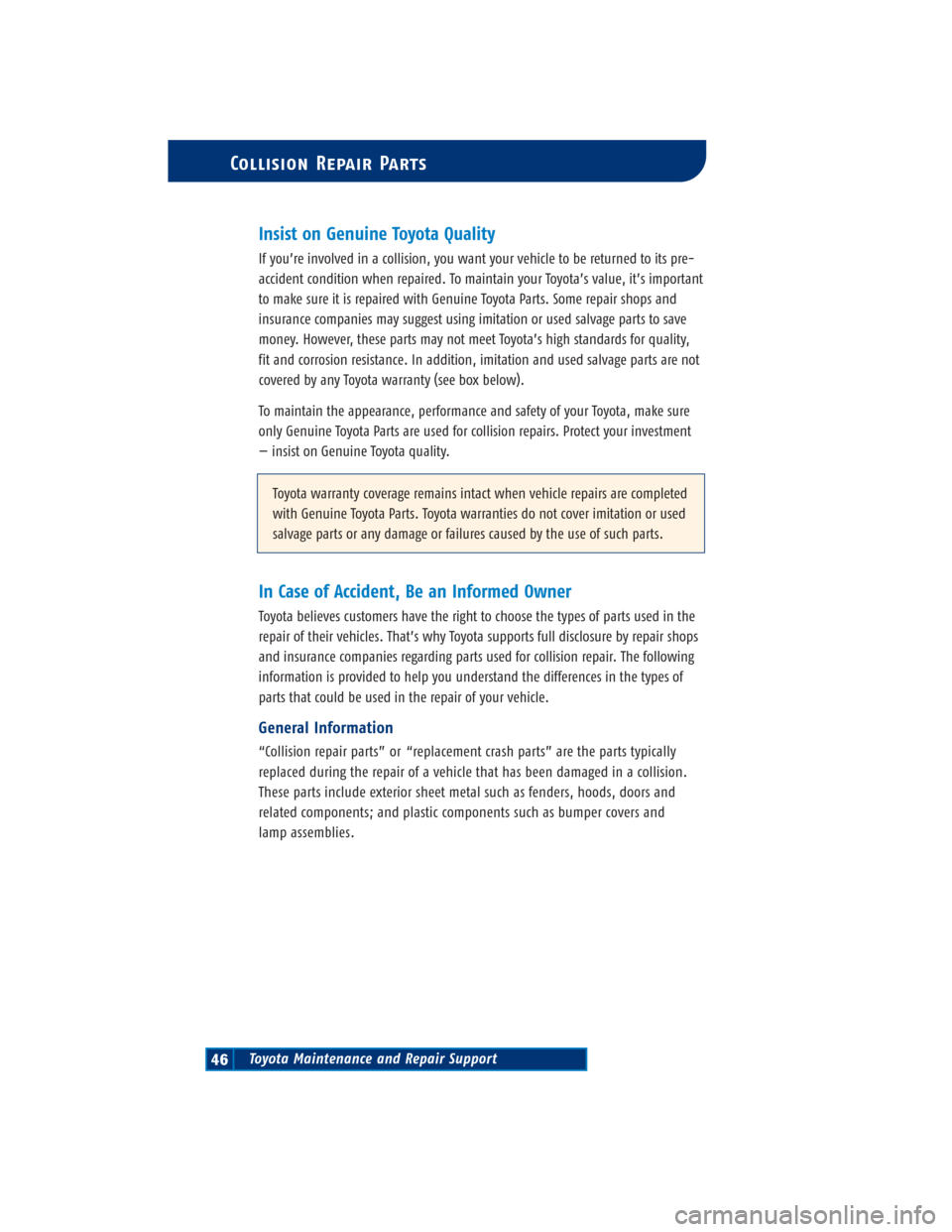

Toyota Maintenance and Repair Support46
Collision Repair Parts
Insist on Genuine Toyota Quality
If you’re involved in a collision, you want your vehicle to be returned to its pre-
accident condition when repaired. To maintain your Toyota’s value, it’s important
to make sure it is repaired with Genuine Toyota Parts. Some repair shops and
insurance companies may suggest using imitation or used salvage parts to save
money. However, these parts may not meet Toyota’s high standards for quality,
fit and corrosion resistance. In addition, imitation and used salvage parts are not
covered by any Toyota warranty (see box below).
To maintain the appearance, performance and safety of your Toyota, make sure
only Genuine Toyota Parts are used for collision repairs. Protect your investment
— insist on Genuine Toyota quality.
Toyota warranty coverage remains intact when vehicle repairs are completed
with Genuine Toyota Parts. Toyota warranties do not cover imitation or used
salvage parts or any damage or failures caused by the use of such parts.
In Case of Accident, Be an Informed Owner
Toyota believes customers have the right to choose the types of parts used in the
repair of their vehicles. That’s why Toyota supports full disclosure by repair shops
and insurance companies regarding parts used for collision repair. The following
information is provided to help you understand the differences in the types of
parts that could be used in the repair of your vehicle.
General Information
“Collision repair parts” or “replacement crash parts” are the parts typically
replaced during the repair of a vehicle that has been damaged in a collision.
These parts include exterior sheet metal such as fenders, hoods, doors and
related components; and plastic components such as bumper covers and
lamp assemblies.

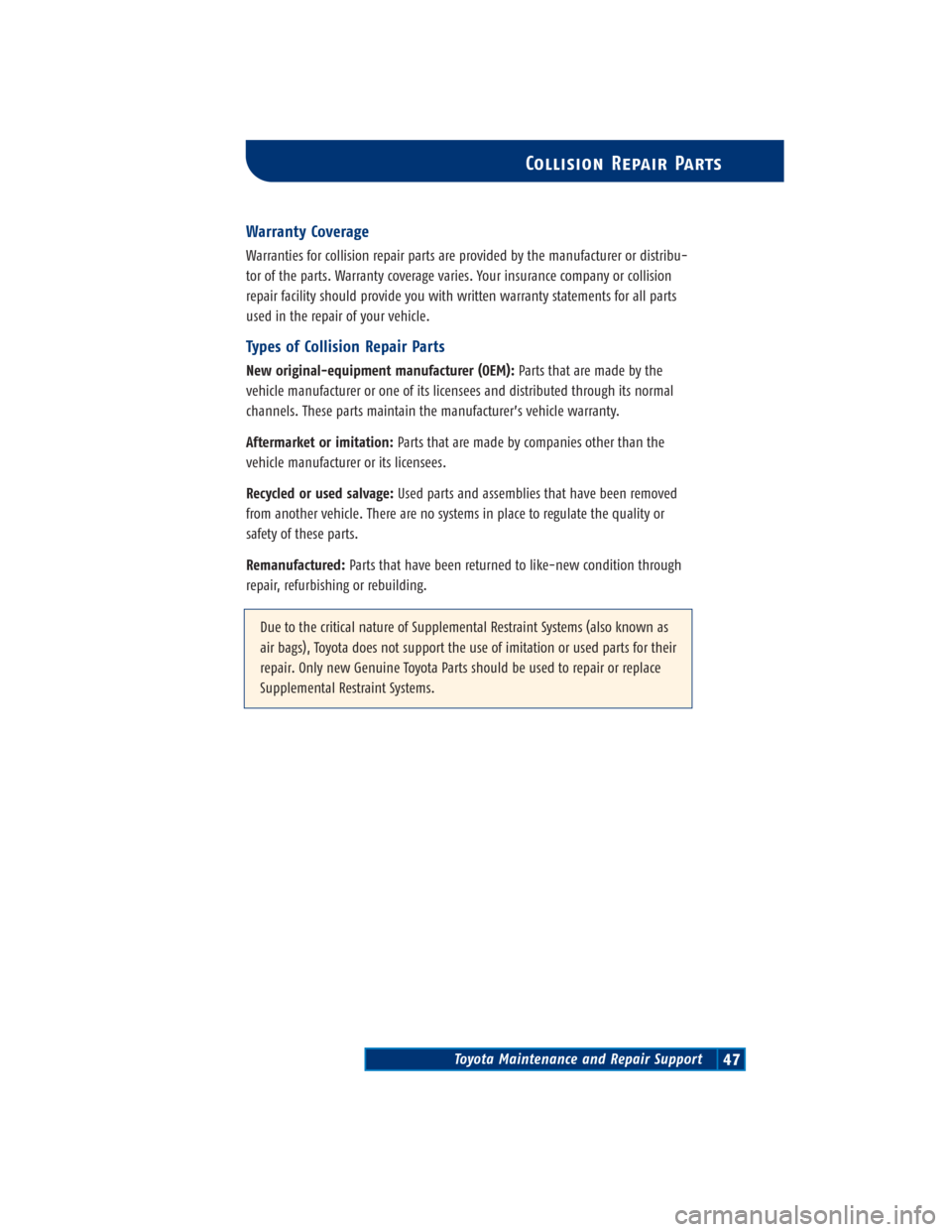

Toyota Maintenance and Repair Support47
Collision Repair Parts
Warranty Coverage
Warranties for collision repair parts are provided by the manufacturer or distribu-
tor of the parts. Warranty coverage varies. Your insurance company or collision
repair facility should provide you with written warranty statements for all parts
used in the repair of your vehicle.
Types of Collision Repair Parts
New original-equipment manufacturer (OEM):Parts that are made by the
vehicle manufacturer or one of its licensees and distributed through its normal
channels. These parts maintain the manufacturer’s vehicle warranty.
Aftermarket or imitation:Parts that are made by companies other than the
vehicle manufacturer or its licensees.
Recycled or used salvage:Used parts and assemblies that have been removed
from another vehicle. There are no systems in place to regulate the quality or
safety of these parts.
Remanufactured:Parts that have been returned to like-new condition through
repair, refurbishing or rebuilding.
Due to the critical nature of Supplemental Restraint Systems (also known as
air bags), Toyota does not support the use of imitation or used parts for their
repair. Only new Genuine Toyota Parts should be used to repair or replace
Supplemental Restraint Systems.
