Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs34
110,000 Miles or 132 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
115,000 Miles or 138 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs35
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra,
all Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4Applies to Land Cruiser, Sequoia, Tacoma/Tundra with 5VZ-FE and Tundra/4Runner with 2UZ-FE. Inspect at 60,000 miles or
72 months, whichever comes first. Required only for vehicles in California, Massachusetts and New York.
120,000 Miles or 144 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (4WD Highlander, Land Cruiser, 4WD
RAV4, 4WD Tacoma, 2WD Tundra)
❑Replace spark plugs (all models)
2
❑Re-torque drive shaft bolt (Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Charcoal canister4
__ Drive belts
__Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Engine valve clearance
__ Front differential oil (4WD models,
Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil (Highlander, RAV4 and all 4WD models)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Replace transmission fluid or oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Explanation of Maintenance Items
Scheduled Maintenance Logs36
The following descriptions are provided to give you a better understanding of
the maintenance items that should be performed on your vehicle. The scheduled
maintenance log indicates at which mileage/time intervals each item should be
performed. Please note that many maintenance items should be performed only
by a qualified technician.
For further information on maintenance items you can perform yourself,
see the “Vehicle Maintenance and Care” and “Do-It-Yourself Maintenance”
sections of yourOwner’s Manual.
Automatic Transmission Fluid or Manual Transmission Oil
Inspect or replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired by a
qualified technician immediately.
Ball Joints and Dust Covers
Check the suspension and steering linkage ball joints for looseness and damage.
Check all dust covers for deterioration and damage. Replace any deteriorated or
damaged parts. A qualified technician should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation. Check for chafing, cracks, deterioration
and signs of leakage. Replace any deteriorated or damaged parts. A qualified
technician should perform these operations.
Brake Linings/Drums and Brake Pads/Discs
Check the brake linings (shoes) and drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check the pads for excessive wear and the
discs for runout, excessive wear and fluid leakage. Replace any deteriorated
or damaged parts. A qualified technician should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s life. More frequent replacement may
be necessary.
Charcoal Canister (CA, MA and NY vehicles)
Check for internal damage and clogging. If necessary, clean with compressed air
or replace. A qualified technician should perform these operations.

Explanation of Maintenance Items
Scheduled Maintenance Logs37
Differential Oil
Replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired
by a qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension and
adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for cracks, deterioration and damage.
Replace any deteriorated or damaged parts and, if necessary, repack the grease.
Selected models also require periodic inspection of the drive shaft bolt for proper
torque. A qualified technician should perform these operations.
Engine Air Filter
Replace at specified intervals. When performing inspections, check for damage,
excessive wear and oiliness, and replace if necessary.
Engine Coolant
Drain and flush the cooling system and refill with an ethylene-glycol type
coolant. Inspect the radiator, condenser and/or intercooler for leaves, dirt and
insects and clean if necessary. Inspect hoses and connections for corrosion and
leaks. Tighten connections and replace parts as necessary. A qualified technician
should perform these operations.
Note:Your Toyota is equipped with Genuine Toyota Super Long-Life Coolant. The
replacement intervals for engine coolant recommended in this booklet are based
on replacement with Genuine Toyota Super Long-Life Coolant or similar high-
quality non-silicate, non-amine, non-borate ethylene-glycol coolant with
long-life hybrid organic acid technology (i.e., a combination of low phosphates
and organic acids). If another type of ethylene-glycol coolant is used, replace-
ment intervals may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill the engine oil at specified intervals.
For recommended oil grade and viscosity, refer to the Owner’s Manual.

Toyota Maintenance and Repair Support41

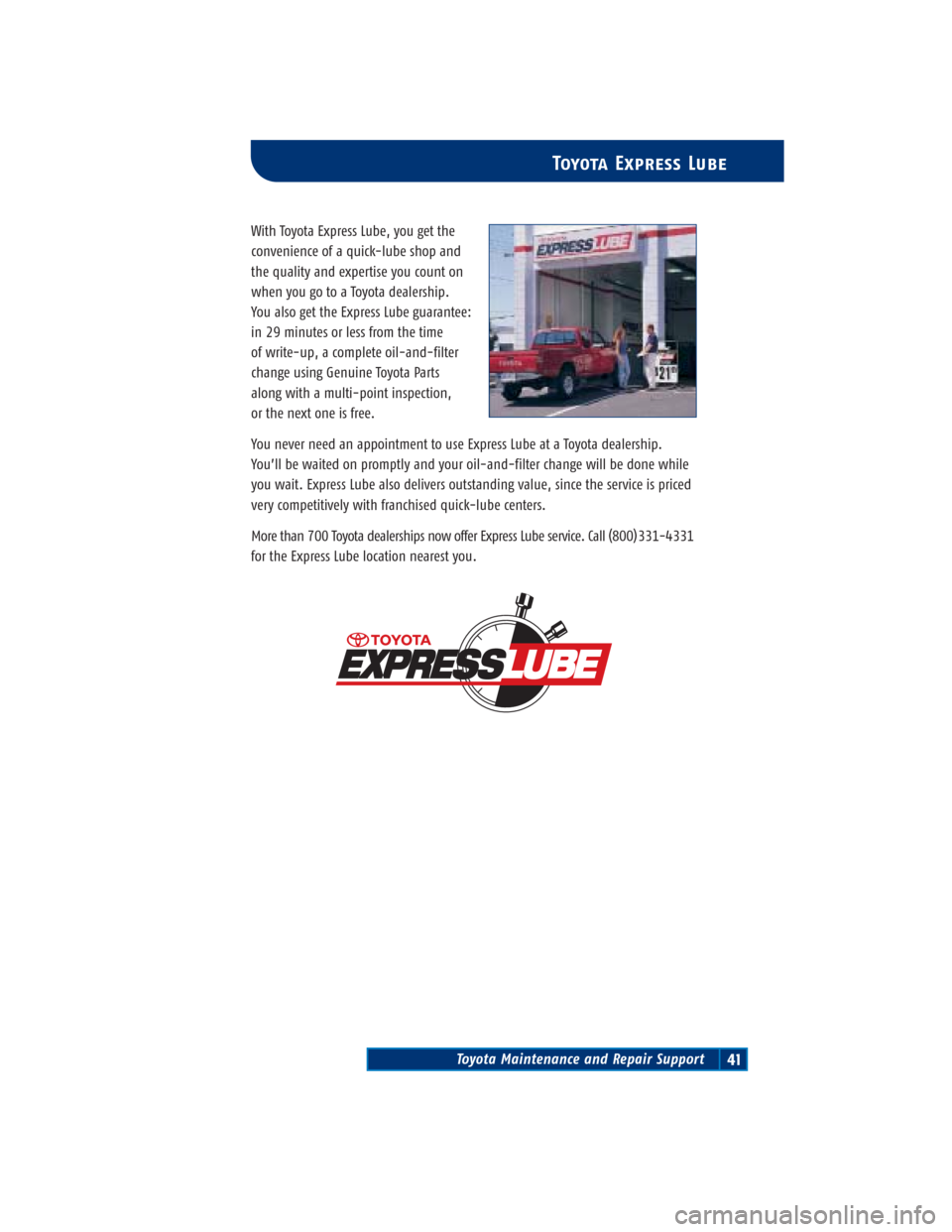

Toyota Express Lube
With Toyota Express Lube, you get the
convenience of a quick-lube shop and
the quality and expertise you count on
when you go to a Toyota dealership.
You also get the Express Lube guarantee:
in 29 minutes or less from the time
of write-up, a complete oil-and-filter
change using Genuine Toyota Parts
along with a multi-point inspection,
or the next one is free.
You never need an appointment to use Express Lube at a Toyota dealership.
You’ll be waited on promptly and your oil-and-filter change will be done while
you wait. Express Lube also delivers outstanding value, since the service is priced
very competitively with franchised quick-lube centers.
More than 700 Toyota dealerships now offer Express Lube service. Call (800) 331-4331
for the Express Lube location nearest you.

Service Agreements and Pre-Paid Maintenance
Toyota Maintenance and Repair Support52
Toyota Extra Care Vehicle Service Agreements
Toyota Extra Care Vehicle Service Agreements enhance the scope and/or length of
protection for your vehicle by providing coverage in addition to your vehicle’s
factory warranty, or providing protection if the original warranty has expired.
1
Toyota Extra Care provides for the repair or replacement of covered components
that have mechanical failures and protects you from rising repair costs in the
future. In addition, many plans include benefits such as towing, substitute trans-
portation and travel protection with lodging and meals.
Toyota Extra Care Vehicle Service Agreements are accepted at all participating Toyota
dealerships in the United States and Canada. That means repairs are made by
factory-trained service technicians using Genuine Toyota Parts.
Toyota Financial Services offers several Toyota Extra Care Vehicle Service Agreement
plans, each with a variety of time and mileage options.
2Your Toyota dealer can
help you select the plan that best meets your needs.
Toyota Auto Care Prepaid Maintenance Program
The Toyota Auto Care Prepaid Maintenance Program provides a convenient way to
prepay for your vehicle’s regularly scheduled maintenance and protects you from
the rising cost of service.
Toyota Auto Care Classic Prepaid Maintenance Plans are available for both new
and used vehicles. Benefits include oil-and-filter changes, lubrication of key
chassis parts, 19-point inspections at predetermined service intervals, timed
service reminders and a computerized history of each service visit. In addition,
24-hour roadside assistance is included with most plans.
3Premium Plans (avail-
able for new vehicles only) also include tire rotations and major maintenance
services at 15,000, 30,000 and 45,000 miles.
The Toyota Auto Care Program offers two coverage levels as well as several options
for service intervals, time and mileage. Your Toyota dealer can help you select the
prepaid maintenance plan that is best for you.
