boot TOYOTA SEQUOIA 2004 1.G Scheduled Maintenance Guide

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs34
110,000 Miles or 132 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
115,000 Miles or 138 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs35
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra,
all Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4Applies to Land Cruiser, Sequoia, Tacoma/Tundra with 5VZ-FE and Tundra/4Runner with 2UZ-FE. Inspect at 60,000 miles or
72 months, whichever comes first. Required only for vehicles in California, Massachusetts and New York.
120,000 Miles or 144 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (4WD Highlander, Land Cruiser, 4WD
RAV4, 4WD Tacoma, 2WD Tundra)
❑Replace spark plugs (all models)
2
❑Re-torque drive shaft bolt (Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Charcoal canister4
__ Drive belts
__Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Engine valve clearance
__ Front differential oil (4WD models,
Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil (Highlander, RAV4 and all 4WD models)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Replace transmission fluid or oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Explanation of Maintenance Items
Scheduled Maintenance Logs37
Differential Oil
Replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired
by a qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension and
adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for cracks, deterioration and damage.
Replace any deteriorated or damaged parts and, if necessary, repack the grease.
Selected models also require periodic inspection of the drive shaft bolt for proper
torque. A qualified technician should perform these operations.
Engine Air Filter
Replace at specified intervals. When performing inspections, check for damage,
excessive wear and oiliness, and replace if necessary.
Engine Coolant
Drain and flush the cooling system and refill with an ethylene-glycol type
coolant. Inspect the radiator, condenser and/or intercooler for leaves, dirt and
insects and clean if necessary. Inspect hoses and connections for corrosion and
leaks. Tighten connections and replace parts as necessary. A qualified technician
should perform these operations.
Note:Your Toyota is equipped with Genuine Toyota Super Long-Life Coolant. The
replacement intervals for engine coolant recommended in this booklet are based
on replacement with Genuine Toyota Super Long-Life Coolant or similar high-
quality non-silicate, non-amine, non-borate ethylene-glycol coolant with
long-life hybrid organic acid technology (i.e., a combination of low phosphates
and organic acids). If another type of ethylene-glycol coolant is used, replace-
ment intervals may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill the engine oil at specified intervals.
For recommended oil grade and viscosity, refer to the Owner’s Manual.

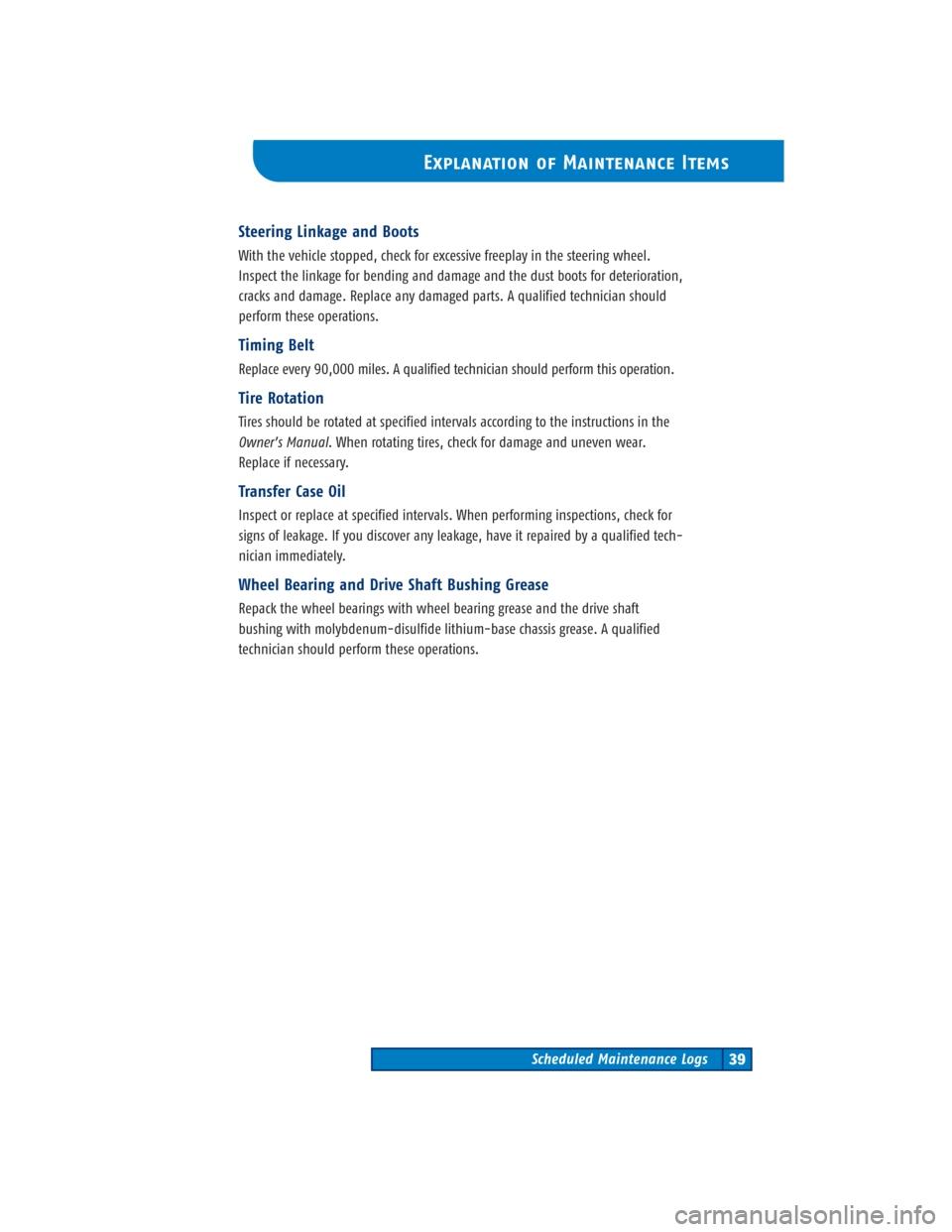

Explanation of Maintenance Items
Scheduled Maintenance Logs39
Steering Linkage and Boots
With the vehicle stopped, check for excessive freeplay in the steering wheel.
Inspect the linkage for bending and damage and the dust boots for deterioration,
cracks and damage. Replace any damaged parts. A qualified technician should
perform these operations.
Timing Belt
Replace every 90,000 miles. A qualified technician should perform this operation.
Tire Rotation
Tires should be rotated at specified intervals according to the instructions in the
Owner’s Manual. When rotating tires, check for damage and uneven wear.
Replace if necessary.
Transfer Case Oil
Inspect or replace at specified intervals. When performing inspections, check for
signs of leakage. If you discover any leakage, have it repaired by a qualified tech-
nician immediately.
Wheel Bearing and Drive Shaft Bushing Grease
Repack the wheel bearings with wheel bearing grease and the drive shaft
bushing with molybdenum-disulfide lithium-base chassis grease. A qualified
technician should perform these operations.
