Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs23
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra, all
Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty3Inspect thickness measurement and disc runout.
30,000 Miles or 36 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (Land Cruiser, 4WD Tacoma,
2WD Tundra)
❑Replace spark plugs (4Runner w/ 1GR-FE, Sequoia, Tacoma, Tundra)
2
❑Re-torque drive shaft bolt (4WD Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil (4WD models,
Highlander and RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace automatic transmission fluid (2WD Tacoma with A44D)
❑Replace front differential oil (2WD RAV4 with manual transmission, all 4WD models
except RAV4 with automatic transmission and Highlander)
❑Replace manual transmission oil (RAV4, Tundra, all Tacomas except PreRunner)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs27
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra,
all Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4Applies to Land Cruiser, Sequoia, Tacoma/Tundra with 5VZ-FE and Tundra/4Runner with 2UZ-FE. Inspect at 60,000 miles
or 72 months, whichever comes first. Required only for vehicles in California, Massachusetts and New York.
5Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.
60,000 Miles or 72 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (4WD Highlander, Land Cruiser,
4WD RAV4, 4WD Tacoma, 2WD Tundra)
❑Replace spark plugs (all models except Highlander and Land Cruiser)
2
❑Re-torque drive shaft bolt (Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Charcoal canister4
__ Drive belts5
__Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Engine valve clearance
__ Front differential oil (4WD models,
Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil (Highlander, RAV4 and all 4WD models)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Replace transmission fluid or oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 16.
Dealer Service Verification:
Date:
Mileage:
Dealer Service Verification:
Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs31
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra, all
Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty3Applies to Highlander with 3MZ-FE, Land Cruiser, Sequoia, Tundra, Tacoma with 5VZ-FE and 4Runner with 2UZ-FE.4Inspect thickness measurement and disc runout.
90,000 Miles or 108 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (Land Cruiser, 4WD Tacoma,
2WD Tundra)
❑Replace spark plugs (4Runner w/ 1GR-FE, Sequoia, Tacoma, Tundra)
2
❑Replace timing belt3
❑Re-torque drive shaft bolt (4WD Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
4
__ Drive belts
__ Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil (4WD models,
Highlander and RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace automatic transmission fluid (2WD Tacoma with A44D)
❑Replace front differential oil (2WD RAV4 with manual transmission, all 4WD models
except RAV4 with automatic transmission and Highlander)
❑Replace manual transmission oil (RAV4, Tundra, all Tacomas except PreRunner)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs35
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra,
all Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4Applies to Land Cruiser, Sequoia, Tacoma/Tundra with 5VZ-FE and Tundra/4Runner with 2UZ-FE. Inspect at 60,000 miles or
72 months, whichever comes first. Required only for vehicles in California, Massachusetts and New York.
120,000 Miles or 144 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (4WD Highlander, Land Cruiser, 4WD
RAV4, 4WD Tacoma, 2WD Tundra)
❑Replace spark plugs (all models)
2
❑Re-torque drive shaft bolt (Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Charcoal canister4
__ Drive belts
__Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Engine valve clearance
__ Front differential oil (4WD models,
Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil (Highlander, RAV4 and all 4WD models)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Replace transmission fluid or oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Explanation of Maintenance Items
Scheduled Maintenance Logs39
Steering Linkage and Boots
With the vehicle stopped, check for excessive freeplay in the steering wheel.
Inspect the linkage for bending and damage and the dust boots for deterioration,
cracks and damage. Replace any damaged parts. A qualified technician should
perform these operations.
Timing Belt
Replace every 90,000 miles. A qualified technician should perform this operation.
Tire Rotation
Tires should be rotated at specified intervals according to the instructions in the
Owner’s Manual. When rotating tires, check for damage and uneven wear.
Replace if necessary.
Transfer Case Oil
Inspect or replace at specified intervals. When performing inspections, check for
signs of leakage. If you discover any leakage, have it repaired by a qualified tech-
nician immediately.
Wheel Bearing and Drive Shaft Bushing Grease
Repack the wheel bearings with wheel bearing grease and the drive shaft
bushing with molybdenum-disulfide lithium-base chassis grease. A qualified
technician should perform these operations.

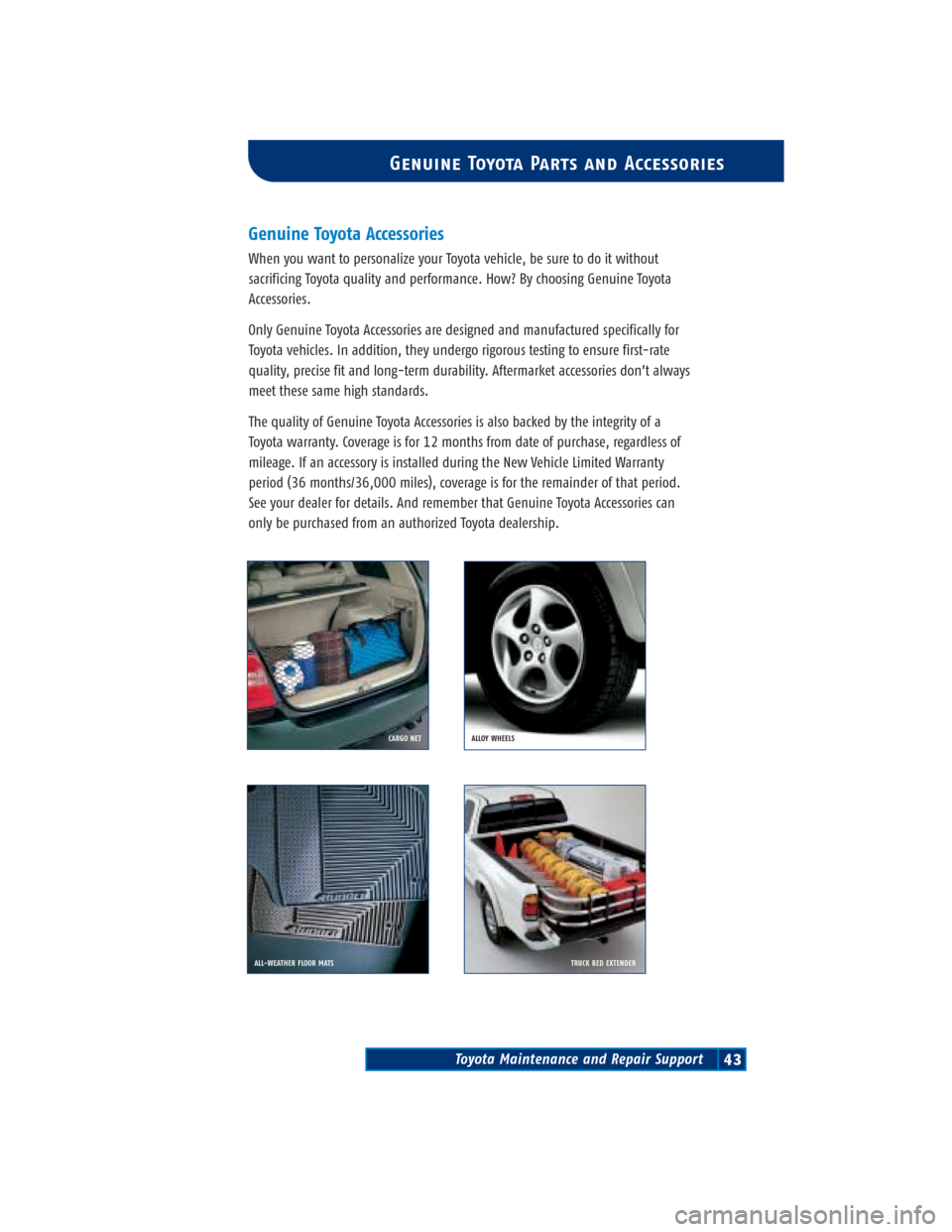

Toyota Maintenance and Repair Support43
Genuine Toyota Parts and Accessories
Genuine Toyota Accessories
When you want to personalize your Toyota vehicle, be sure to do it without
sacrificing Toyota quality and performance. How? By choosing Genuine Toyota
Accessories.
Only Genuine Toyota Accessories are designed and manufactured specifically for
Toyota vehicles. In addition, they undergo rigorous testing to ensure first-rate
quality, precise fit and long-term durability. Aftermarket accessories don’t always
meet these same high standards.
The quality of Genuine Toyota Accessories is also backed by the integrity of a
Toyota warranty. Coverage is for 12 months from date of purchase, regardless of
mileage. If an accessory is installed during the New Vehicle Limited Warranty
period (36 months/36,000 miles), coverage is for the remainder of that period.
See your dealer for details. And remember that Genuine Toyota Accessories can
only be purchased from an authorized Toyota dealership.
ALL-WEATHER FLOOR MATSALLOY WHEELS CARGO NET
TRUCK BED EXTENDER
