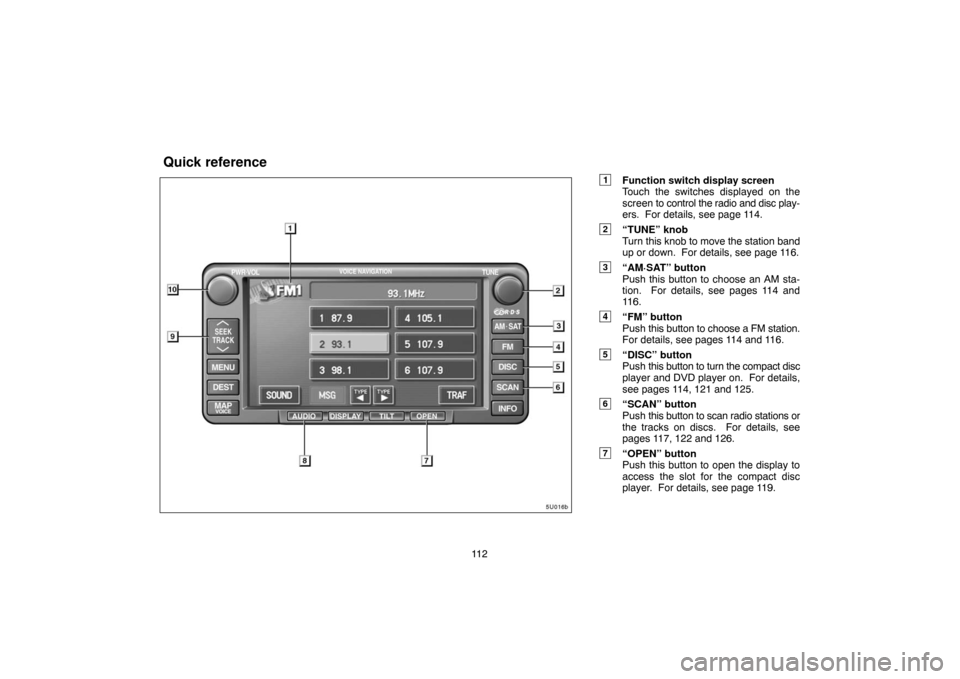

CD player TOYOTA SEQUOIA 2005 1.G Navigation Manual

11 2
1Function switch display screen
Touch the switches displayed on the
screen to control the radio and disc play-
ers. For details, see page 114.
2“TUNE” knob
Turn this knob to move the station band
up or down. For details, see page 116.
3“AM·SAT” button
Push this button to choose an AM sta-
tion. For details, see pages 114 and
116.
4“FM” button
Push this button to choose a FM station.
For details, see pages 114 and 116.
5“DISC” button
Push this button to turn the compact disc
player and DVD player on. For details,
see pages 114, 121 and 125.
6“SCAN” button
Push this button to scan radio stations or
the tracks on discs. For details, see
pages 117, 122 and 126.
7“OPEN” button
Push this button to open the display to
access the slot for the compact disc
player. For details, see page 119.
Quick reference

11 4

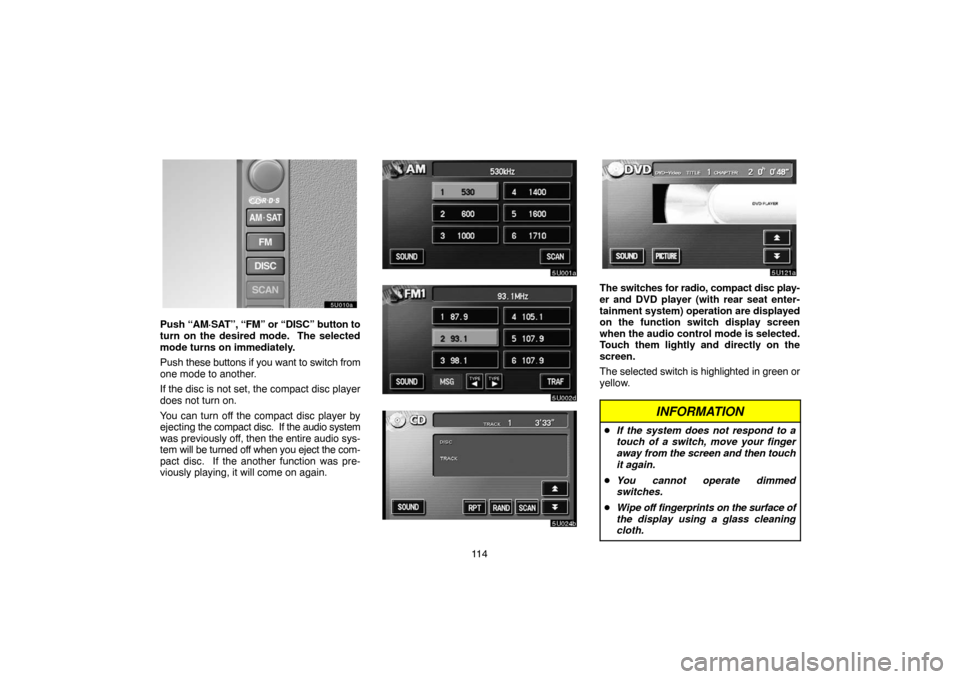

Push “AM·SAT”, “FM” or “DISC” button to
turn on the desired mode. The selected
mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the disc is not set, the compact disc player
does not turn on.
You can turn off the compact disc player by
ejecting the compact disc. If the audio system
was previously off, then the entire audio sys-
tem will be turned off when you eject the com-
pact disc. If the another function was pre-
viously playing, it will come on again.
The switches for radio, compact disc play-
er and DVD player (with rear seat enter-
tainment system) operation are displayed
on the function switch display screen
when the audio control mode is selected.
Touch them lightly and directly on the
screen.
The selected switch is highlighted in green or
yellow.
INFORMATION
If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
You cannot operate dimmed
switches.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.

11 5 (b) Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
midrange, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different mixes of treble,
mid−range, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the vol-
ume of another.

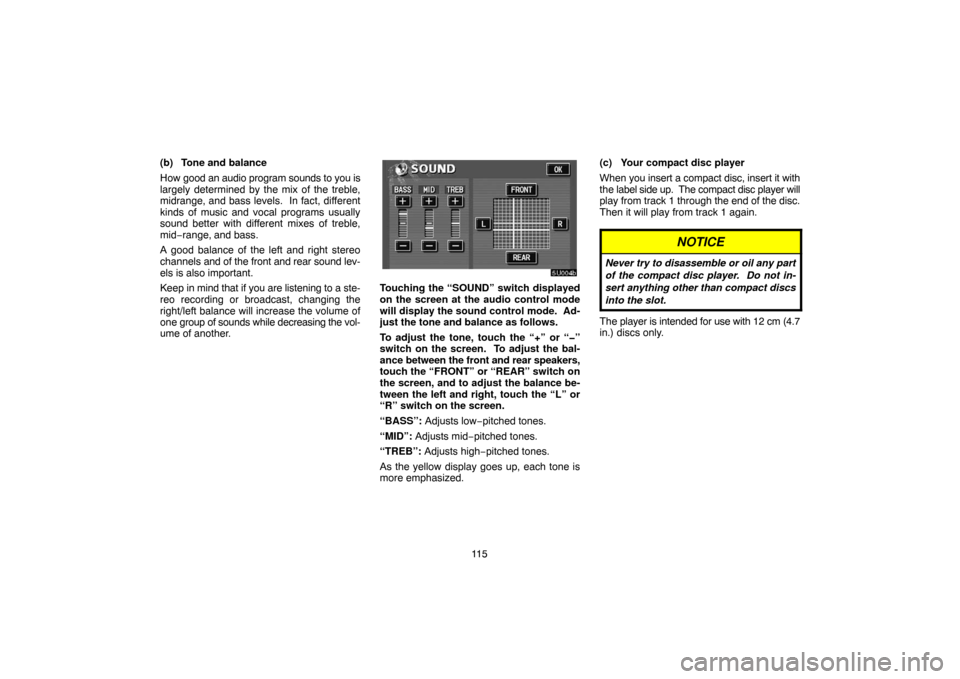

Touching the “SOUND” switch displayed
on the screen at the audio control mode
will display the sound control mode. Ad-
just the tone and balance as follows.
To adjust the tone, touch the “+” or “”
switch on the screen. To adjust the bal-
ance between the front and rear speakers,
touch the “FRONT” or “REAR” switch on
the screen, and to adjust the balance be-
tween the left and right, touch the “L” or
“R” switch on the screen.
“BASS”: Adjusts low−pitched tones.
“MID”: Adjusts mid−pitched tones.
“TREB”: Adjusts high−pitched tones.
As the yellow display goes up, each tone is
more emphasized.(c) Your compact disc player
When you insert a compact disc, insert it with
the label side up. The compact disc player will
play from track 1 through the end of the disc.
Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any part
of the compact disc player. Do not in-
sert anything other than compact discs
into the slot.
The player is intended for use with 12 cm (4.7
in.) discs only.

11 6 (d) Your DVD player
(with rear seat entertainment system)
You can enjoy the sound of the rear seat en-
tertainment system by pushing the “DISC”
button.
— Radio operation
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the screen.
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
“ST” disappears from the screen.

11 9
(e) Traffic announcement
“TRAF” switch
A station that regularly broadcasts traffic in-
formation is automatically located.
When you push the “TRAF” switch, “TRAF
SEEK” appears on the display and the radio
will start seeking any traffic program station.
If no traffic program station is found, “NOTH-
ING” appears on the display.
If a traffic program station is found, the name
for traffic program station is displayed and
“TRAF” is lit for a while until a traffic an-
nouncement is received.
— Compact disc player
operation(a) Playing a compact disc
The slot for the compact disc player is be-
hind the display.
To insert a compact disc, push the
“OPEN” button to lower the display. Put
the compact disc in the slot with the label
side up.
The player will automatically start when you
insert the compact disc. At this time, “CD” ap-
pears on the screen.
If the label faces down, the disc cannot be
played. In this case, “CD CHECK” appears
on the screen.
CAUTION
Do not place anything on the opened
display, as such items may be thrown
about in the compartment and possi-
bly injure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in case
of an accident or sudden stop while
driving, keep the display closed.
Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.

121

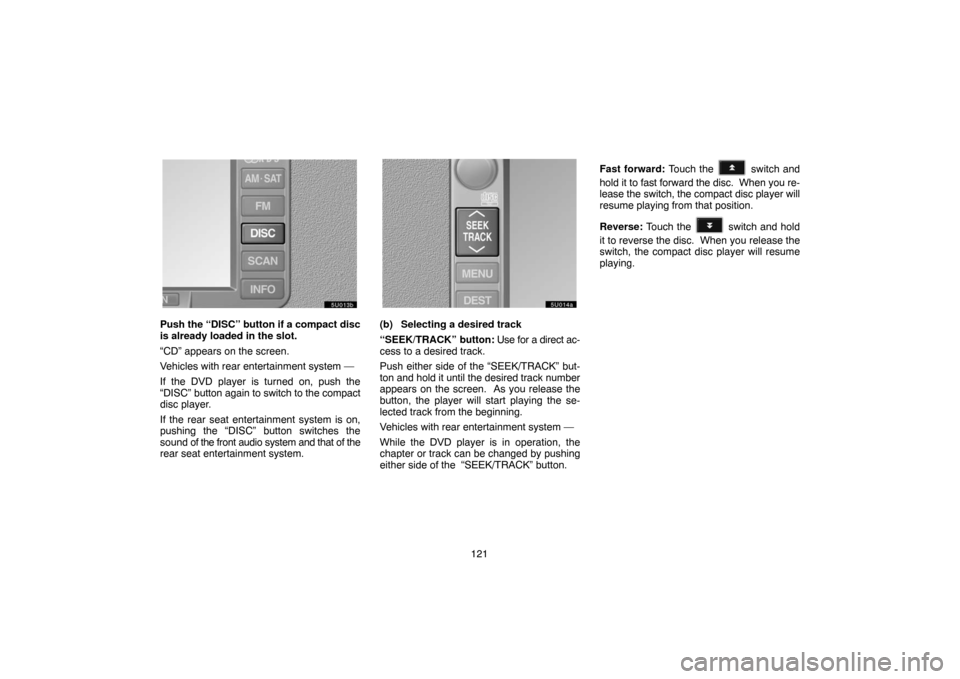

Push the “DISC” button if a compact disc
is already loaded in the slot.
“CD” appears on the screen.
Vehicles with rear entertainment system —
If the DVD player is turned on, push the
“DISC” button again to switch to the compact
disc player.
If the rear seat entertainment system is on,
pushing the “DISC” button switches the
sound of the front audio system and that of the
rear seat entertainment system.(b) Selecting a desired track
“SEEK/TRACK” button: Use for a direct ac-
cess to a desired track.
Push either side of the “SEEK/TRACK” but-
ton and hold it until the desired track number
appears on the screen. As you release the
button, the player will start playing the se-
lected track from the beginning.
Vehicles with rear entertainment system —
While the DVD player is in operation, the
chapter or track can be changed by pushing
either side of the “SEEK/TRACK” button.Fast forward: Touch the
switch and
hold it to fast forward the disc. When you re-
lease the switch, the compact disc player will
resume playing from that position.
Reverse: Touch the
switch and hold
it to reverse the disc. When you release the
switch, the compact disc player will resume
playing.

122

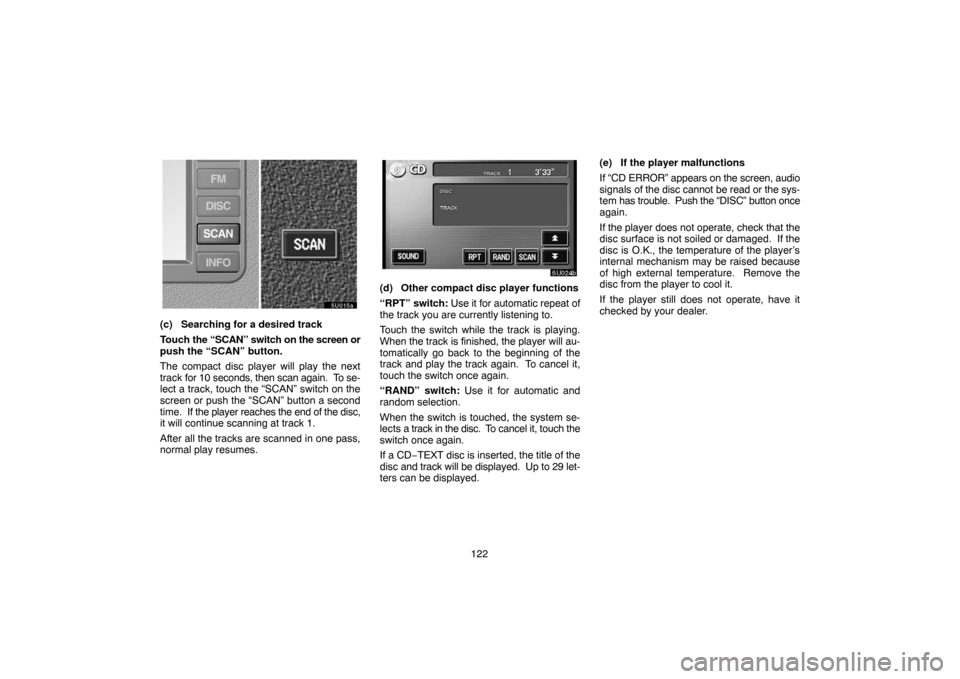

(c) Searching for a desired track
Touch the “SCAN” switch on the screen or
push the “SCAN” button.
The compact disc player will play the next
track for 10 seconds, then scan again. To se-
lect a track, touch the “SCAN” switch on the
screen or push the “SCAN” button a second
time. If the player reaches the end of the disc,
it will continue scanning at track 1.
After all the tracks are scanned in one pass,
normal play resumes.
(d) Other compact disc player functions
“RPT” switch: Use it for automatic repeat of
the track you are currently listening to.
Touch the switch while the track is playing.
When the track is finished, the player will au-
tomatically go back to the beginning of the
track and play the track again. To cancel it,
touch the switch once again.
“RAND” switch: Use it for automatic and
random selection.
When the switch is touched, the system se-
lects a track in the disc. To cancel it, touch the
switch once again.
If a CD−TEXT disc is inserted, the title of the
disc and track will be displayed. Up to 29 let-
ters can be displayed.(e) If the player malfunctions
If “CD ERROR” appears on the screen, audio
signals of the disc cannot be read or the sys-
tem has trouble. Push the “DISC” button once
again.
If the player does not operate, check that the
disc surface is not soiled or damaged. If the
disc is O.K., the temperature of the player’s
internal mechanism may be raised because
of high external temperature. Remove the
disc from the player to cool it.
If the player still does not operate, have it
checked by your dealer.

123
—DVD player operation
(with rear seat entertainment
system)
The DVD player can play DVD video, audio
CD, video CD, CD text, dtsCD or DVD au-
dio only when a disc is loaded in the DVD
player.
Refer to “Rear seat entertainment system” for
details.
For appropriate discs for this player, see
“Audio system operating hints” on page 140.

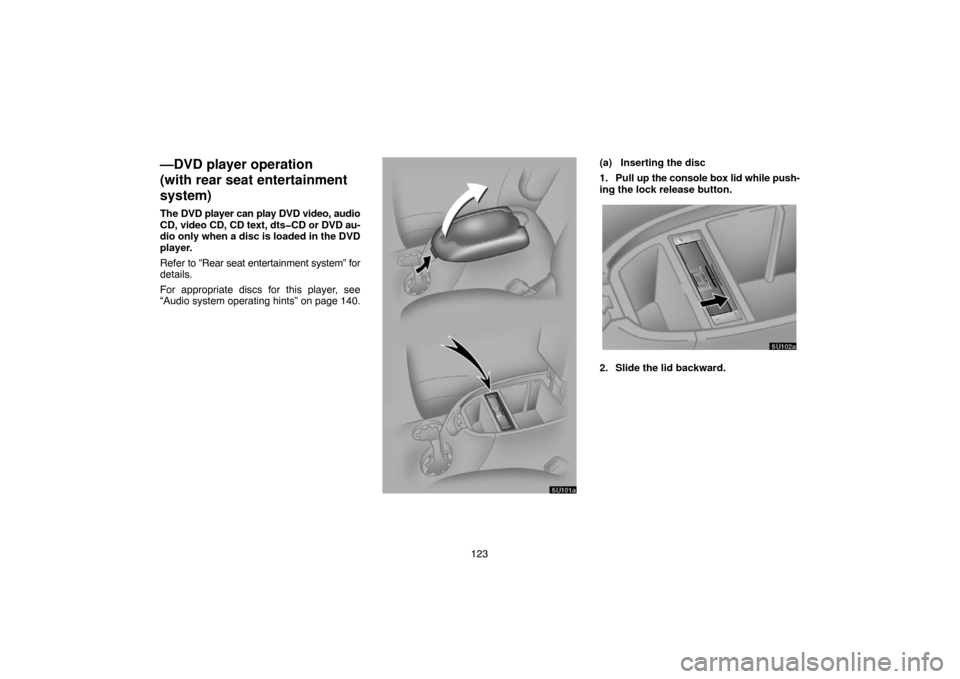

(a) Inserting the disc
1. Pull up the console box lid while push-
ing the lock release button.
2. Slide the lid backward.

124
3. Insert a disc.
When you insert a disc, push it in gently with
the label side up.
If the label faces down, the disc cannot be
played. In this case, “DISC CHECK” appears
on the screen.
If a disc which is not playable is inserted,
“DISC CHECK” will also appear on the
screen. For appropriate discs for this player,
see “Audio system operating hints” on page
140.
An adapter must be used for 8 cm (3 in.) discs
which are loaded in the same manner as for
12 cm (4.7 in.) discs.4. Slide the lid forward to close the DVD
player.The indicator light turns on while the disc is
loaded.
NOTICE
Never try to disassemble or oil any part
of the DVD player. Do not insert any-
thing other than a disc into the slot.
5. Close the console box.

125

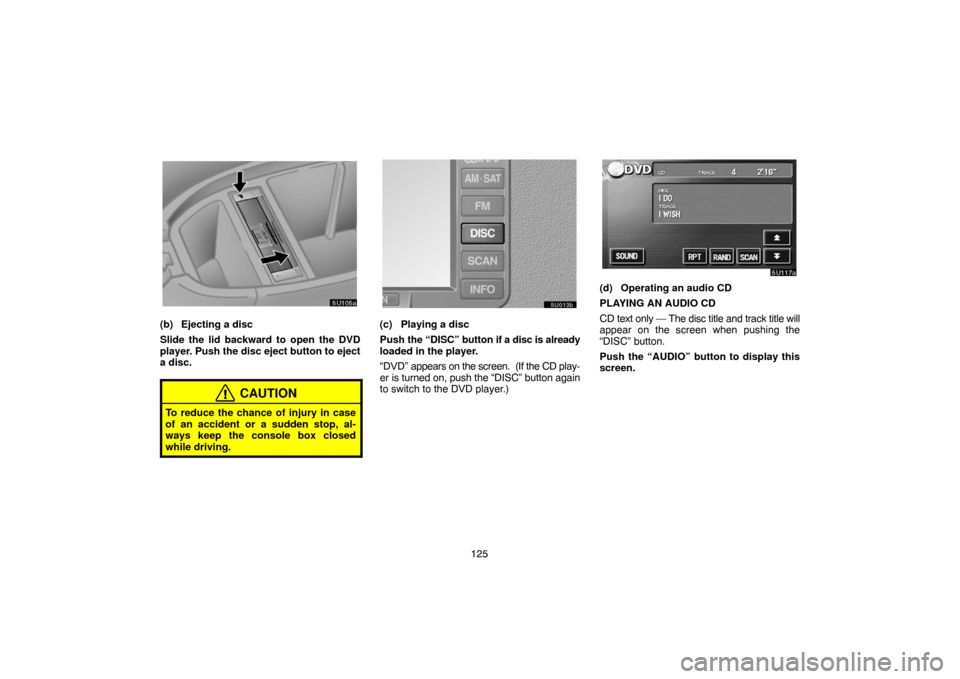

(b) Ejecting a disc
Slide the lid backward to open the DVD
player. Push the disc eject button to eject
a disc.
CAUTION
To reduce the chance of injury in case
of an accident or a sudden stop, al-
ways keep the console box closed
while driving.
(c) Playing a disc
Push the “DISC” button if a disc is already
loaded in the player.
“DVD” appears on the screen. (If the CD play-
er is turned on, push the “DISC” button again
to switch to the DVD player.)
(d) Operating an audio CD
PLAYING AN AUDIO CD
CD text only — The disc title and track title will
appear on the screen when pushing the
“DISC” button.
Push the “AUDIO” button to display this
screen.
