language TOYOTA SEQUOIA 2005 1.G Navigation Manual

ii
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to reduce the risk of injury to
yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning is
ignored. You are informed about what
you must or must not do in order to
avoid or reduce the risk of damage to
your vehicle and its equipment.
INFORMATION
This provides additional information.
Initial screen
When you start the engine or turn the ignition
switch to the “ACC” position, the initial
screen appears and the system begins
operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
After a few seconds, the “CAUTION” screen
appears.
Touch either “English” or
“Français” to select a language. Read
and follow the instructions.
When you touch the
“I Agree” switch
on the screen, the map screen appears.
You can access this screen when you push
the
“INFO” button and touch the “Lan-
guage”
switch. Then you can select a lan-
guage.

63
Volume
You can use voice guidance when ap-
proaching a destination.
You can adjust the volume of the voice or turn
off voice guidance.

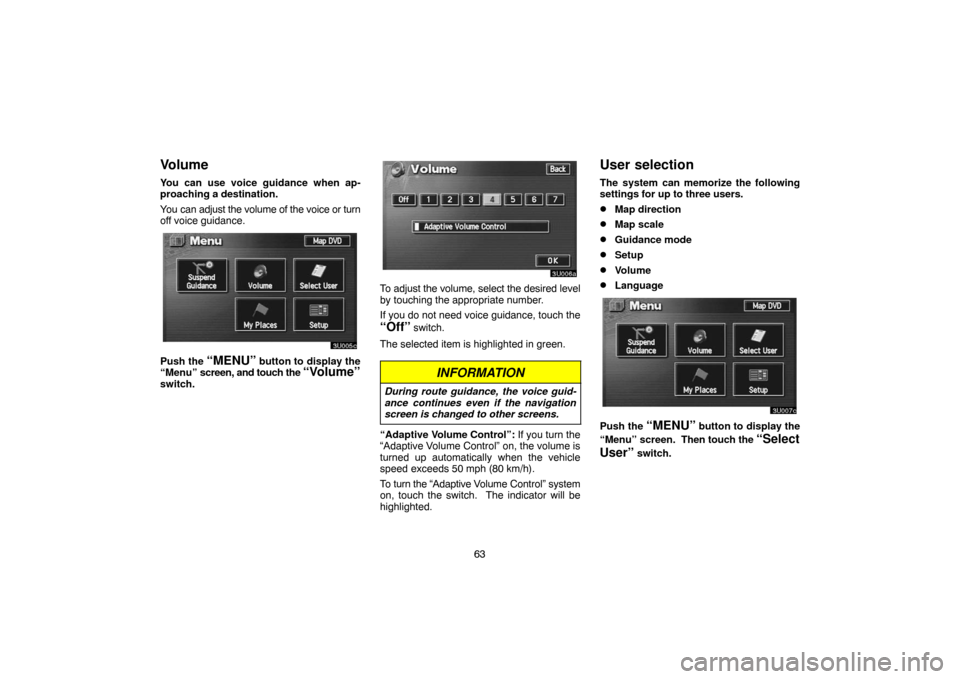

Push the “MENU” button to display the
“Menu” screen, and touch the “Volume”
switch.
To adjust the volume, select the desired level
by touching the appropriate number.
If you do not need voice guidance, touch the
“Off” switch.
The selected item is highlighted in green.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: If you turn the
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the switch. The indicator will be
highlighted.
User selection
The system can memorize the following
settings for up to three users.
Map direction
Map scale
Guidance mode
Setup
Volume
Language
Push the “MENU” button to display the
“Menu” screen. Then touch the
“Select
User”
switch.

131

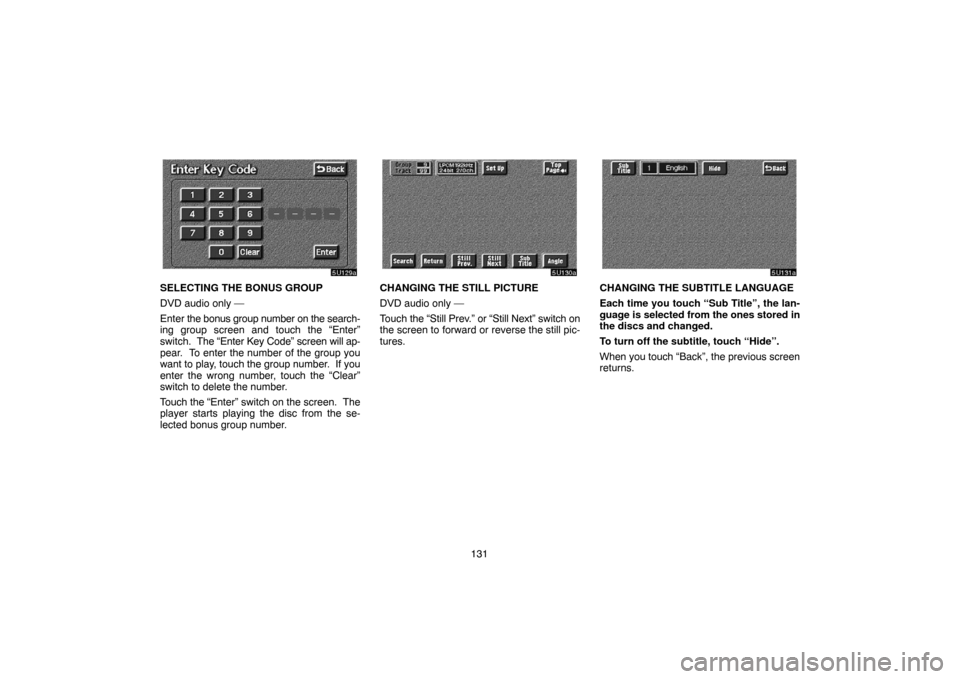

SELECTING THE BONUS GROUP
DVD audio only —
Enter the bonus group number on the search-
ing group screen and touch the “Enter”
switch. The “Enter Key Code” screen will ap-
pear. To enter the number of the group you
want to play, touch the group number. If you
enter the wrong number, touch the “Clear”
switch to delete the number.
Touch the “Enter” switch on the screen. The
player starts playing the disc from the se-
lected bonus group number.CHANGING THE STILL PICTURE
DVD audio only —
Touch the “Still Prev.” or “Still Next” switch on
the screen to forward or reverse the still pic-
tures.CHANGING THE SUBTITLE LANGUAGE
Each time you touch “Sub Title”, the lan-
guage is selected from the ones stored in
the discs and changed.
To turn off the subtitle, touch “Hide”.
When you touch “Back”, the previous screen
returns.

132

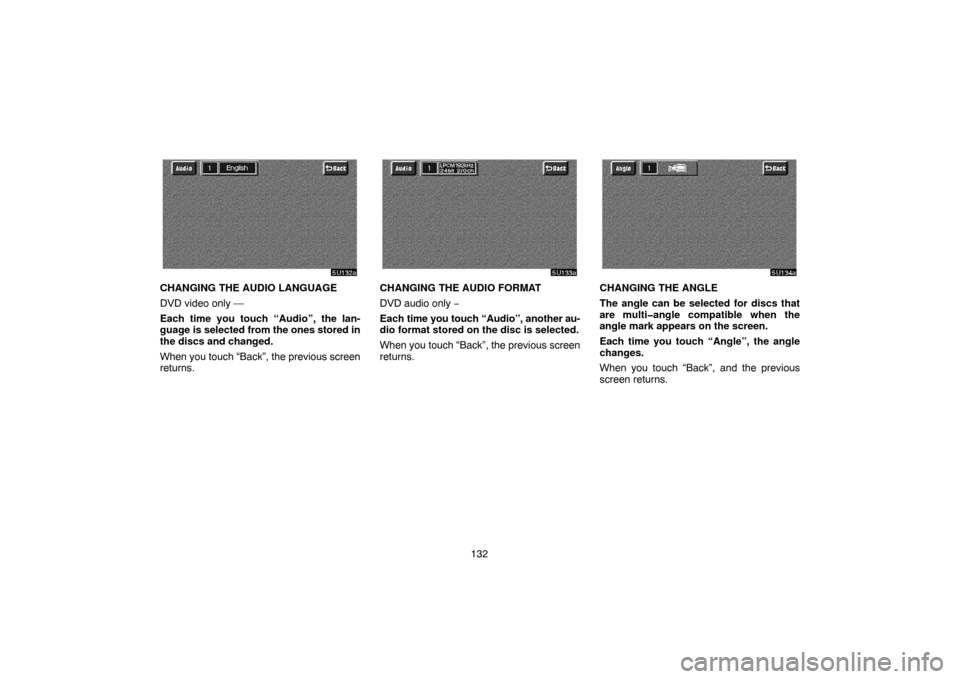

CHANGING THE AUDIO LANGUAGE
DVD video only —
Each time you touch “Audio”, the lan-
guage is selected from the ones stored in
the discs and changed.
When you touch “Back”, the previous screen
returns.CHANGING THE AUDIO FORMAT
DVD audio only −
Each time you touch “Audio”, another au-
dio format stored on the disc is selected.
When you touch “Back”, the previous screen
returns.CHANGING THE ANGLE
The angle can be selected for discs that
are multiangle compatible when the
angle mark appears on the screen.
Each time you touch “Angle”, the angle
changes.
When you touch “Back”, and the previous
screen returns.

133

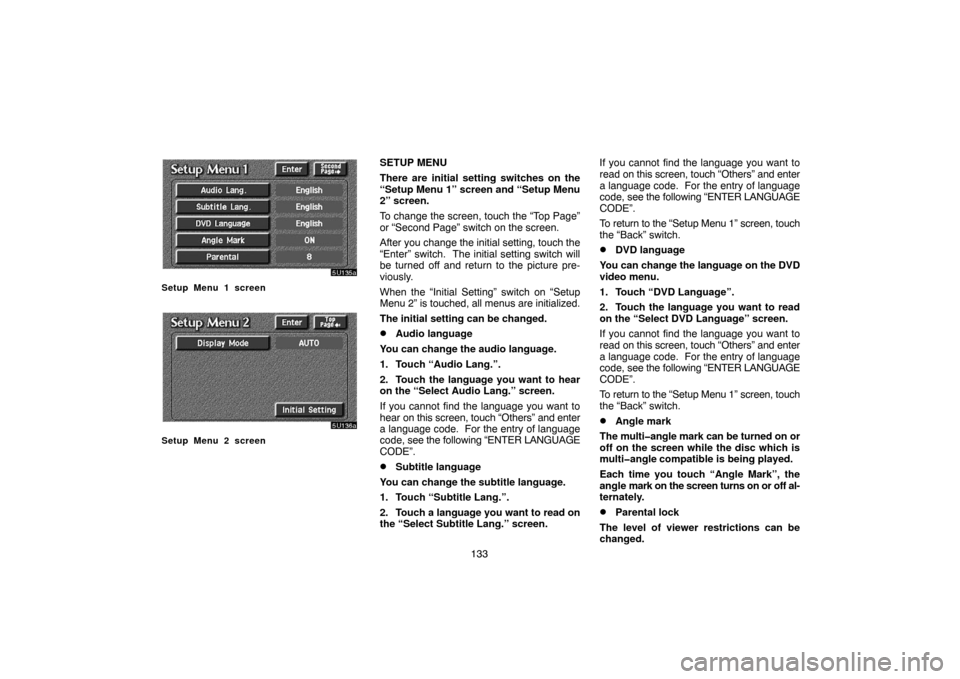

Setup Menu 1 screen
Setup Menu 2 screen
SETUP MENU
There are initial setting switches on the
“Setup Menu 1” screen and “Setup Menu
2” screen.
To change the screen, touch the “Top Page”
or “Second Page” switch on the screen.
After you change the initial setting, touch the
“Enter” switch. The initial setting switch will
be turned off and return to the picture pre-
viously.
When the “Initial Setting” switch on “Setup
Menu 2” is touched, all menus are initialized.
The initial setting can be changed.
Audio language
You can change the audio language.
1. Touch “Audio Lang.”.
2. Touch the language you want to hear
on the “Select Audio Lang.” screen.
If you cannot find the language you want to
hear on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “ENTER LANGUAGE
CODE”.
Subtitle language
You can change the subtitle language.
1. Touch “Subtitle Lang.”.
2. Touch a language you want to read on
the “Select Subtitle Lang.” screen.If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “ENTER LANGUAGE
CODE”.
To return to the “Setup Menu 1” screen, touch
the “Back” switch.
DVD language
You can change the language on the DVD
video menu.
1. Touch “DVD Language”.
2. Touch the language you want to read
on the “Select DVD Language” screen.
If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “ENTER LANGUAGE
CODE”.
To return to the “Setup Menu 1” screen, touch
the “Back” switch.
Angle mark
The multiangle mark can be turned on or
off on the screen while the disc which is
multiangle compatible is being played.
Each time you touch “Angle Mark”, the
angle mark on the screen turns on or off al-
ternately.
Parental lock
The level of viewer restrictions can be
changed.

134 1. Touch “Parental”.
2. Enter the 4digit personal code on the
“Enter personal code” screen.
If you enter the wrong numbers, touch “Clear”
to delete the numbers.
10 touches of “Clear” will initialized the per-
sonal code.
To return to the “Setup Menu 1” screen, touch
the “Back” switch.
3. Touch a parental level (1 — 8) on the
“Select Restriction Level”. Touch the
“Back” switch to return to the “Setup
Menu 1” screen.
Each time you touch the “Display Mode”
on the “Setup Menu 2” screen, the display
mode is changed from wide mode to auto

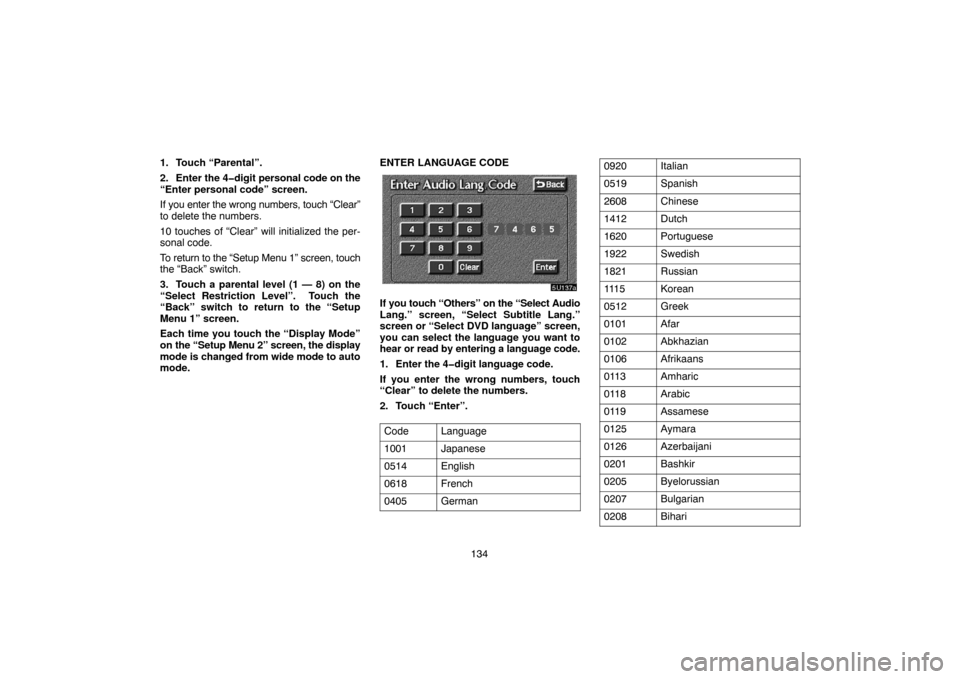

mode.ENTER LANGUAGE CODE
If you touch “Others” on the “Select Audio
Lang.” screen, “Select Subtitle Lang.”
screen or “Select DVD language” screen,
you can select the language you want to
hear or read by entering a language code.
1. Enter the 4digit language code.
If you enter the wrong numbers, touch
“Clear” to delete the numbers.
2. Touch “Enter”.
Code
Language
1001Japanese
0514English
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
111 5Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Byelorussian
0207Bulgarian
0208Bihari

139 Marks shown on DVD video discs:
Indicates NTSC
format of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen to
be selected.
Wide screen: 16:9
Standard: 4:3
Indicates a region code by
which this video disc can be
played.
ALL: in all countries
Number: region code
DVD VIDEO DISC GLOSSARY
DVD video discs: Digital versatile Disc that
holds video. DVD video discs have adopted
“MPEG2”, one of the world standards of digi-
tal compression technologies. The picture
data is compressed by 1/40 on average and
stored. Variable rate encoded technology in
which the volume of data assigned to the pic-
ture is changed depending on the picture for-
mat has also been adopted. Audio data is
stored using PCM and Dolby digital, which
enables higher quality of sound. Further-
more, multi−angle and multi−language fea-
tures will also help you enjoy the more ad-
vanced technology of DVD video.
Viewer restrictions: This feature limits what
can be viewed in conformity with a level of re-
strictions of the country. The level of restric-
tions varies depending on the DVD video
disc. Some DVD video discs cannot be
played at all, or violent scenes are skipped or
replaced with other scenes.
Level 1: DVD video discs for children can be
played.
Level 2 − 7: DVD video discs for children and
G−rated movie can be played.
Level 8: All types of the DVD video discs can
be played.
Multiangle feature: You can enjoy the
same scene at different angles.Multilanguage feature: You can select a
language of the subtitle and audio.
Region codes: The region codes are pro-
vided on DVD players and DVD discs. If the
DVD video disc does not have the same re-
gion code as the DVD player, you cannot play
the disc on the DVD player. For region codes,
see page 139.
Audio: This DVD player can play liner PCM,
Dolby digital and MPEG audio format DVD.
Other decoded type cannot be played.
Title and chapter: Video and audio pro-
grams stored in DVD video disc are divided in
parts by title and chapter.
Title: The largest unit of the video and audio
programs stored on DVD video discs. Usual-
ly, one piece of movie, one album, or one au-
dio program is assigned as a title.
Chapter: The unit smaller than that of title. A
title comprises plural chapters.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.
19921997 Dolby Laboratories. All
rights reserved.
