TOYOTA SEQUOIA 2005 1.G Owners Manual

05_SEQUOIA_U (L/O 0409)
131
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Most upright
position
CHILD RESTRAINT SYSTEM

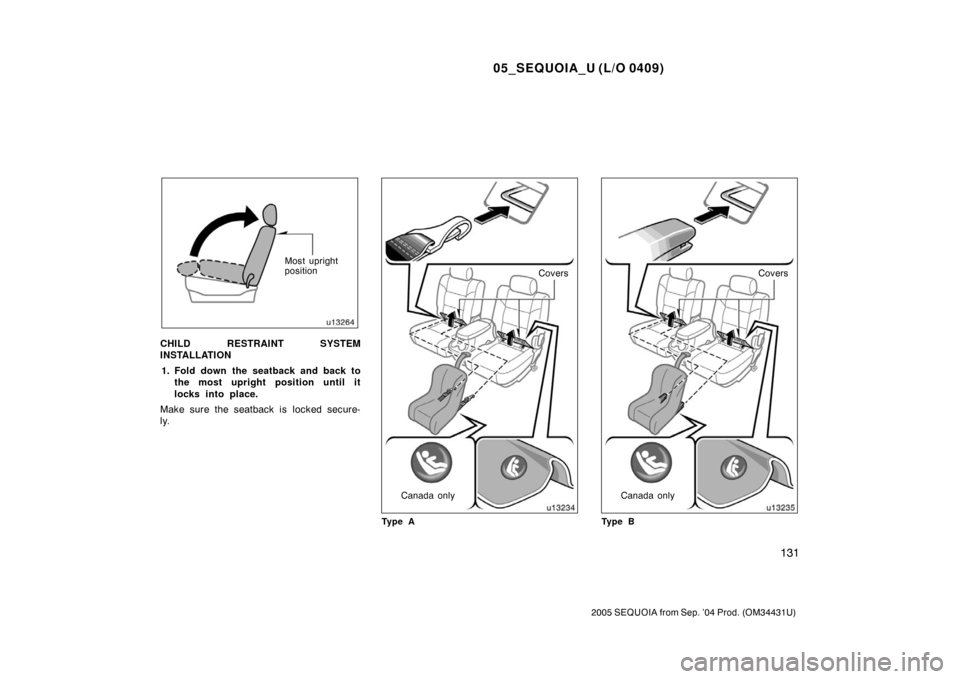

INSTALLATION1. Fold down the seatback and back to the most upright position until it
locks into place.
Make sure the seatback is locked secure-
ly.
Canada only Covers
Ty p e ACanada only Covers
Ty p e B

05_SEQUOIA_U (L/O 0409)
132
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
2. Turn up the covers for the lower an-chorages. Confirm the position of
the lower anchorages below the but-
ton on the cover.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap (for separate type second
seats)” on page 123 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the second seat if it inter-
feres with the lock mechanism of
the front seats. Otherwise, the child
or front seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.

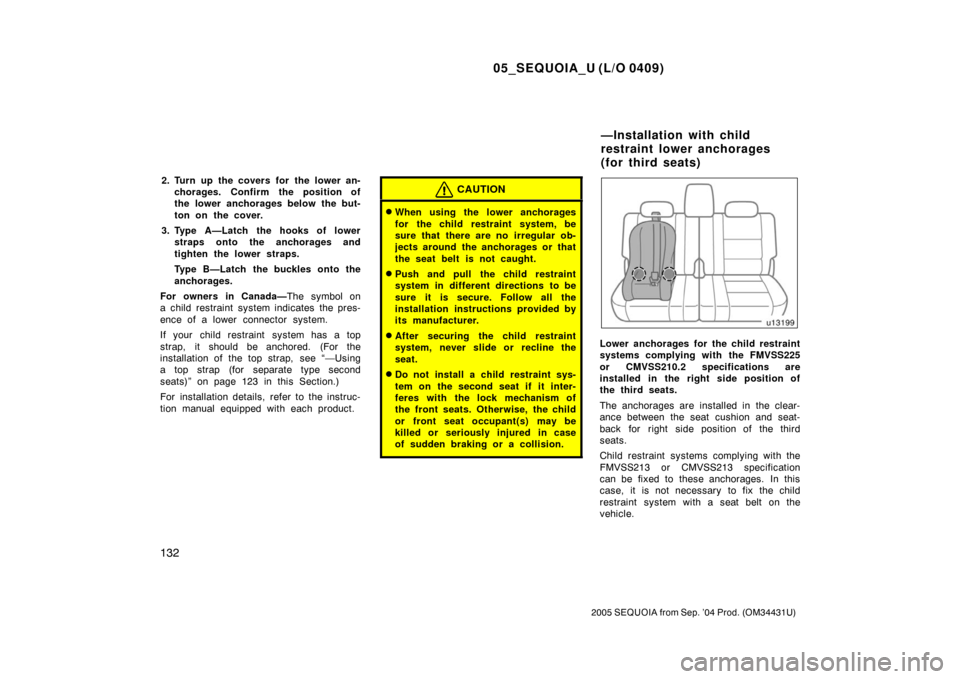

Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the right side position of
the third seats.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back for right side position of the third
seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(for third seats)

05_SEQUOIA_U (L/O 0409)
133
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Most upright
position
CHILD RESTRAINT SYSTEM

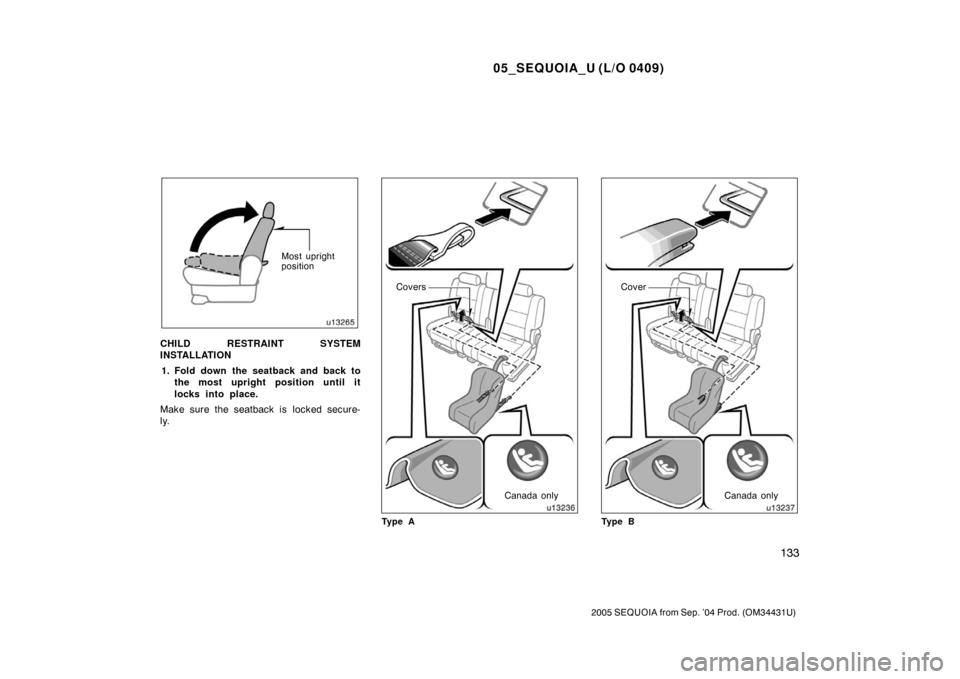

INSTALLATION1. Fold down the seatback and back to the most upright position until it
locks into place.
Make sure the seatback is locked secure-
ly.
Canada only
Covers
Ty p e ACanada only
Cover
Ty p e B

05_SEQUOIA_U (L/O 0409)
134
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
2. Turn up the cover for lower anchor-ages of the right side position. Con-
firm the position of the lower an-
chorages below the button on the
cover.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap (for third seats)” on page 125
in this Section.)
For installation details, refer to the instruc-

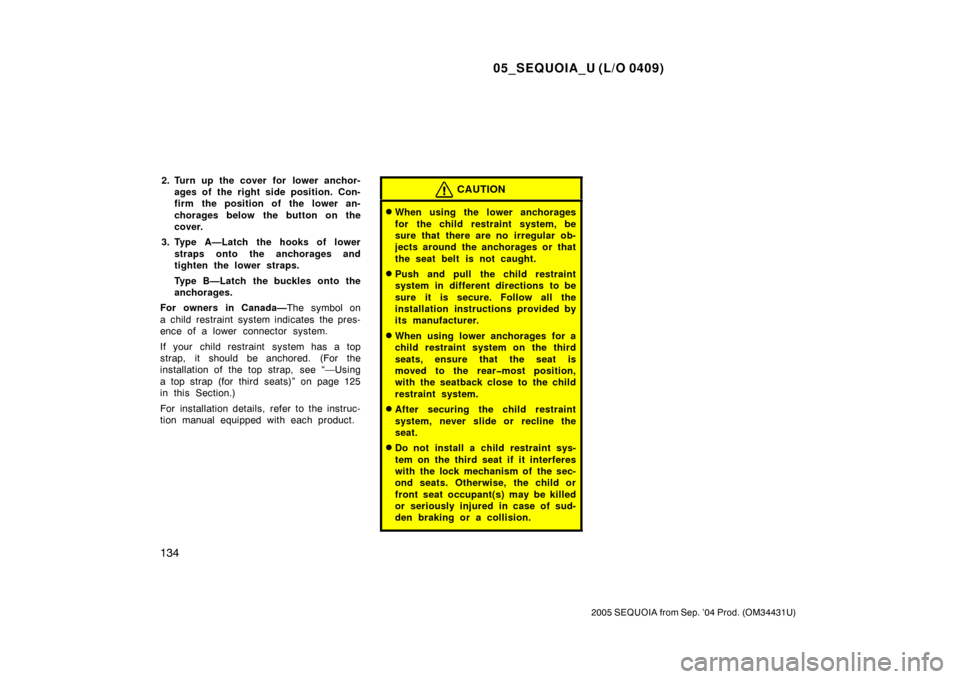

tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using lower anchorages for a
child restraint system on the third
seats, ensure that the seat is
moved to the rearmost position,
with the seatback close to the child
restraint system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the third seat if it interferes
with the lock mechanism of the sec-
ond seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

05_SEQUOIA_U (L/O 0409)
135
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Outside rear view mirrors 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 139
. . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1 4

05_SEQUOIA_U (L/O 0409)
136
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. To turn on the
back window defogger, see “Back window
and outside rear view mirror defoggers” on
page 154 in Section 1−5.
Tilt steering wheel Outside rear view mirrors—

05_SEQUOIA_U (L/O 0409)
137
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or injuries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is
on.
Ty p e A
Ty p e B
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
Vehicles with the driving position memory
system—The position of the outside rear
view mirrors and driver’s seat can be
memorized. For details, see “Driving posi-
tion memory system” on page 71 in Sec-
tion 1 −3.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

05_SEQUOIA_U (L/O 0409)
138
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

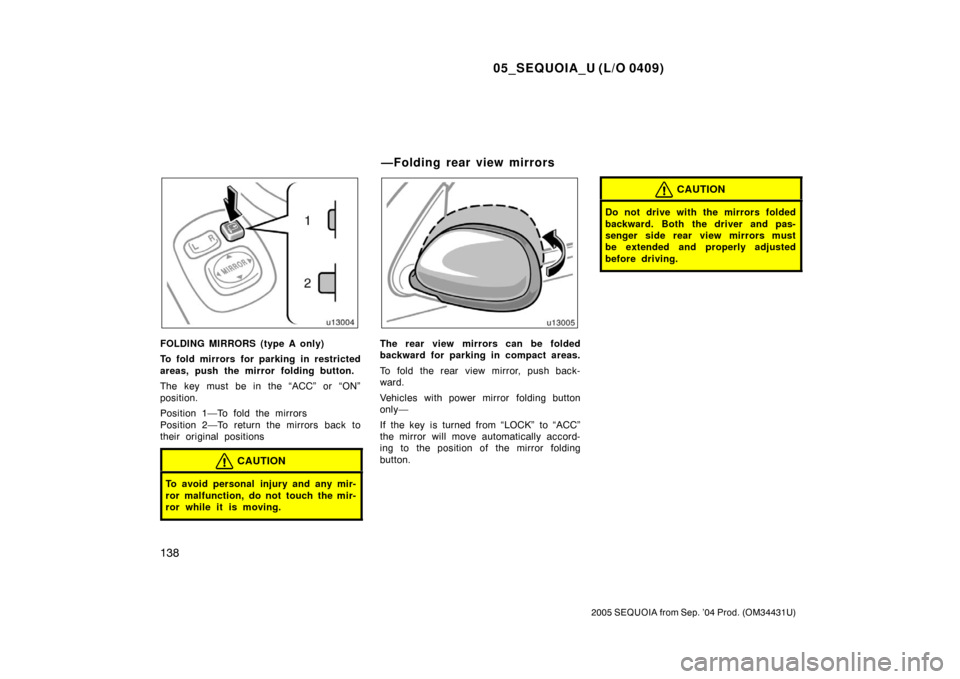

FOLDING MIRRORS (type A only)
To fold mirrors for parking in restricted
areas, push the mirror folding button.
The key must be in the “ACC” or “ON”
position.
Position 1—To fold the mirrors
Position 2—To return the mirrors back to
their original positions
CAUTION
To avoid personal injury and any mir-
ror malfunction, do not touch the mir-
ror while it is moving.
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
Vehicles with power mirror folding button
only—
If the key is turned from “LOCK” to “ACC”
the mirror will move automatically accord-
ing to the position of the mirror folding
button.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
—Folding rear view mirrors

05_SEQUOIA_U (L/O 0409)
139
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.
Antiglare inside rear view
mirrorAuto antiglare inside rear
view mirror

05_SEQUOIA_U (L/O 0409)
140
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function, press
the switch on the “OFF” side.
To turn on the automatic function again,
press the switch on the “AUTO” side.
Adjust it before driving so that the rear
view is in the best condition.
When the outside air temperature is low,
it may take a little longer for the mirror
to darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious personal
injuries.
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).
Sun visors—
