05_SEQUOIA_U (L/O 0409)
145
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
The lights automatically turn off after 30
seconds when all the side doors and back
door are closed with the ignition key in
the “ACC” or “LOCK” position and the le-
ver at position 2.
The lights also automatically turn off when
the driver ’s door is opened with the lever
at position 1.
If the doors are locked by the wireless
remote control transmitter, the lights auto-
matically turn off immediately.
To turn them on again, turn the key to the
“ON” position or actuate the headlight
switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
The time before the headlights turn off
can be changed. For details, contact your
Toyota dealer.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system (all mod-
els sold in Canada and some models
sold in the U.S.A.)
The headlights turn on when the parking
brake is released with the engine started,
even with the light switch in the “OFF”
position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Under the daytime running light system,
the headlights turn on at reduced intensity.
Twist the knob to position 2 to turn to full
intensity for driving at night.
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

05_SEQUOIA_U (L/O 0409)
146
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
aboveThe lights automatically turn off after 30
seconds when all the side doors and back
door are closed with the ignition key in
the “ACC” or “LOCK” position and the le-
ver at position 2.
The lights also automatically turn off when
the driver ’s door is opened with the lever
at position 1.
If the doors are locked by the wireless
remote control transmitter, the lights auto-
matically turn off immediately.
To turn them on again, turn the key to the
“ON” position or actuate the headlight
switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
The timing for the headlights turning off
can be changed. For details, contact your
Toyota dealer.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Headlights and turn signals
(without automatic light
control system)

05_SEQUOIA_U (L/O 0409)
149
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.To turn on the personal light, push the
switch. To turn the light off, push the
switch once again.
ILLUMINATED ENTRY SYSTEM
When the center interior light switch is in
the “DOOR” position and any of the side
doors is opened, the personal light will
come on. After all the side doors are
closed, the light remains on for a certain
time before fading out.
However, in the following cases, the light
goes out immediately:
All the side doors are closed when the
ignition key is in the “ACC” or “ON”
position.
The ignition key is turned to the “ACC”,
“ON” or “START” position after all the
side doors are closed.
All the doors are locked when the light
is still on.
When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the light
come on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the center interior light switch
in “DOOR” position for 20 minutes or
more.
For details about center interior light, see
“Center interior and personal lights” on
page 150 or “Center interior light” on page
151 in this Section.
Front fog lights Personal lights

05_SEQUOIA_U (L/O 0409)
150
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Without electric moon roof
With electric moon roof
CENTER INTERIOR LIGHT
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors is opened. The light re-
mains on when all the side doors are
closed.
ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any of the side doors is opened,
the light will come on. After all the side
doors are closed, the light remains on for
a certain time before fading out.
However, in the following cases, the light
goes out immediately:
All the side doors are closed when the
ignition key is in the “ACC” or “ON”
position.
The ignition key is turned to the “ACC”,
“ON” or “START” position after all the
side doors are closed.
All the doors are locked when the light
is still on.When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the light
come on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the switch in “DOOR” position
for 20 minutes or more.
CENTER PERSONAL LIGHTS
To turn on the center personal light,
push the switch. To turn the light off,
push the switch once again.
Center interior and personal
lights

05_SEQUOIA_U (L/O 0409)
151
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
The interior lights operate separately
with each outer switch.
To turn on the light, push the switch.
To turn the light off, push the switch
once again.
The interior light switch has the following
positions:
“DOOR”—Turns the light on when any of
the side doors is opened. The light re-
mains on when all the side doors are
closed.
“OFF”—The lights are off unless you oper-
ate either outside switch.ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any of the side doors is opened,
the light will come on. After all the side
doors are closed, the light remains on for
a certain time before fading out.
However, in the following cases, the light
goes out immediately:
All the side doors are closed when the
ignition key is in the “ACC” or “ON”
position.
The ignition key is turned to the “ACC”,
“ON” or “START” position after all the
side doors are closed.
All the side doors and back door are
locked when the light is still on.
When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the light
come on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the switch in “DOOR” position
for 20 minutes or more.
Center interior light

05_SEQUOIA_U (L/O 0409)
152
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To turn on the luggage compartment
light, slide the switch.
The luggage compartment light switch has
the following positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors or back door are opened.
The light goes off immediately when the
back door is closed. However, the light
remains on when all the side doors are
closed.ILLUMINATED ENTRY SYSTEM
When the switch is in “DOOR” position
and any door is opened, the light will
come on. After all the side doors are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the lights
go off immediately.
All the side doors and back door are
closed when the ignition key is in the
“ACC” or “ON” position.
The ignition key is turned to the “ACC”,
“ON”, or “START” position after all the
side doors are closed.
All the side doors and back door are
closed and locked.
When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the light
will come on and remain on for about 15
seconds before fading out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
For easy access to the ignition switch,
the ignition switch light comes on when
any of the side doors are opened.
The light remains on for some time after
all the side doors are closed.
However, in the following cases, the lights
go off immediately.
All the side doors are closed when the
ignition key is in the “ACC” or “ON”
position.
The ignition key is turned to the “ACC”,
“ON”, or “START” position after all the
side doors are closed.
All the side doors are closed and
locked.
Luggage compartment light Ignition switch light

05_SEQUOIA_U (L/O 0409)
153
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the ignition
switch light will come on and remain on
for about 15 seconds before fading out.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened for 20 minutes or more.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
The “INT” band lets you adjust the wiping
time interval when the wiper lever is in
the intermittent position (position 1). Twist
the band upward to increase the time be-
tween sweeps, and downward to decrease
it. To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 446 in
Section 7
−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Windshield wipers and washer

05_SEQUOIA_U (L/O 0409)
207
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio/video system
Reference208
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 208
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Rear seat audio system 226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Rear seat entertainment system 235
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 283
. . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 8

05_SEQUOIA_U (L/O 0409)
224
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

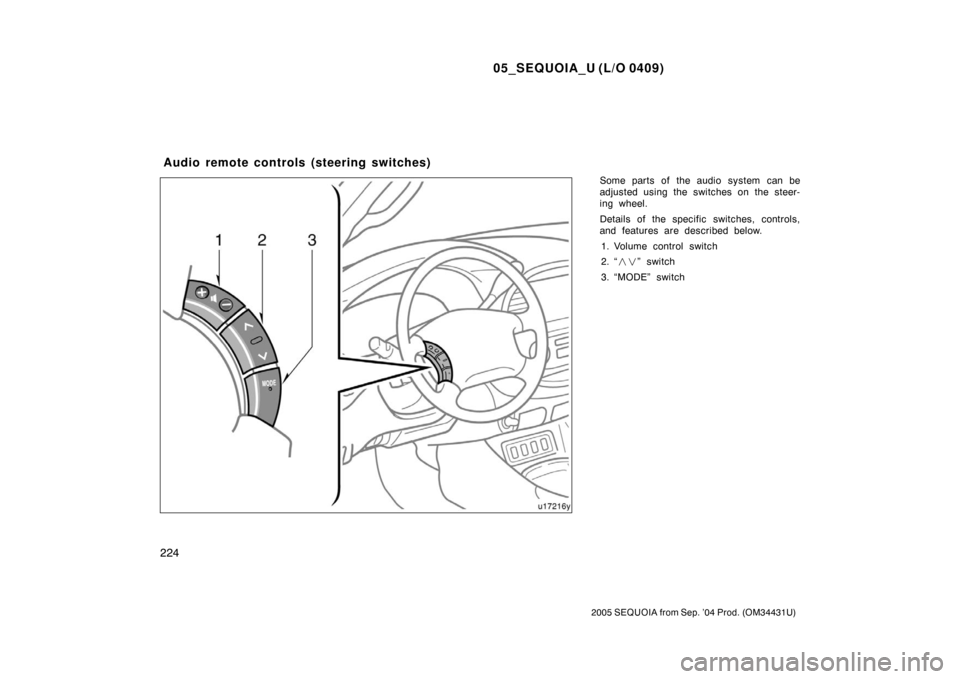

Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.1. Volume control switch
2. “ ” switch
3. “MODE” switch
Audio remote controls (steering switches)

05_SEQUOIA_U (L/O 0409)
383
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
IN CASE OF AN EMERGENCY
In case of an emergency
If your vehicle will not start384
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 387
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot increase engine speed 388
. . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 388
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
If you have a flat tire 389
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
If your vehicle becomes stuck 398
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 399
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you lose your keys 403
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
If you lose your wireless remote control transmitter 404
. . . . . . . . . . . . .
SECTION 4
