345
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.

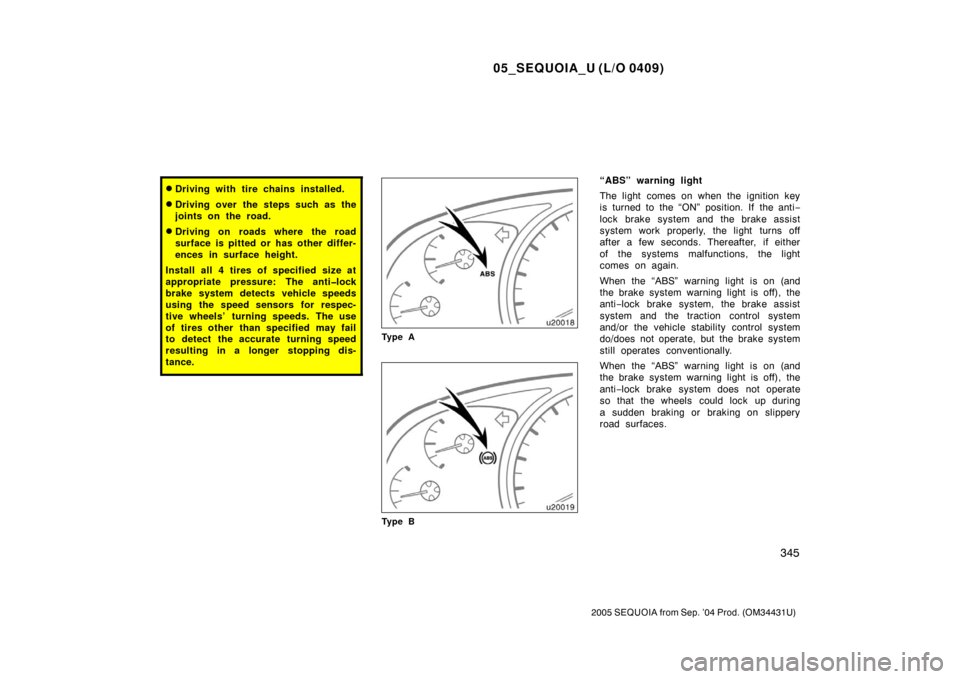

Ty p e A
Ty p e B
“ABS” warning light
The light comes on when the ignition key
is turned to the “ON” position. If the anti −
lock brake system and the brake assist
system work properly, the light turns off
after a few seconds. Thereafter, if either
of the systems malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system, the brake assist
system and the traction control system
and/or the vehicle stability control system
do/does not operate, but the brake system
still operates conventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.

05_SEQUOIA_U (L/O 0409)
461
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Engine compartment
Fuses (type A)1. AIR SUS No.2 10 A: Rear height con-
trol air suspension system
2. RSE 7.5 A: Rear seat audio system,
rear seat entertainment system
3. A/F 20 A: A/F sensor
4. SECURITY 15 A: Multiplex communica-
tion system
5. DEF I/UP 7.5 A: Rear window defog-
ger, outside rear view mirror defoggers,
multiport fuel injection system/sequen-
tial multiport fuel injection system
Engine compartment
6. HLP LL 10 A (with daytime running light system): Left−hand headlight (low
beam)
7. HLP RL 10 A (with daytime running light system): Right−hand headlight
(low beam)
8. STA 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, electronic throttle control sys-
tem
9. HLP LH 10 A (with daytime running light system): Left−hand headlight
(high beam)
Engine compartment
10. HLP RH 10 A (with daytime running light system): Right−hand headlight
(high beam)
11. TOWING TAIL 30 A: Trailer lights (tail
lights)
12. BATT CHARGE 30 A: Trailer sub bat-
tery
13. TOWING BRK 30 A: Trailer brake con-
troller
14. CDS FAN 25 A: Electric cooling fan
15. SPARE 15 A: Spare fuse
16. SPARE 20 A: Spare fuse
17. SPARE 30 A: Spare fuse
Fuses
