05_SEQUOIA_U (L/O 0409)
232
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Radio
AM mode
When you select the AM mode, “AM” will
appear on the screen.
FM mode
When you select the FM mode, “FM1” or
“FM2” will appear on the display.
If the front audio system receives a traffic
announcement (TA) while the rear seat
audio system is in the radio mode,
“TRAF” will flash on the screen and the
rear seat audio system will turn off. When
the front audio receives a traffic an-
nouncement (TA), the rear seat audio sys-
tem cannot select the AM/FM mode.
Tape mode
“TAPE” appears on the screen while this
mode is selected.Compact disc mode
“CD” appears on the screen while this
mode is selected.
The screen shows the track, or track and
disc number currently being played.
Error messages
If the player malfunctions, your audio sys-
tem will screen one of the four following
error messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERR 1”: The disc may be dirty, damaged
or inserted incorrectly (up −side down).
Clean the disc and re −insert it.
“ERR 3”: There is a problem inside the
system. Eject the disc. Set the disc again.
“ERR 4”: Over−current. Ask your Toyota
dealer to inspect.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
4. “OFF” button
Push “OFF” button to turn off the rear
seat audio system. REPLACING CONTROLLER BATTERY
For replacement, use a CR2025 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved battery or components.
NOTICE

When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type of battery recom-
mended by a Toyota dealer.
 Dispose of used batteries according
to the local regulations.

05_SEQUOIA_U (L/O 0409)
241
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

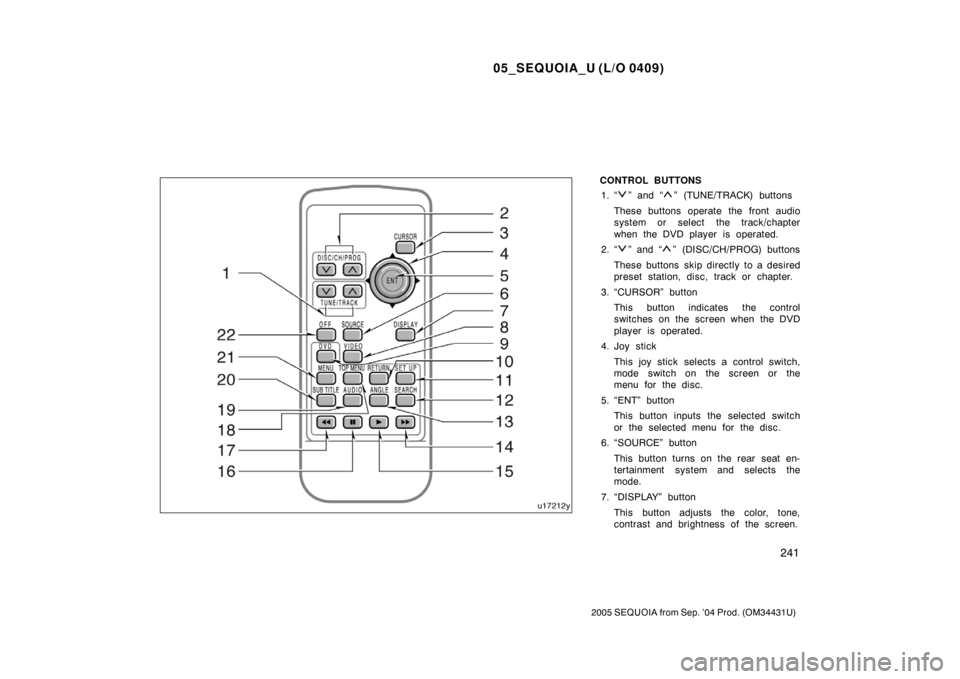

CONTROL BUTTONS1. “
” and “” (TUNE/TRACK) buttons
These buttons operate the front audio
system or select the track/chapter
when the DVD player is operated.
2. “
” and “” (DISC/CH/PROG) buttons
These buttons skip directly to a desired
preset station, disc, track or chapter.
3. “CURSOR” button This button indicates the control
switches on the screen when the DVD
player is operated.
4. Joy stick
This joy stick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. “ENT” button This button inputs the selected switch
or the selected menu for the disc.
6. “SOURCE” button
This button turns on the rear seat en-
tertainment system and selects the
mode.
7. “DISPLAY” button This button adjusts the color, tone,
contrast and brightness of the screen.

05_SEQUOIA_U (L/O 0409)
245
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
When you select a mode, the screen indi-
cates which is selected.
Radio
AM mode:
When you select the AM mode, “AM” will
appear on the screen.
FM mode:
When you select the FM mode, “FM1” or
“FM2” will appear on the screen.
Tape mode
“TAPE” appears on the screen while this
mode is selected.
Compact disc mode
“CD” appears on the screen while this
mode is selected.
The screen shows the track, or track and
disc number currently being played.
OPERATING FRONT AUDIO SYSTEM
To operate the front audio system, use
the following switches.1. “
” and “” (DISC/CH/PROG) but-
tons
Radio
You can scan only the preset stations for
the band of the front audio system. (For
instructions, see “—Controls and features”
on page 211 in this Section.)
To scan the preset stations:
Push the “
” or “” (DISC/CH/PROG)
button. The radio will tune in the next
preset station up or down the band. The
station frequency will appear on the
screen. Cassette tape player
Push the “
” or “” (DISC/CH/PROG)
button to select the other side of a cas-
sette tape. The screen indicates which
side is currently selected. (“
” indicates
t he top si de, “
” indicates the bottom
side.)
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
Compact disc player with changer
Use these buttons to select a disc you
want to listen to.
Push the “
” or “” (DISC/CH/PROG)
button until the number of the disc you
want to listen appears on the display.

05_SEQUOIA_U (L/O 0409)
345
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.
Ty p e A
Ty p e B
“ABS” warning light
The light comes on when the ignition key
is turned to the “ON” position. If the anti −
lock brake system and the brake assist
system work properly, the light turns off
after a few seconds. Thereafter, if either
of the systems malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system, the brake assist
system and the traction control system
and/or the vehicle stability control system
do/does not operate, but the brake system
still operates conventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.

05_SEQUOIA_U (L/O 0409)
398
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
11. Check the air pressure of the re-placed tire.
Adjust the air pressu re to the specifi-
cation designated on page 460 in
Section 8. If the pressure is lower,
drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into th e valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
12.Restow all the tools, jack and flat tire securely.
With a spare tire of the same wheel
type as the installed tires—
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 460 in Sec-
tion 8 with a torque wrench. Have a
technician repair the flat tire. With a spare tire of different wheel
type from the installed tires—
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 460 in Sec-
tion 8 with a torque wrench. Have a
technician repair the flat tire and re-
place the spare tire with it.
Initial adjustment of the tire pres-
sure warning system is necessary
after you have replaced your tires
or wheels. See “Tire pressure
warning system” on page 198 in
Section 17.
CAUTION
Before driving, make sure all the
tools, jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of personal injury during a colli-
sion or sudden braking.
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
Twowheel drive models—Turn off the
traction control system to become un-
stuck to allow the tires to spin enough
to remove the vehicle from the obstruc-
tion. (For details, see “Traction control
system” on page 182 in Section 17.)
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
—After changing wheels
If your vehicle becomes stuck

05_SEQUOIA_U (L/O 0409)
416
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Power steering fluid level
Check the level through the reservoir. The
level should be in the “HOT” or “COLD”
range depending on the fluid temperature.
See page 430 in Section 7−2 for addition-
al information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” on
page 341 in Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Check that it has the specified free play.
Be alert for changes in steering condition,
such as hard steering or strange noise. Seats
Check that all seat controls such as seat
adjusters, seatback recliner, etc. operate
smoothly and that all latches lock securely
in any position. Check that the head re-
straint move up and down smoothly and
that the locks hold securely in any latched
position. For folding
−down rear seatbacks,
swing −up rear seat cushions and detach-
able temporary third seat, check that the
latches lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied. Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
On a safe incline, check that your vehicle
is held securely with the selector lever in
“P” position and all brakes released.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including back door
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.

05_SEQUOIA_U (L/O 0409)
437
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To equalize the wear and help ex-
tend tire life, Toyota recommends
that you rotate your tires accord-
ing to the maintenance schedule.
(For scheduled maintenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.)
However, the most appropriate tim-
ing for tire rotation may vary ac-
cording to your driving habits and
road surface conditions.
See “If you have a flat tire” on page
389 in Section 4 for tire change proce-
dure.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out−
of −balance wheels, or severe braking.
Initial adjustment of the tire pres-
sure warning system is necessary
after you have rotated your tires.
See “Tire pressure warning sys-
tem” on page 198 in Section 17.WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select tires of
the same size, construction and load
capacity as the originally installed tires.
Also, on fourwheel drive models, all
the tires must be the same brand and
have the same tread patterns.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
Do not use snow tires other than
the manufacturer ’s recommended si-
ze, as this may cause dangerous
handling characteristics resulting in
loss of control.
Fourwheel drive models:
Do not use snow tires of different
brands, sizes, construction or tread
patterns, as this may cause danger-
ous handling characteristics result-
ing in loss of control.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the front wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires which could cause loss of
vehicle control.
When storing removed tires, you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.
CAUTION
Do not drive with the snow tires
incorrectly inflated.
Never drive over 120 km/h (75 mph)
with any type of snow tires.
Installing snow tires and
chains

05_SEQUOIA_U (L/O 0409)
462
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Instrument panel
18. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system
19. EFI NO.1 20 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, on −board diagnosis sys-
tem
20. HLP RH 15 A (without daytime run- ning light system): Right−hand head-
light
21. TOWING 30 A: Trailer lights (stop
lights, turn signal lights, tail lights)
22. ALTS 7.5 A: Charging system 23. DRL 15 A (with daytime running light
system): Daytime running light system
HLP LH 15 A (without daytime run-
ning light system): Left−hand head-
light
24. AM2 25 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system, electronic
throttle control system, “IGN 1” and
“IGN 2” fuses
25. TURNHAZ 20 A: Turn signal lights,
emergency flashers
26. RAD NO.3 30 A: Audio/video system
27. ST 30 A: Starting system, “STA” fuse
28. HORN 10 A: Horns
29. EFI NO.2 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
30. DOME 10 A: Center interior and per-
sonal lights, personal lights, luggage
compartment light, air conditioning sys-
tem, wireless remote control system,
garage door opener, ignition switch
light, door courtesy lights, foot light,
vanity lights, gauges and meters 31. ECUB 7.5 A:
Multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system), back
door lock system, driver and front pas-
senger door lock system, gauges and
meters
32. MIR HTR 15 A: Outside rear view mir-
ror heaters
33. RAD NO.1 20 A: Audio system, rear
seat entertainment system
34. TAIL 15 A: Tail lights, back door cour-
tesy light, license plate lights
35. ECUIG 10 A: Charging system, anti −
lock brake system, vehicle stability
control system, traction control system
(two −wheel drive models), active trac-
tion control system (four −wheel drive
models), electric moon roof, back door
lock system, driver and front passenger
door lock system, gauges and meters,
multi −information display, auto anti−
glare inside rear view mirror, power
outlets, multiplex communication sys-
tem
36. WSH 25 A: Wipers and washer
37. AC INV 15 A: Power outlets

05_SEQUOIA_U (L/O 0409)
463
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
38. IGN 2 20 A: Starting system
39. PWR NO.3 20 A: Rear passenger ’s
power window (right side)
40. PWR NO.4 20 A: Rear passenger ’s
power window (left side)
41. CIG 15 A: Air conditioning systems,
power rear view mirror control, ciga-
rette lighter
42. RAD NO.2 7.5 A: Audio/video system,
power outlets, multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system)
43. 4WD 20 A: A.D.D. control system,
four −wheel drive system
44. STOP 15 A: Stoplights, high−mounted
stoplights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, vehicle stability control system,
traction control system (two −wheel
drive models), active traction control
system (four −wheel drive models), mul-
tiplex communication system
45. OBD 7.5 A: On−board diagnosis sys-
tem 46. PANEL 7.5 A:
Instrument panel lights,
glove box light, seat heaters, cigarette
lighter, ashtrays, multi −information dis-
play, audio/video system, gauge and
meters, air conditioning systems
47. PWR NO.1 25 A: Driver ’s door lock
system
48. WIP 25 A: Wiper and washers
49. IGN 1 10 A: Charging system
50. SUN ROOF 25 A: Electric moon roof
51. PWR NO.2 25 A: Front passengers’
door lock system
52. HTR 10 A: Air conditioning systems,
electric cooling fan, back window de-
fogger, outside rear view mirror heater
53. FOG 15 A: Front fog lights
54. GAUGE 15 A: Back−up lights, seat
heaters, gauge and meters, air condi-
tioning systems
55. PWR OUTLET 15 A: Power outlets
56. SEAT HTR 15 A: Seat heaters Fuses (type B)
57. MAIN 40 A: Starting system, “H −LP
RH”, “H− LP LH” and “STA” fuses
58. DOOR NO.2 30 A: Multiplex commu-
nication system (power door lock sys-
tem, security system, auto −door locking
system)
59. PWR SEAT 30 A: Power seats
60. AM1 40 A: “HTR”, “CIG”, “GAUGE”,
“RAD NO.2”, “ECU −IG”, “WIP”, “WSH”
and “4WD” fuses
6

1. PWR NO.5 30 A: Power door lock sys-
tem, back door lock system
Fuses (type C)
62. RR HEATER 30 A: Rear air condition-
ing system
63. DEFOG 40 A: Back window defogger
64. HEATER 50 A: Front air conditioning
system
65. AIR SUS 50 A: Rear height control air
suspension system
66. TOWING R/B 60 A: Trailer brake con-
troller, trailer lights (tail lights), trailer
sub battery

05_SEQUOIA_U (L/O 0409)
464
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
67. ALT 140 A: “AM1”, “PWR SEAT”,
“TAIL”, “STOP”, “SUN ROOF”, “PANEL”,
“OBD”, “FOG”, “PWR NO.1”, “PWR
NO.2”, “PWR NO.5”, “PWR NO.3”,
“PWR NO.4”, “AC INV”, “PWR OUT-
LET” and “SEAT HTR” fuses
68. ABS 60 A: Anti−lock brake system,
vehicle stability control system, traction
control system (two −wheel drive mod-
els), active traction control system
(four −wheel drive models)
69. A/PUMP 50 A: Air injection system
70. R/B 30 A: “A/F” and “SECURITY”
fuses
