The brake pad or actuator temperature
increases during continuous operation of
the active traction control system or ve-
hicle stability control system such as on
slippery roads. If the brake pad or actua-
tor temperature becomes too high while
the active traction control system or ve-
hicle stability control system is operating,
a buzzer will start to sound intermittently
to indicate that the active traction control
system can no longer operate. In this
case, stop your vehicle immediately at a
safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.)
At the time, the “VSC TRAC” warning light
will come on and the active traction con-
trol system temporarily stops operating in
order to protect the brake pad. (Although
the active traction control system does not
operate, there is no problem to continue
your driving.) The system will be automati-
cally restored after a short time and the
warning light goes out.
If the light comes on while driving, the
active traction control system does not
work. However, as conventional braking
operates when applied, there is no prob-
lem to continue your driving. In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “VSC OFF” indicator light will come
on when the “VSC TRAC” warning light
comes on even if the center differential
lock switch is not pushed. The vehicle stability control system
helps provide integrated control of the
systems such as antilock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
This vehicle stability control activates
when the vehicle speed is more than the
following speed.
Tw o
−wheel drive models:
15 km/h (9 mph)
Four −wheel drive models:
“2WD” or “4HI” mode 15 km/h (9 mph)
“4LO” mode 30 km/h (18 mph)
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self −check mode but does
not indicate a malfunction.
Vehicle stability control system

05_SEQUOIA_U (L/O 0409)
189
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
1: Height control mode select switch
2: Height control switch
This rear height control air suspension
controls the vehicle height depending
on vehicle driving conditions.
You can choose automatic control mode
or manual control mode. In automatic
control mode, you can select the ve-
hicle height between “HI” (high), “N”
(normal) and “LO” (low) modes with the
height control switch. In manual control
mode, you can adjust the vehicle height
seamlessly with the height control
switch.
To change the mode between automatic
control mode and manual control mode,
use the height control mode select switch.The vehicle height is automatically ad-
justed to a selected height mode. Howev-
er, when the front drive control is in “4LO”
mode, the vehicle height cannot be ad-
justed automatically even if the vehicle
condition changes, but height mode can
be changed manually with the height con-
trol switch.
(a) Vehicle height modes
“N” (normal) mode—
The vehicle height in this mode is stan-
dard. Regardless of the number of occu-
pants or the luggage loading condition, the
vehicle height is always automatically ad-
justed to a fixed height in this mode while
the engine is running.
This mode is suitable for ordinary driving.
“HI” (high) mode—
The vehicle height is about 40 mm (1.6
in.) higher at rear than “N” mode height.
This mode is suitable when driving on
bumpy roads and through water.
However, when the vehicle speed exceeds
30 km/h (18 mph) in “HI” mode, “N” mode
is automatically selected.
CAUTION
“HI” mode should be only used for
severe offroad driving conditions.
Because the vehicle’s center of gravi-
ty is higher in this setting, the ve-
hicle may become unstable when
turning abruptly, resulting in an acci-
dent.
Rear height control air
suspension—
—Automatic control mode

05_SEQUOIA_U (L/O 0409)
190
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
“LO” (low) mode—
Tw o−wheel drive models—The vehicle
height is about 15 mm (0.6 in.) lower at
rear than “N” mode height.
Four −wheel drive models—The vehicle
height is about 30 mm (1.2 in.) lower at
rear than “N” mode height.
This mode allows for easy access to the
vehicle (getting in and out) and easy load-
ing and unloading.
This mode is available when the vehicle
speed is 12 km/h (7 mph) or less.
NOTICE
Use “LO” mode when the vehicle is
stopped. Otherwise, when the vehicle
speed exceeds 12 km/h (7 mph), “N”
mode is selected automatically. Prop-
er caution should be taken in places
where the overhead height is limited.
(b) Vehicle height mode changing con- dition
To change the vehicle height, it is neces-
sary to meet the following conditions.
The engine should be running.
The manual control mode indicator light
should go off.
When selecting a mode, there is a ve-
hicle speed limit. Refer to the following
table.
Yes = The mode can be selected.
No = The mode cannot be selected.
“LO”
mode“N”
mode“HI”
mode
12 km/h
(7 mph) or
less
Ye sYe sYe s
30 km/h
(18 mph) or
less
NoYe sYe s
Over
30 km/h
(18 mph)
NoYe sNo
However, when you are driving on bumpy
roads, which may cause the suspension to
fully elongate, the rear height control air
suspension may not operate.
If the vehicle height is adjusted on the
slope, or with the selector lever in a posi-
tion other than “P” or “N” while the vehicle
is stopped, you may hear a sound caused
by the expansion and contraction of the
propeller shaft. This does not indicate a
malfunction.

05_SEQUOIA_U (L/O 0409)
191
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
(c) Vehicle height adjustment
To change the mode, push the height
control switch on either side of “”
(higher) or “ ” (lower).
The height control indicator light indicates
which mode is selected. (See “(d) Indica-
tor lights” described below.)
Selecting “HI” mode—
Push the height control switch on the “ ”
side when the vehicle speed is 30 km/h
(18 mph) or less.
To change “N” mode to “HI”, push the
switch once. To change “LO” mode to “HI”,
push the
switch twice.
Selecting “N” mode—
To change “HI” mode to “N”, push the
height control switch on the “ ” side
once.
If the underbody of the vehicle has
touched the surface on bumpy roads, the
vehicle height cannot be lowered with the
height control switch.
To change “LO” mode to “N”, push the
height control switch on the “ ” side
once.
Selecting “LO” mode—
Push the height control switch on the “ ”
side while the vehicle is stopped.
To change “N” mode to “LO”, push the
switch once.
To change “HI” mode to “LO”, push the
switch twice.
If the underbody of the vehicle has
touched the surface on bumpy roads, the
vehicle height cannot be lowered with the
height control switch. Even if the engine is stopped while the
vehicle height is being lowered, the opera-
tion continues for up to 35 seconds. If,
within this 35 seconds, any of the side
doors or the back door is opened, opera-
tion will continue for a further 15 seconds.
When adjusting the vehicle height with
one or more doors open, make sure that
there is nothing that might come into con-
tact with the vehicle body or around the
doors.

05_SEQUOIA_U (L/O 0409)
192
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
NOTICE
If the vehicle height is changed fre-
quently when the vehicle is heavily
loaded, the compressor may over-
heat, causing the vehicle height ad-
justment operation to stop.
 Before you lower the vehicle height
with the height control switch,
check under the vehicle to make
sure nothing to damage the vehicle
or no one to be injured is there and
that the underbody of the vehicle
does not touch the ground.
 After unloading, the height of a ve-
hicle equipped with the rear height
control air suspension becomes
slightly higher than the normal ve-
hicle height. Take sufficient care
where the overhead height is re-
stricted.
 Do not select “LO” mode for bumpy
roads. If the underbody of the ve-
hicle touches the road surface, the
vehicle may be damaged.
If you attempt to adjust the vehicle height
with anything such as snow, ice, or stones
in contact with the vehicle body, the ve-
hicle height may not change. In this case,
stop the vehicle, press the height control
mode select switch, and check that manu-
al control mode indicator light comes on.
Then, remove the obstruction.
CAUTION
If you drive through water, set the
vehicle height to “HI” with the height
control switch and then change to
manual control mode by pushing the
height control mode select switch. Do
not exceed 30 km/h (18 mph) or “HI”
mode will automatically change to
“N” mode. Do not drive through water
deeper than about 700 mm (28 in.)
even if the vehicle height is in “HI”
mode.
NOTICE
When jacking up or insta lling tire
chains, be sure to set manual con-
trol mode by pushing the height
control mode select switch and stop
the engine. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.
 If your vehicle must be towed, set
the vehicle height to “N” and
change to manual control mode.
Otherwise, the vehicle height may
change because of the automatic
leveling function, resulting in an ac-
cident.
 If your vehicle gets stuck in a
ditch, set manual control mode by
pushing the height control mode se-
lect switch. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.

05_SEQUOIA_U (L/O 0409)
194
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
(e) Parking and stopping tips
If you immediately stop the engine to park
the vehicle after off−road driving, the ve-
hicle height is lowered slightly as the ve-
hicle becomes cool. When parking, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
When you start the engine, the vehicle
returns to the previous height.
If you park the vehicle for a long time,
the vehicle height may be gradually low-
ered. When parking for a long time, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
When you start the engine, the vehicle
returns to the previous height.
If you stop the engine, the vehicle height
may change in accordance with the
change in the temperature. When you
start the engine, the vehicle returns to the
previous height. (f) Rear height control failure warning
If there is a problem somewhere in the
rear height control air suspension, “N”
mode is automatically selected. If this oc-
curs, the manual control mode indicator
light blinks and the vehicle height control
cannot be activated until the malfunction
is corrected. If this is the case, bring your
vehicle to your Toyota dealer as soon as
possible and have it checked.
(a) Selecting manual control mode
To select manual control mode, push
the height control mode select switch
with the vehicle stopped. The manual
control mode indicator light comes on
and the vehicle height is fixed at the
current height. The height can be ad-
justed by pushing the height control
switch.
The selected height is memorized in the
system even after the engine is stopped.
If you push the height control mode select
switch again, the manual control mode in-
dicator light goes out and automatic con-
trol mode is selected.
—Manual control mode

05_SEQUOIA_U (L/O 0409)
195
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
In manual control mode, the automatic lev-
eling function is turned off. When the ve-
hicle height is changed because of the
conditions (load etc.), you can adjust the
vehicle height with the height control
switch.
In manual control mode, if the vehicle
speed exceeds 30 km/h (18 mph), auto-
matic control mode is activated and “N” is
selected automatically.
If you attempt to adjust the vehicle height
with anything such as snow, ice, or stones
in contact with the vehicle body, the ve-
hicle height may not change. In this case,
stop the vehicle and remove the obstruc-
tion.
CAUTION
If you drive through water, set the
vehicle height to “HI” with the height
control switch and then change to
manual control mode by pushing the
height control mode select switch. Do
not exceed 30 km/h (18 mph) or “HI”
mode will automatically change to
“N” mode. Do not drive through water
deeper than about 700 mm (28 in.)
even if the vehicle height is in “HI”
mode.
NOTICE
When jacking up or insta lling tire
chains, be sure to set manual con-
trol mode by pushing the height
control mode select switch and stop
the engine. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.
 If your vehicle must be towed, set
the vehicle height to “N” in auto-
matic control mode, then select
manual control mode by pushing
the height control mode select
switch. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.
 If your vehicle gets stuck in a
ditch, set manual control mode with
the height control mode select
switch. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.
(b) Vehicle height adjustment
To change the vehicle height in manual
mode, push the height control switch
on either side of “ ” (higher) or “”
(lower).
A higher vehicle height is suitable when
driving on bumpy roads and through water.
A lower vehicle height allows for easy
access to the vehicle (getting in and out)
and easy loading and unloading.
When you are driving on bumpy roads,
which may cause the suspension to fully
elongate, the rear height control air sus-
pension may not operate.

05_SEQUOIA_U (L/O 0409)
198
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
In the following cases, there is a problem
somewhere in you rear height control air
suspension. Although there is no problem
to continue normal driving, have the rear
height control air suspension checked by
you Toyota dealer as soon as possible.
The height control indicator light and
manual control mode indicator light do
not come on when the ignition switch
is turned on.
The manual control mode indicator light
blinks.
(d) Parking and stopping tips
If you immediately stop the engine to park
the vehicle after off −road driving, the ve-
hicle height is lowered slightly as the ve-
hicle becomes cool. When parking, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
If you park the vehicle for a long time,
the vehicle height may be gradually low-
ered. When parking for a long time, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
If you stop the engine, the vehicle height
may change in accordance with the
change in the temperature. (e) Rear height control failure warning
If there is a problem somewhere in the
rear height control air suspension, the
manual control mode indicator light blinks.
If this is the case, change to the automat-
ic control mode by pushing the height
control mode select switch, and bring your
vehicle to your Toyota dealer as soon as
possible to have it checked.
The tire pressure warning system is de-
signed to provide warning when tire
inflation pressure of one or more of
your tires (including the spare tire) is
low. The low tire pressure warning light
comes on to inform you that low tire
inflation pressure may hamper driving.
Tire pressure warning
system—

05_SEQUOIA_U (L/O 0409)
205
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.

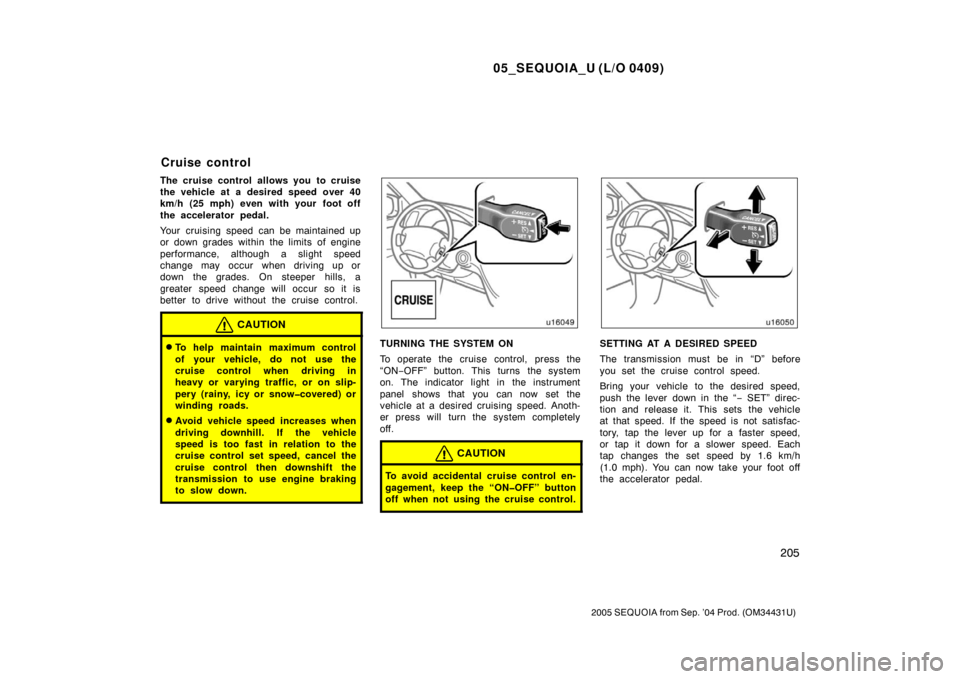

TURNING THE SYSTEM ON
To operate the cruise control, press the
“ON−OFF” button. This turns the system
on. The indicator light in the instrument
panel shows that you can now set the
vehicle at a desired cruising speed. Anoth-
er press will turn the system completely
off.
CAUTION
To avoid accidental cruise control en-
gagement, keep the “ONOFF” button
off when not using the cruise control.
SETTING AT A DESIRED SPEED
The transmission must be in “D” before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push the lever down in the “ − SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.
Cruise control

05_SEQUOIA_U (L/O 0409)
206
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:a. Pulling the lever in the “CANCEL” di- rection and releasing it.
b. Depressing the brake pedal. c. Pushing “ON −OFF” button.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity. RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled. RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal, pushing the lever up in the
“+ RES” direction will restore the speed
set prior to cancellation.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light in the
instrument cluster flashes when using the
cruise control, press the “ON
−OFF” button
to turn the system off and then press it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.
