fuse box TOYOTA SEQUOIA 2005 1.G Owners Manual

05_SEQUOIA_U (L/O 0409)
316
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAYS
Front: To use the ashtray, pull it out.
Rear: To use the ashtray, raise the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
Front—To remove the ashtray, press down
on the lock spring plate and pull out.
Rear—To remove the ashtray, pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.

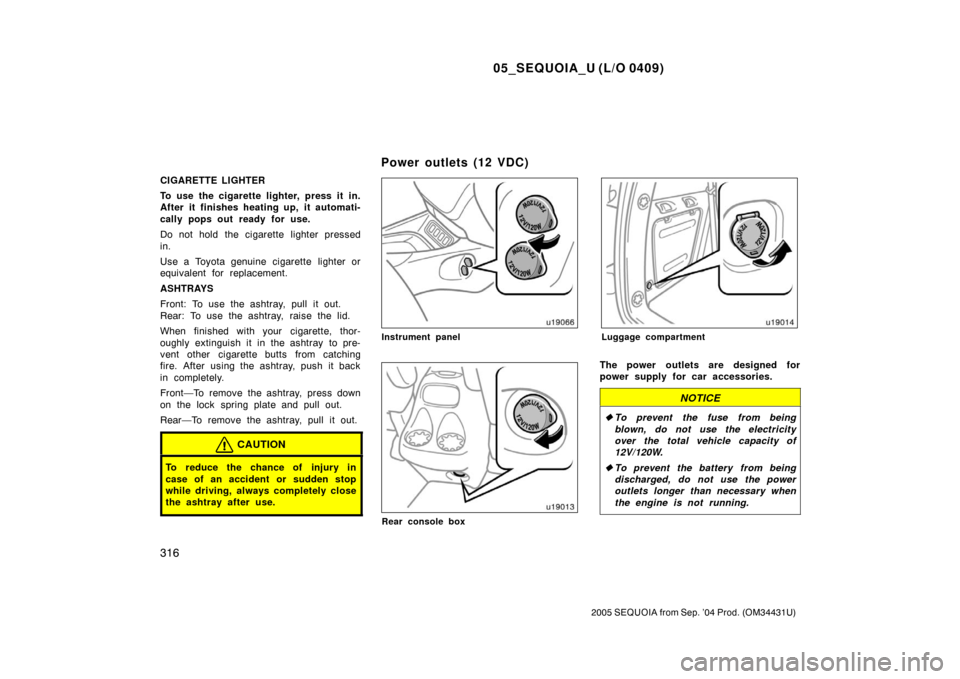

Instrument panel
Rear console box
Luggage compartment
The power outlets are designed for
power supply for car accessories.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Power outlets (12 VDC)

05_SEQUOIA_U (L/O 0409)
445
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 421 in Sec-
tion 7−1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 461 in Section 8 for the functions
controlled by each circuit. Type C fuses—When any of the fuses are
blown, contact your Toyota dealer.

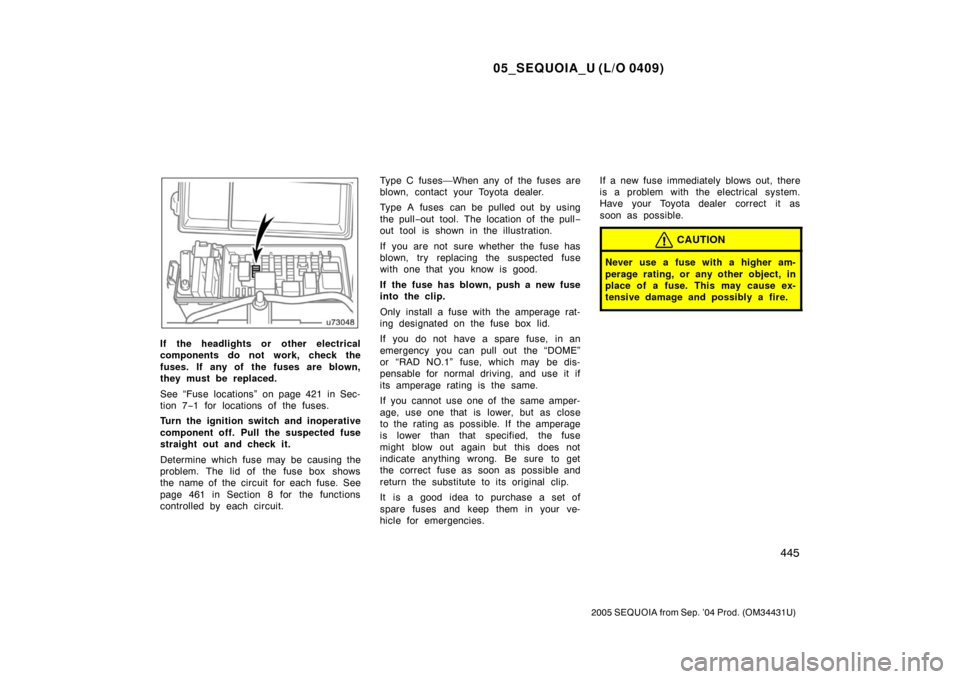

Type A fuses can be pulled out by using
the pull
−out tool. The location of the pull −
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “DOME”
or “RAD NO.1” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If a new fuse immediately blows out, there
is a problem with the electrical system.
Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.

05_SEQUOIA_U (L/O 0409)
463
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
38. IGN 2 20 A: Starting system
39. PWR NO.3 20 A: Rear passenger ’s
power window (right side)
40. PWR NO.4 20 A: Rear passenger ’s
power window (left side)
41. CIG 15 A: Air conditioning systems,
power rear view mirror control, ciga-
rette lighter
42. RAD NO.2 7.5 A: Audio/video system,
power outlets, multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system)
43. 4WD 20 A: A.D.D. control system,
four −wheel drive system
44. STOP 15 A: Stoplights, high−mounted
stoplights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, vehicle stability control system,
traction control system (two −wheel
drive models), active traction control
system (four −wheel drive models), mul-
tiplex communication system
45. OBD 7.5 A: On−board diagnosis sys-
tem 46. PANEL 7.5 A:
Instrument panel lights,
glove box light, seat heaters, cigarette
lighter, ashtrays, multi −information dis-
play, audio/video system, gauge and
meters, air conditioning systems
47. PWR NO.1 25 A: Driver ’s door lock
system
48. WIP 25 A: Wiper and washers
49. IGN 1 10 A: Charging system
50. SUN ROOF 25 A: Electric moon roof
51. PWR NO.2 25 A: Front passengers’
door lock system
52. HTR 10 A: Air conditioning systems,
electric cooling fan, back window de-
fogger, outside rear view mirror heater
53. FOG 15 A: Front fog lights
54. GAUGE 15 A: Back−up lights, seat
heaters, gauge and meters, air condi-
tioning systems
55. PWR OUTLET 15 A: Power outlets
56. SEAT HTR 15 A: Seat heaters Fuses (type B)
57. MAIN 40 A: Starting system, “H −LP
RH”, “H− LP LH” and “STA” fuses
58. DOOR NO.2 30 A: Multiplex commu-
nication system (power door lock sys-
tem, security system, auto −door locking
system)
59. PWR SEAT 30 A: Power seats
60. AM1 40 A: “HTR”, “CIG”, “GAUGE”,
“RAD NO.2”, “ECU −IG”, “WIP”, “WSH”
and “4WD” fuses
6

1. PWR NO.5 30 A: Power door lock sys-
tem, back door lock system
Fuses (type C)
62. RR HEATER 30 A: Rear air condition-
ing system
63. DEFOG 40 A: Back window defogger
64. HEATER 50 A: Front air conditioning
system
65. AIR SUS 50 A: Rear height control air
suspension system
66. TOWING R/B 60 A: Trailer brake con-
troller, trailer lights (tail lights), trailer
sub battery
