Page 7 of 480
05_SEQUOIA_U (L/O 0409)
vii
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Spark ignition system of yourTo y o t a
The spark ignition system in your Toyota meets all re-
quirements of the Canadian Interference −Causing Equip-
ment Standard.
Installation of a mobile two way radio system
As the installation of a mobile two −way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, electronic throttle control system,
cruise control system, anti −lock brake system, traction
control system (two −wheel drive models)/active traction
control system (four −wheel drive models), vehicle stabil-
ity control system, rear height control air suspension
system, tire pressure warning system, SRS airbag sys-
tem and seat belt pretensioner system, be sure to
check with your Toyota dealer for precautionary mea-
sures or special instructions regarding installation.
Page 14 of 480
05_SEQUOIA_U (L/O 0409)
4
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
1. Power back window switch
2. Driving position memory switches
3. Headlight, turn signal and front foglight switches
4. Ignition switch
5. Wiper and washer switches
6. Automatic transmission selector lever
7. Emergency flasher switch
8. Automatic transmission shift position “L” switch (“SHIFT L” switch)
9. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
10. Air conditioning controls 11. Front passenger occupant classification indicator light/front passenger ’s seat
belt reminder light
12. Back window and outside rear view mirror defogger switch
13. Clock
14. Cup holder
15. Glass breakage sensor
16. Power outlet main switch
17. Height control switch
View B (two wheel drive models)
Page 16 of 480
05_SEQUOIA_U (L/O 0409)
6
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
1. Power back window switch
2. Driving position memory switches
3. Headlight, turn signal and front foglight switches
4. Ignition switch
5. Wiper and washer switches
6. Automatic transmission selector lever
7. Emergency flasher switch
8. Automatic transmission shift position “L” switch (“SHIFT L” switch)
9. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
10. Air conditioning controls 11. Front passenger occupant classification indicator light/front passenger ’s seat
belt reminder light
12. Back window and outside rear view mirror defogger switch
13. Clock
14. Cup holder
15. Glass breakage sensor
16. Power outlet main switch
17. Height control switch
View B (four wheel drive models)
Page 26 of 480
05_SEQUOIA_U (L/O 0409)
16
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

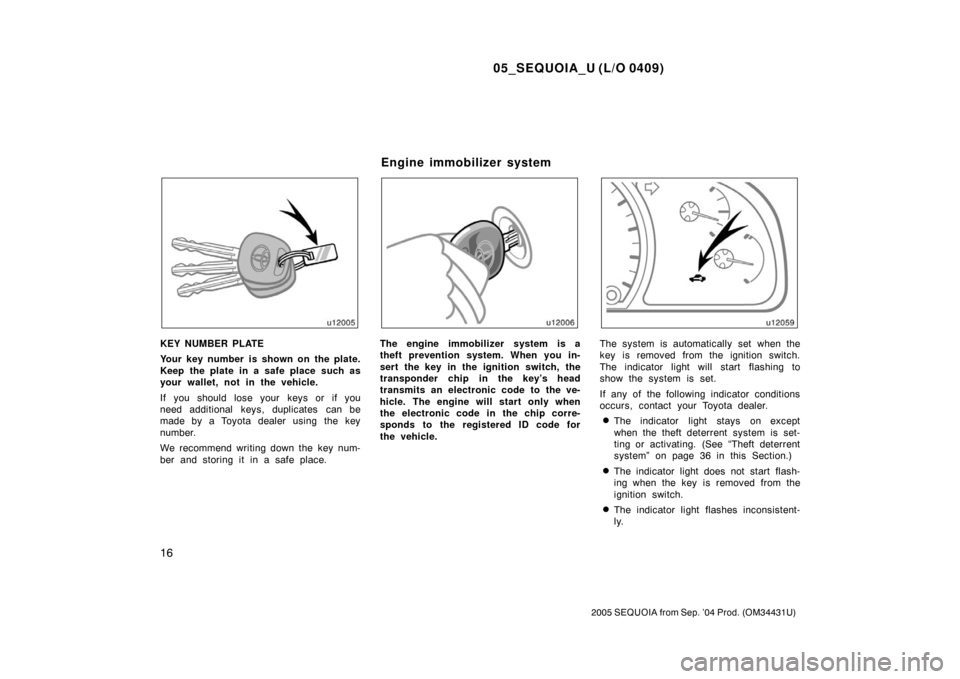

KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 36 in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.
Engine immobilizer system
Page 27 of 480
05_SEQUOIA_U (L/O 0409)
17
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
For vehicles sold in U.S.A.
FCC ID: MOZ RI 4ETY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Page 31 of 480
05_SEQUOIA_U (L/O 0409)
21
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. Each time the “UNLOCK”
switch is pushed, two beeps will be heard,
and the parking lights and tail lights flash
twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When all the side doors and back door
are unlocked simultaneously with a wire-
less remote control transmitter, the interior
light, luggage compartment light, ignition
switch light and foot light come on for
about 15 seconds before fading out, even
if the door is not opened. (For details, see
“Center interior and personal lights” on
page 150, “Center interior light” on page
151, “Luggage compartment light” on page
152 and “Ignition switch light” on page
152 in Section 1−5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again. The timing for the automatic door lock
function can be changed. For details, con-
tact your Toyota dealer.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
The wireless door locking or unlocking
function can be erased. For details, con-
tact your Toyota dealer.
SWITCHING BEEP SOUND ON AND OFF
You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver ’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition key again and turn it to the “ON” posi-
tion.
3. After 10 seconds, push the same “LOCK”, “UNLOCK”, “PANIC” switch or
back window open button twice within
10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected. Check the beep ON/OFF operation by
pushing the transmitter switch after you
finish this procedure. If the beep does not
operate as expected, repeat this proce-
dure from step 1.
Page 32 of 480
05_SEQUOIA_U (L/O 0409)
22
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To open the back window, push the
back window open switch of the trans-
mitter for about 1 second. The window
will fully open.
At this time, you can hear a beep.
If the ignition switch is in the “ON” posi-
tion, the back window cannot be opened
by the back window open switch.
To open the back window with the master
key, see “Power back window” on page 31
in this Section.
The back window opening program by
wireless remote control can be changed or
disabled. For details, contact your Toyota
dealer.Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “PANIC” or
“UNLOCK” switch, or unlock any side door
or back door with key. You can also stop
the alarm by turning the ignition key from
“LOCK” to the “ON” position.The “PANIC” mode does not work when
the ignition key is in the “ON” position.
This alarm function can be disabled. For
details, contact your Toyota dealer.
—Opening back window
—Activating panic mode
Page 35 of 480
05_SEQUOIA_U (L/O 0409)
25
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
This double key turning operation to un-
lock all the side doors and back door can
be changed to a single key turning opera-
tion. For details, contact your Toyota deal-
er.
When all the side doors and back door
are unlocked simultaneously using a key,
the interior light, luggage compartment
light and ignition switch light will come on
and remain on for about 15 seconds be-
fore fading out. (For details, see “Center
interior and personal lights” on page 150,
“Center interior light” on page 151, “Lug-
gage compartment light” on page 152 and
“Ignition switch light” on page 152 in Sec-
tion 1−5.)
The windows and electric moon roof can
be opened or closed with the key opera-
tion in the driver ’s door keyhole. (For de-
tails, see “Power windows” on page 28
and “Electric moon roof” on page 40 in
this Section.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Doors cannot be locked when either front
door is open and the key is in the igni-
tion.
Page 36 of 480
05_SEQUOIA_U (L/O 0409)
26
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the doors lock or unlock simultaneous-
ly.
When the front doors are locked from the
outside or locked with the wireless remote
control transmitter, the power door lock
switch will not work until either front door
is unlocked with the key, lock knob, or
wireless remote control transmitter.
If the vehicle is subjected to a severe
impact from the front or rear, or from
either side with the ignition switch at the
“ON” position, all the door locks are auto-
matically cancelled.
REAR DOOR CHILD PROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
Page 37 of 480
05_SEQUOIA_U (L/O 0409)
27
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
You can set the following auto door
locking and unlocking functions.
(a) Locking linked with the shift posi-tion
All the side doors and back door are
locked automatically when the selector le-
ver is moved out of the “P” position with
the ignition switch in the “ON” position.
(b) Unlocking linked with the shift posi- tion
All the side doors and back door are un-
locked automatically when the selector le-
ver is moved to the “P” position with the
ignition switch in the “ON” position.
(c) Locking linked with the vehicle speed
All the side doors and back door are
locked automatically when the vehicle
speed reaches 20 km/h (12 mph) or high-
er. However, if any door is unlocked dur-
ing driving, this auto locking function will
not operate until the unlocked door is
opened once. (d) Unlocking linked with opening the
driver ’s door
All the side doors and back door are un-
locked automatically when the driver’s
door is opened within 10 seconds after
the ignition switch is turned from “ON” to
the “ACC” or “LOCK” position.
Setting the functions
1. Close all the side doors and back door.
2. Turn the ignition switch to the “ON” position.
3. Within 10 seconds after the ignition switch is turned to the “ON” position;
To set function (a)
Push and hold the front of the driver’s
side power door lock switch for 5 sec-
onds with the selector lever in the “P”
position.
To set function (b)
Push and hold the rear of the driver’s
side power door lock switch for 5 sec-
onds with the selector lever in the “P”
position.
To set function (c)
Push and hold the front of the driver’s
side power door lock switch for 5 sec-
onds with the selector lever in any
position except “P”.
—Automatic door locking and
unlocking functions
