tow TOYOTA SEQUOIA 2005 1.G Owners Manual

05_SEQUOIA_U (L/O 0409)
34
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power back window switch
and get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Vehicles with wireless remote control sys-
tem—
To open the back window with the wire-
less remote control transmitter, see
“—Opening back window” on page 22 in
this Section.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simulta-
neously with back door.
To open the back door, pull the lever.
The back door will be controlled by oper-
ating the power door lock switch.
The back door window can be opened or
closed with the key operation in the back
door keyhole. (For details, see “Power
back window” on page 31 in this Section.)When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “—Stowage precautions” on page 358
in Section 2 for precautions when loading
luggage.
Back door

05_SEQUOIA_U (L/O 0409)
44
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions

05_SEQUOIA_U (L/O 0409)
49
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

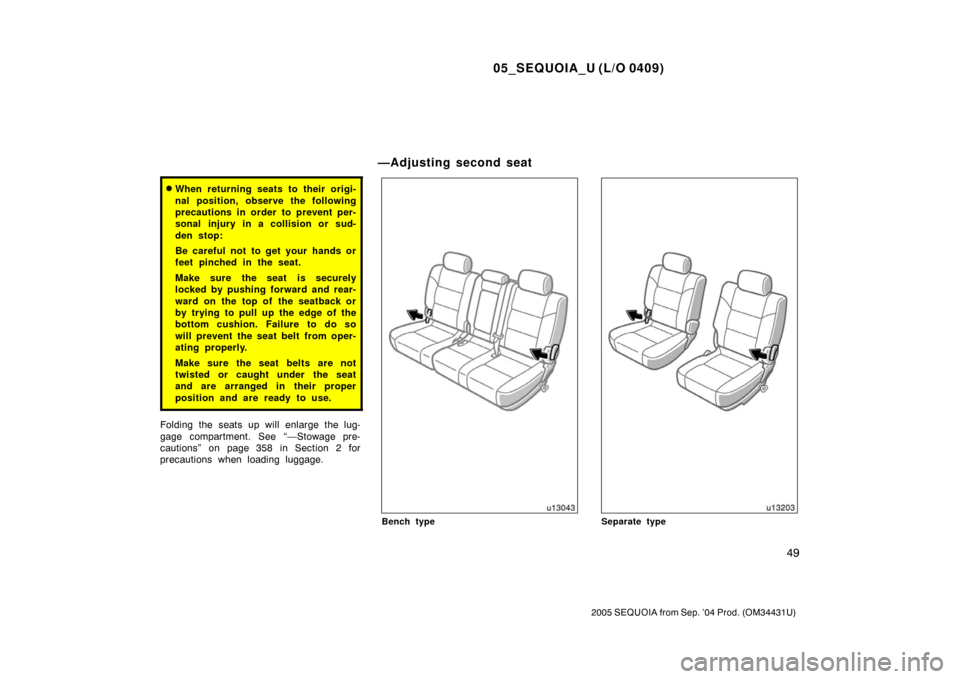

When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding the seats up will enlarge the lug-
gage compartment. See “—Stowage pre-
cautions” on page 358 in Section 2 for
precautions when loading luggage.
Bench typeSeparate type
—Adjusting second seat

05_SEQUOIA_U (L/O 0409)
52
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
BEFORE TUMBLING SECOND SEATS
Stow the second seat belt buckles as
shown in the illustration.
NOTICE
To prevent damage to the seat belt
buckles, they must be stowed before
you tumble the seatback.
Right side
Left side
TUMBLING SECOND SEATS
Right side—1. Lower the head restraint to the low- est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward.
To return the tumbled seat:
1. Return the seat until it locks securely.
2. Lift up the seatback by pulling the le- ver.
Note: When the tumbled seat is returned
to the floor, it cannot be directly swung up
to the tumbled position again. When you
return the seat locked in the floor to the
tumbled position, you must lift up the
seatback once and repeat the above op-
erations 1 and 2.
Left side— 1. Lower the head restraints to the low- est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward while pu lling
the seat lock release lever on the
side.
To return the tumbled seat to the original
position, reverse the above operation.
—Tumbling second seats for
luggage space (bench type)

05_SEQUOIA_U (L/O 0409)
54
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

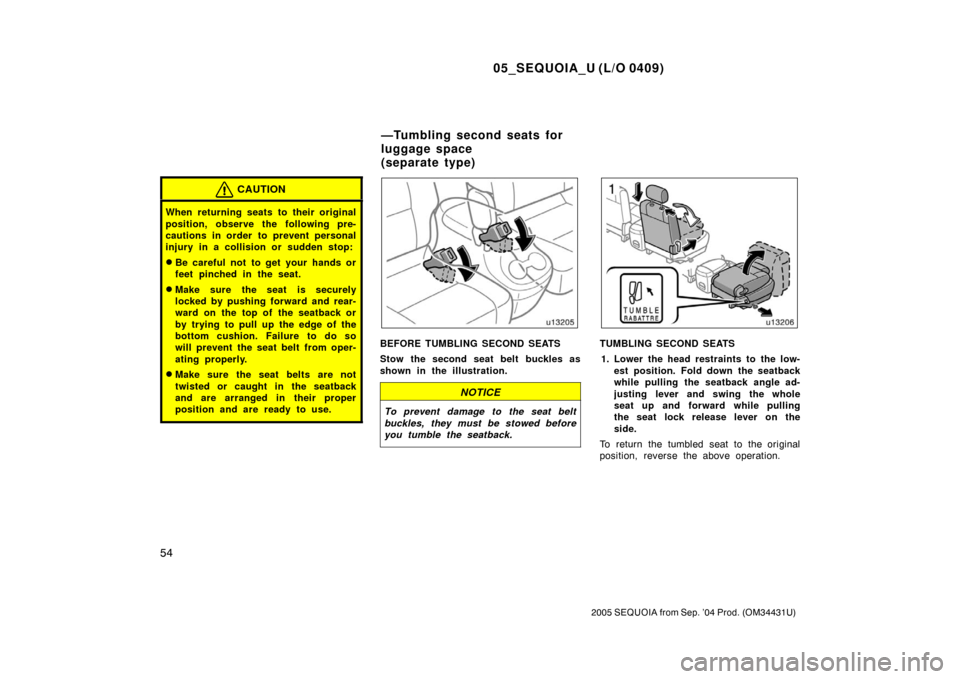

CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
BEFORE TUMBLING SECOND SEATS
Stow the second seat belt buckles as
shown in the illustration.
NOTICE
To prevent damage to the seat belt
buckles, they must be stowed before
you tumble the seatback.
TUMBLING SECOND SEATS1. Lower the head restraints to the low- est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward while pu lling
the seat lock release lever on the
side.
To return the tumbled seat to the original
position, reverse the above operation.
—Tumbling second seats for
luggage space
(separate type)

05_SEQUOIA_U (L/O 0409)
56
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
From front
From rear1. SEAT POSITION ADJUSTING LEVER
From front—
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
From rear—
Pull the lever up. Then slide the seat
to the desired position and release the
lever.
When a person sits in the third seat
center position, adjust both seat cush-
ions to the same position.
Do not place anything under the seats. It
might interfere with the seat −lock mecha-
nism.
2. SEATBACK ANGLE ADJUSTING LEVER
From front—
Lean forward and pull the lever toward
you. Then lean back to the desired
angle and release the lever.
From rear—
Push down the lever. Push the seatback
forward or pull it backward to the de-
sired angle and release the lever. When a person sits in the third seat
center position, align both seatbacks at
the same angle.
Remove the center head restraint when
adjusting the seat position or seatback
angle.
Store the center head restraint in the aux-
iliary box on the rear left side panel when
it is not in use. (For details, see “Head
restraints” on page 66 in this Section.)
—Adjusting third seats

05_SEQUOIA_U (L/O 0409)
57
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

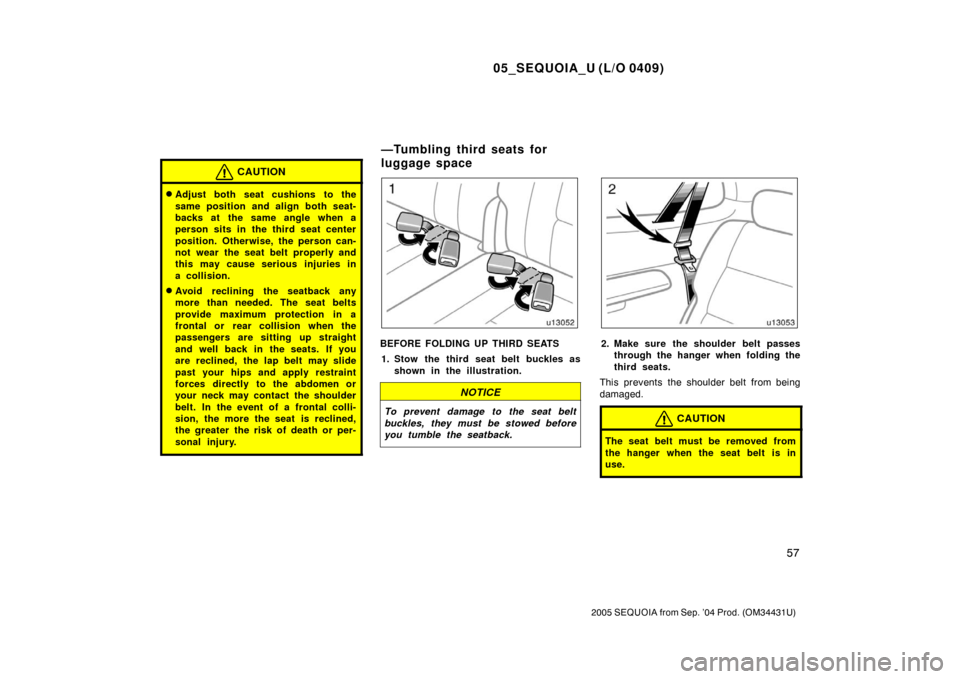

CAUTION
Adjust both seat cushions to the
same position and align both seat-
backs at the same angle when a
person sits in the third seat center
position. Otherwise, the person can-
not wear the seat belt properly and
this may cause serious injuries in
a collision.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen or
your neck may contact the shoulder
belt. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of death or per-
sonal injury.
BEFORE FOLDING UP THIRD SEATS1. Stow the third seat belt buckles as shown in the illustration.
NOTICE
To prevent damage to the seat belt
buckles, they must be stowed before
you tumble the seatback.
2. Make sure the shoulder belt passesthrough the hanger when folding the
third seats.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
—Tumbling third seats for
luggage space

05_SEQUOIA_U (L/O 0409)
58
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

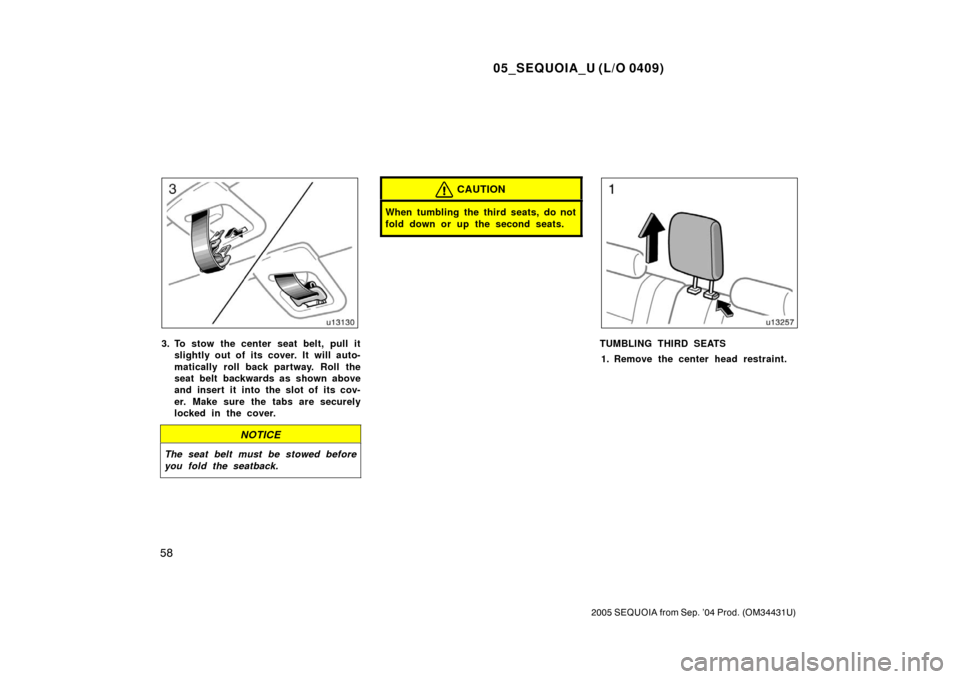

3. To stow the center seat belt, pull itslightly out of its cover. It will auto-
matically roll back partway. Roll the
seat belt backwards as shown above
and insert it into the slot of its cov-
er. Make sure the tabs are securely
locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
CAUTION
When tumbling the third seats, do not
fold down or up the second seats.
TUMBLING THIRD SEATS
1. Remove the center head restraint.

05_SEQUOIA_U (L/O 0409)
60
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

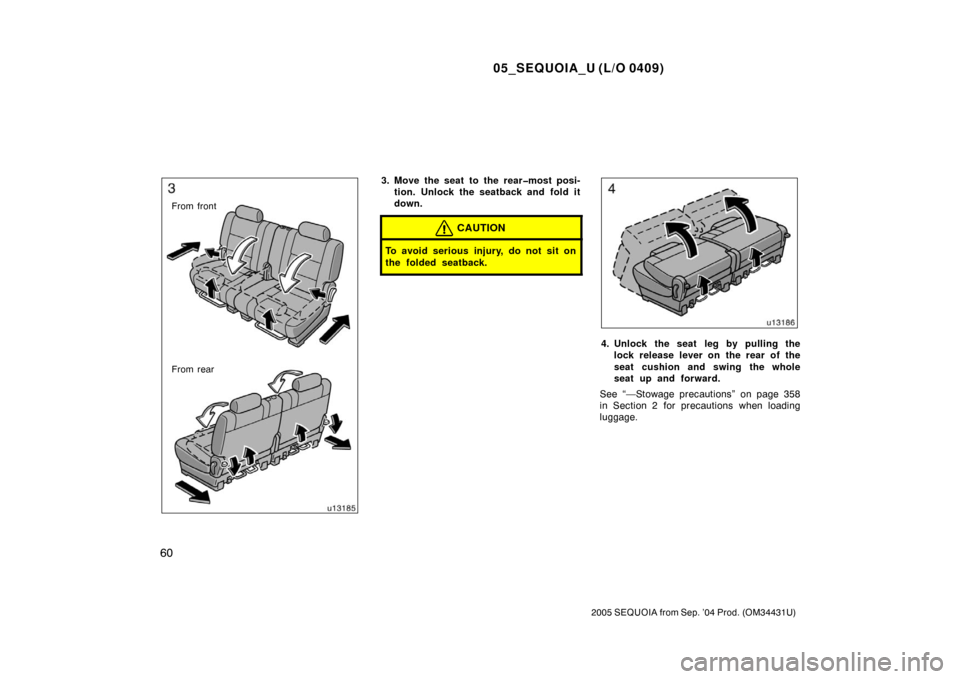

From front
From rear
3. Move the seat to the rearmost posi-tion. Unlock the seatback and fold it
down.
CAUTION
To avoid serious injury, do not sit on
the folded seatback.
4. Unlock the seat leg by pulling thelock release lever on the rear of the
seat cushion and swing the whole
seat up and forward.
See “—Stowage precautions” on page 358
in Section 2 for precautions when loading
luggage.

05_SEQUOIA_U (L/O 0409)
62
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
BEFORE REMOVING THIRD SEATS1. Stow the third seat belt buckles as shown in the illustration.
NOTICE
To prevent damage to the seat belt
buckles, they must be stowed before
you tumble the seatback.
2. When removing the third seats, passthe third seat belts through the
hangers.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belts is in
use.
3. To stow the center seat belt, pull it slightly out of its cover. It will auto-
matically roll back partway. Roll the
seat belt backwards as shown above
and insert it into the slot of its cov-
er. Make sure the tabs are securely
locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
—Removing third seats
