key TOYOTA SEQUOIA 2006 1.G Navigation Manual

133
“Hide Keys” switch: Touching this will turn
off the controls from the screen.
If “
” appears on the screen when you touch
a control, the operation relevant to the control
is not permitted.
DESCRIPTION OF DVD CONTROLS
Top page of DVD video controls
“Menu” and “Top Menu”: If you touch any
of the above controls, the menu screen for
DVD video appears. (For the operation, see
the manual that come with the DVD video disc
provided separately.)
“
”: The menu control key appears on the
screen. (See page 134.)
“
”: Touching this will pause the video
screen. When you touch this again, the video
screen advances frame by frame.
“  ”: Touching this will fast reverse during
playback and reverse slowly during pause.
“  ”: Touching this switch will resume normal
play after stop or pause.
“  ”: Touching this will fast forward during
playback and forward slowly during pause.
Second page of DVD video controls
“Set Up”: The initial set up screen appears.
(See page 137.)
“Search”: The title search screen appears.
(See page 134.) “Return”:
Touching this will display the pre-
determined scene and start playing from
there.
“Audio”: The audio changing screen ap-
pears. (See page 136.)
“Sub Title”: The subtitle changing screen
appears. (See page 135.)
“Angle”: The angle selection screen ap-
pears. (See page 136.)
Top page of DVD audio controls
“Top Menu”: If you touch this switch, the
menu screen for DVD audio appears. (For
operation, refer to the DVD audio disc manual
that is provided separately.)
“Audio”: The audio changing screen ap-
pears. (See page 136.)
“
”: The menu control key appears on the
screen. (See page 134.)
“
”: Touch this switch to pause the disc.
“  ”: Touching this will fast reverse.
“  ”: Touching this will resume normal play
after stop or pause.
“  ”: Touching this will fast forward.
Second page of DVD audio controls
“Set Up”: The initial set up screen appears.
(See page 137.)
“Search”: The group search screen ap-
pears. (See page 134.)
“Return”: Touching this will display the pre-
determined scene and start playing from
there.
“Still Prev.”: Touch this switch to reverse the
still pictures. (See page 135.)
“Still Next”: Touch this switch to forward the
still pictures. (See page 135.)
“Sub Title”: The subtitle changing screen
appears. (See page 135.)
“Angle”: The angle selection screen ap-
pears. (See page 136.)

134

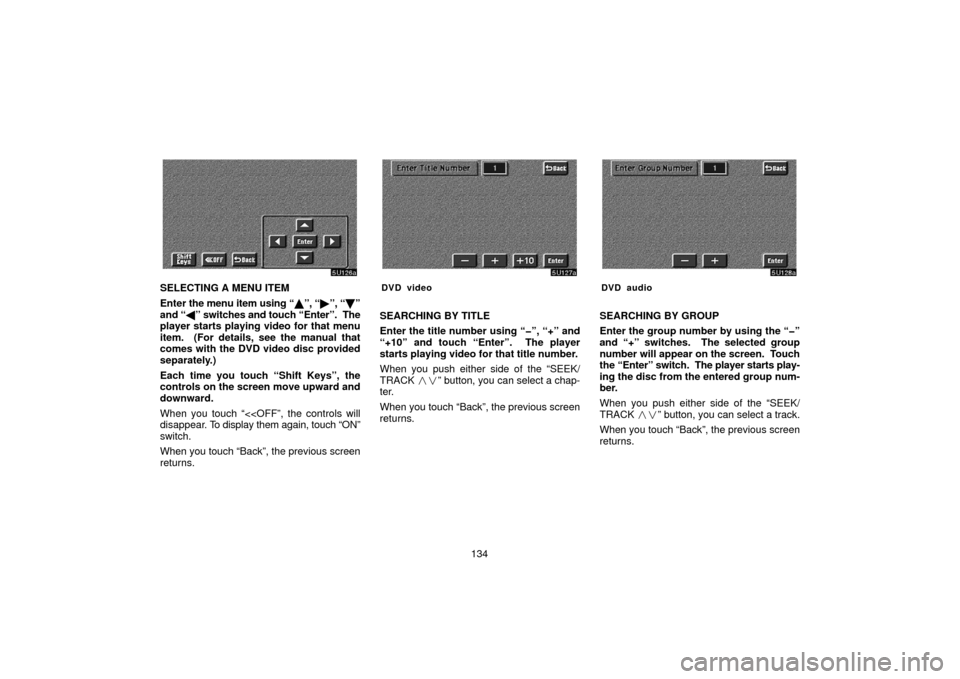

SELECTING A MENU ITEM
Enter the menu item using “ ”, “ ”, “\b ”
and “ ” switches and touch “Enter”. The
player starts playing video for that menu
item. (For details, see the manual that
comes with the DVD video disc provided
separately.)
Each time you touch “Shift Keys”, the
controls on the screen move upward and
downward.
When you touch “< disappear. To display them again, touch “ON”
switch.
When you touch “Back”, the previous screen
returns.DVD video
SEARCHING BY TITLE
Enter the title number using “”, “+” and
“+10” and touch “Enter”. The player
starts playing video for that title number.
When you push either side of the “SEEK/
TRACK ” button, you can select a chap-
ter.
When you touch “Back”, the previous screen
returns.
DVD audio
SEARCHING BY GROUP
Enter the group number by using the “”
and “+” switches. The selected group
number will appear on the screen. Touch
the “Enter” switch. The player starts play-
ing the disc from the entered group num-
ber.
When you push either side of the “SEEK/
TRACK ” button, you can select a track.
When you touch “Back”, the previous screen
returns.

135
SELECTING THE BONUS GROUP
DVD audio only —
Enter the bonus group number on the search-
ing group screen and touch the “Enter”
switch. The “Enter Key Code” screen will ap-
pear. To enter the number of the group you
want to play, touch the group number. If you
enter the wrong number, touch the “Clear”
switch to delete the number.
Touch the “Enter” switch on the screen. The
player starts playing the disc from the se-
lected bonus group number.CHANGING THE STILL PICTURE
DVD audio only —
Touch the “Still Prev.” or “Still Next” switch on
the screen to forward or reverse the still pic-
tures.CHANGING THE SUBTITLE LANGUAGE
Each time you touch “Sub Title”, the lan-
guage is selected from the ones stored in
the discs and changed.
To turn off the subtitle, touch “Hide”.
When you touch “Back”, the previous screen
returns.

141

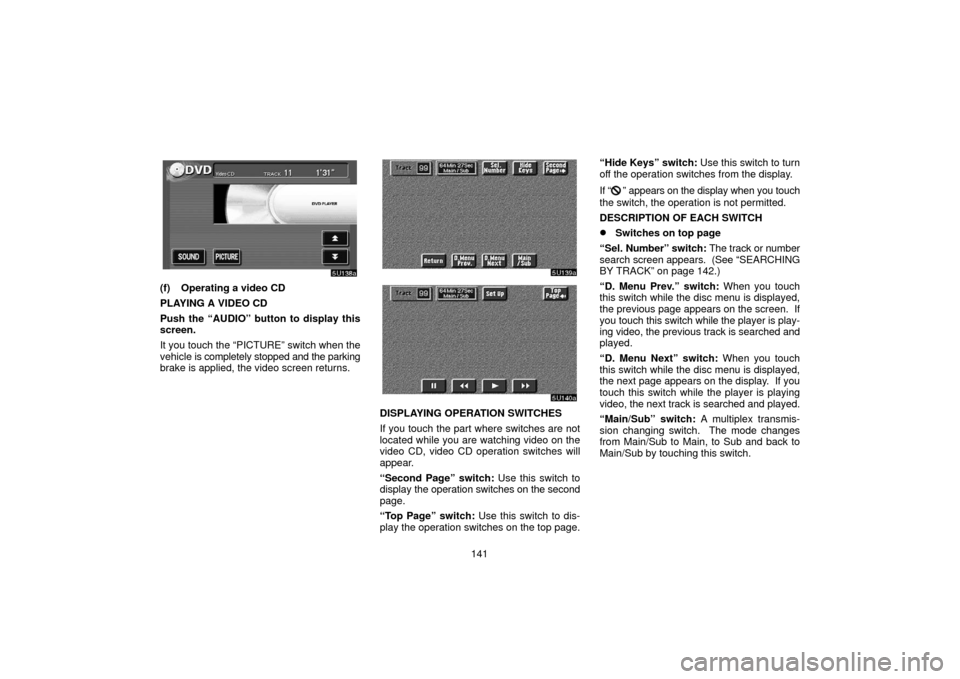

(f) Operating a video CD
PLAYING A VIDEO CD
Push the “AUDIO” button to display this
screen.
It you touch the “PICTURE” switch when the
vehicle is completely stopped and the parking
brake is applied, the video screen returns.
DISPLAYING OPERATION SWITCHES
If you touch the part where switches are not
located while you are watching video on the
video CD, video CD operation switches will
appear.
“Second Page” switch: Use this switch to
display the operation switches on the second
page.
“Top Page” switch: Use this switch to dis-
play the operation switches on the top page. “Hide Keys” switch:
Use this switch to turn
off the operation switches from the display.
If “
” appears on the display when you touch
the switch, the operation is not permitted.
DESCRIPTION OF EACH SWITCH
Switches on top page
“Sel. Number” switch: The track or number
search screen appears. (See “SEARCHING
BY TRACK” on page 142.)
“D. Menu Prev.” switch: When you touch
this switch while the disc menu is displayed,
the previous page appears on the screen. If
you touch this switch while the player is play-
ing video, the previous track is searched and
played.
“D. Menu Next” switch: When you touch
this switch while the disc menu is displayed,
the next page appears on the display. If you
touch this switch while the player is playing
video, the next track is searched and played.
“Main/Sub” switch: A multiplex transmis-
sion changing switch. The mode changes
from Main/Sub to Main, to Sub and back to
Main/Sub by touching this switch.
