ESP TOYOTA SEQUOIA 2006 1.G Navigation Manual

iii
Safety Instruction
To use your system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist you in
reaching your destination and, if used prop-
erly, can do so. Y ou, as the driver, are solely
responsible for the safe operation of your ve-
hicle and the safety of your passengers.
Do not use any feature of this system to the
extent it distracts you from safe driving. Your
first priority while driving should always be
the safe operation of your vehicle. While you
are driving, be sure to observe all traffic regu-
lations. Prior to the actual use of this system, learn
how to use it and become thoroughly familiar
with it. Read the entire Navigation System
Owner’s Manual to make sure you under-
stand
the system. Do not allow others to use
this system until they have read and under-
stood the instructions in this manual.
For your safety, some functions may become
inoperable when you start driving. Unavail-
able switches are dimmed. You can input
your destination and select your route only
when the vehicle is not moving.
CAUTION
 For safety, the driver should not
operate the navigation system while
he/she is driving. Inattention to the
road and traffic may cause an
accident.
 While you are driving, be sure to
obey the traffic regulations and
maintain awareness of the road
conditions. If a traffic sign on the
road has been changed, route
guidance may provide wrong
information such as t he direction of
a one way street.

2
Display operation
1U009
You can adjust the angle of the display by
pushing the
“TILT” button. Each push of
the
“TILT” button will tilt the display to
positions
1, 2, 3 and then back to 0 in
the reverse order.
If you turn the ignition switch off, the display
will automatically move back to position
0.
The display will automatically resume the pre-
vious position when the ignition switch is
turned to the “ACC” or “ON” position.
CAUTION
Take care not to jam your hand while the
display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it is
moving. It could damage your naviga-
tion system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
Touch switch operation
This system is operated mainly by the
switches on the screen. To prevent dam-
age to the screen, lightly touch switches
on the screen with your finger. When you
touch a switch on the screen, a beep
sounds.
Do not use objects other than your finger
to touch the screen.
INFORMATION
 If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
 The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
 Under extremely cold conditions, the
map may not be displayed and the
data input by a user may be deleted.
Also, the switches may be harder
than usual to depress.

16

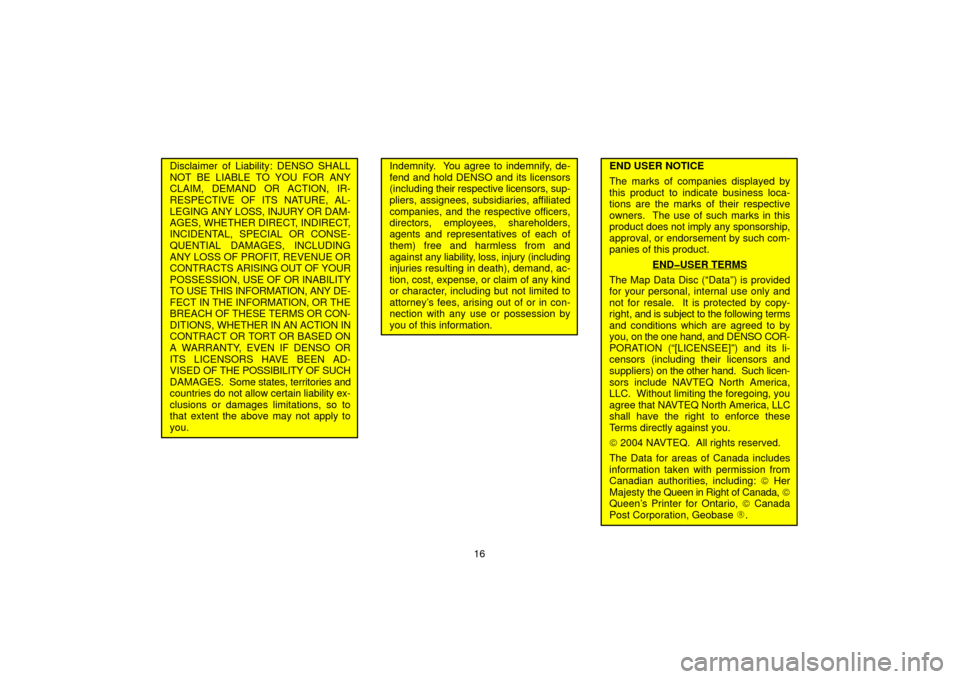

Disclaimer of Liability: DENSO SHALL
NOT BE LIABLE TO YOU FOR ANY
CLAIM, DEMAND OR ACTION, IR-
RESPECTIVE OF ITS NATURE, AL-
LEGING ANY LOSS, INJURY OR DAM-
AGES, WHETHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSE-
QUENTIAL DAMAGES, INCLUDING
ANY LOSS OF PROFIT, REVENUE OR
CONTRACTS ARISING OUT OF YOUR
POSSESSION, USE OF OR INABILITY
TO USE THIS INFORMATION, ANY DE-
FECT IN THE INFORMATION, OR THE
BREACH OF THESE TERMS OR CON-
DITIONS, WHETHER IN AN ACTION IN
CONTRACT OR TORT OR BASED ON
A WARRANTY, EVEN IF DENSO OR
ITS LICENSORS HAVE BEEN AD-
VISED OF THE POSSIBILITY OF SUCH
DAMAGES. Some states, territories and
countries do not allow certain liability ex-
clusions or damages limitations, so to
that extent the above may not apply to
you.Indemnity. You agree to indemnify, de-
fend and hold DENSO and its licensors
(including their respective licensors, sup-
pliers, assignees, subsidiaries, affiliated
companies, and the respective officers,
directors, employees, shareholders,
agents and representatives of each of
them) free and harmless from and
against any liability, loss, injury (including
injuries resulting in death), demand, ac-
tion, cost, expense, or claim of any kind
or character, including but not limited to
attorney’s fees, arising out of or in con-
nection with any use or possession by
you of this information.END USER NOTICE
The marks of companies displayed by
this product to indicate business loca-
tions are the marks of their respective
owners. The use of such marks in this
product does not imply any sponsorship,
approval, or endorsement by such com-
panies of this product.
ENDUSER TERMS
The Map Data Disc (“Data”) is provided
for your personal, internal use only and
not for resale. It is protected by copy-
right, and is subject to the following terms
and conditions which are agreed to by
you, on the one hand, and DENSO COR-
PORATION (“[LICENSEE]”) and its li-
censors (including their licensors and
suppliers) on the other hand. Such licen-
sors include NAVTEQ North America,
LLC. Without limiting the foregoing, you
agree that NAVTEQ North America, LLC
shall have the right to enforce these
Terms directly against you.
© 2004 NAVTEQ. All rights reserved.
The Data for areas of Canada includes
information taken with permission from
Canadian authorities, including: © Her
Majesty the Queen in Right of Canada, ©
Queen’s Printer for Ontario, © Canada
Post Corporation, Geobase .

18

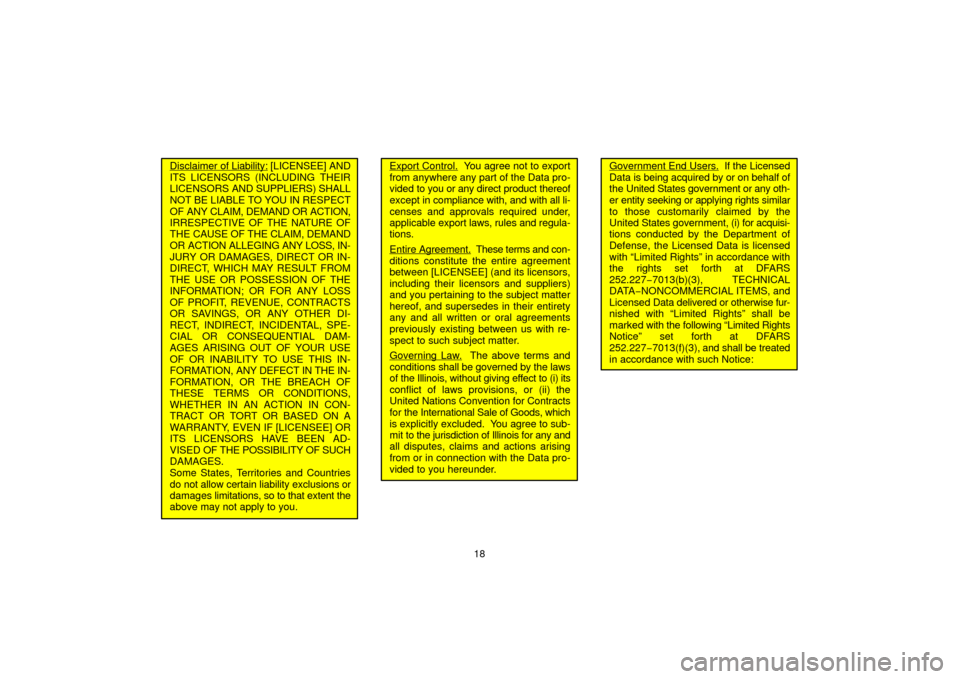

Disclaimer of Liability: [LICENSEE] AND
ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) SHALL
NOT BE LIABLE TO YOU IN RESPECT
OF ANY CLAIM, DEMAND OR ACTION,
IRRESPECTIVE OF THE NATURE OF
THE CAUSE OF THE CLAIM, DEMAND
OR ACTION ALLEGING ANY LOSS, IN-
JURY OR DAMAGES, DIRECT OR IN-
DIRECT, WHICH MAY RESULT FROM
THE USE OR POSSESSION OF THE
INFORMATION; OR FOR ANY LOSS
OF PROFIT, REVENUE, CONTRACTS
OR SAVINGS, OR ANY OTHER DI-
RECT, INDIRECT, INCIDENTAL, SPE-
CIAL OR CONSEQUENTIAL DAM-
AGES ARISING OUT OF YOUR USE
OF OR INABILITY TO USE THIS IN-
FORMATION, ANY DEFECT IN THE IN-
FORMATION, OR THE BREACH OF
THESE TERMS OR CONDITIONS,
WHETHER IN AN ACTION IN CON-
TRACT OR TORT OR BASED ON A
WARRANTY, EVEN IF [LICENSEE] OR
ITS LICENSORS HAVE BEEN AD-
VISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Some States, Territories and Countries
do not allow certain liability exclusions or
damages limitations, so to that extent the
above may not apply to you.Export Control. You agree not to export
from anywhere any part of the Data pro-
vided to you or any direct product thereof
except in compliance with, and with all li-
censes and approvals required under,
applicable export laws, rules and regula-
tions.
Entire Agreement.
These terms and con-
ditions constitute the entire agreement
between [LICENSEE] (and its licensors,
including their licensors and suppliers)
and you pertaining to the subject matter
hereof, and supersedes in their entirety
any and all written or oral agreements
previously existing between us with re-
spect to such subject matter.
Governing Law.
The above terms and
conditions shall be governed by the laws
of the Illinois, without giving effect to (i) its
conflict of laws provisions, or (ii) the
United Nations Convention for Contracts
for the International Sale of Goods, which
is explicitly excluded. You agree to sub-
mit to the jurisdiction of Illinois for any and
all disputes, claims and actions arising
from or in connection with the Data pro-
vided to you hereunder.
Government End Users. If the Licensed
Data is being acquired by or on behalf of
the United States government or any oth-
er entity seeking or applying rights similar
to those customarily claimed by the
United States government, (i) for acquisi-
tions conducted by the Department of
Defense, the Licensed Data is licensed
with “Limited Rights” in accordance with
the rights set forth at DFARS
252.227 −7013(b)(3), TECHNICAL
DATA−NONCOMMERCIAL ITEMS, and
Licensed Data delivered or otherwise fur-
nished with “Limited Rights” shall be
marked with the following “Limited Rights
Notice” set forth at DFARS
252.227 −7013(f)(3), and shall be treated
in accordance with such Notice:

24
Destination input —
Push the “DEST” button and the “Des-
tination” screen appears.
You can use one of 13 different methods to
enter your destination. (See pages 26
through 41.)
INFORMATION
 When inputting the destination, the
response to the switch may be slow.
 The route for returning may not be the
same as that for going.
 The route guidance to the destination
may not be the shortest route nor a
route without traffic congestion.
Route guidance may not be available
if there is no road data for the speci-
fied location.
 When setting the destination on a
map with a scale larger than 0.5 mile
(800 m), the map scale changes to 0.5
mile (800 m) automatically. Set the
destination again.
 To select an
“Address”, “POI
Name”
, “Freeway Ent./Exit”,
“Intersection” or “Phone #” in a
different area, it is necessary to
change the search area.
 If you enter a destination, the road
nearest to the point you selected is
set as the destination.
CAUTION
While you are driving, be sure to obey
traffic regulations and keep the road
conditions in mind. If a traffic sign on
the road has been changed, the route
guidance may provide wrong informa-
tion.
— Selecting the search area
The “Destination” screen allows you to select
the area to search for your destination.
Touch the
“Change” switch on the
“Destination” screen to display a map of
the United States and Canada divided into
11 areas. See page 12 for map database in-
formation and updates.
Touch one of the “US1” through “CAN”switches to select a search area. Touch
the “OK” switch and the “Destination”
screen returns.

27
(a) Inputting a house number
and a street name
Touch numerals directly on the screen to
input a house number.
After inputting a house number, touch the
“OK” switch to display the screen for input-
ting a street name.
It is possible to input a street name first.
Touch the
“Street” switch to display the
screen for inputting a street name.
Input the street name.When you find your desired street name,
touch the corresponding switch.
The screen changes and displays the map
location of the selected destination and
the route preference. (See “ — Entering
destination” on page 42.)
If the same address exists in more than one
city, the current screen changes to the city list
screen.

76
To change “Phone #” (telephone num-
ber)
Touch numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
(c) Deleting memory points
1. Push the “MENU” button to display
the “Menu” screen and touch the
“My
Places”
switch.
2. Touch the “Delete” switch of the
“Memory Points”.
3. Touch the corresponding switch. To
delete all memory points, touch the
“De-
lete All” switch.
For efficient memory point search, memory
points can be sorted by the
“Date”,
“Icon”, “Name” or “Attribute” switch.
To delete, touch the
“Yes” switch. To cancel
the deletion, touch the “No” switch.

78
4. Touch either or switch to
change the size of the area to avoid.
(b) Editing area to avoid
1. Touch the “Edit” switch of the “Areas
to Avoid” to display the “Edit Area to
Avoid” screen.
2. To edit an area to avoid, touch the cor-
responding switch.
3. Touch the “Name”, “Location” or
“Area Size” switch on this screen.

93
3. Touch the “On” switch of “Display
Building Shape” and touch the
“OK”
switch.
Screen layout function
(
Function)
You can set display or hide each switch
and current street name on the map
screen.
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch twice to display page 3 of
the “Setup” screen.
3. Touch the “Change” switch of the
“
Function”.
4. Touch the switch corresponding to the
desired setting. Then touch the “OK”
switch.

95
5. Touch the switch corresponding to the
desired category. Then touch the
“OK”switch.
Delete previous point
You can delete your previous destination.
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch twice to display page 3 of
the “Setup” screen.
3. Touch the “Delete” switch of “Pre-
vious Point”.
