394
Front Rear

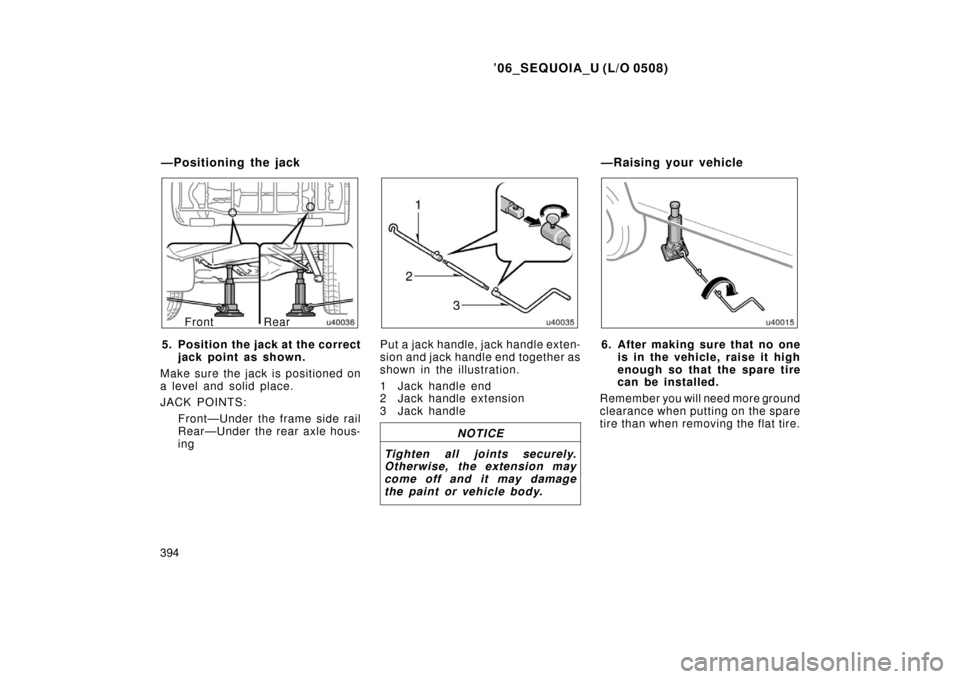

5. Position the jack at the correct jack point as shown.
Make sure the jack is positioned on
a level and solid place.
JACK POINTS: Front—Under the frame side rail
Rear—Under the rear axle hous-
ing
Put a jack handle, jack handle exten-
sion and jack handle end together as
shown in the illustration.
1 Jack handle end
2 Jack handle extension
3 Jack handle
NOTICE
Tighten all joints securely.
Otherwise, the extension may
come off and it may damage
the paint or vehicle body.
6. After making sure that no oneis in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
—Positioning the jack —Raising your vehicle
