navigation system TOYOTA SEQUOIA 2008 2.G Navigation Manual

ADVANCED FUNCTIONS
109
Current position/tire change calibra-
tion
The current vehicle position mark can be
adjusted manually. Miscalculation of the
distance caused by tire replacement can
also be adjusted.
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
twice to display page 3 of
the “Setup” screen.
4U5079F
3. Touch “Adjust” of “Calibration”.
4U5080F
4. Touch the desired touchscreen
button.
INFORMATION
For additional information on the ac-
curacy of a current vehicle position,
see “Limitations of the navigation
system” on page 248.
POSITION/DIRECTION CALIBRATION
When driving, the current vehicle position
mark will be automatically corrected by
GPS signals. If GPS reception is poor due
to location, you can manually adjust the
current vehicle position mark.
4U5081F
1. Touch “Position/Direction”.
4U5082F
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.

OTHER FUNCTIONS
11 2
When the Navigation System is turned on,
the “Information” screen displays when it is
time to replace a part or certain compo-
nents. (See page 17.)
XS00303
1. Push the “INFO” button.
5U5001aF
2. Touch “Maintenance”.
5U5002F
3. Touch the desired touchscreen
button.
For details of each touch−screen button,
see “INFORMATION ITEMS” on page 113.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register or edit dealer in-
formation. (See “ — Dealer setting” on
page 114.)
If “ON” is selected, the system gives main-
tenance information with the “Information”
screen when the system is turned on. (See
page 17.)
If “OFF” is selected, the “Information”
screen is disabled.
When the vehicle needs to be serviced, the
touch−screen button color will change to
orange.
Maintenance information —
— Maintenance information
setting

OTHER FUNCTIONS
122
XS00305
Microphone (Type A)
XS00306
Microphone (Type B)
You can use the microphone above
when talking on the phone.
The other party’s voice outputs from the
driver’s speaker. When the received calls
or received voice outputs, the audio from
the Audio system or voice guidance from
the Navigation system will be muted.
INFORMATION
Talk alternately with the other party
on the phone. If you talk at the
same time, the voice may not reach
each other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming
up. When you talk on the phone,
speak clearly towards the micro-
phone.
In the following situations, your
voice may not reach the other
party.
Driving on unpaved road. (Mak-
ing a traffic noise.)
Driving at the high speed.
The window is open.
Turning the airconditioning
vents towards the microphone.
The sound of the aircondition-
ing fan is loud.

OTHER FUNCTIONS
159
(f) Setting the security
When you set the security, you can pre-
vent people from using some functions
of the Handsfree system. It is useful
when you leave your car with the hotel
or you don’t want others to see the data
you registered.
When you set or unlock the security, you
have to input the security code. Be sure to
change the default code when you use the
security for the first time.Changing the security code
The security code is 4 digits and the de-
fault is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code, don’t
forget the code. The dealers cannot unlock
the security when you forget it.
If you forget the security code, initialize
your personal data. When you initialize it,
not only the phone book data but also the
memory points in the navigation system,
etc. will be deleted. (See “Delete personal
data” on page 175.)
5U5157F
1. Touch “Phone Book Lock”.
5U5158F
2. Touch “Change”.

OTHER FUNCTIONS
167
Displaying the information of the
Bluetooth phone you delete
You can display the information of the
Bluetooth
 phone before you delete it
and you can make sure whether the
telephone you delete is correct or not.
5U5188F
1. Select the telephone you want to
display the information about.
5U5A90F
2. When you complete confirming it,
touch
.The speech command system enables
you to operate the navigation system
and audio system by giving a com-
mand.
XS00307
1. Push the talk switch.
A beep sounds and on screen message is
displayed with an indicator at the top left.
Speech command system

OTHER FUNCTIONS
168
5U5190F
2. Give a command while an indicator
is shown on the display. If you want to
check the command list, touch “Help”
to display the Help screen. (See “Help
screen” on page 170.) When you touch
“Cancel”, the previous screen returns.
If the navigation system does not respond
or the confirmation screen does not disap-
pear, please push the talk switch and try
again.
If no command is given, a beep sounds
and the indicator disappears 6 seconds
later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize
this command, please rephrase your
command.”). Start the operation from the
beginning.
XS00305
Microphone (Type A)
XS00306
Microphone (Type B)
It is unnecessary to speak directly into
the microphone when giving a com-
mand.

OTHER FUNCTIONS
175

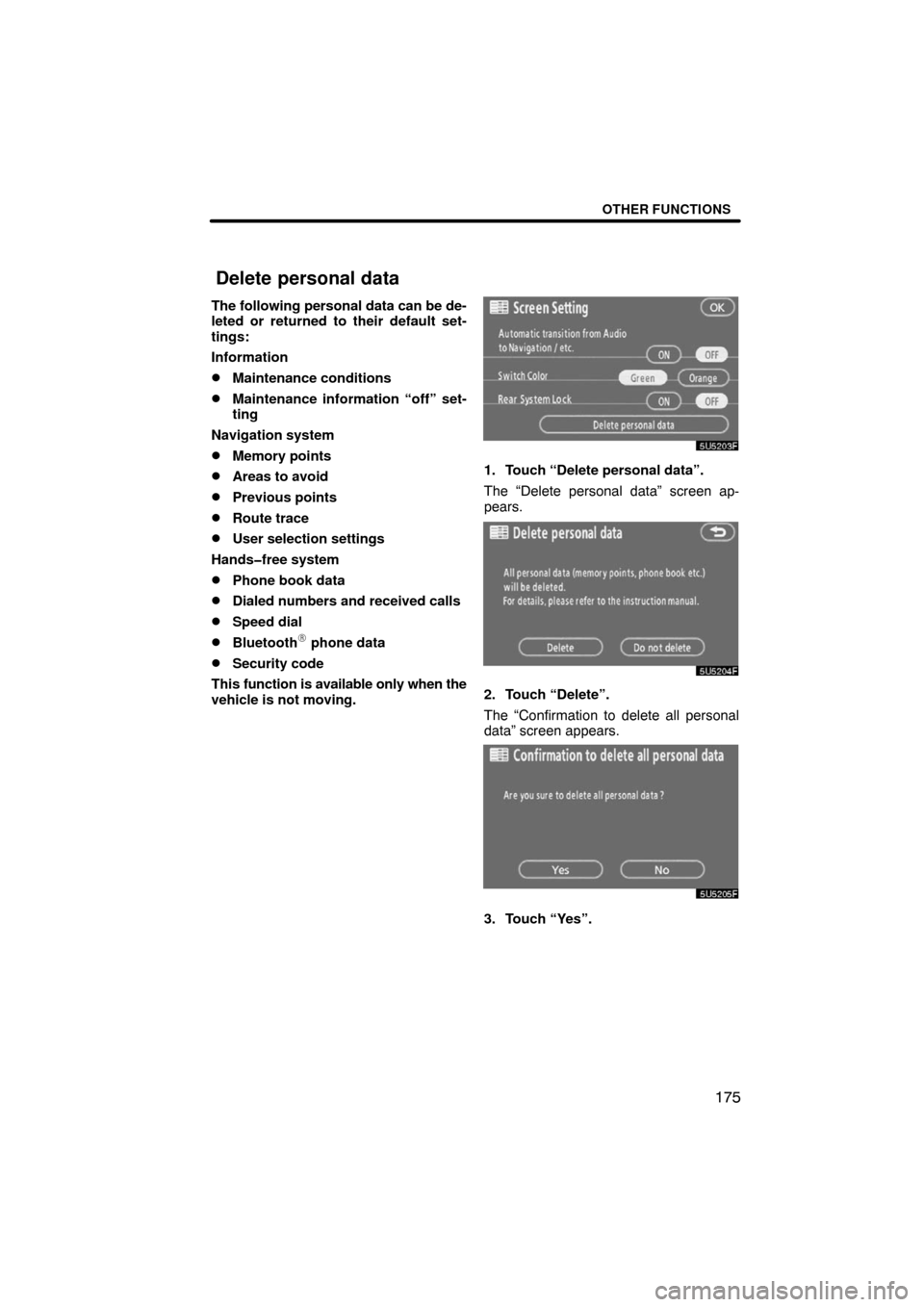

The following personal data can be de-
leted or returned to their default set-
tings:
Information
Maintenance conditions
Maintenance information “off” set-
ting
Navigation system
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
Handsfree system
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the
vehicle is not moving.
5U5203F
1. Touch “Delete personal data”.
The “Delete personal data” screen ap-
pears.
5U5204F
2. Touch “Delete”.
The “Confirmation to delete all personal
data” screen appears.
5U5205F
3. Touch “Yes”.
Delete personal data

OTHER FUNCTIONS
177
5U5B01F
3. Touch “English”, “Français” or
“Español” to select a language.
If a screen other than for the navigation
system is displayed, the current screen
would change to the “CAUTION” screen
by pushing the “MAP/VOICE”, “DEST” or
“MENU” button.
4. Touch “OK”.
The language is changed and the screen
returns to the map display.

REAR VIEW MONITOR SYSTEM
244
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle while backing
up. The left and right displayed on the
screen are the same as those of the in-
side rear view mirror.
To display the rear view image on the
screen, place the selector lever in the R
position when the engine switch is in
the ON position.
If you move the selector lever out of the R
position, the screen returns to the previous
screen. Operating another function of the
navigation system will display another
screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check behind
and all around the vehicle visually.
CAUTION
Never depend on the rear view
monitor system entirely when
backing up. Always make sure
your intended path is clear.
Use caution just as you would
when backing up any vehicle.
Never back up while looking only
at the screen. The image on the
screen is different from actual
conditions. Depicted distances
between objects and flat surfaces
will differ from actual distances. If
you back up while looking only at
the screen, you may hit a vehicle,
a person or an object. When
backing up, be sure to check
behind and all around the vehicle
visually and with mirrors before
proceeding.
Do not use the system when the
back door is not completely
closed.
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to
have the camera’s position and
mounting angle checked at your
Toyota dealer.
As the camera has a water proof
construction, do not detach,
disassemble or modify it. This may
cause incorrect operation.
If the temperature changes rapidly,
such as when hot water is poured
on the vehicle in cold weather, the
system may not operate normally.
If the camera lens becomes dirty, it
cannot transmit a clear image. If
water droplets, snow, or mud
adhere to the lens, rinse with water
and wipe with a soft cloth. If the
lens is extremely dirty, wash it with
a mild cleanser and rinse.
Do not allow organic solvent, car
wax, window cleaner or glass coat
to adhere to the camera. If this
happens, wipe it off as soon as
possible.
Use your own eyes to confirm the
vehicle’s surroundings, as the
displayed image may become faint
or dark, and moving images will be
distorted, or not entirely visible
when the outside temperature is
low. When backing up, be sure to
check behind and all around the
vehicle visually and with mirror
before proceeding.
Rear view monitor system

SECTION 8
APPENDIX
247
APPENDIX
Appendix
Limitations of the navigation system 234
Map database information and updates 236
Changing the map DVD−ROM259 . . . . . . . . . . . . . . . . . . . . . . . .
