ECO mode TOYOTA SEQUOIA 2008 2.G Navigation Manual

6
No.NameFunctionPage
7“Map View”
Touch this touch−screen button to
browse information about guidance
route, to set the Points of Interest to be
displayed on the screen, or to record the
route.
72, 74, 75, 76
8“OFF”
Touch this touch−screen button to ob-
tain a broader view. Some of the but-
tons on the screen are not displayed.
They are displayed again by touching
“ON”.
104
9
Zoom in
touchscreen
buttonTouch this touch−screen button to mag-
nify the map scale.29
10
Foot print map
touchscreen
buttonTouch this touch−screen button to dis-
play the foot print map and the building
information.
30
11“INFO” buttonPush this button to display the
“Information” screen.11 2 , 11 6 , 1 2 6 ,
173
12“MENU” buttonPush this button to display the “Menu”
screen.80, 82, 260
13
Screen
configuration
touchscreen
button
Touch this touch−screen button to
change the screen mode.27
14“DEST” buttonPush this button to display the
“Destination” screen.34, 35
15“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
22, 23, 63
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
65

ROUTE GUIDANCE
76
3U5046F
:To indicate the next destination.
:To preview the route to the next
destination.
:To preview the route to the next
destination in fast−forward mode.
:To stop the preview.
:To review the route to the previous
destination or starting point.
:To review the route to the previous
destination or starting point in fast−
forward mode.
:To indicate the previous destina-
tion or starting point.It is possible to store the traveled route up
to 124 miles (200 km) and retrace the route
on the display.
INFORMATION
This feature is available on the map
with more detailed map scale than 30
miles (50 km).
3U5047F
Touch “Map View”.
3U5048F
“Record”: To start recording the route
trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
— Route trace

ADVANCED FUNCTIONS
82
9“Voice Recognition Guidance”
Voice recognition guidance can be set.
106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10“Voice Guidance in All Modes”
Voice guidance can be set in all modes.
107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11“Auto Voice Guidance”
Automatic voice guidance can be set.
107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12“Popup Message”
Selection of either ON or OFF to display
the pop−up message is possible.
108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13“Calibration”
Adjustment of the current vehicle position
mark can be done manually, or mis−cal-
culation by changing tire will be adjusted.
109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Default”
This touch−screen button initializes all of
the settings. 100. . . . . . . . . . . . . . . . . . . .
15“?”
Function help for the “Setup” screen can
be viewed. 22. . . . . . . . . . . . . . . . . . . . . .

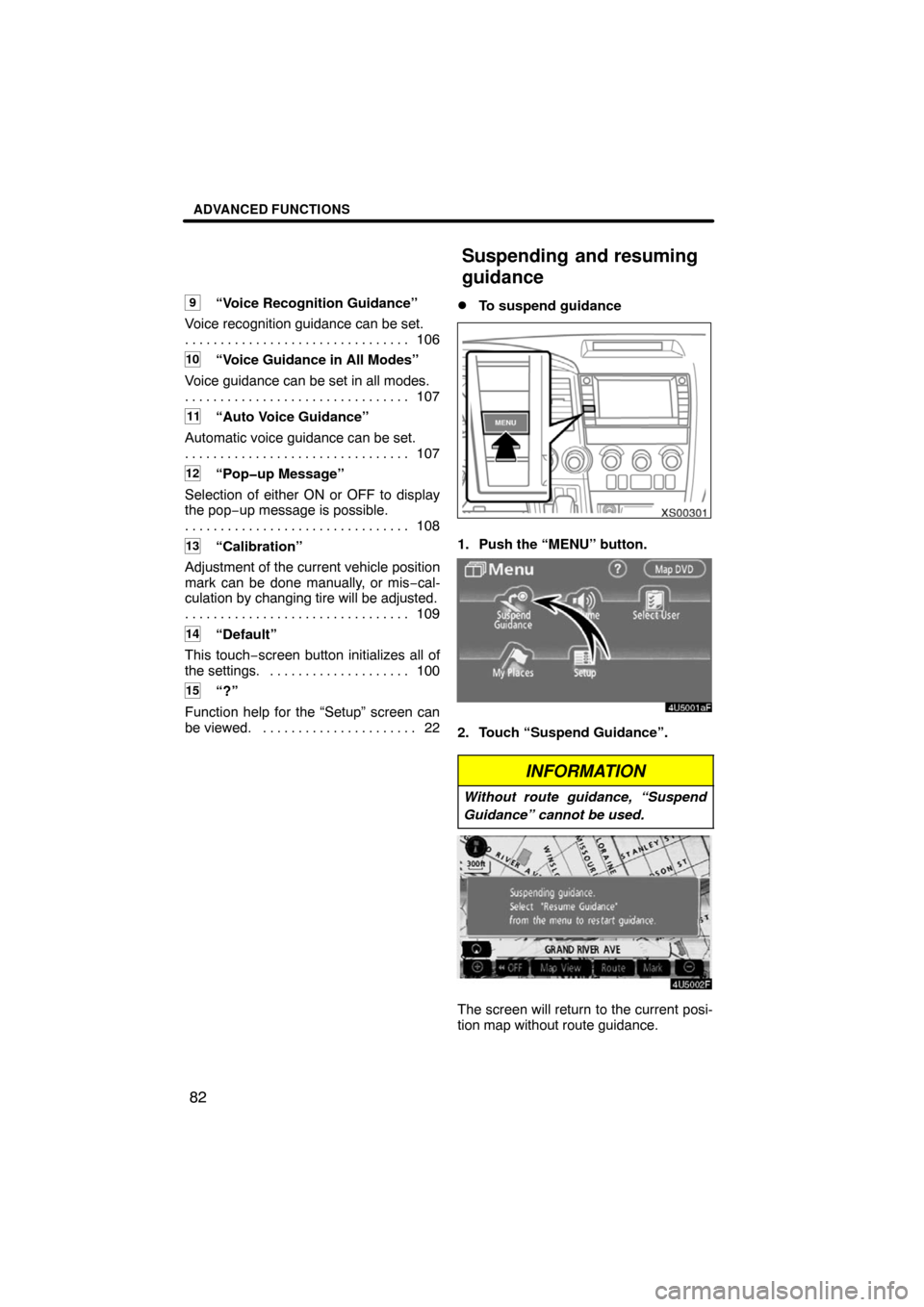

To suspend guidance
XS00301
1. Push the “MENU” button.
4U5001aF
2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, “Suspend
Guidance” cannot be used.
4U5002F
The screen will return to the current posi-
tion map without route guidance.
Suspending and resuming
guidance

OTHER FUNCTIONS

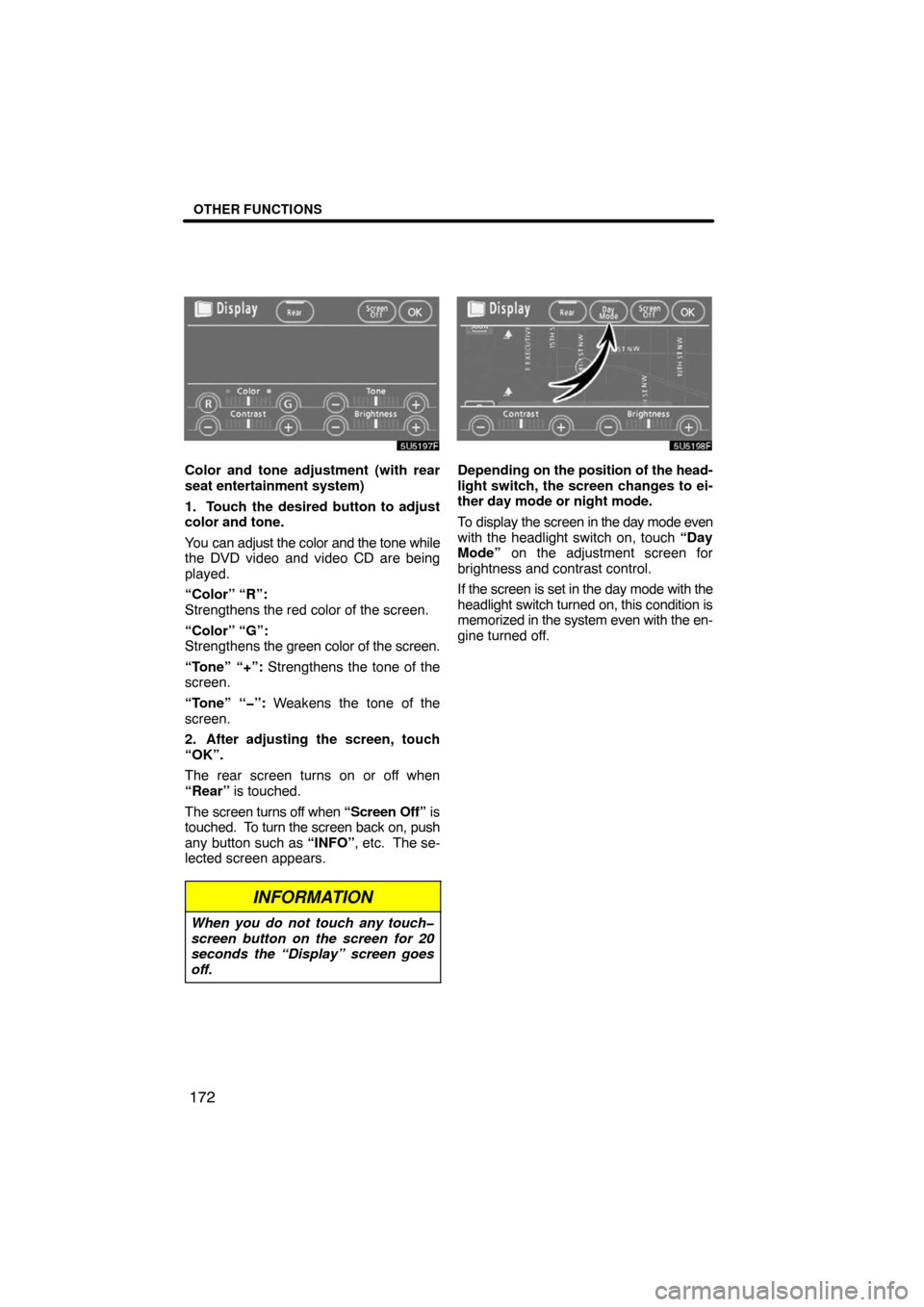

172
5U5197F
Color and tone adjustment (with rear
seat entertainment system)
1. Touch the desired button to adjust
color and tone.
You can adjust the color and the tone while
the DVD video and video CD are being
played.
“Color” “R”:
Strengthens the red color of the screen.
“Color” “G”:
Strengthens the green color of the screen.
“Tone” “+”: Strengthens the tone of the
screen.
“Tone” “”: Weakens the tone of the
screen.
2. After adjusting the screen, touch
“OK”.
The rear screen turns on or off when
“Rear” is touched.
The screen turns off when “Screen Off” is
touched. To turn the screen back on, push
any button such as “INFO”, etc. The se-
lected screen appears.
INFORMATION
When you do not touch any touch
screen button on the screen for 20
seconds the “Display” screen goes
off.
5U5198F
Depending on the position of the head-
light switch, the screen changes to ei-
ther day mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch “Day
Mode” on the adjustment screen for
brightness and contrast control.
If the screen is set in the day mode with the
headlight switch turned on, this condition is
memorized in the system even with the en-
gine turned off.

AUDIO/VIDEO SYSTEM
184
6U5004F
The touchscreen buttons for radio, CD
changer and DVD player operation are
displayed on the function touch
screen button display screen when the
audio control mode is selected. Touch
them lightly and directly on the screen.
The selected switch is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed
touchscreen buttons.
Wipe off fingerprints on the surface
of the display using a glass clean-
ing cloth.
(c) Automatic sound levelizer (ASL)
When the audio sound becomes diffi-
cult to be heard due to road noise, wind
noise or other noises while driving, the
system adjusts to the optimum volume
according to the noise level. To turn
this function on, touch “ASL” on the au-
dio control screen.
(d) Tone and balance
Tone
How good an audio program sounds to you
is largely determined by the mix of the
treble, midrange, and bass levels. In fact,
different kinds of music and vocal pro-
grams usually sound better with different
mixes of treble, mid−range, and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
1. Push the “AUDIO” button.
6U5002aF
2. Touch “SOUND” to display the
sound adjustment screen.

AUDIO/VIDEO SYSTEM
188
6U5008F
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the touchscreen but-
tons (1 — 6) you want and hold it until
a beep is heard. This sets the station to
the touchscreen button and the fre-
quency appears on the touchscreen
button.
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the pre-
set station to a different one, follow the
same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.(c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning: Touch the touch−screen
button (1 — 6) for the station you want.
The touch−screen button is highlighted
and the station frequency appears on the
screen.
Seek tuning: Push the “SEEK/TRACK”
button on either side. The radio will begin
seeking up or down for a station of the
nearest frequency and will stop on recep-
tion. Each time you push the button, the
stations will be searched automatically
one after another.
To scan all the frequencies: Touch
“SCAN” on the screen or push the
“SCAN” button briefly. “SCAN” appears
on the screen. The radio will find the next
station and stay there for a few seconds,
and then scan again. To select a station,
touch “SCAN” or push the “SCAN” but-
ton again.
To scan the preset stations: Touch
“SCAN” on the screen or push the
“SCAN” button for longer than a second.
“P. SCAN” appears on the screen. The ra-
dio will tune in the next preset station, stay
there for a few seconds, and then move to
the next preset station. To select a station,
touch “SCAN” or push the “SCAN” but-
ton again.

AUDIO/VIDEO SYSTEM
219
6U5045F
PLAYING A DVD DISC
Push the “AUDIO” button to display
this screen.
When you touch “WIDE”, the screen
mode can be changed.
It you touch “PICTURE” when the vehicle
is completely stopped and the parking
brake is applied, the video screen returns.
6U5063F
6U5064F
DISPLAYING DVD CONTROLS
If you touch a part of the screen, where
controls are not located while watching
video, DVD controls will appear.
“Page2”: Touching this will display on the
second page of DVD controls.
“Page1”: Touching this will display the top
page of DVD controls.
“Hide Buttons”: Touching this will turn off
the controls from the screen.
If “
” appears on the screen when you
touch a control, the operation relevant to
the control is not permitted.

AUDIO/VIDEO SYSTEM
228
6U5077F
6U5075F
DISPLAYING VIDEO CD CONTROLS
If you touch the part where controls are not
located while you are watching video on
the video CD, video CD controls will ap-
pear.
“Page2”: Touching this will display on the
second page of video CD controls.
“Page1”: Touching this will display on the
top page of video CD controls.
“Hide Buttons”: Touching this will turn off
the controls from the screen.
If “
” appears on the display when you
touch a control, the operation is not per-
mitted.DESCRIPTION OF VIDEO CD CON-
TROLS
Controls on top page
“Select Number”: The track or number
search screen appears. (See “SEARCH-
ING BY TRACK” on page 229.)
“Prev. Menu”: When you touch this while
the disc menu is displayed, the previous
page appears on the screen. If you touch
this while the player is playing video, the
previous track is searched and played.
“Next Menu”: When you touch this while
the disc menu is displayed, the next page
appears on the display. If you touch this
while the player is playing video, the next
track is searched and played.
“Main/Sub”: A multiplex transmission
changing control. The mode changes from
Main/Sub to Main, to Sub and back to
Main/Sub by touching this control.
“Return”: Touching this will display the
predetermined scene and start playing
from there.
