service TOYOTA SEQUOIA 2008 2.G Navigation Manual

DESTINATION SEARCH
34

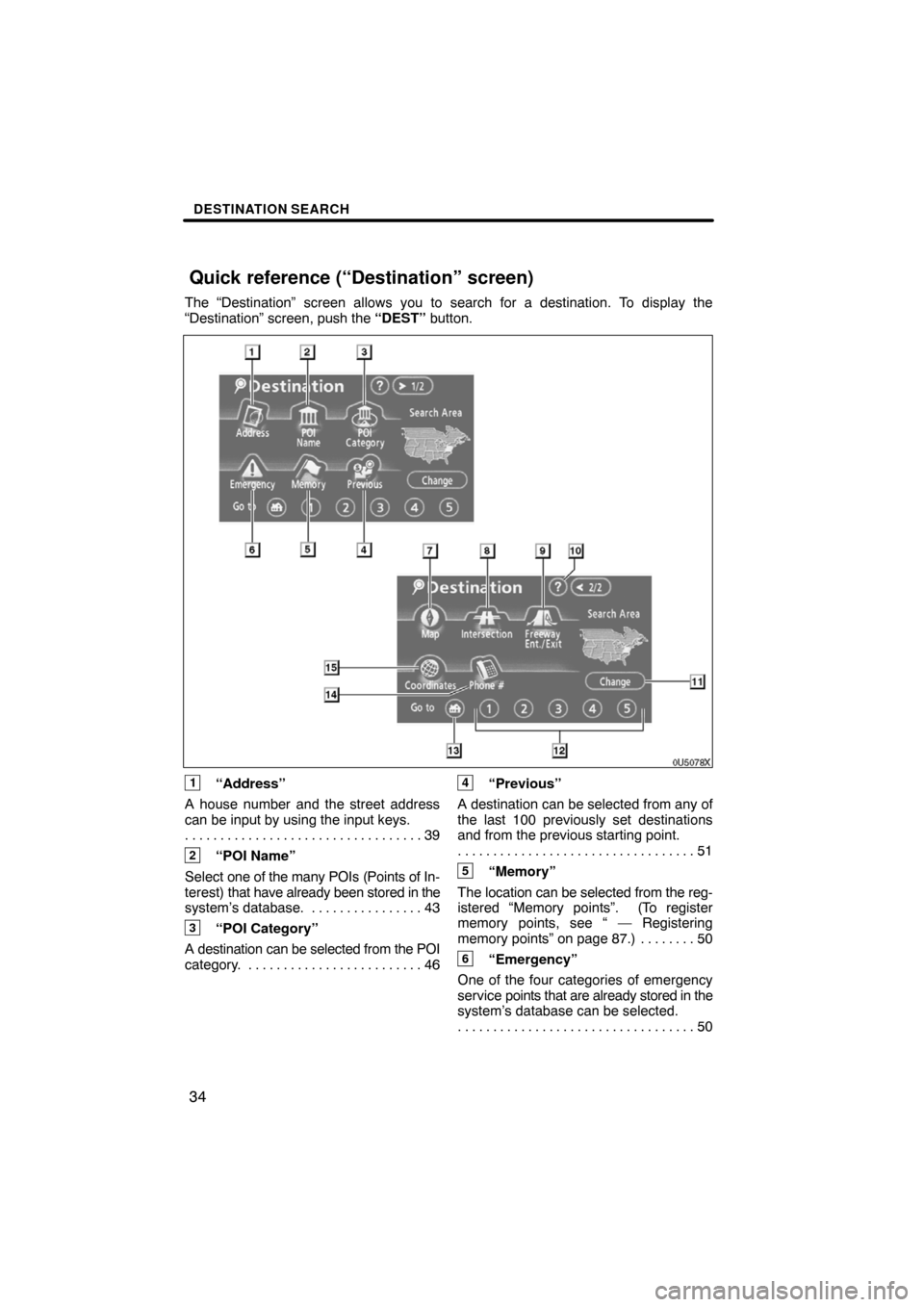

The “Destination” screen allows you to search for a destination. To display the
“Destination” screen, push the “DEST” button.
0U5078X
1“Address”
A house number and the street address
can be input by using the input keys.
39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2“POI Name”
Select one of the many POIs (Points of In-
terest) that have already been stored in the
system’s database. 43. . . . . . . . . . . . . . . .
3“POI Category”
A destination can be selected from the POI
category. 46. . . . . . . . . . . . . . . . . . . . . . . . .
4“Previous”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point.
51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“Memory”
The location can be selected from the reg-
istered “Memory points”. (To register
memory points, see “ — Registering
memory points” on page 87.) 50. . . . . . . .
6“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected.
50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Destination” screen)

OTHER FUNCTIONS
11 2
When the Navigation System is turned on,
the “Information” screen displays when it is
time to replace a part or certain compo-
nents. (See page 17.)
XS00303

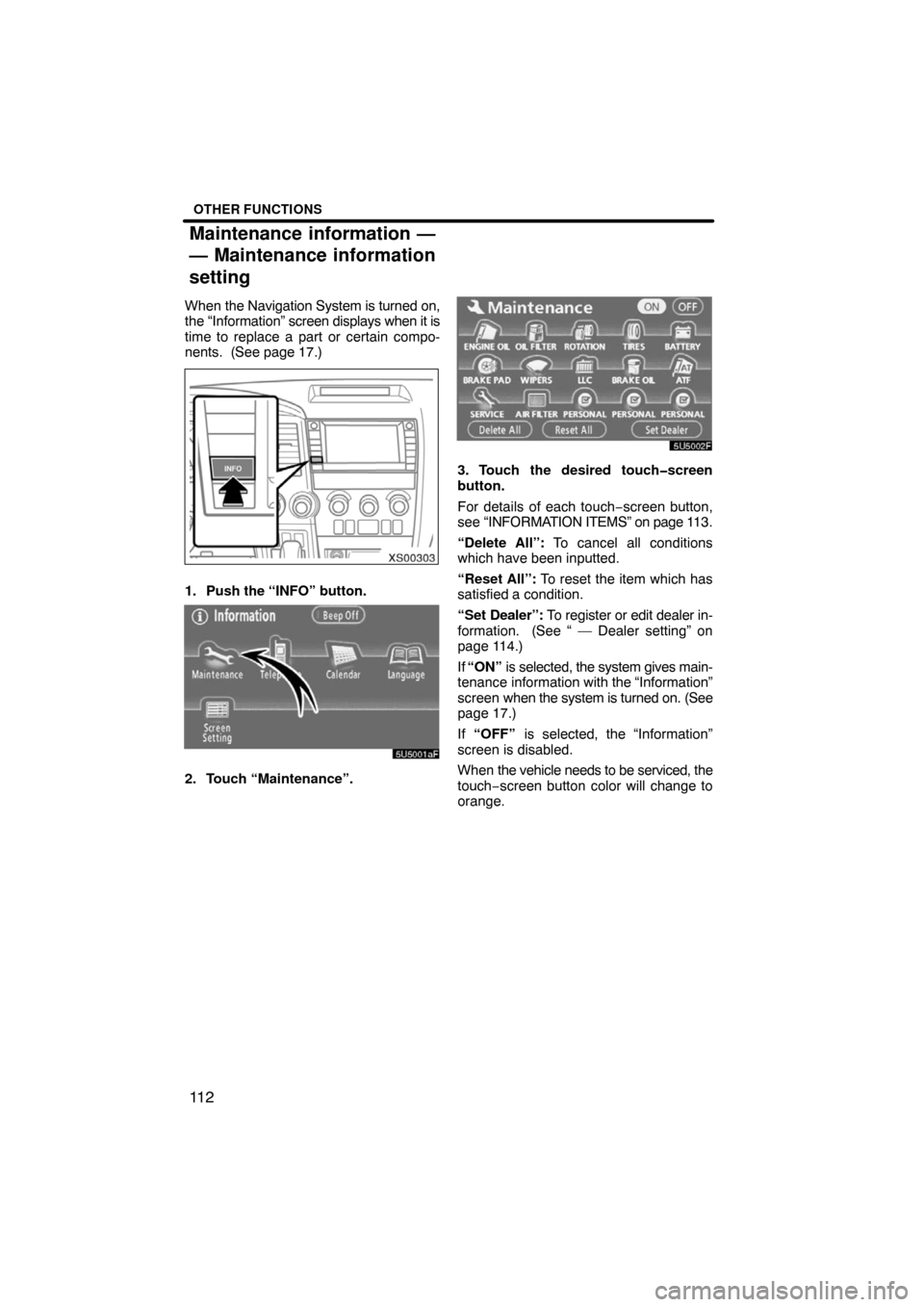

1. Push the “INFO” button.
5U5001aF
2. Touch “Maintenance”.
5U5002F
3. Touch the desired touchscreen
button.
For details of each touch−screen button,
see “INFORMATION ITEMS” on page 113.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register or edit dealer in-
formation. (See “ — Dealer setting” on
page 114.)
If “ON” is selected, the system gives main-
tenance information with the “Information”
screen when the system is turned on. (See
page 17.)
If “OFF” is selected, the “Information”
screen is disabled.
When the vehicle needs to be serviced, the
touch−screen button color will change to
orange.
Maintenance information —
— Maintenance information
setting

OTHER FUNCTIONS
11 3
INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items
can be created separately from provided
ones
5U5003F
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving dis-
tance until the next maintenance check
can be input.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance
conditions.
5. Touch “OK”.
The screen then returns to the
“Maintenance” screen.
INFORMATION
For scheduled maintenance
information, please refer to the
“Scheduled Maintenance Guide”
or “Owner’s Manual Supplement”.
Depending on driving or road con-
ditions, the actual date and dis-
tance may differ from the stored
date and distance in the system.

OTHER FUNCTIONS
123
5U5021F
1Indicates the condition of Blue-
tooth connection.
“Blue” indicates an excellent connection
to Bluetooth
.
“Yellow” indicates a bad connection to
Bluetooth
, resulting in possible deteriora-
tion of voice quality.
: no connection to Bluetooth.
2Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth is
connecting or the phone book data is be-
ing transferred.
The amount left does not always corre-
spond with the one of your cellular phone.
This system doesn’t have a charging func-
tion.
3Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Hm” is displayed when receiving in
Home area.
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always cor-
respond with the one of your cellular
phone.
INFORMATION
This system supports the following
service.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not sup-
port HFP, you cannot enter the Blue-
tooth
 phone, and take OPP service
individually.

OTHER FUNCTIONS
137
5U5055F

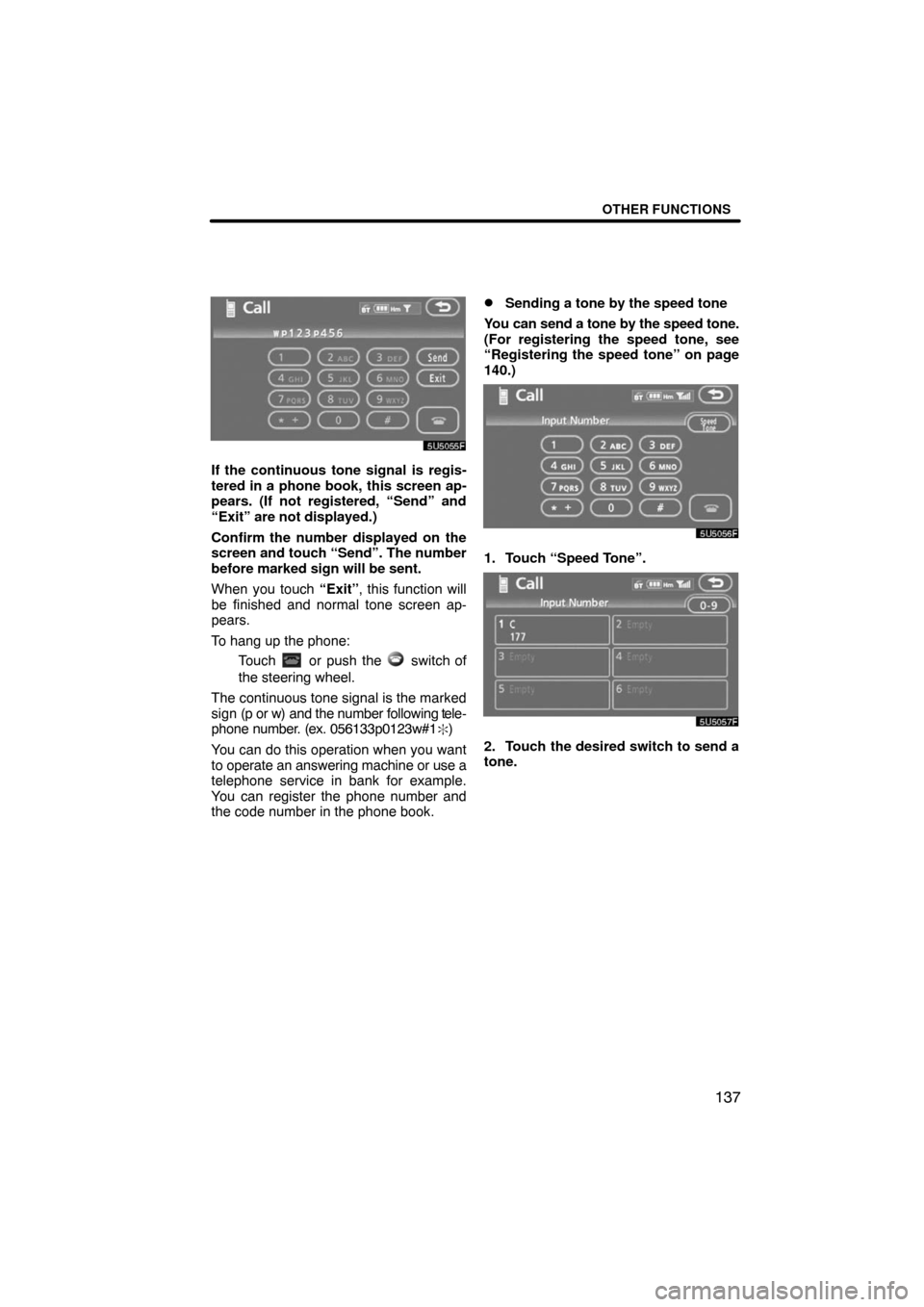

If the continuous tone signal is regis-
tered in a phone book, this screen ap-
pears. (If not registered, “Send” and
“Exit” are not displayed.)
Confirm the number displayed on the
screen and touch “Send”. The number
before marked sign will be sent.
When you touch “Exit”, this function will
be finished and normal tone screen ap-
pears.
To hang up the phone:
Touch
or push the switch of
the steering wheel.
The continuous tone signal is the marked
sign (p or w) and the number following tele-
phone number. (ex. 056133p0123w#1
)
You can do this operation when you want
to operate an answering machine or use a
telephone service in bank for example.
You can register the phone number and
the code number in the phone book.
Sending a tone by the speed tone
You can send a tone by the speed tone.
(For registering the speed tone, see
“Registering the speed tone” on page
140.)
5U5056F
1. Touch “Speed Tone”.
5U5057F
2. Touch the desired switch to send a
tone.

AUDIO/VIDEO SYSTEM
191
6U5012F

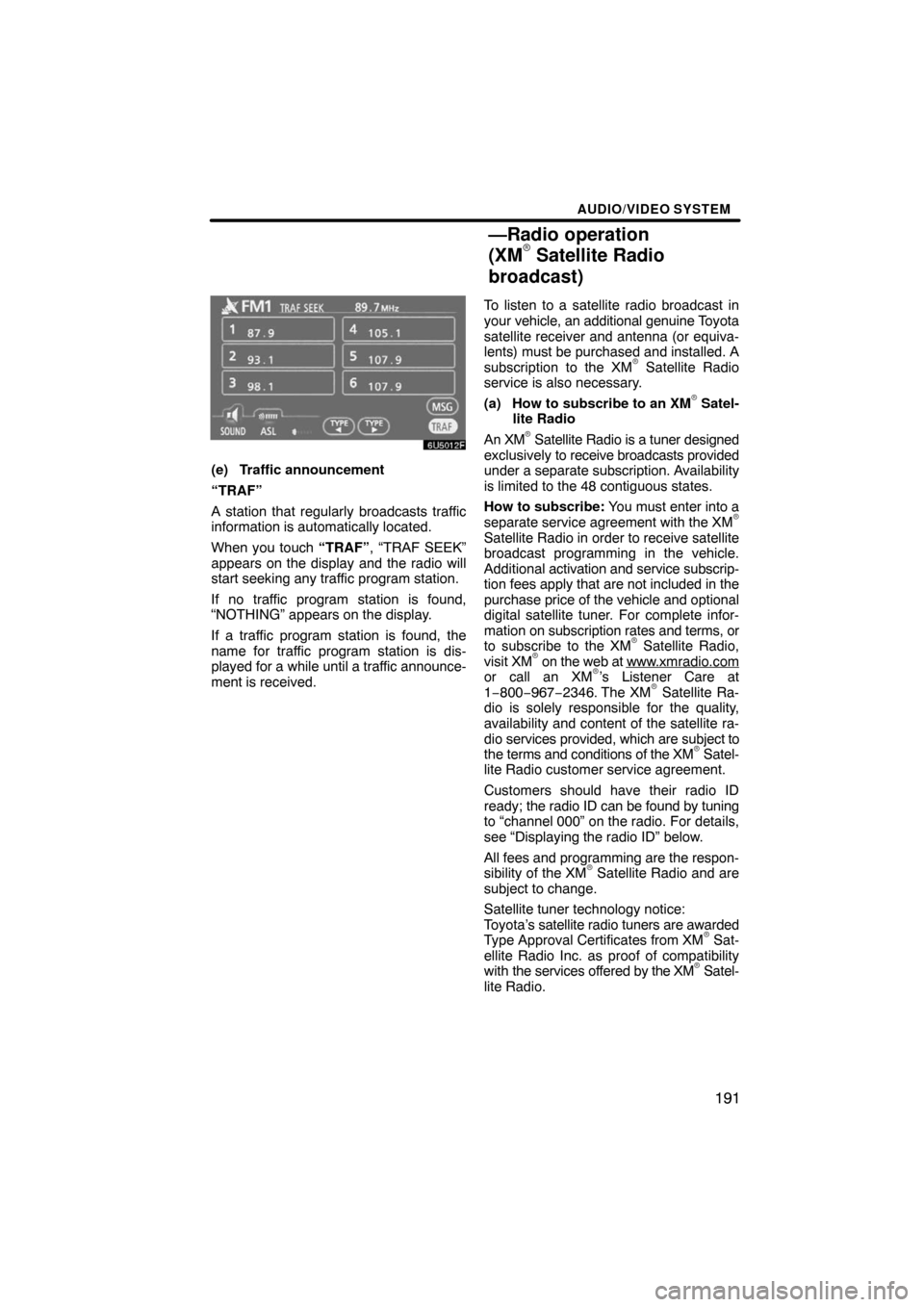

(e) Traffic announcement
“TRAF”
A station that regularly broadcasts traffic
information is automatically located.
When you touch “TRAF”, “TRAF SEEK”
appears on the display and the radio will
start seeking any traffic program station.
If no traffic program station is found,
“NOTHING” appears on the display.
If a traffic program station is found, the
name for traffic program station is dis-
played for a while until a traffic announce-
ment is received.To listen to a satellite radio broadcast in
your vehicle, an additional genuine Toyota
satellite receiver and antenna (or equiva-
lents) must be purchased and installed. A
subscription to the XM
 Satellite Radio
service is also necessary.
(a) How to subscribe to an XM
 Satel-
lite Radio
An XM
 Satellite Radio is a tuner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous states.
How to subscribe: You must enter into a
separate service agreement with the XM

Satellite Radio in order to receive satellite
broadcast programming in the vehicle.
Additional activation and service subscrip-
tion fees apply that are not included in the
purchase price of the vehicle and optional
digital satellite tuner. For complete infor-
mation on subscription rates and terms, or
to subscribe to the XM
 Satellite Radio,
visit XM on the web at www.xmradio.comor call an XM’s Listener Care at
1−800−967−2346. The XM Satellite Ra-
dio is solely responsible for the quality,
availability and content of the satellite ra-
dio services provided, which are subject to
the terms and conditions of the XM
 Satel-
lite Radio customer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tuning
to “channel 000” on the radio. For details,
see “Displaying the radio ID” below.
All fees and programming are the respon-
sibility of the XM
 Satellite Radio and are
subject to change.
Satellite tuner technology notice:
Toyota’s satellite radio tuners are awarded
Type Approval Certificates from XM
 Sat-
ellite Radio Inc. as proof of compatibility
with the services offered by the XM
 Satel-
lite Radio.
—Radio operation
(XM Satellite Radio
broadcast)

AUDIO/VIDEO SYSTEM
192
(b) Displaying the radio ID
Each XM tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM
 service or when reporting a
problem.
If you select the “CH 000” using the
“TUNE” knob, the ID code of 8 alphanu-
meric characters appears. If you select
another channel, display of the ID code is
canceled. The channel(000) alternates the
display between the radio ID and the spe-
cific radio ID code.(c) Listening to satellite radio
XS00315

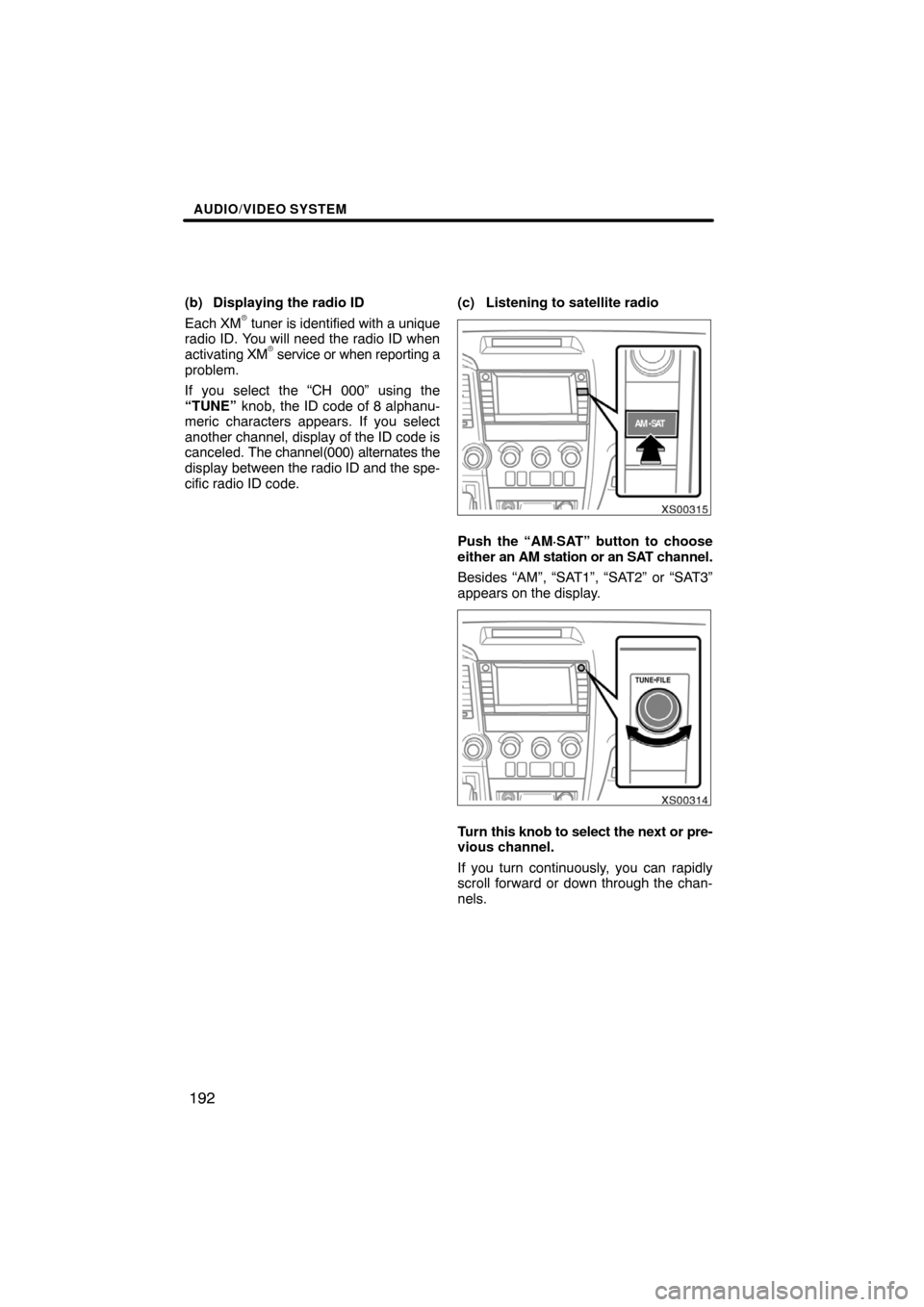

Push the “AM·SAT” button to choose
either an AM station or an SAT channel.
Besides “AM”, “SAT1”, “SAT2” or “SAT3”
appears on the display.
XS00314
Turn this knob to select the next or pre-
vious channel.
If you turn continuously, you can rapidly
scroll forward or down through the chan-
nels.

AUDIO/VIDEO SYSTEM
196
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interfer-
ence in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio com-
munications. However, there is no
guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful
interference to radio or television re-
ception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
—Reorient or relocate the receiving
antenna.
—Increase the separation between
the equipment and receiver.
—Connect the equipment into an out-
let on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experi-
enced radio/TV technician for help.
Information to user
Alternation or modifications carried
out without appropriate authoriza-
tion may invalidate the user’s right to
operate the equipment.
INFORMATION
This XM tuner supports “Audio
Services” (Music and Talk) of only
XM
 Satellite Radio and “Text
Information”∗ linked to the respective
“Audio Services”.
∗:Text Information includes, Station
Name, (Artist) Name, (Song) Title and
Category Name.

AUDIO/VIDEO SYSTEM
232
XS00323
Some parts of the audio system can be ad-
justed using the switches on the steering
wheel.
Details of the specific switches, controls,
and features are described below.
1. Volume control switch
2.“MODE” switch
3.“” switch
1. Volume control switch
Push “+” side to increase the volume. The
volume continues to increase while the
switch is being pushed.
Push “” side to decrease the volume.
The volume continues to decrease while
the switch is being pushed.
2. “MODE” switch
Push “MODE” switch to select an audio
mode. Each push changes the mode se-
quentially if the desired mode is ready to
use.
To turn the audio/video system on, push
the “MODE” switch.
To turn the audio/video system off, push
and hold the “MODE” switch until you hear
a beep.3. “” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “” or “”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “” or “” side of the
switch until you hear a beep. Do this again
to find the next station. If you push the
switch on either side during the seek
mode, seeking will be cancelled.
To step up or down the frequency, push
and hold the switch even after you hear a
beep. When you release from the switch,
the radio will begin seeking up or down for
a station. Do this again to find the next sta-
tion.
XM
 Satellite Radio∗—
To select a preset channel, push the “”
or “” side of the switch. Repeat until a
desired channel is found.
∗: Use of satellite radio requires XM tun-
er and service. Contact your Toyota
dealer for details.
Audio remote controls
(steering switches)

AUDIO/VIDEO SYSTEM
234
FM
Fading and drifting stations — Generally,
the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi−path — FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this hap-
pens, the signals will cancel each other
out, causing a momentary flutter or loss of
reception.
Static and fluttering — These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping — If the FM signal you
are listening to is interrupted or weakened,
and there is another strong station nearby
on the FM band, your radio may tune in the
second station until the original signal can
be picked up again.
AM
Fading — AM broadcasts are reflected by
the upper atmosphere — especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causing the radio station to
sound alternately strong and weak.
Station interference — When a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static — AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.XM∗
Alternation or modifications carried out
without appropriate authorization may in-
validate the user’s right to operate the
equipment.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota dealer
for details.
CARING FOR YOUR CD CHANGER,
DVD PLAYER AND DISCS
Your CD changer is intended for use
with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your CD changer and DVD player from
working. On hot days, use the air
conditioning to cool the vehicle interior
before you use the changer and player.
Bumpy roads or other vibrations may
make your CD changer and DVD play-
er skip.
If moisture gets into your CD changer
and DVD player, you may not play even
though they appear to be working. Re-
move the disc from the changer and
player and wait until it dries.
CAUTION
CD changers and DVD player use an
invisible laser beam which could
cause hazardous radiation exposure
if directed outside the unit. Be sure to
operate the changers and players
correctly.
