OTHER FUNCTIONS
121
Handsfree system allows you to make
or receive a call without taking your
hands off the steering wheel by con-
necting your cellular phone.
This system supports Bluetooth
.
Bluetooth is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth
, this system can not function.
CAUTION
While you are driving, do not use a
cellular phone or connect the Blue-
tooth
 phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
INFORMATION
In the following conditions, the sys-
tem may not function.
The cellular phone is turned OFF.
The current position is outside the
communication area.
The cellular phone is not con-
nected.
The cellular phone has a low bat-
tery.
XS00304
Steering switches
By pushing the telephone switch
above, you can receive a call or hang up
without taking your hands off the steer-
ing wheel.
Handsfree system
(for cellular phone) —

OTHER FUNCTIONS
126
To use the handsfree system, you
need to enter your cellular phone into
the system. Once you have registered
it, you can make a handsfree call.
XS00303
1. Push the “INFO” button to display
the “Information” screen.
5U5022aF
2. Touch “Telephone” to display
“Telephone” screen.
You can also push the
switch of the
steering wheel to display this screen when
the vehicle is stopped.
5U5023F
3. Touch “Settings” to display
“Settings” screen.
5U5024F
4. Touch “Bluetooth∗” to display the
“Bluetooth∗ Settings” screen.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
5U5025F
5. Touch “Register” to connect your
cellular phone to the system.
— Enter a Bluetooth
phone

OTHER FUNCTIONS
129
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
5U5033F
1. Touch the desired key to input the
telephone number.
Each time you touch , an inputted digit is
deleted.
When you touch
, the number you
called last is inputted.
2. Touch
or push the switch of
the steering wheel.(ii) By phone book
You can call by phone book data which
is transferred from your cellular phone.
The system has one phone book. You
can register up to 1000 numbers.
This cannot be operated while driving.
5U5034F
1. Touch “Phone Book” to display
“Phone Book” screen.
5U5035F
2. Select the desired number from the
list.
5U5036F
3. Touch or push the switch of
the steering wheel.
— Call on the Bluetooth
phone

OTHER FUNCTIONS
130
(iii) By dialed numbers
You can call by dialed number. The sys-
tem memorizes up to 5 dialed numbers.
If it is over than 5, the oldest number is
deleted.
This cannot be operated while driving.
5U5037F
1. Touch “Call Log” to display
“Outgoing Calls” screen.
5U5038F
When you call by phone book, the
name (if registered) is displayed.
When you call the same number
continuously, only the newest
number is registered.
2. Select the desired number from the
list.
5U5039F
3. Touch or push the switch of
the steering wheel.

OTHER FUNCTIONS
131
(iv) By received calls
You can call by received calls. When a
call is received, the system memorizes
up to 5 numbers. If it is more than 5, the
oldest number is deleted.
This cannot be operated while driving.
5U5040F
1. Touch “Call Log” to display
“Outgoing Calls” screen.
5U5041F
2. Touch “Incoming Calls” to display
“Incoming Calls” screen.
5U5042F
When a telephone number registered
in the phone book is received, the
name and the number are displayed.
Received calls which you did not
answer are also memorized in the
system and “Abs.” is displayed
on the left side of the number.
Unnoticed telephone number such as
a public telephone is not
memorized in the system.
3. Select the desired number from the
list.
5U5043F
4. Touch or push the switch of
the steering wheel.
A international phone call may not be
made depending on the cellular
phone which you have.

OTHER FUNCTIONS
133
Dialing by name
You can call by giving a voice tag regis-
tered in the phone book. For setting the
voice recognition, see “Setting the
voice recognition” on page 151.
Example: Call DAD
XS00332
You: Push the talk switch.
System: “After the beep, please say the
name.”
You: “DAD.”
System: “DAD chosen, when ready,
please briefly push the talk
switch or push the off−hook
switch to dial.”
You: Push the talk switch.
System: “After the beep, please say
“Dial”.”
You: “Dial.”
System: “Dialing the name.”
Now you can call DAD.
5U5048F
“Next” is displayed when multiple entries
are found for a searched name.
Up to 6 entries can be displayed including
the first searched one.
Do the following to change the entry to the
next one.
Touch “Next”
Push the talk switch to say “Next
Candidate”.
Calling without the voice recognition
After the entry number is displayed, you
can also call by pushing the telephone
switch or touching “Dial”.
Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch
Push the switch of the steering
wheel.
Touch “Cancel”. (Except for recogniz-
ing the command)
Say “Cancel”

OTHER FUNCTIONS
135
(vii) By POI call
5U5051F
You can call by touching when
it is displayed on the screen from navi-
gation system. (See page 25 for de-
tails.)
5U5052F
When a call is received, this screen is
displayed with a sound. Touch
or
push the
switch of the steering
wheel to talk on the phone.
To hang up the phone:
Touch
or push the switch of
the steering wheel again.
To refuse to receive the call:
Touch
and hold it.
To adjust the volume of received call:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed cor-
rectly depending on the cellular phone
which you have.
— Receive on the
Bluetooth phone

OTHER FUNCTIONS
136
5U5053F
While you are talking on the phone, this
screen is displayed. You can do the op-
eration below on the screen.
To adjust the volume of the other party’s
voice:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push the switch of
the steering wheel.
To mute your voice:
Touch “Mute”.
To input a Key:
Touch “09”.
To transfer the call
Touch “Transfer Call”.
You cannot change from Hands−free call
to cellular phone call while driving.
When you change from cellular phone call
to Hands−free call, the Hands−free screen
will be displayed and you can operate it on
the screen.
Transferring method and behavior are dif-
ferent depending on the cellular phone
which you have.
For the operation of the phone, see the
manual that comes with your cellular
phone.
5U5054F
Touch the desired number to input the key.
To hang up the phone:
Touch
or push the switch of
the steering wheel.
This cannot be operated while driving.
— Talk on the Bluetooth
phone

OTHER FUNCTIONS
137
5U5055F
If the continuous tone signal is regis-
tered in a phone book, this screen ap-
pears. (If not registered, “Send” and
“Exit” are not displayed.)
Confirm the number displayed on the
screen and touch “Send”. The number
before marked sign will be sent.
When you touch “Exit”, this function will
be finished and normal tone screen ap-
pears.
To hang up the phone:
Touch
or push the switch of
the steering wheel.
The continuous tone signal is the marked
sign (p or w) and the number following tele-
phone number. (ex. 056133p0123w#1
)
You can do this operation when you want
to operate an answering machine or use a
telephone service in bank for example.
You can register the phone number and
the code number in the phone book.
Sending a tone by the speed tone
You can send a tone by the speed tone.
(For registering the speed tone, see
“Registering the speed tone” on page
140.)
5U5056F
1. Touch “Speed Tone”.
5U5057F
2. Touch the desired switch to send a
tone.

OTHER FUNCTIONS
145

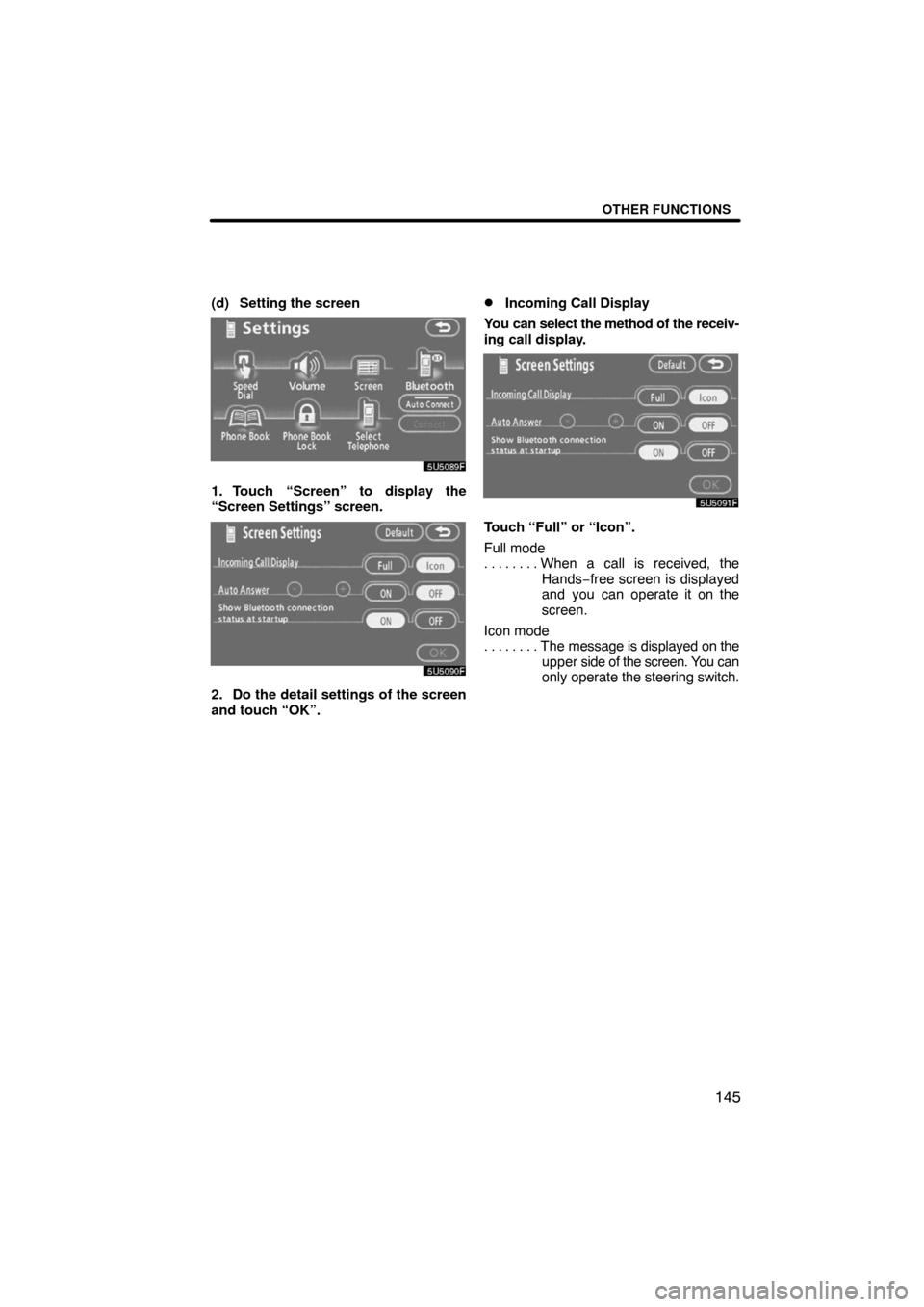

(d) Setting the screen
5U5089F
1. Touch “Screen” to display the
“Screen Settings” screen.
5U5090F
2. Do the detail settings of the screen
and touch “OK”.
Incoming Call Display
You can select the method of the receiv-
ing call display.
5U5091F
Touch “Full” or “Icon”.
Full mode
When a call is received, the . . . . . . . .
Hands−free screen is displayed
and you can operate it on the
screen.
Icon mode
The message is displayed on the . . . . . . . .
upper side of the screen. You can
only operate the steering switch.
