4-3. Do-it-yourself maintenance
4
Maintenance and care
26 PANEL
7.5 AInstrument panel lights, glove box
light, ashtray, accessory meter,
audio system, rear view monitor,
navigation system, rear seat enter-
tainment system, gauges and
meters, air conditioning system,
seat heater or heated and venti-
lated switches
27 ACC 7.5 AAccessory meter, audio system,
rear seat entertainment system,
rear view monitor, navigation sys-
tem, back-up lights, trailer lights
(back-up lights), multiplex commu-
nication system, power outlet, out-
side rear view mirror
28 BK/UP LP 10 A Back-up light, gauges and meters
29 CIG 15 A Cigarette lighter
30 POWER No.1 30 A Power windows, power back win-
dow
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 483)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
FuseAmpereCircuit

482 4-3. Do-it-yourself maintenance
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 554)

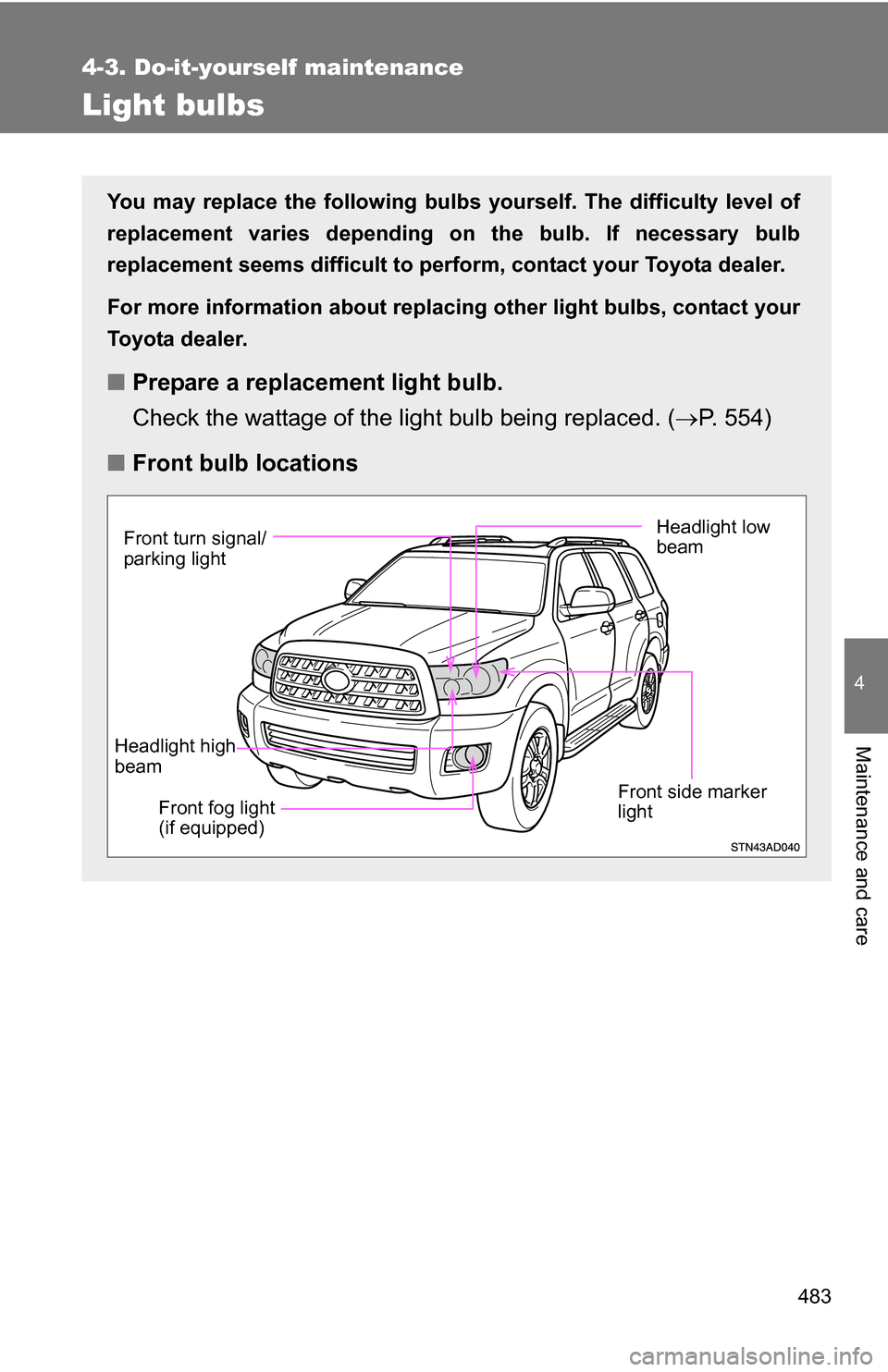

■ Front bulb locations
Headlight low
beam
Front side marker
light
Headlight high
beam Front fog light
(if equipped)
Front turn signal/
parking light

484 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight high beam
Unplug the connector while
depressing the lock release.

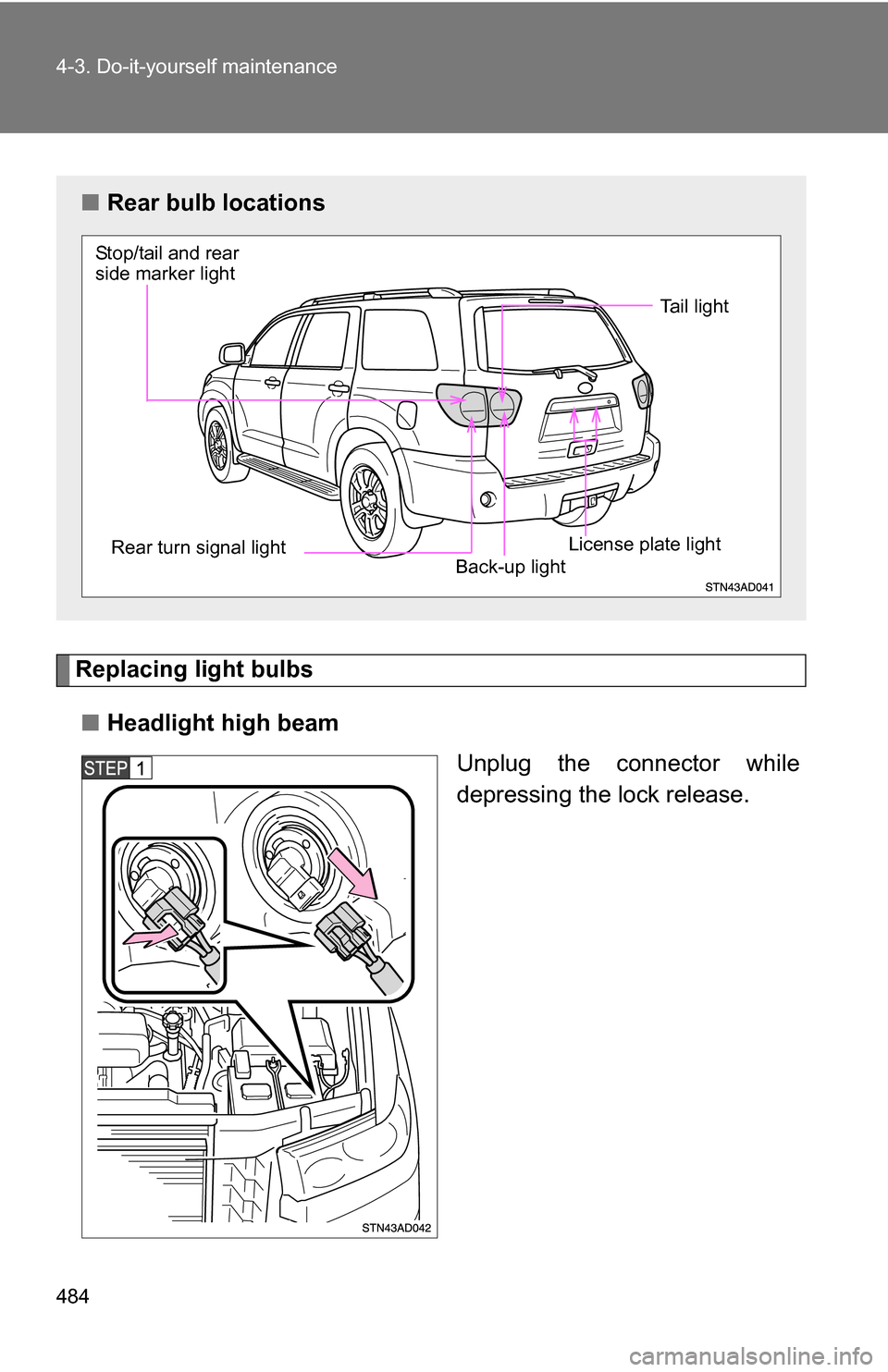

■Rear bulb locations
Stop/tail and rear
side marker light
Rear turn signal light
License plate lightBack-up light
Tail light

485
4-3. Do-it-yourself maintenance
4
Maintenance and care

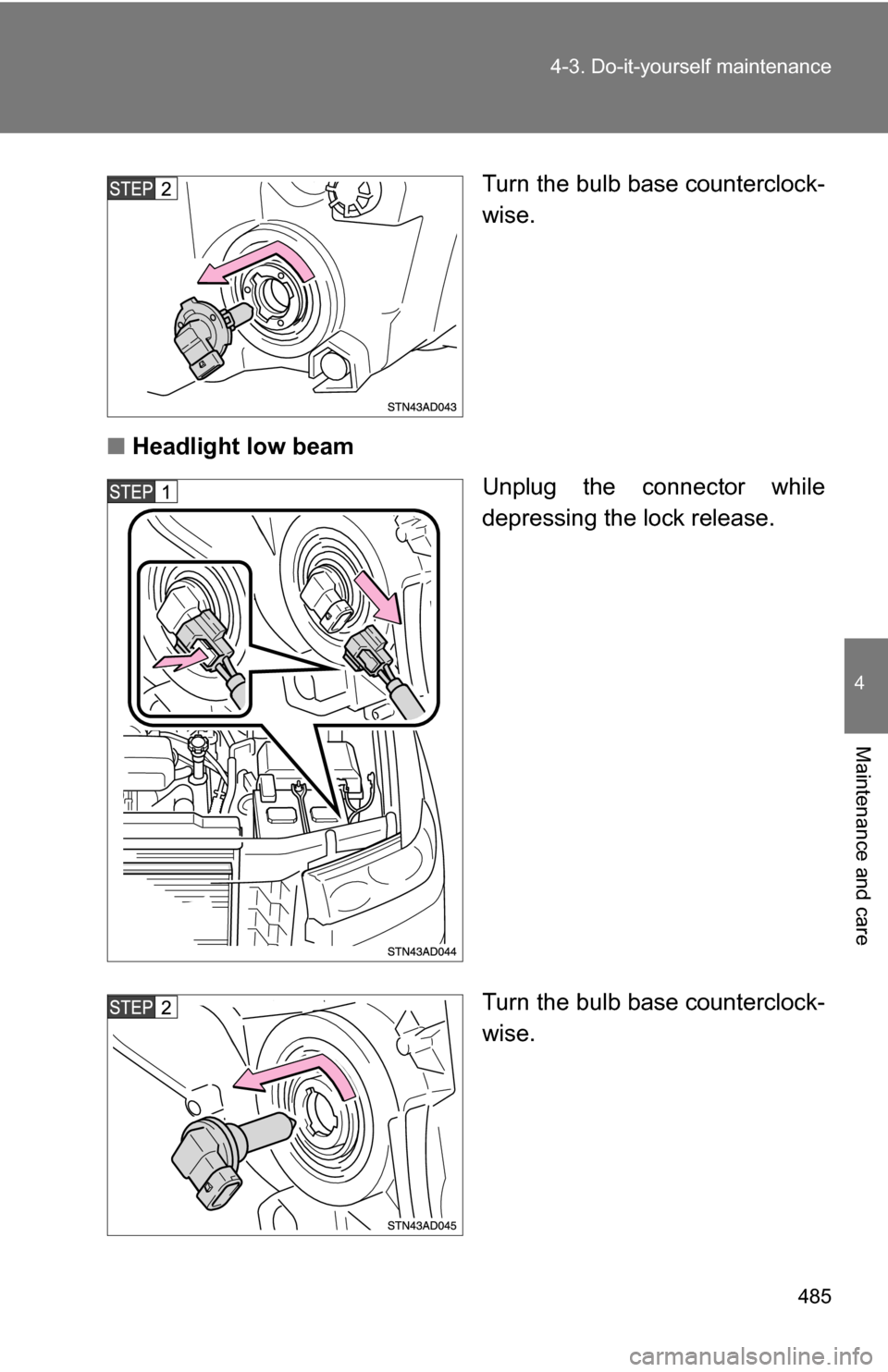

Turn the bulb base counterclock-
wise.
■ Headlight low beam
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.

486 4-3. Do-it-yourself maintenance

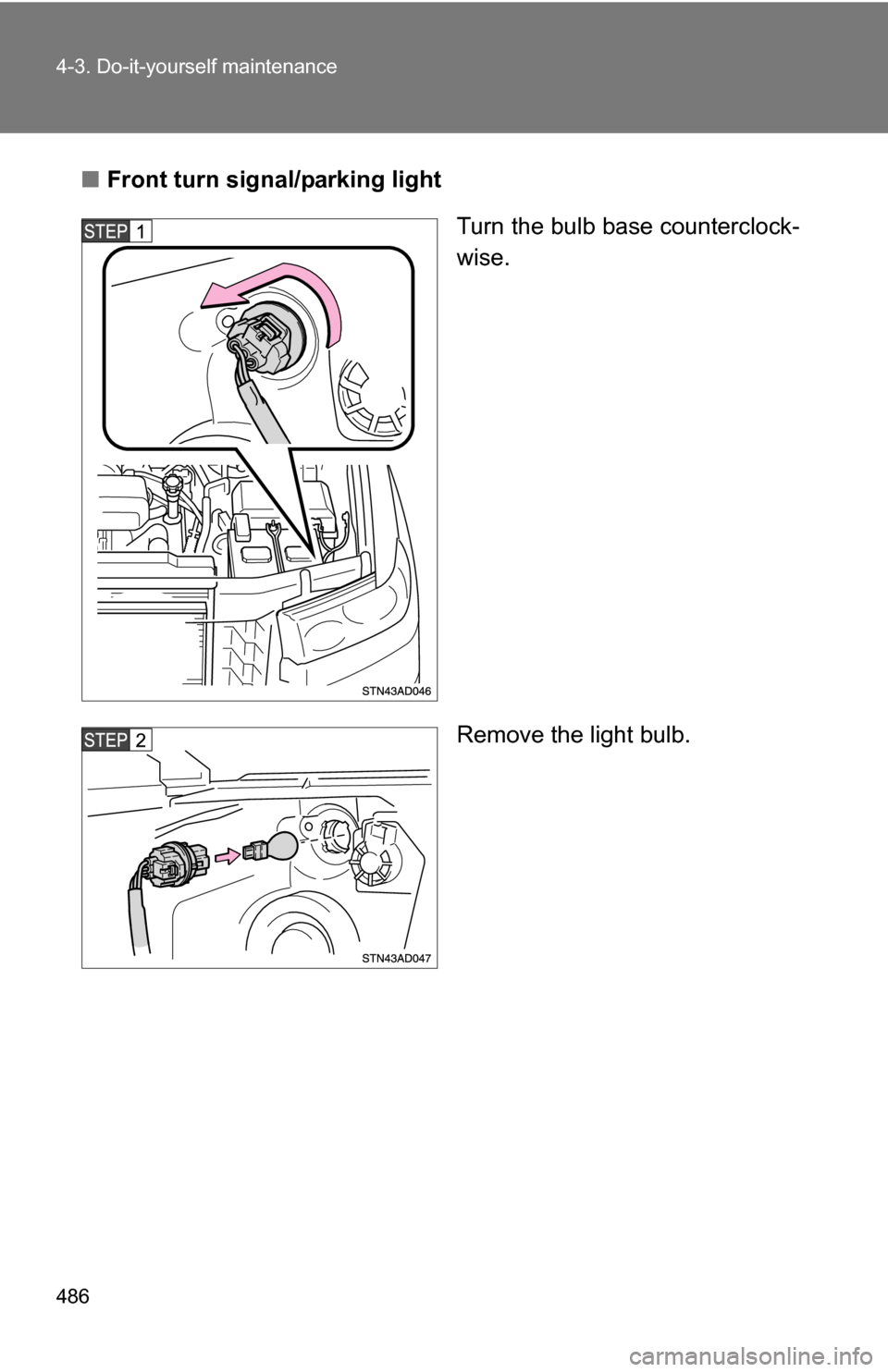

■Front turn signal/parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

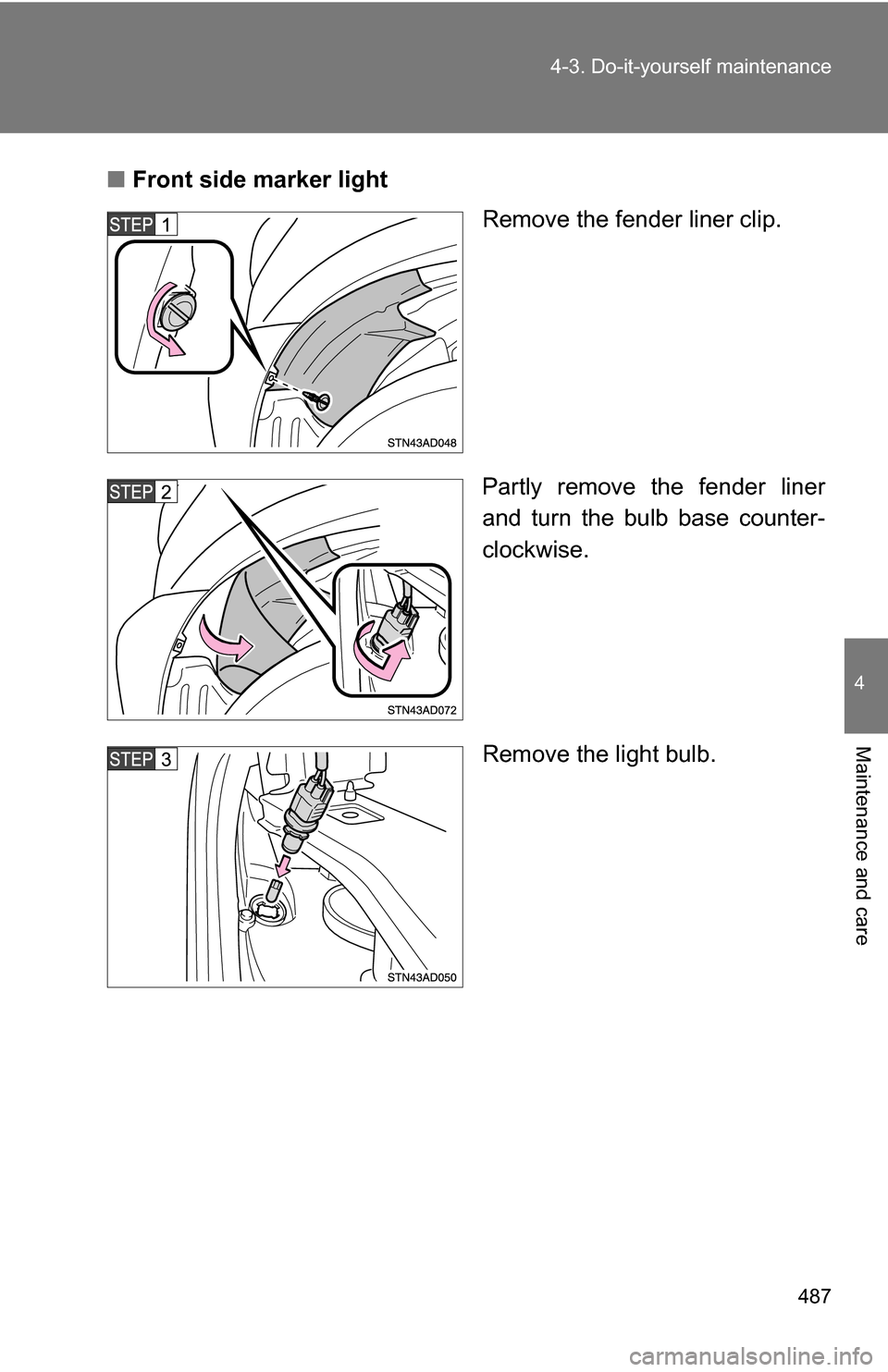

Front side marker light
Remove the fender liner clip.
Partly remove the fender liner
and turn the bulb base counter-
clockwise.
Remove the light bulb.

488 4-3. Do-it-yourself maintenance

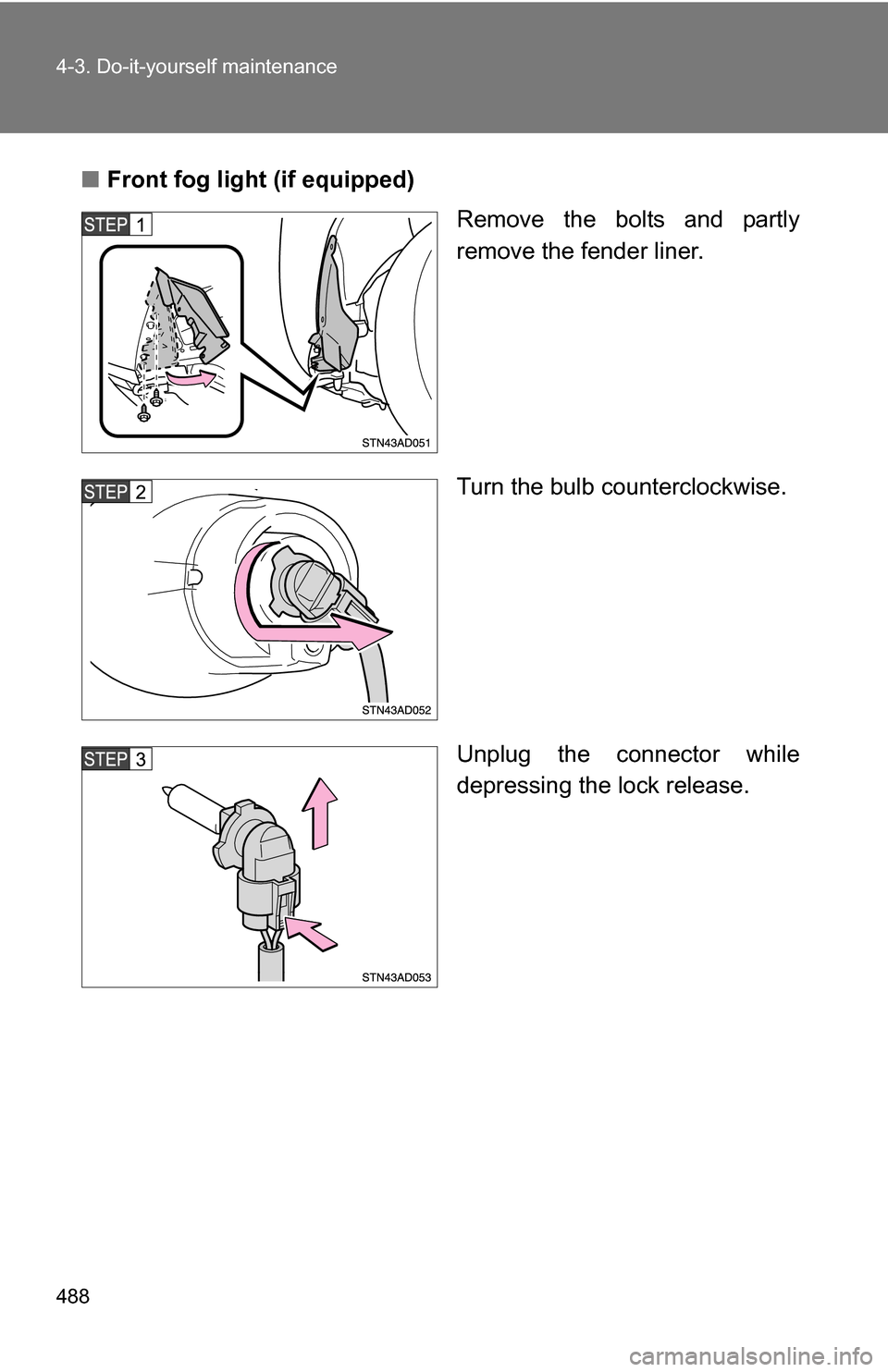

■Front fog light (if equipped)
Remove the bolts and partly
remove the fender liner.
Turn the bulb counterclockwise.
Unplug the connector while
depressing the lock release.

489
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

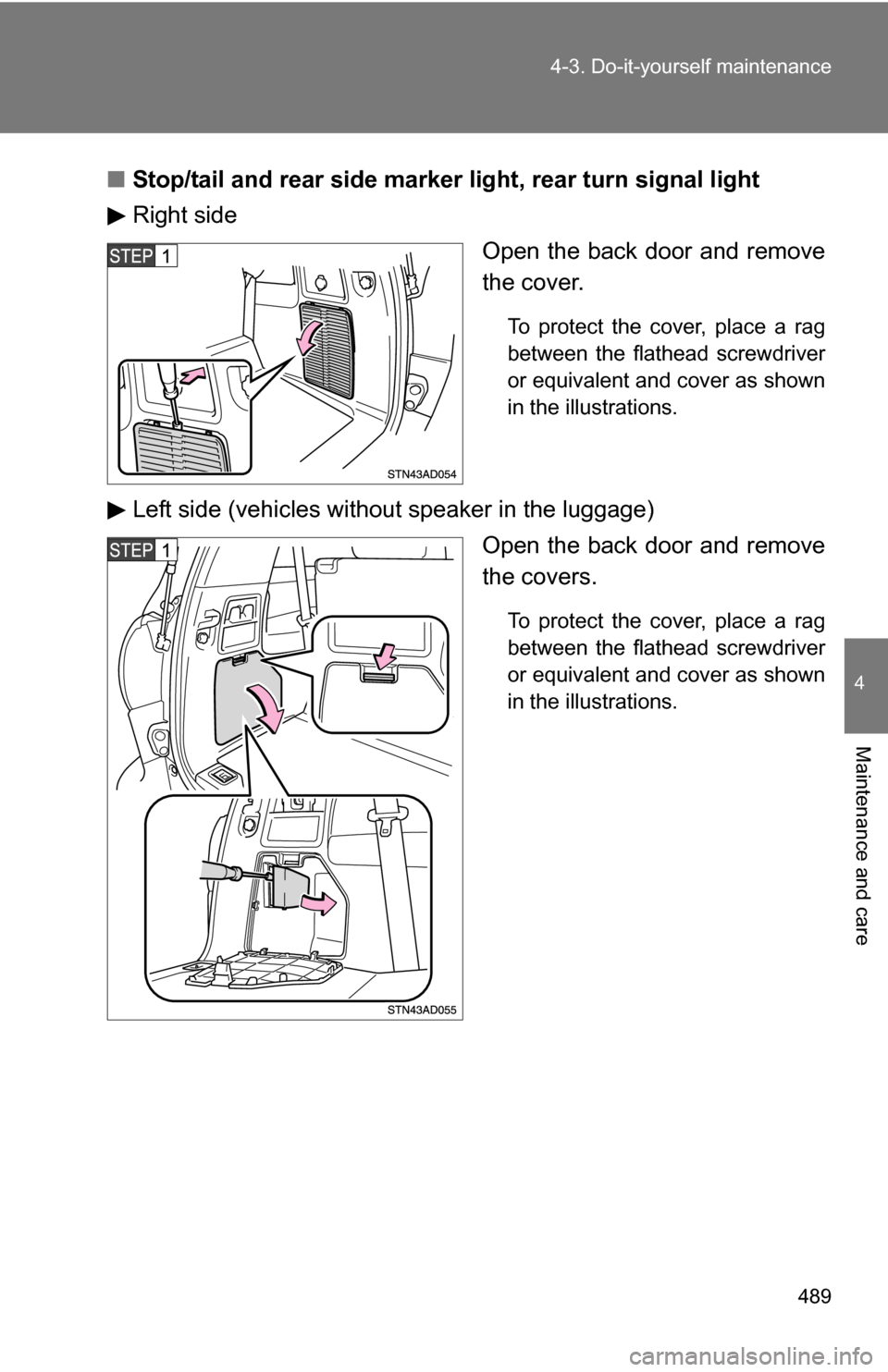

Stop/tail and rear side marker light, rear turn signal light
Right side
Open the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
or equivalent and cover as shown
in the illustrations.
Left side (vehicles without speaker in the luggage)Open the back door and remove
the covers.
To protect the cover, place a rag
between the flathead screwdriver
or equivalent and cover as shown
in the illustrations.

490 4-3. Do-it-yourself maintenance

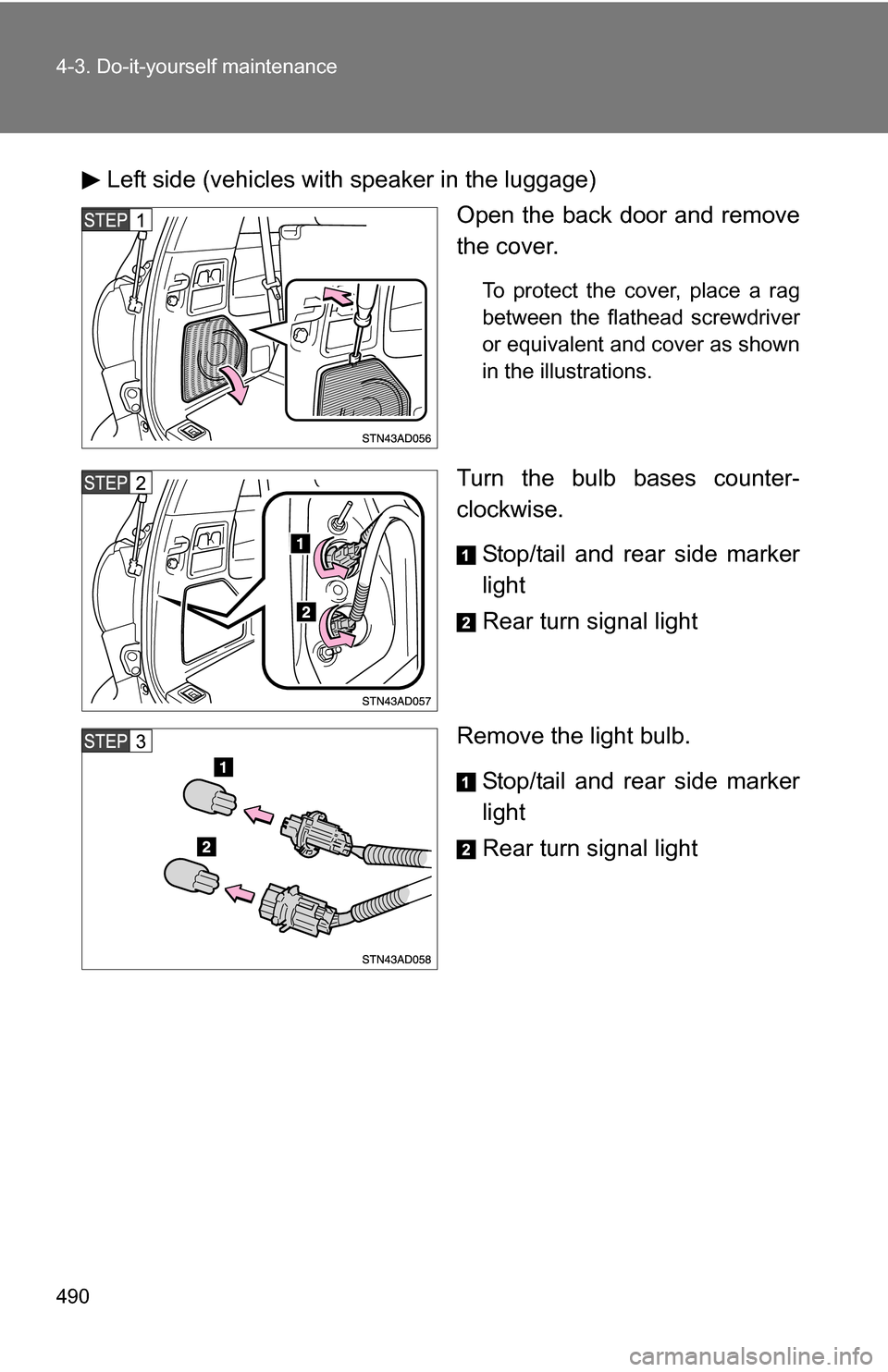

Left side (vehicles with speaker in the luggage)Open the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
or equivalent and cover as shown
in the illustrations.
Turn the bulb bases counter-
clockwise.
Stop/tail and rear side marker
light
Rear turn signal light
Remove the light bulb. Stop/tail and rear side marker
light
Rear turn signal light
