immobilizer TOYOTA SEQUOIA 2008 2.G Owners Manual

TABLE OF CONTENTSIndex
2
1-1. Key information .................. 32Keys ..................................... 32
1-2. Opening, closing and
locking the doors ............. 33
Wireless remote control ....... 33
Side doors ............................ 37
Back door ............................. 41
1-3. Adjustable components
(seats, mirrors, steering
wheel) ................................ 46
Front seats ........................... 46
Rear seats ............................ 49
Driving position memory system ................................ 59
Head restraints ..................... 62
Seat belts ............................. 64
Steering wheel (manually adjustable type) .................. 74
Steering wheel (power-adjustable type)...... 75
Anti-glare inside rear view mirror .................................. 76
Outside rear view mirrors ..... 79
Roof luggage carrier............. 83
1-4. Opening and closing the windows and
moon roof ......................... 85
Power windows .................... 85
Power back window ............. 87
Moon roof ............................. 89 1-5. Refueling ............................. 92
Opening the fuel tank cap..... 92
1-6. Theft deterrent system ....... 96 Engine immobilizer system ... 96
Alarm .................................... 98
Theft prevention labels (U.S.A.)............................. 100
1-7. Safety information ............ 101 Correct driving posture ....... 101
SRS airbags ....................... 103
Front passenger occupant classification system ......... 116
Child restraint systems ....... 121
Installing child restraints ..... 124
2-1. Driving procedures........... 136 Driving the vehicle .............. 136
Engine (ignition) switch....... 145
Automatic
transmission
(6-speed models)
............... 148
Automatic transmission (5-speed models) ............. 152
Turn signal lever ................. 155
Parking brake ..................... 156
2-2. Instrument cluster ............ 157 Gauges and meters ............ 157
Indicators and warning lights ................................. 162
Multi-information display ..... 167
Accessory meter ................. 172
1Before driving
2When driving

Before driving1
31
1-1. Key information................ 32Keys ................................... 32
1-2. Opening, closing and locking the doors ........... 33
Wireless remote control ..... 33
Side doors .......................... 37
Back door ........................... 41
1-3. Adjustable components (seats, mirrors, steering
wheel).............................. 46
Front seats ......................... 46
Rear seats.......................... 49
Driving position memory system ............................. 59
Head restraints................... 62
Seat belts ........................... 64
Steering wheel (manually adjustable type) ............... 74
Steering wheel (power-adjustable type) ... 75
Anti-glare inside rear view mirror ............................... 76
Outside rear view mirrors ... 79
Roof luggage carrier .......... 83 1-4. Opening and closing
the windows and
moon roof ....................... 85
Power windows .................. 85
Power back window ........... 87
Moon roof ........................... 89
1-5. Refueling........................... 92 Opening the fuel tank cap ................................... 92
1-6. Theft deterrent system .... 96 Engine immobilizer system ............................. 96
Alarm.................................. 98
Theft prevention labels (U.S.A.) .......................... 100
1-7. Safety information ......... 101 Correct driving posture..... 101
SRS airbags ..................... 103
Front passenger occupant classification system ...... 116
Child restraint systems..... 121
Installing child restraints... 124

96
1-6. Theft deterrent system
Engine immobilizer system
■System maintenance
The vehicle has a maintenance-free type of engine immobilizer system.
■ Conditions that may cause the system to malfunction
●If the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
■ Certifications for the en gine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: MOZRI-21BTY
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
The vehicle's keys have built-in tran sponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle's on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator flashes after the
key has been removed from
the engine switch to indicate
that the system is operating.

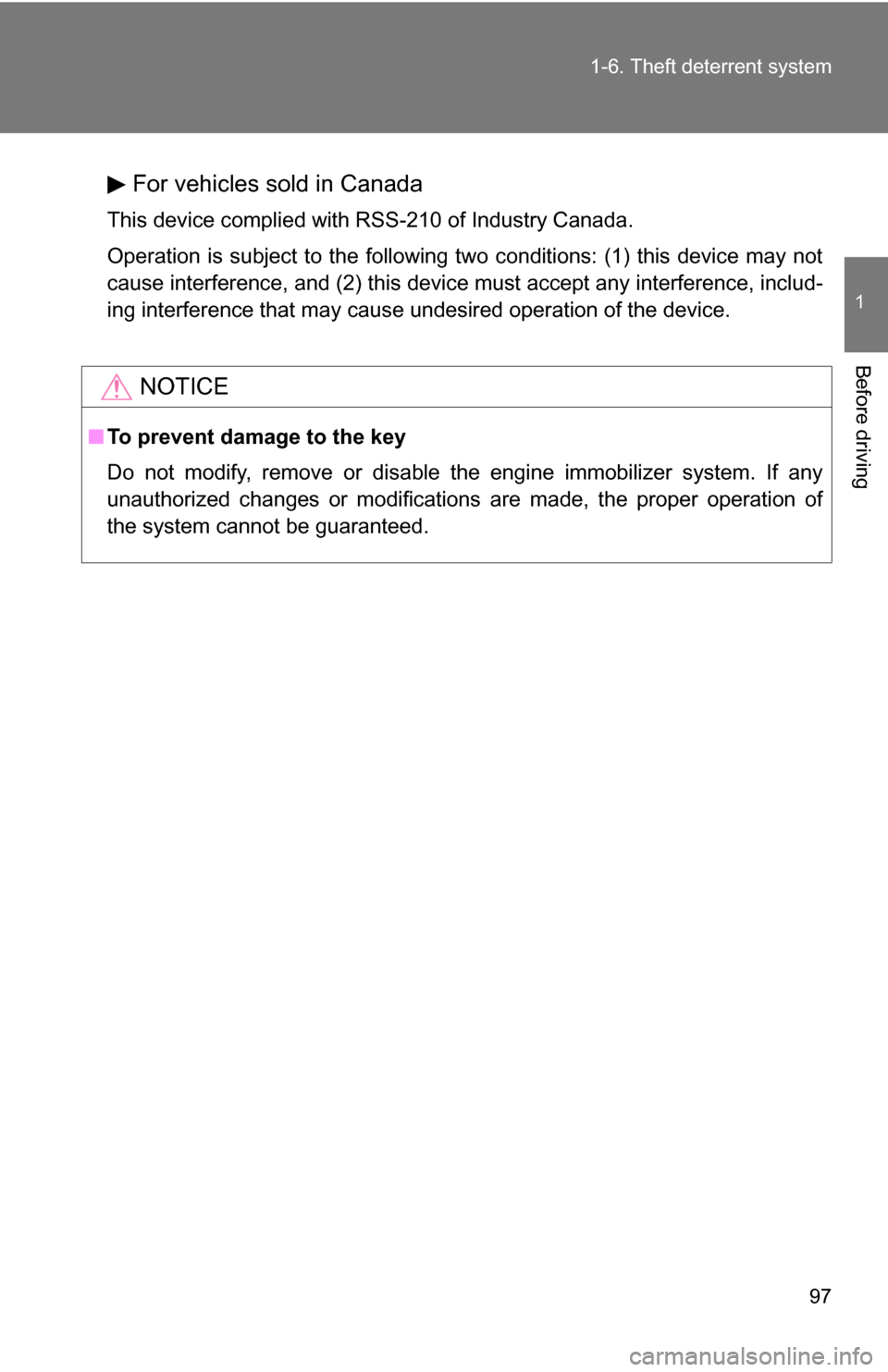

97
1-6. Theft deterrent system
1
Before driving
For vehicles sold in Canada
This device complied with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
NOTICE
■
To prevent damage to the key
Do not modify, remove or disable the engine immobilizer system. If any
unauthorized changes or modifications are made, the proper operation of
the system cannot be guaranteed.

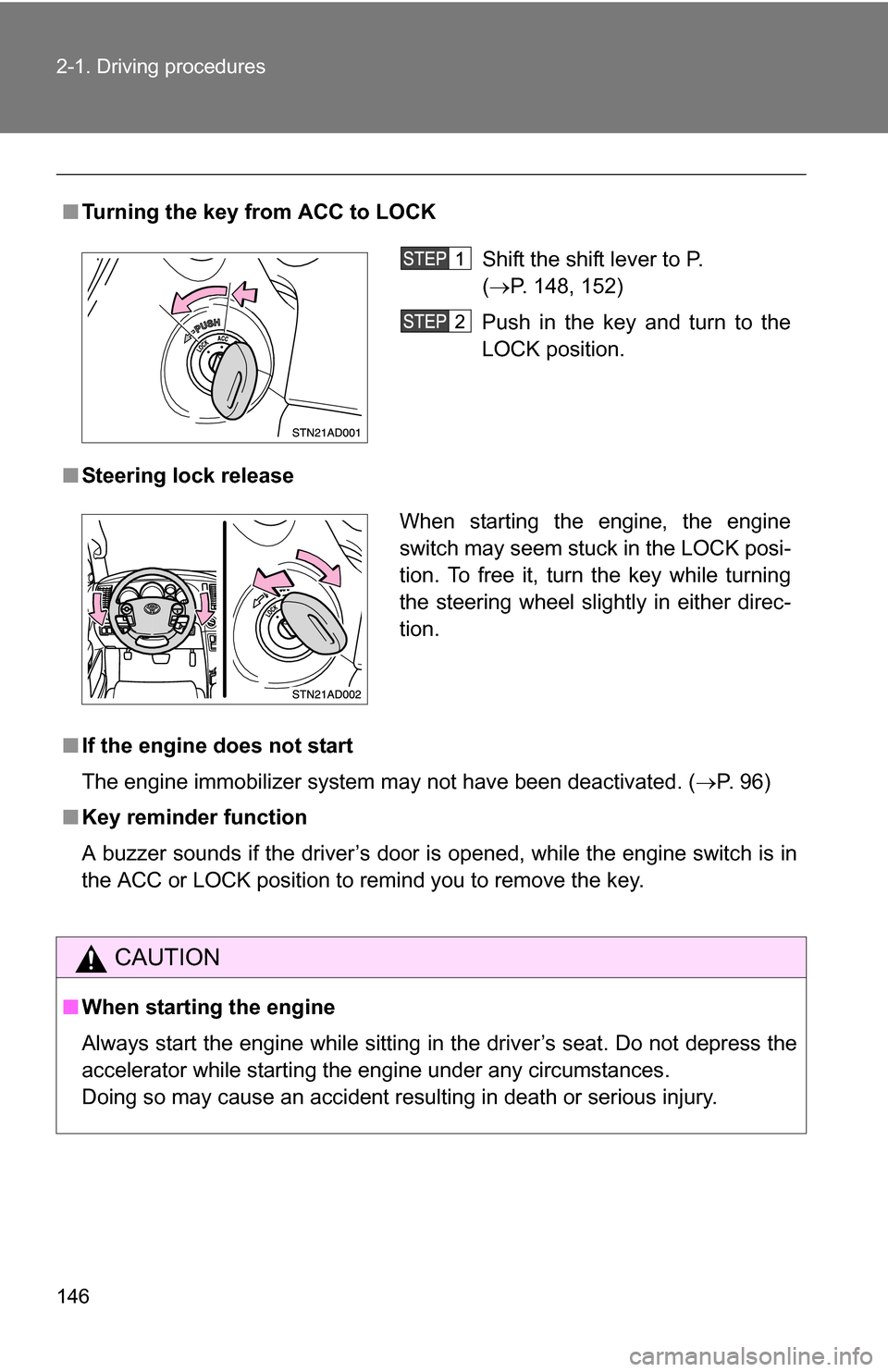

146 2-1. Driving procedures
■Turning the key from ACC to LOCK
■ Steering lock release
■ If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 96)
■ Key reminder function
A buzzer sounds if the driver’s door is opened, while the engine switch is in
the ACC or LOCK position to remind you to remove the key.
CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
Shift the shift lever to P.
(P. 148, 152)
Push in the key and turn to the
LOCK position.
When starting the engine, the engine
switch may seem stuck in the LOCK posi-
tion. To free it, turn the key while turning
the steering wheel slightly in either direc-
tion.

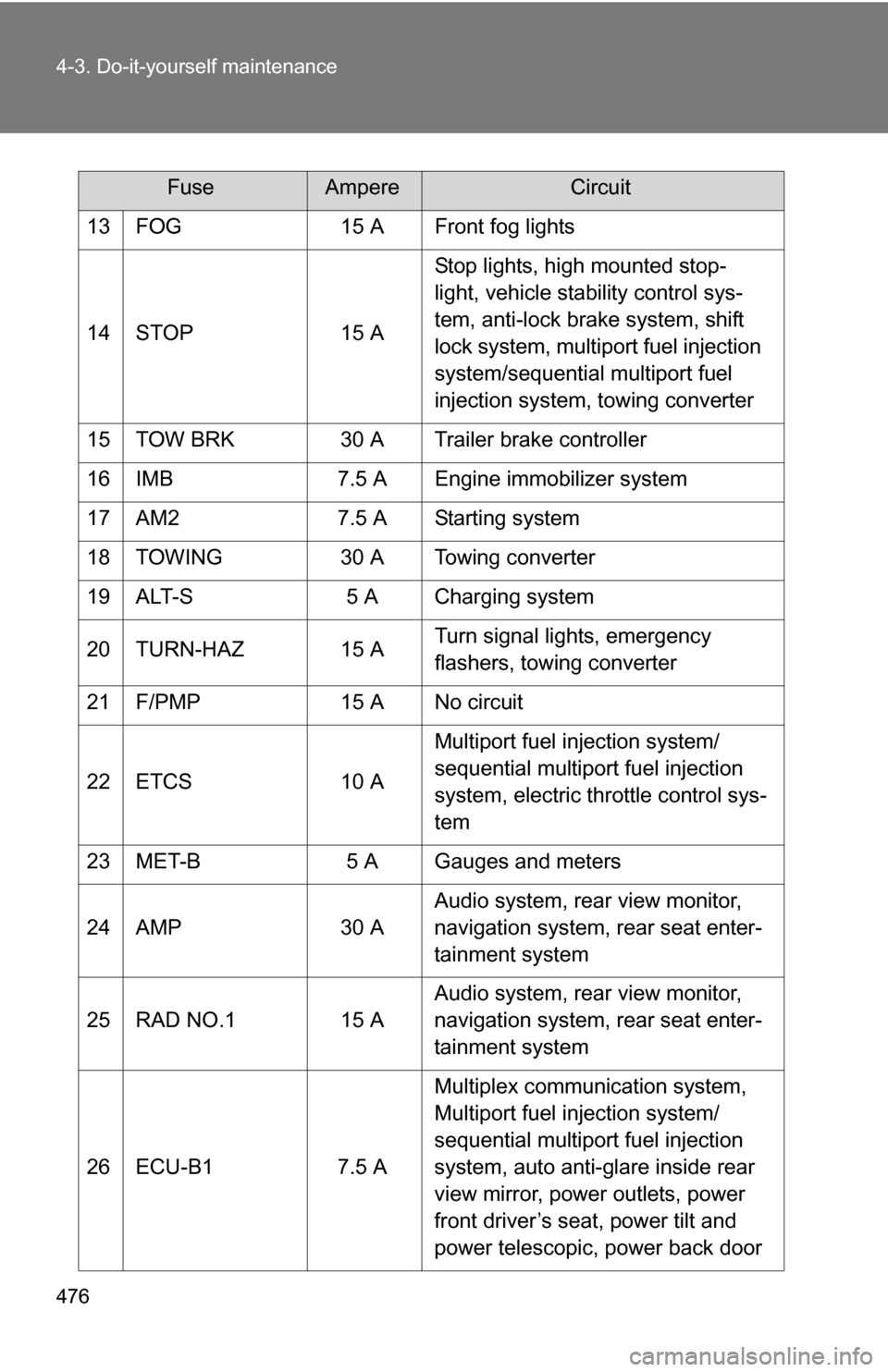

476 4-3. Do-it-yourself maintenance
13 FOG15 A Front fog lights
14 STOP 15 AStop lights, high mounted stop-
light, vehicle stability control sys-
tem, anti-lock brake system, shift
lock system, multiport fuel injection
system/sequential multiport fuel
injection system, towing converter
15 TOW BRK 30 A Trailer brake controller
16 IMB 7.5 A Engine immobilizer system
17 AM2 7.5 A Starting system
18 TOWING 30 A Towing converter
19 ALT-S 5 A Charging system
20 TURN-HAZ 15 A Turn signal lights, emergency
flashers, towing converter
21 F/PMP 15 A No circuit
22 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, electric throttle control sys-
tem
23 MET-B 5 A Gauges and meters
24 AMP 30 AAudio system, rear view monitor,
navigation system, rear seat enter-
tainment system
25 RAD NO.1 15 A Audio system, rear view monitor,
navigation system, rear seat enter-
tainment system
26 ECU-B1 7.5 AMultiplex communication system,
Multiport fuel injection system/
sequential multiport fuel injection
system, auto anti-glare inside rear
view mirror, power outlets, power
front driver’s seat, power tilt and
power telescopic, power back door
FuseAmpereCircuit

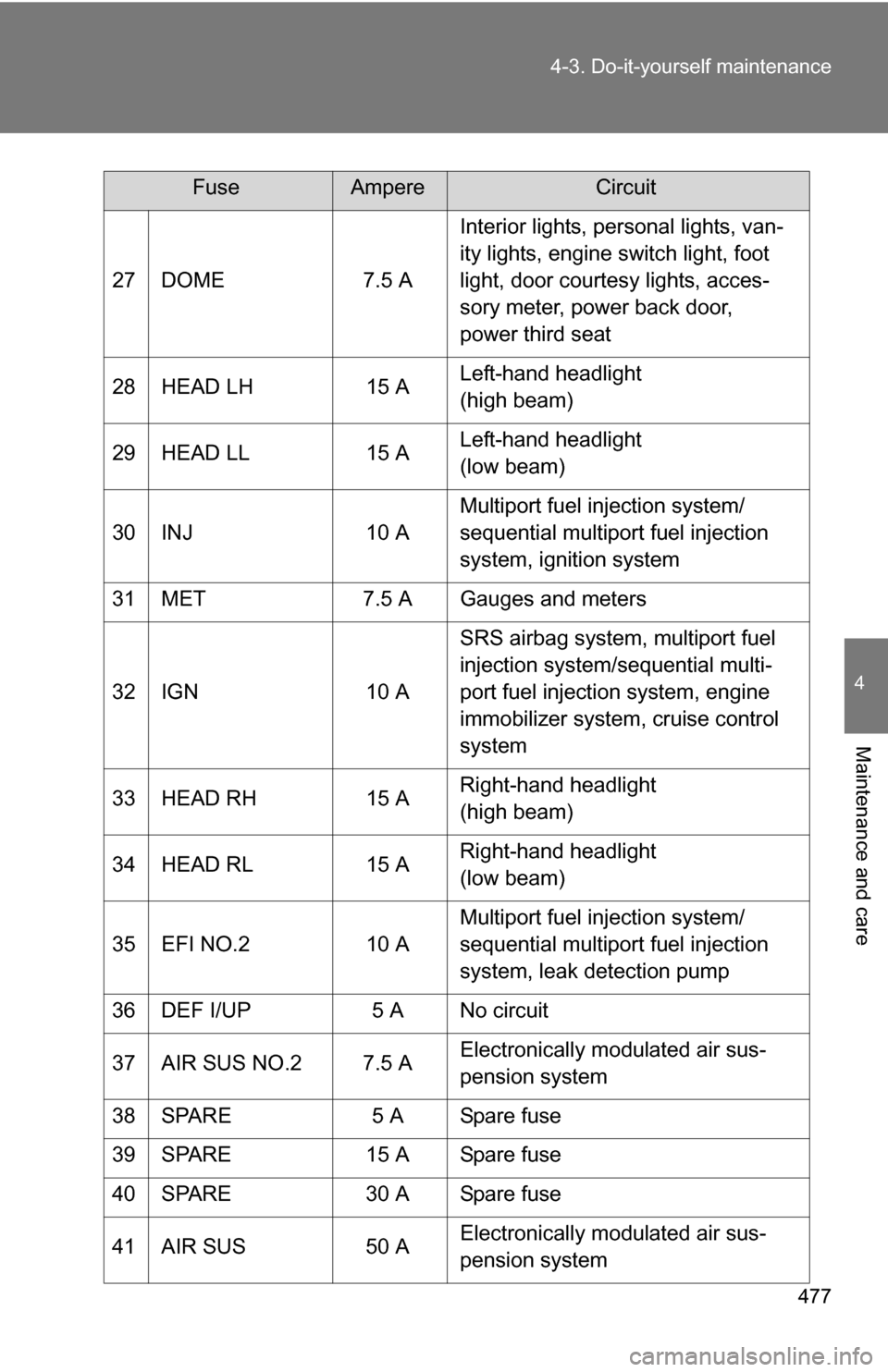

477
4-3. Do-it-yourself maintenance
4
Maintenance and care
27 DOME
7.5 AInterior lights, personal lights, van-
ity lights, engine switch light, foot
light, door courtesy lights, acces-
sory meter, power back door,
power third seat
28 HEAD LH 15 ALeft-hand headlight
(high beam)
29 HEAD LL 15 ALeft-hand headlight
(low beam)
30 INJ 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, ignition system
31 MET 7.5 A Gauges and meters
32 IGN 10 ASRS airbag system, multiport fuel
injection system/sequential multi-
port fuel injection system, engine
immobilizer system, cruise control
system
33 HEAD RH 15 ARight-hand headlight
(high beam)
34 HEAD RL 15 ARight-hand headlight
(low beam)
35 EFI NO.2 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, leak detection pump
36 DEF I/UP 5 A No circuit
37 AIR SUS NO.2 7.5 A Electronically modulated air sus-
pension system
38 SPARE 5 A Spare fuse
39 SPARE 15 A Spare fuse
40 SPARE 30 A Spare fuse
41 AIR SUS 50 AElectronically modulated air sus-
pension system
FuseAmpereCircuit

5
When trouble arises

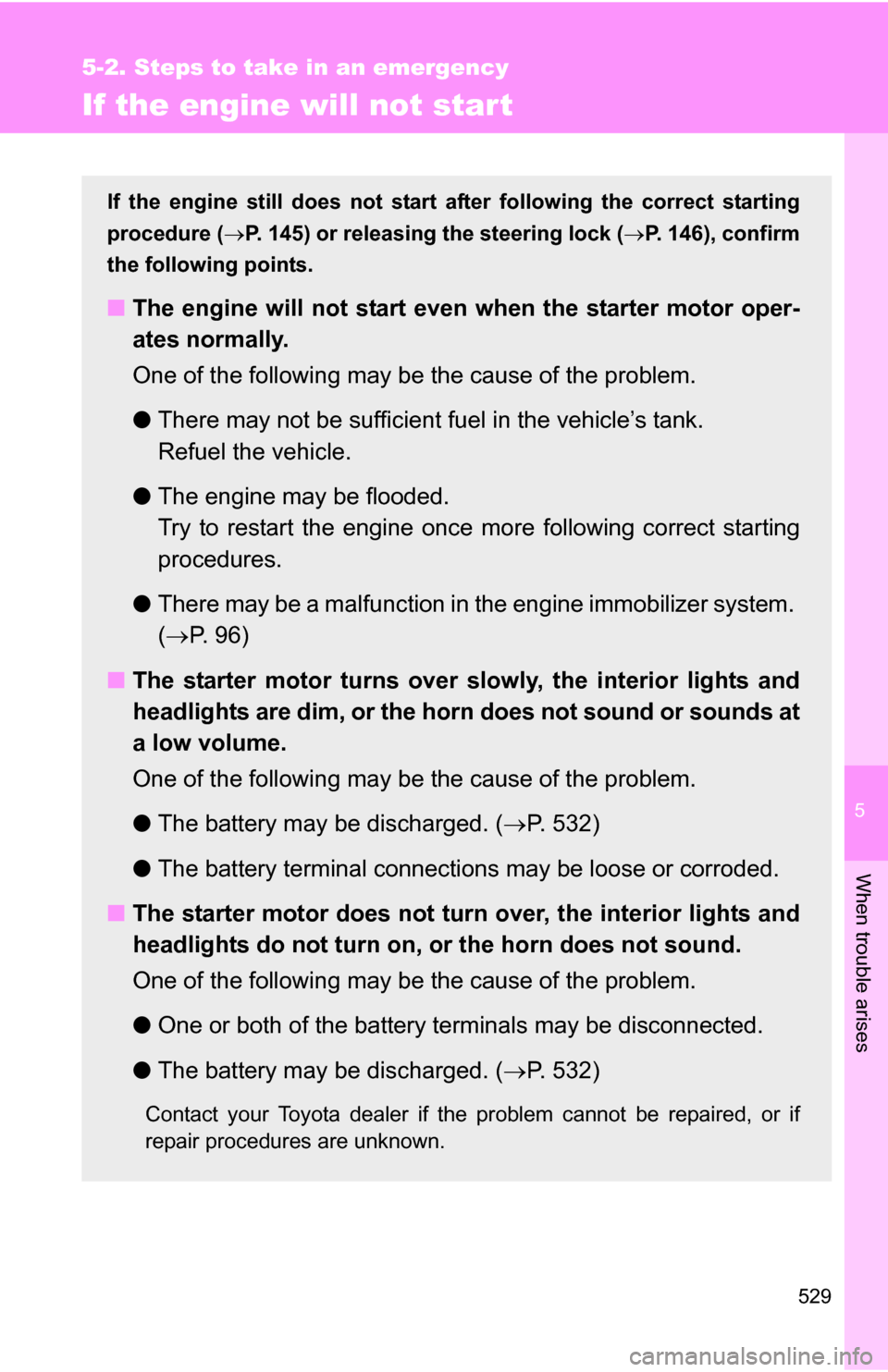

529
5-2. Steps to take in an emergency
If the engine will not star t
If the engine still does not start after following the correct starting
procedure ( P. 145) or releasing the steering lock (P. 146), confirm
the following points.
■ The engine will not start even when the starter motor oper-
ates normally.
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures.
● There may be a malfunction in the engine immobilizer system.
(  P. 9 6 )
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
●The battery may be discharged. ( P. 532)
● The battery terminal connec tions may be loose or corroded.
■ The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( P. 532)
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises

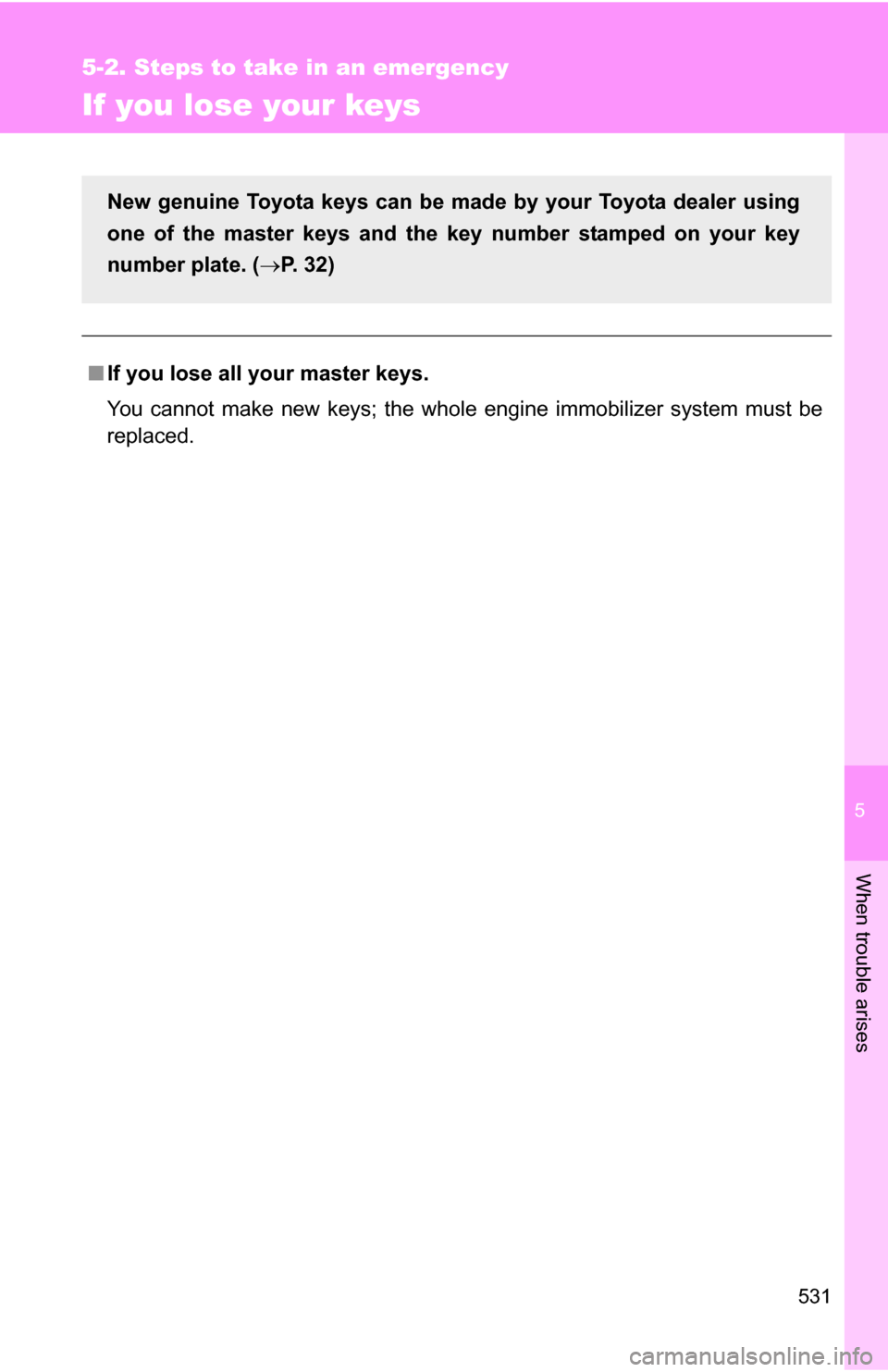

531
5-2. Steps to take in an emergency
If you lose your keys
■If you lose all your master keys.
You cannot make new keys; the whole engine immobilizer system must be
replaced.
New genuine Toyota keys can be made by your Toyota dealer using
one of the master keys and the key number stamped on your key
number plate. ( P. 32)

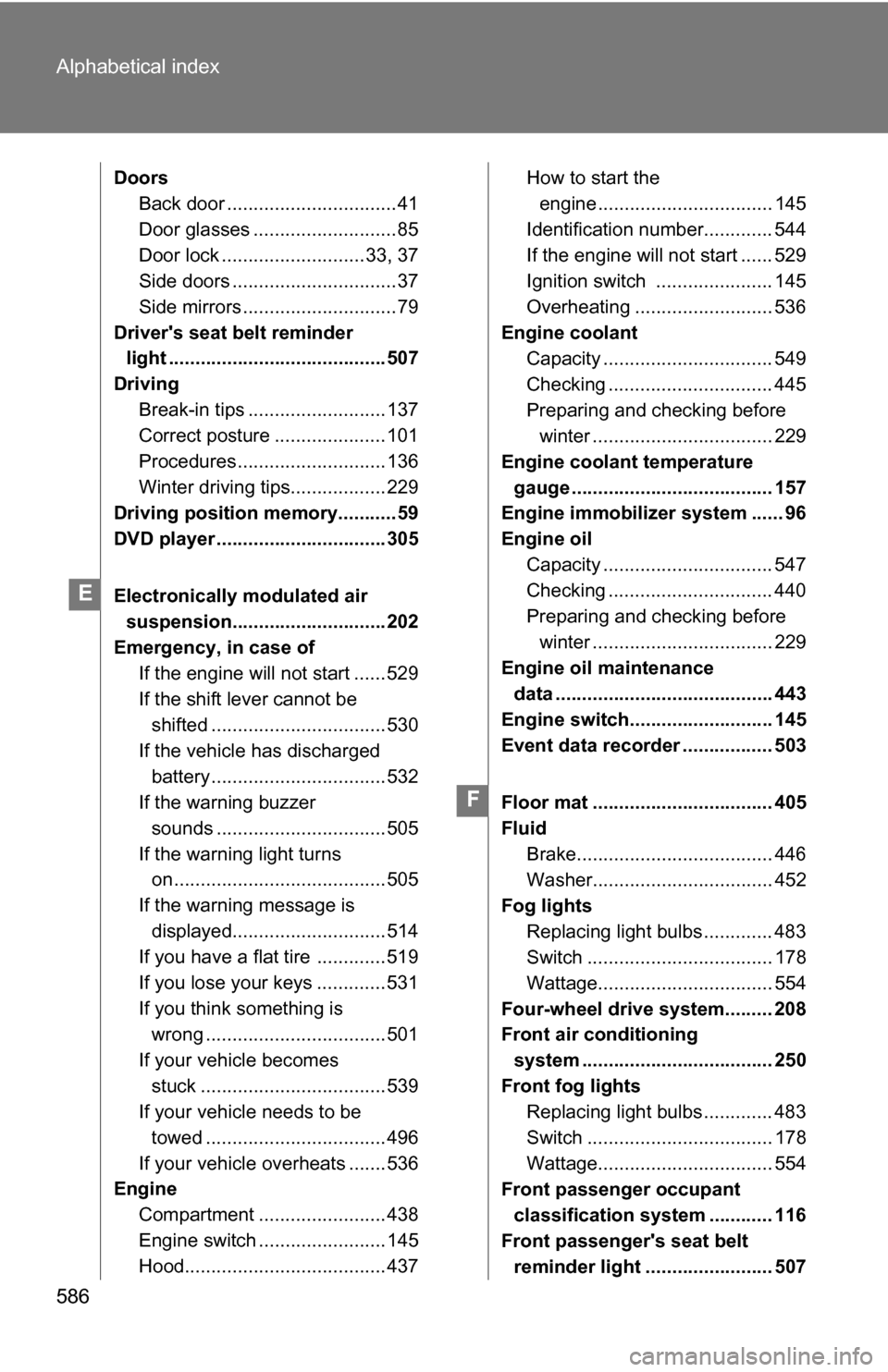

586 Alphabetical index
DoorsBack door ................................41
Door glasses ...........................85
Door lock ...........................33, 37
Side doors ...............................37
Side mirrors .............................79
Driver's seat belt reminder light ......................................... 507
Driving Break-in tips .......................... 137
Correct posture ..................... 101
Procedures ............................ 136
Winter driving tips.................. 229
Driving position memory...........59
DVD player ................................ 305
Electronically modulated air
suspension............................. 202
Emergency, in case of
If the engine will not start ...... 529
If the shift lever cannot be shifted ................................. 530
If the vehicle has discharged battery ................................. 532
If the warning buzzer
sounds ................................ 505
If the warning light turns on ........................................ 505
If the warning message is displayed............................. 514
If you have a flat tire ............. 519
If you lose your keys ............. 531
If you think something is wrong .................................. 501
If your vehicle becomes stuck ................................... 539
If your vehicle needs to be
towed .................................. 496
If your vehicle overheats ....... 536
Engine
Compartment ........................ 438
Engine switch ........................ 145
Hood...................................... 437 How to start the
engine ................................. 145
Identification number............. 544
If the engine will not start ...... 529
Ignition switch ...................... 145
Overheating .......................... 536
Engine coolant Capacity ................................ 549
Checking ............................... 445
Preparing and checking before winter .................................. 229
Engine coolan t temperature
gauge ...................................... 157
Engine immobilizer system ...... 96
Engine oil
Capacity ................................ 547
Checking ............................... 440
Preparing and checking before winter .................................. 229
Engine oil maintenance
data ......................................... 443
Engine switch........................... 145
Event data recorder ................. 503
Floor mat .................................. 405
Fluid Brake..................................... 446
Washer.................................. 452
Fog lights Replacing light bulbs ............. 483
Switch ................................... 178
Wattage................................. 554
Four-wheel drive system......... 208
Front air conditioning system .................................... 250
Front fog lights Replacing light bulbs ............. 483
Switch ................................... 178
Wattage................................. 554
Front passenger occupant
classification system ............ 116
Front passenger's seat belt reminder light ........................ 507
E
F
