cruise control TOYOTA SEQUOIA 2008 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 10Fuel tank door release and cap 9Hood release 9Indicator symbols 6-7Instrument cluster 5Instrument panel 2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating 22-23Audio 24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders 31Door locks 28Door-Power back 19Dynamic Laser Cruise Control 27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals 17Moonroof 20Multi-information display228Parking brake 15Power outlets-12V DC 30Power outlets-115V AC 30Rear seat entertainment system 25Seat adjustments-Front 13Seat adjustments-Rear 14Seat ventilators/Heaters 23Seats-Folding second row seats 15Seats-Folding third row seats 16Seats-Head restraints 13Steering wheel switches 26Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11Telephone controls (Bluetooth®)29“VSC OFF” button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts 32Seat belts-Shoulder belt anchor 32Spare tire & tools 33
Tire Pressure Warning System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2008 Sequoia Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate control1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
115V AC Power outlet main switch
1
Power back window switch
VSC OFF switch
Ignition switch
Tire Pressure Warning System reset
Personal/Interior light main switch
Steering wheel controls
(if equipped)

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning
Slip indicator
High/Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator“AUTO LSD” indicator
TOW/HAUL mode indicator
Height control indicator
Height control/MANUAL indicator

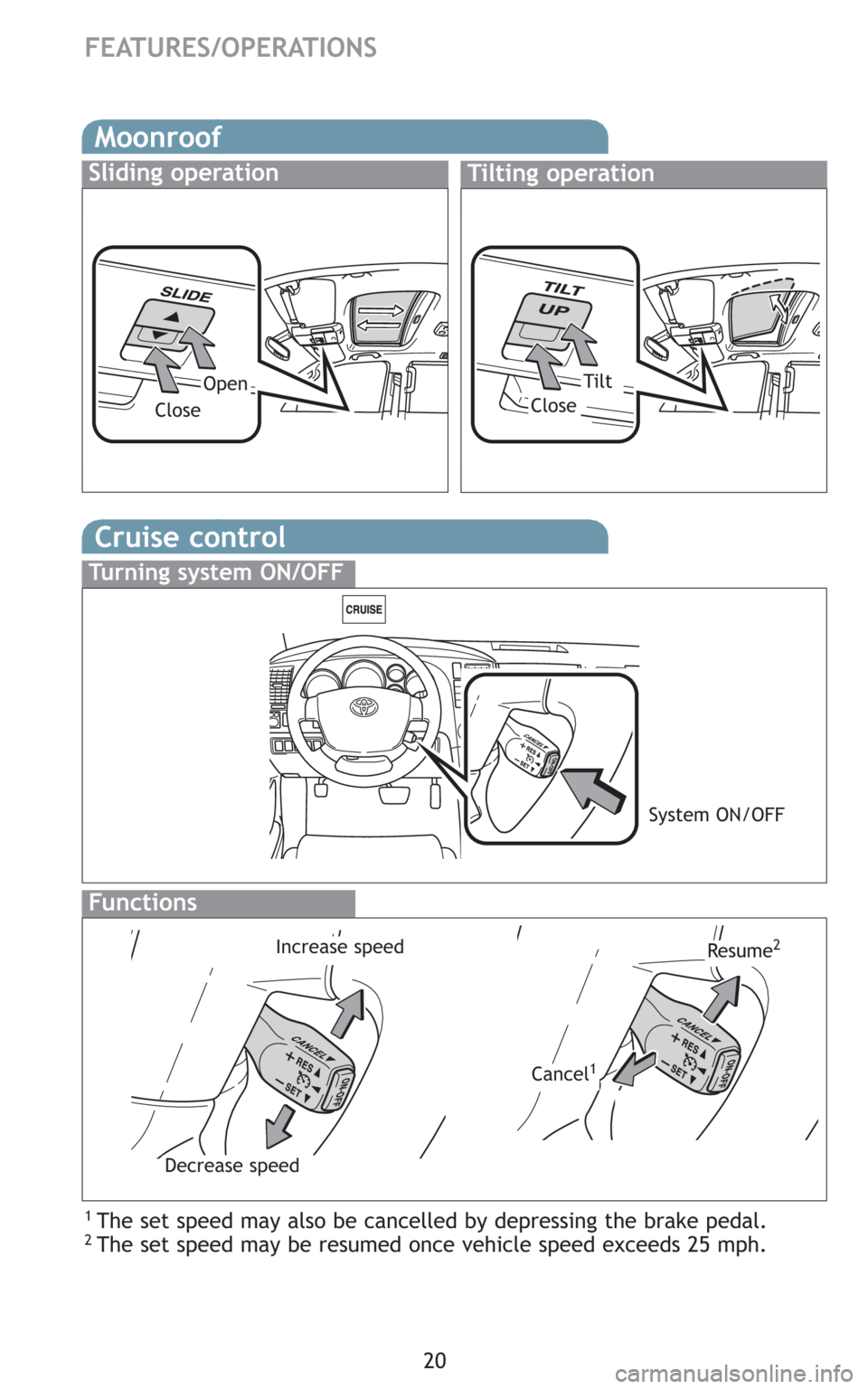

20
Moonroof
Sliding operationTilting operation
OpenTilt
CloseClose
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
FEATURES/OPERATIONS

27
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Distance control mode will cruise at a set speed, decelerate to maintain
selected distance from a slower vehicle traveling in front of you, and
accelerate back up to the selected speed if the vehicle traveling in front
of you changes lanes or speeds up.
(1) To select distance control modePush the ON-OFF button. The
“CRUISE” indicator will come on.
(2) To set, cancel and resume a speed Refer to instructions for Cruise
Controlon page 20.
Note:Once vehicle speed is set, pushing lever up toward “+ RES” will
increase speed to the nearest 5 mph, and then in 5 mph increments.
Pushing lever down toward “- SET” will reduce speed in the same way.
(3) To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will
change progressively from LONG to MIDDLE to SHORT.
Dynamic Laser Cruise Control (if equipped)
(1) To select conventional/fixed speed controlPush the ON-OFF button.
Push the lever forward and hold.
(2) To set, cancel and resume a speed Refer to instructions for Cruise
Controlon page 20.
Fixed speed mode
Refer to the Owner’s Manualfor more details and complete safety
precautions before attempting to use “Dynamic Laser Cruise Control.”
Distance control mode
LONG
MIDDLE
SHORT
