steering TOYOTA SEQUOIA 2008 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 10Fuel tank door release and cap 9Hood release 9Indicator symbols 6-7Instrument cluster 5Instrument panel 2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating 22-23Audio 24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders 31Door locks 28Door-Power back 19Dynamic Laser Cruise Control 27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals 17Moonroof 20Multi-information display228Parking brake 15Power outlets-12V DC 30Power outlets-115V AC 30Rear seat entertainment system 25Seat adjustments-Front 13Seat adjustments-Rear 14Seat ventilators/Heaters 23Seats-Folding second row seats 15Seats-Folding third row seats 16Seats-Head restraints 13Steering wheel switches 26Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11Telephone controls (Bluetooth®)29“VSC OFF” button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts 32Seat belts-Shoulder belt anchor 32Spare tire & tools 33
Tire Pressure Warning System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2008 Sequoia Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate control1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
115V AC Power outlet main switch
1
Power back window switch
VSC OFF switch
Ignition switch
Tire Pressure Warning System reset
Personal/Interior light main switch
Steering wheel controls
(if equipped)

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Instrument panel light control
Tilt and telescopic steering control switch1
Tilt and telescopic steering control lever1
Power back door main switch1
Roll Sensing of Curtain shield Airbag OFF switch
Headlight cleaner1
REVERSE TILT (side mirrors) switch1
Power back door button1
Power rearview mirror controls
1If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
Details on the center panel
area on next page

6
Indicator symbols
Charging system warning Brake system warning
AIR BAG ON indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
AIR BAG OFF indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2008
Owner’s Manual.
Headlight low/high beam indicator
Turn signal indicator
Low Tire Pressure Warning
Power steering warning
Open door warning
Airbag SRS warning
Master warning
Theft deterrent/Engine immobilizer system indicatorMalfunction/Check Engine indicator
Engine oil replacement reminder
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator
Shift position and shift range indicators
Vehicle Stability Control “OFF” indicator
Low windshield washer fluid level warning
OVERVIEW

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

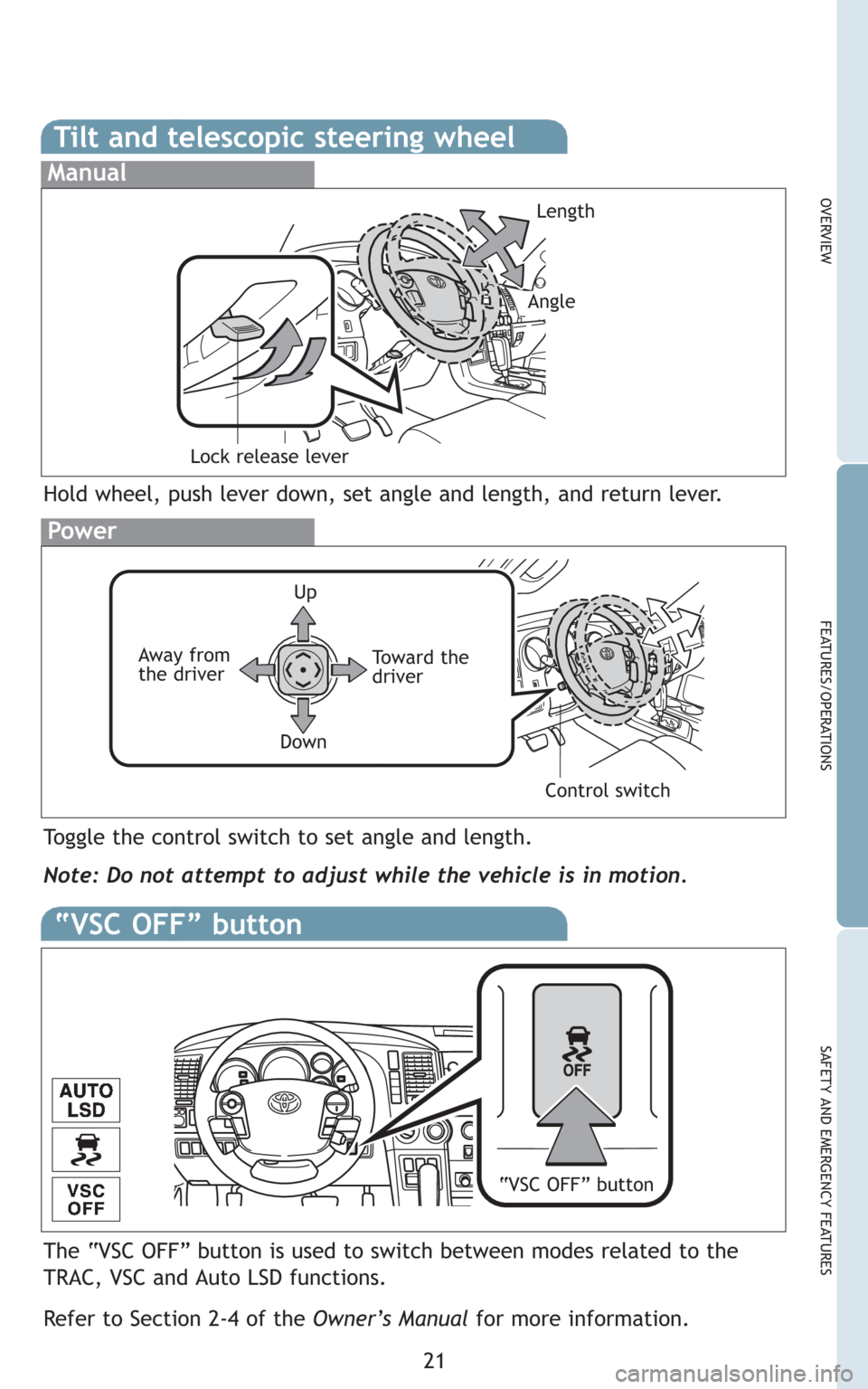

Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
Manual
Lock release lever
Angle
Toggle the control switch to set angle and length.
Note: Do not attempt to adjust while the vehicle is in motion.
Power
Up
Control switch
Away from
the driverLength
To w a r d the
driver
Down
The “VSC OFF” button is used to switch between modes related to the
TRAC, VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manualfor more information.
“VSC OFF” button
“VSC OFF” button

26
FEATURES/OPERATIONS
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor
more details.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Steering wheel switches (if equipped)
Volume control
A/C control Audio control
Temperature
selector
Auto A/C ON
A/C OFF
“”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system “OFF.”vv
Garage door opener (HomeLink®)*
(if equipped)

29
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Telephone controls (Bluetooth®)
(if equipped)
Bluetooth®technology allows you to place or receive calls without taking
your hands from the steering wheel or using a cable to connect the
compatible telephone and the system.
Refer to “Hands-free phone system (for cellular phones),” Section 3-4 in
the Owner’s Manualfor more details.
MicrophoneAudio unit
Steering wheel telephone switches
Vo l u m e
Voice command
buttonEnd call
Start call
End call
Start call
Vo l u m eVoice command
button
Ty p e BTy p e A
