window TOYOTA SEQUOIA 2008 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 10Fuel tank door release and cap 9Hood release 9Indicator symbols 6-7Instrument cluster 5Instrument panel 2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating 22-23Audio 24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders 31Door locks 28Door-Power back 19Dynamic Laser Cruise Control 27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals 17Moonroof 20Multi-information display228Parking brake 15Power outlets-12V DC 30Power outlets-115V AC 30Rear seat entertainment system 25Seat adjustments-Front 13Seat adjustments-Rear 14Seat ventilators/Heaters 23Seats-Folding second row seats 15Seats-Folding third row seats 16Seats-Head restraints 13Steering wheel switches 26Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11Telephone controls (Bluetooth®)29“VSC OFF” button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts 32Seat belts-Shoulder belt anchor 32Spare tire & tools 33
Tire Pressure Warning System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2008 Sequoia Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate control1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
115V AC Power outlet main switch
1
Power back window switch
VSC OFF switch
Ignition switch
Tire Pressure Warning System reset
Personal/Interior light main switch
Steering wheel controls
(if equipped)

4 Emergency flasher button
Multi-information display control button
1 and/or accessory meter
control button
Four-wheel drive control switch
Height control switch
1
AVS button1
“TOW/HAUL” button1
Center differential lock/unlock switch
Intuitive parking assist button1
Accessory meter
Theft deterrent system/Engine immobilizer indicator
Audio system
2
Air Conditioning controls
12V DC Power outlet
Seat heater
1and ventilator1controls
Cigarette lighter
AUX audio jack
Outside rearview mirrors
1/Back window defogger/Windshield wiper
de-icer1button
1If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
OVERVIEW
Center panel area

18
Windshield wipers & washers
Interval wipe Single wipe
Slow
Fast
Pull to wash
and wipe
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
FEATURES/OPERATIONS
Windows
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window.
Driver’s window remains operable.
Up
Down
Driver side

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

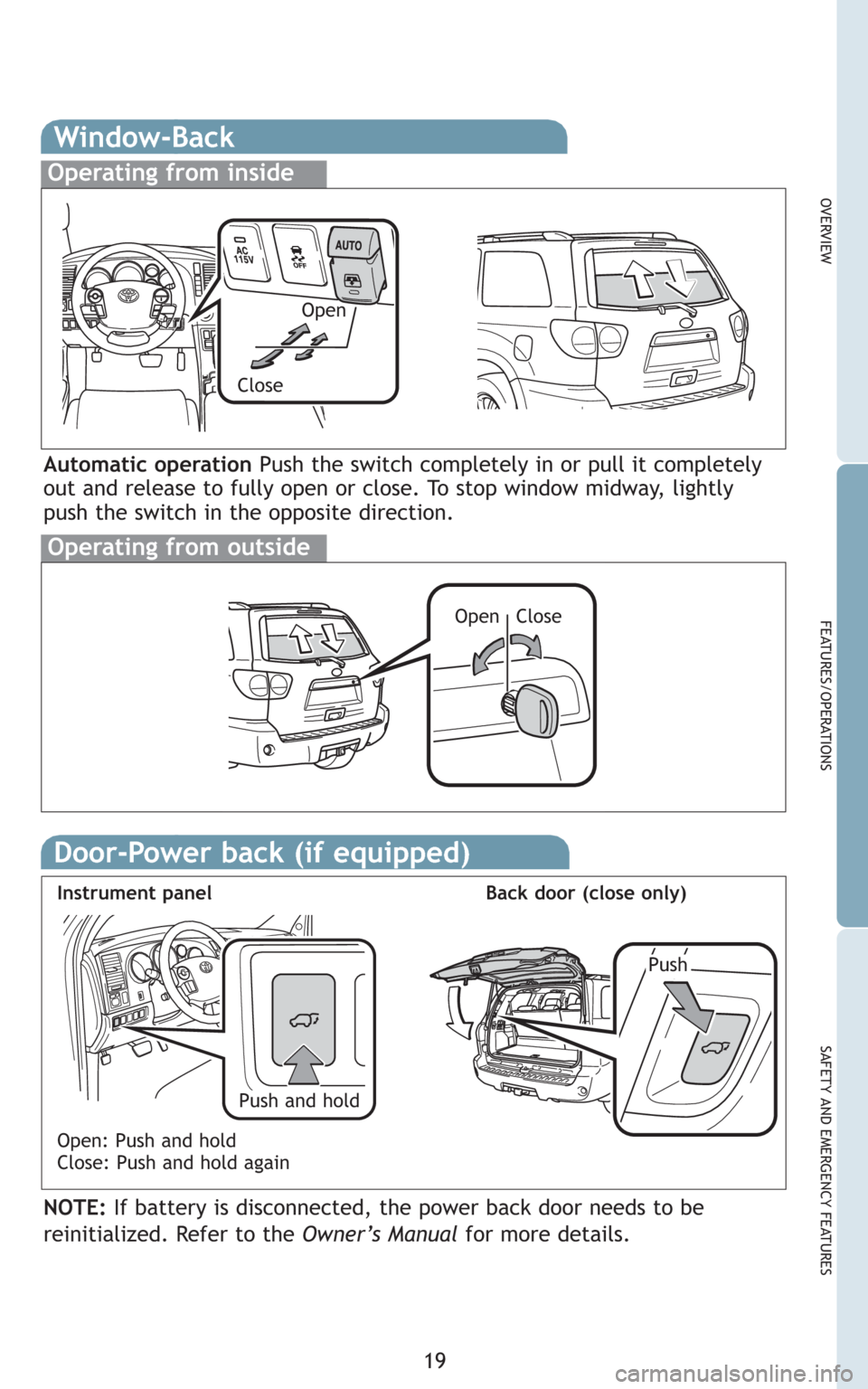

Window-Back
Operating from inside
Operating from outside
Automatic operation Push the switch completely in or pull it completely
out and release to fully open or close. To stop window midway, lightly
push the switch in the opposite direction.
Open
Close
Open Close
Door-Power back (if equipped)
Push
Push and holdBack door (close only)
Open: Push and hold
Close: Push and hold again
NOTE:If battery is disconnected, the power back door needs to be
reinitialized. Refer to the Owner’s Manualfor more details.
Instrument panel

Front Air Conditioning
Fan speed
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Air Conditioning ON/OFF
Temperature (driver side)
Windshield airflow (fresh air only)
Airflow vent
Temperature (front passenger side)
“SYNC” button
Indicator ON:Synchronize temperature settings for driver, front
passenger and rear seats.
Indicator OFF:Separate temperature settings for driver, front
passenger and rear seats.
Outside rearview mirror/Back window defogger or windshield wiper
de-icer (if equipped)
Rear Air Conditioning ON/OFF
Temperature (rear passenger area*)
Fresh or recirculated cabin air
Climate control OFF
* To change the rear seat setting, press the “REAR” button.
22
FEATURES/OPERATIONS
Air Conditioning/Heating
In “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce
window fogging.
Control panel
Display
