TOYOTA SEQUOIA 2010 2.G Quick Reference Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

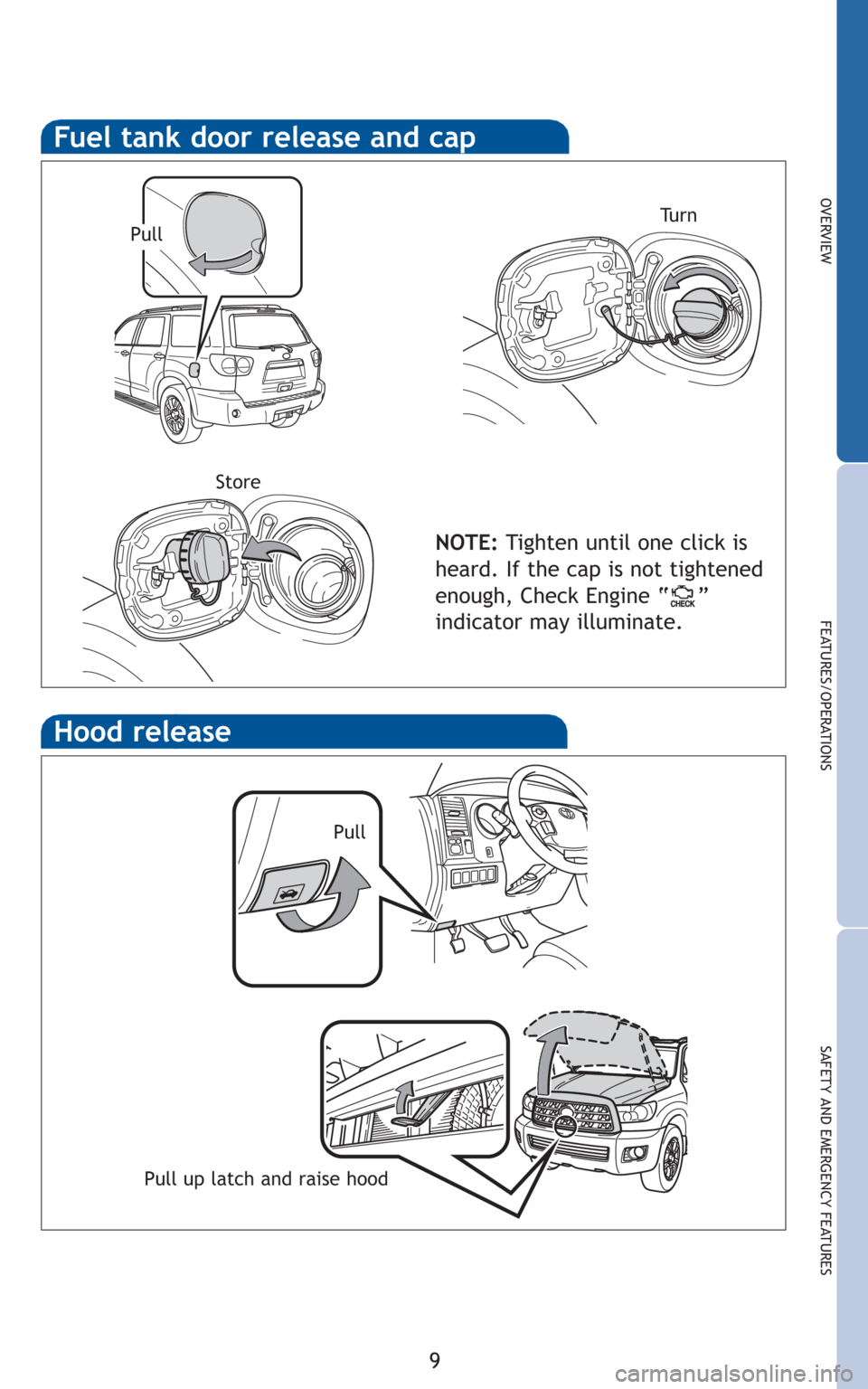

Hood release
Pull up latch and raise hood
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Tu r n
Pull
Store
Pull

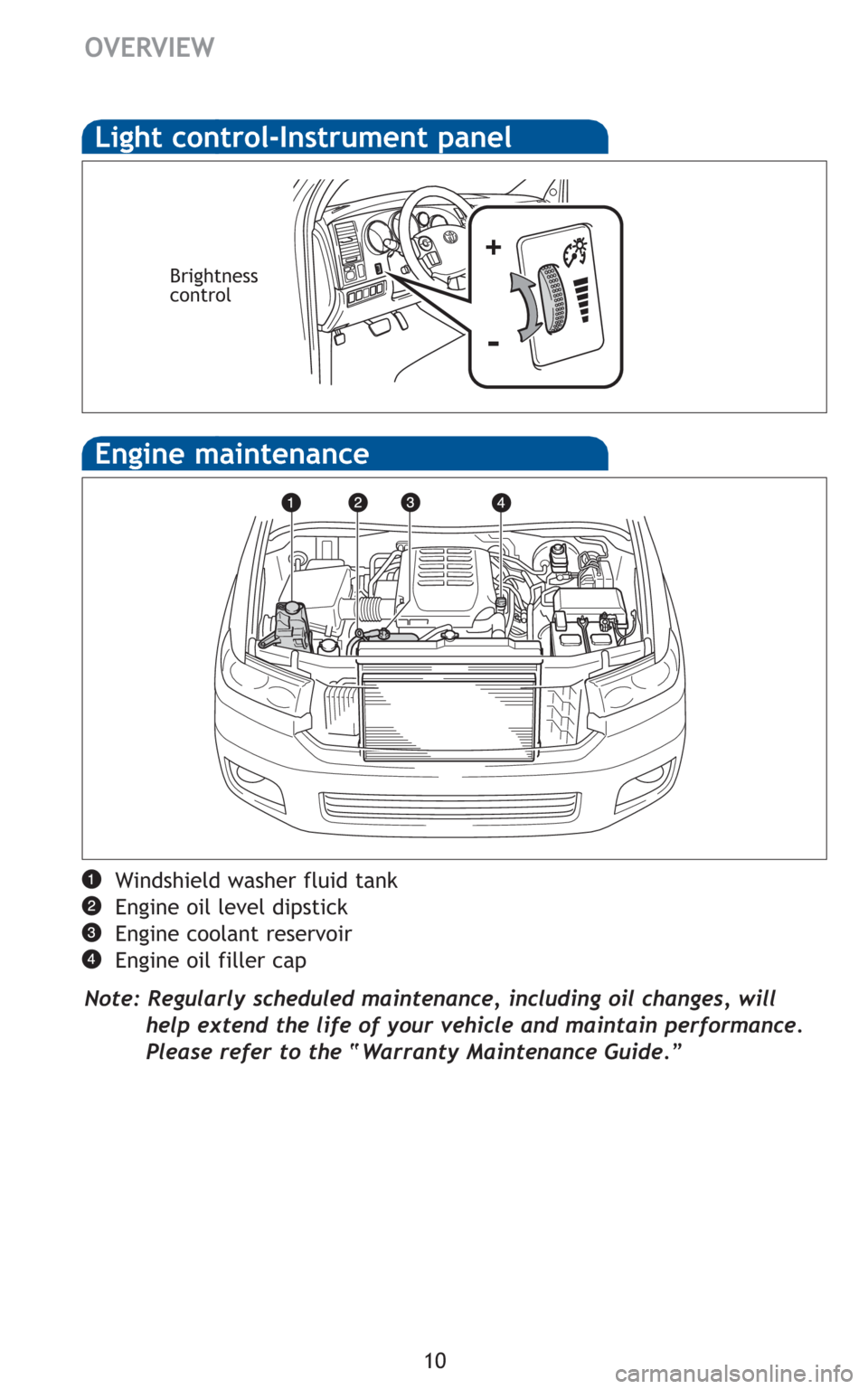

10 Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
OVERVIEW

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Automatic Transmission
* The engine switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
“S” mode
“S”“D”
“TOW/HAUL” switch (if equipped)
“TOW/HAUL” mode can be used when carrying heavy loads. As fuel
economy is reduced while in “TOW/HAUL” mode, deactivating when
driving without a load is recommended.
Refer to the Owner‘s Manualfor more details on this system before
attempting to use it.
System ON/OFF

12
FEATURES/OPERATIONS

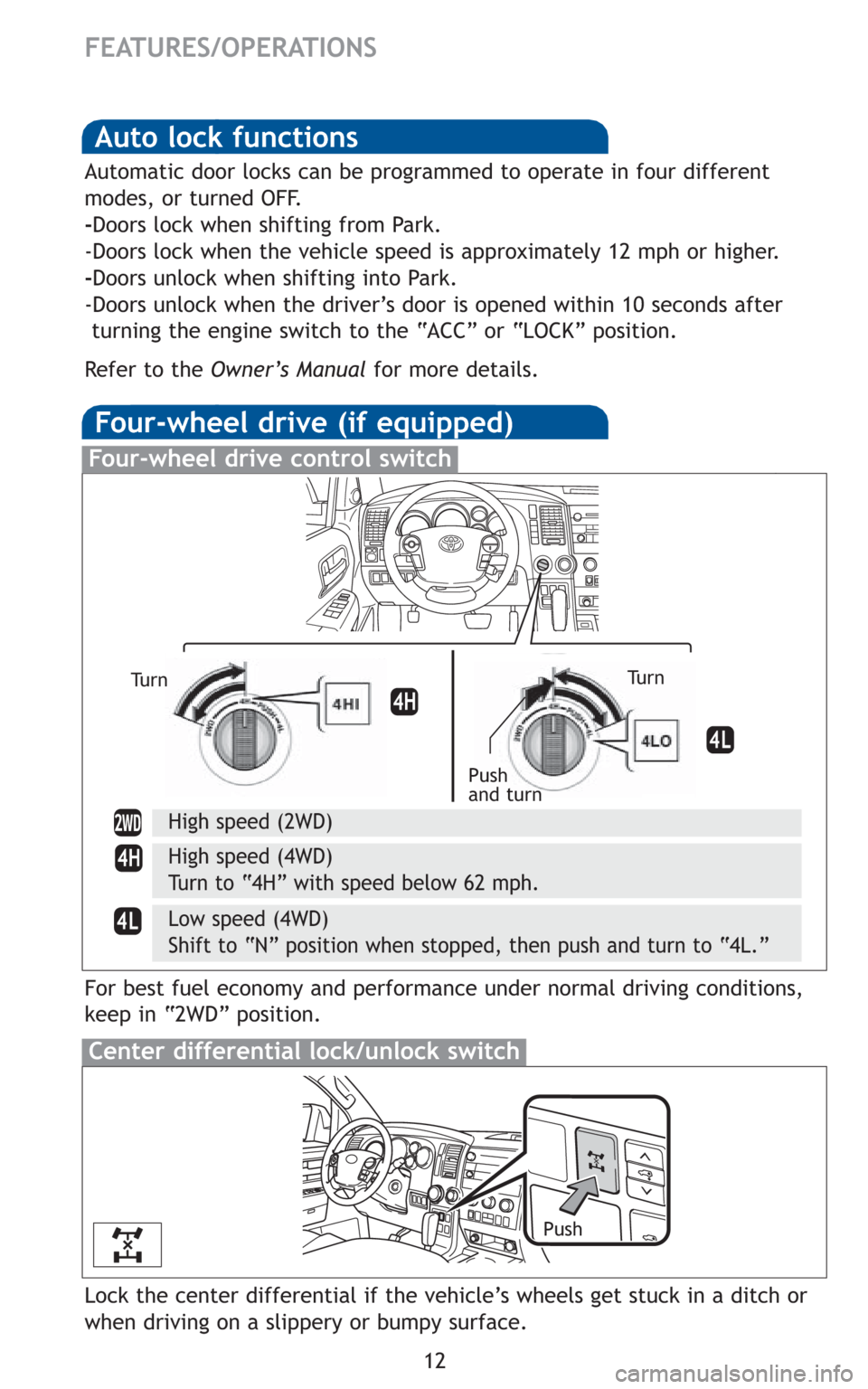

Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the engine switch to the “ACC” or “LOCK” position.
Refer to the Owner’s Manualfor more details.
Lock the center differential if the vehicle’s wheels get stuck in a ditch or
when driving on a slippery or bumpy surface.
Center differential lock/unlock switch
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”
WD
For best fuel economy and performance under normal driving conditions,
keep in “2WD” position.
Push
and turn
Tu r n
Tu r n
Push
Four-wheel drive control switch

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat adjustments-Front
Seat position (forward/backward)
Seatback angle
Seat height
Seat cushion angle
Lumbar support
Position, cushion angle and height
Leg support (if equipped)
Manual seat
Power seat
Seats-Head restraints
Front Third row
Lock release buttonLock release button
HeightAngle
Second row
Height
Height
Lock release buttonHeight

14
FEATURES/OPERATIONS

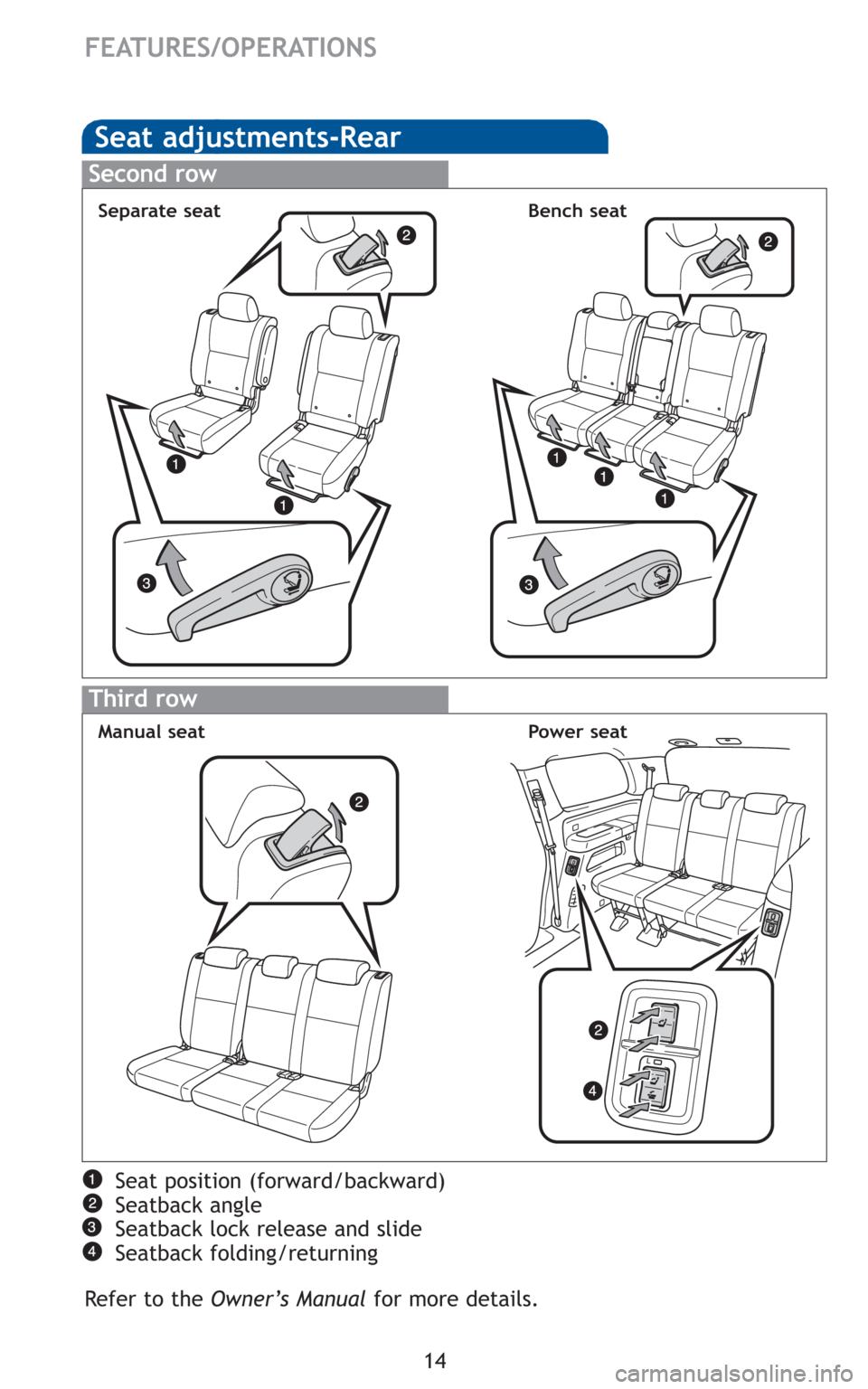

Seat adjustments-Rear
Seat position (forward/backward)
Seatback angle
Seatback lock release and slide
Seatback folding/returning
Refer to the Owner’s Manualfor more details.
Second row
Third row
Separate seat Bench seat
Manual seat Power seat

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

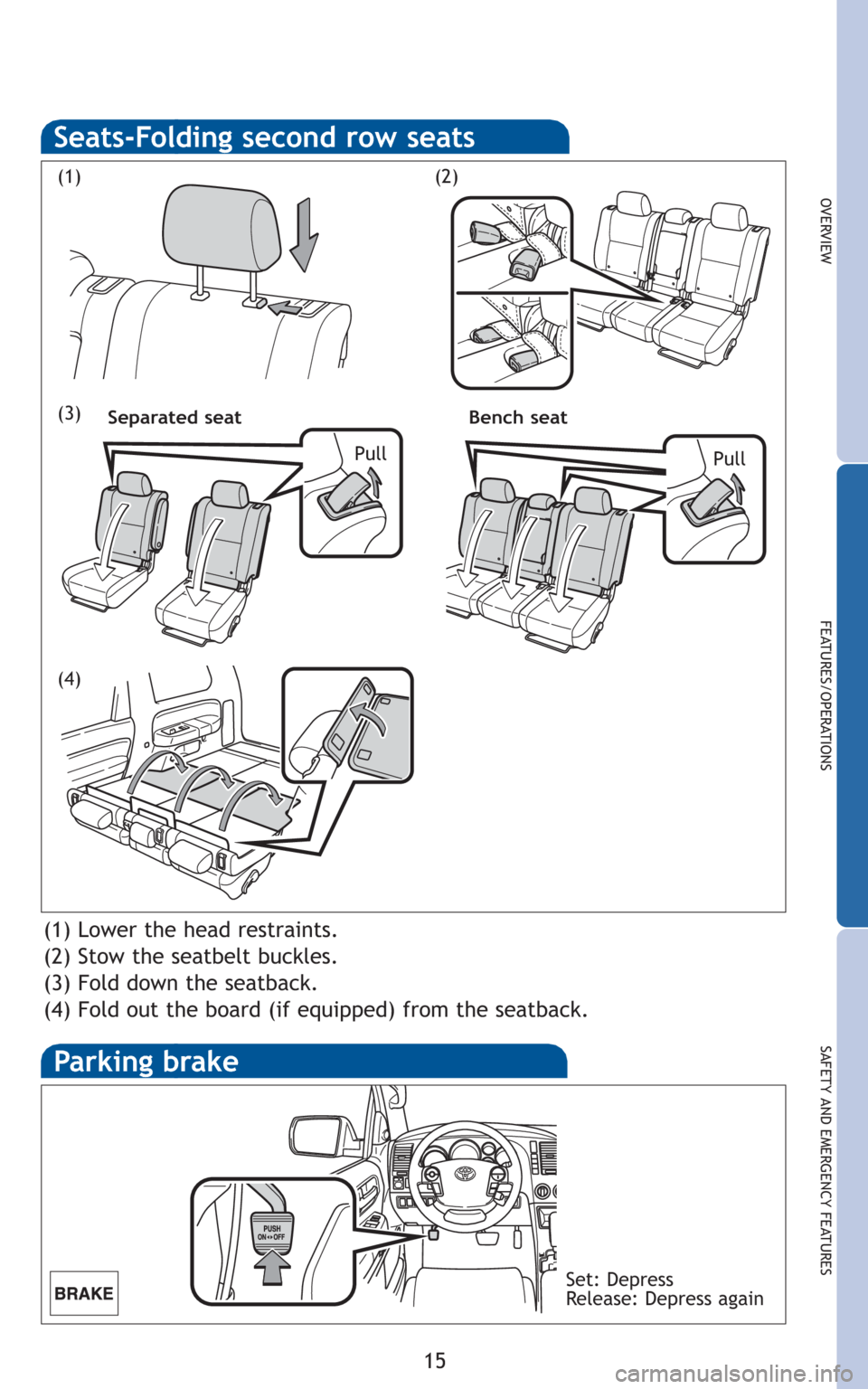

(1) Lower the head restraints.
(2) Stow the seatbelt buckles.
(3) Fold down the seatback.
(4) Fold out the board (if equipped) from the seatback.
(1)
(3)
(2)
Seats-Folding second row seats
(4)Pull
Pull
Separated seat Bench seat
Parking brake
Set: Depress
Release: Depress again

16
FEATURES/OPERATIONS
(1) Release the center seatbelt tab.
(2) Stow the center seatbelt tab.
(3) Lower the head restraint.
(4) Stow the seatbelt buckles.
(5) Fold the seats.
(1)
(5)
(3)
(2)
Seats-Folding third row seats
(4)
Power seatPull Insert
From back door side From rear door side
Power seat
Manual seatManual seat

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Turn signals
Headlights
High beamLow beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Automatically turns on the turn
signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed
after locking.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turnHigh beam flasher
Auto
Headlights
Parking lights
Tu r n

18

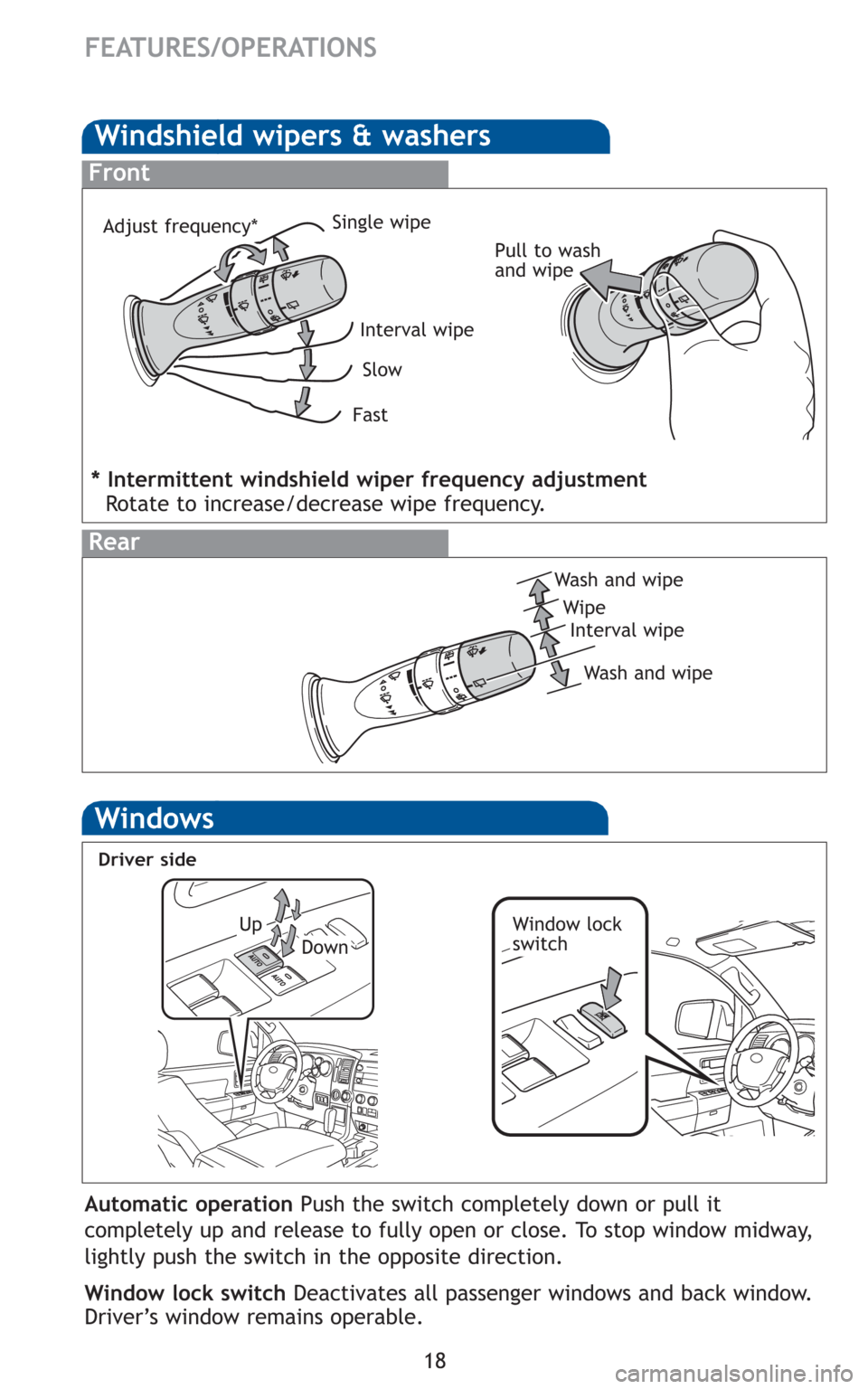

Windshield wipers & washers
Interval wipe Single wipe
Slow
FastPull to wash
and wipe
Front
Rear
Wash and wipe
WipeInterval wipe
Wash and wipe
FEATURES/OPERATIONS
Windows
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window.
Driver’s window remains operable.
UpDown
Driver side
Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
