TOYOTA SEQUOIA 2011 2.G Quick Reference Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Turn to open
Store
Pull
Light control-Instrument panel
Brightness
control
-
+
122363M1_r1.qxd 7/22/10 7:43 AM Page 9

10
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Pull up latch and raise hood
Pull
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 10

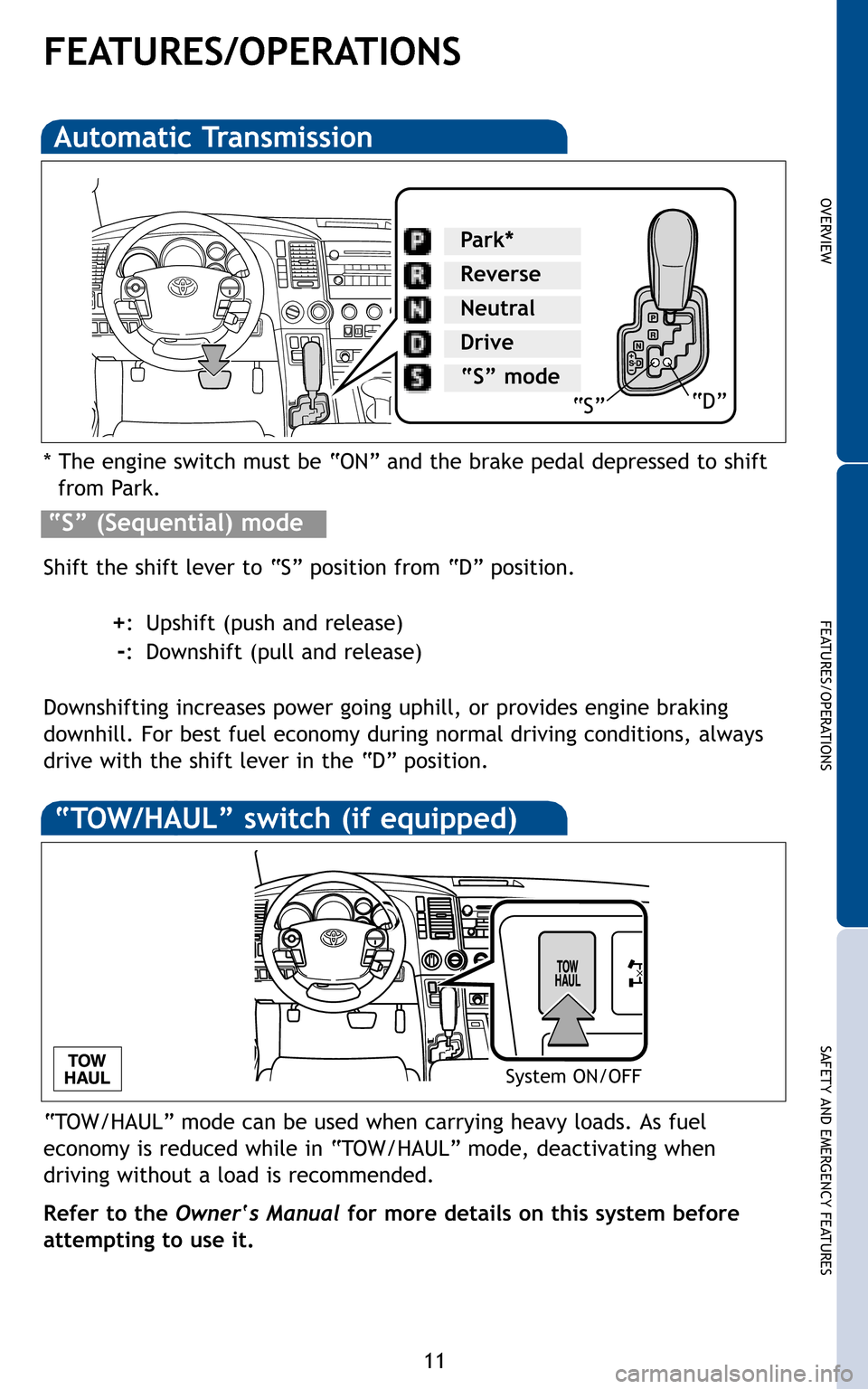

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Park*
Reverse
Neutral
Drive
“S” mode
“S”“D”
System ON/OFF
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 11

12
FEATURES/OPERATIONS
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds afterturning the engine switch to the “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
Lock the center differential if the vehicle’s wheels get stuck in a ditch or
when driving on a slippery or bumpy surface.
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”\
WD
For best fuel economy and performance under normal driving conditions,
keep in “2WD” position.
Push
and turn
Turn
Turn
Push
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 12

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Manual seat
Power seat
FrontThird row
Lock release buttonLock release button
Height
Second row
Height
Height
Lock release button Height
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 13

14
FEATURES/OPERATIONS
Separate seatBench seat
Manual seat Power seat
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
(1) Lower the head restraints.
(2) Stow the seat belt buckles.
(3) Fold down the seatback.
(4) Fold out the board (if equipped) from the seatback.
(1)
(3)
(2)
(4)Pull
Pull
Separated seat
Bench seat
Set: Depress
Release: Depress again
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 15

16
FEATURES/OPERATIONS
(1) Release the center seat belt tab.
(2) Stow the center seat belt tab.
(3) Lower the head restraint.
(4) Stow the seat belt buckles.
(5) Fold the seats.
(1)
(5)
(3)
(2)
(4)
Power seatPull
Insert
From back door side
From rear door side
Power seat
Manual seatManual seat
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
High beamLow beam
Auto
Headlights
Parking lights
Turn
Type A
Type B
Auto
Headlights
Parking lights
DRL OFF
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 17

18
Wash and wipe
WipeInterval wipe
Wash and wipe
FEATURES/OPERATIONS
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window.
Driver’s window remains operable.
UpDown
Driver side
Adjust frequency*
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 18
